Intel® 9th/8th-Gen Core™ i7/i5/i3 인비어클 팬리스 임베디드 컴퓨터, EN50155 인증, M12 PoE+ 포트 4개, DIO, CAN Bus 및 RAID

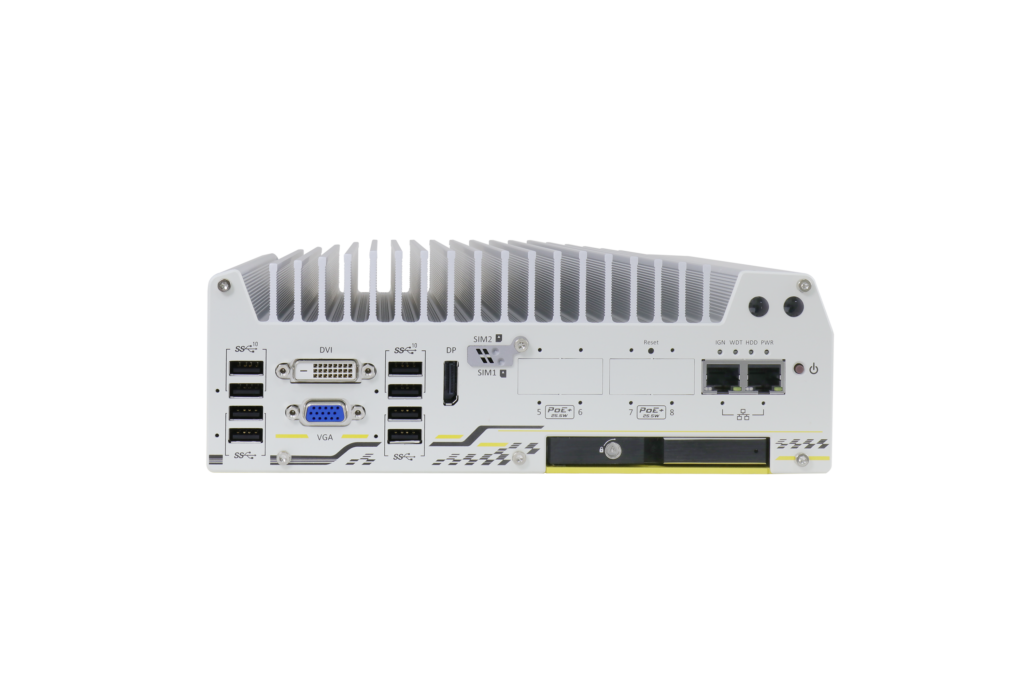

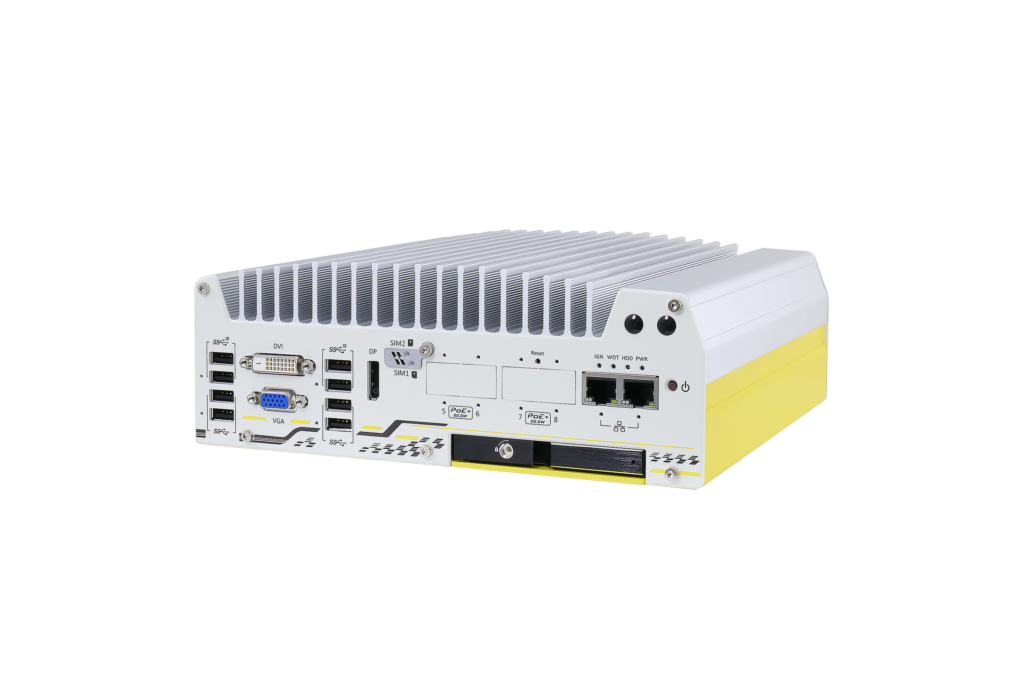

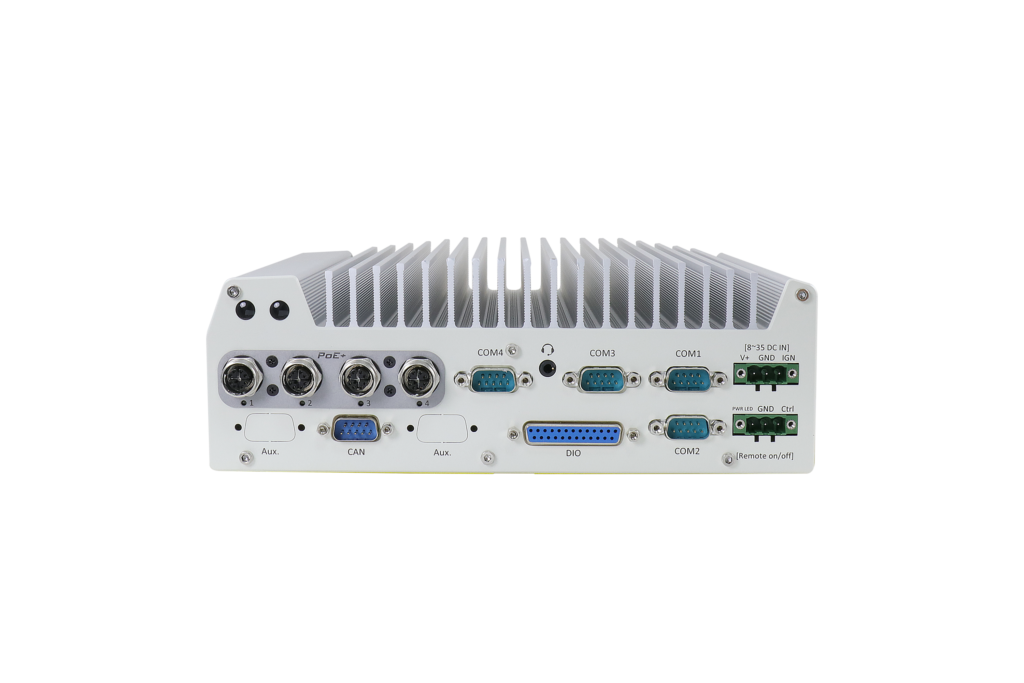

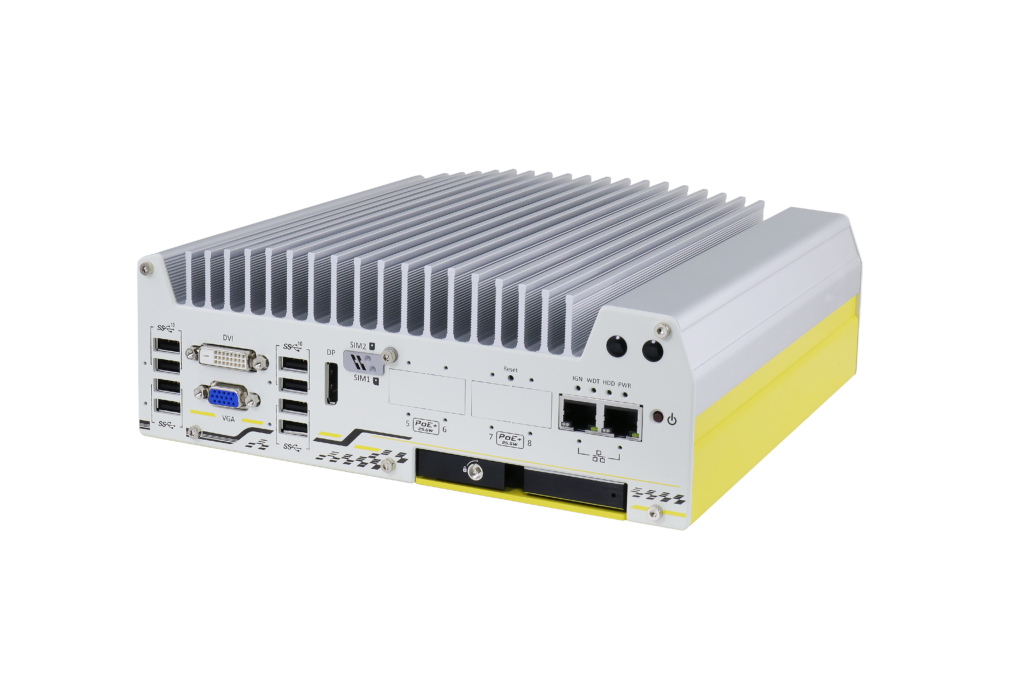

Nuvo-7100VTC Series 산업용 9/8세대 Fanless PC

Supports Intel® 9th/ 8th-Gen Core™ i7/i5/i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE+ ports via M12 or RJ45 connectors
On-board isolated CAN bus for in-vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with one hot-swappable HDD tray, supporting RAID 0/1
2x M.2 B key and 3x full-size mini-PCIe sockets
8V to 35V wide-range DC input with built-in ignition power control
E-Mark certified and EN 50155 EMC compliant

Overview

Introduction

Neousys의 Nuvo-7100VTC는 차량 애플리케이션 전용 세트 및 손쉬운 커넥티비티를 탑재한 최신 러기드 인비어클 컨트롤러로서 최대 옥타코어/ 16스레드 아키텍처의 Intel® 8th/9th-Gen Core™ 프로세서와 64GB DDR4 Memory로 구동하여 다양한 인비어클 애플리케이션을 위해 이전 세대 제품 대비 현저한 성능 향상을 달성했습니다.

산업용 Fanless PC Nuvo-7100VTC는 폭넓은 주변 디바이스 및 연결을 지원하기 위한 유연성을 제공합니다. 4개 또는 8개의 802.3at PoE+ 포트는 M12(x-coded) 커넥터로 IP 카메라와 같은 디바이스에 25W 전원을 공급하고 Giga Ethernet, USB 3.1 Gen1, USB 3.1 Gen2과 같은 I/O는 스크류-락 메커니즘 커넥터를 사용하여 충격/진동의 거친 환경에서도 견고한 연결을 보장합니다.

무선 연결은 오늘날의 인비어클 애플리케이션에 필수적인 것으로서, 커뮤니케이션을 위한 3G/4G, WIFI, GPS와 CAN Bus 무선 모듈을 2개의 M.2와 3개의 mini PCIe 소켓을 통해 동시에 활용할 수 있습니다.

더불어 미국 주요 이동통신 업체의 인증을 받은 4G 셀룰러 모듈 옵션이 있어 고객의 적용 시간과 비용을 절약할 수 있습니다.

뿐만 아니라, 산업용 Fanless PC Nuvo-7100VTC는 인비어클 커뮤니케이션을 위한 Isolated CAN Bus, 센서/액추에이터 컨트롤을 위한 Isolated DIO, 8~35V 광범위 DC 입력과 차량전원 컨트롤을 갖췄을 뿐 아니라, E-Mark와 EN50155를 만족합니다. 산업용 Fanless PC Nuvo-7100VTC는 다양한 인비어클 애플리케이션 니즈에 맞는 탁월한 안정성을 갖춘 완벽한 솔루션입니다.

Nuvo-7100VTC is the latest rugged in-vehicle controller featuring purpose-built set and effortless connectivity, powered by Intel® 9th/ 8th-Gen Core™ processors with up to 6/ 8-core architecture and 64GB DDR4 memory that gets a significant performance increase over previous generations for versatile in-vehicle applications.

Nuvo-7100VTC provides flexibility to support a range of peripherals and connections. It offers four or eight 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on computer I/Os like Gigabit Ethernet, USB3.0 and USB3.1 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity are essential for modern day in-vehicle applications and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G/ 4G, WIFI, GPS, and CAN module for communication. Additionally, there is a 4G cellular module option that is certified to work with renowned US telecommunications company which can save you implementation time and cost.

On top of all that, Nuvo-7100VTC also features isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8~35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155. The Nuvo-7100VTC is the perfect solution with extraordinary reliability for various in-vehicle application needs.

Nuvo-7100VTC 제작 블로그 링크입니다.(클릭)

#Nuvo-7100VTC #산업용PC #Fanless PC #E-Mark #EN50155 #CAN Bus #스마트 팩토리 #인비어클 #Edge AI

Specifications

System Core
Processor	Supporting Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) – Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE – Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE – Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE
Chipset	Intel® Q370 platform controller hub
Graphics	Integrated Intel® HD Graphics 630
Memory	Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+	4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 – M12 x-coded connector (Nuvo-7100VTC); – RJ45 connector (Nuvo-7104VTC) 8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 – RJ45 connector (Nuvo-7108VTC)
CAN	1x isolated CAN 2.0 port
Isolated DIO	4x isolated DI and 4x isolated DO
USB	4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports
Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Audio	1x Mic-in and 1x speaker-out

Storage Interface
SATA HDD	1x hot-swappable HDD tray for 2.5″ HDD/ SSD installation 1x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
mSATA	1x full-size mSATA port (mux with mini-PCIe)
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation

Expansion Bus
Mini PCI-E	1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2	2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35V DC input (IGN/ GND/ V+)
Remote Ctrl.& Status Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 84 mm (H)
Weight	3.5 Kg
Mounting	Wall-mount with damping brackets (Standard) or DIN-rail mount (optional)

Environmental
Operating Temperature	-40°C ~ 70°C **
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
EMC	EN 50155, E-Mark CE/FCC Class A, according to EN 55022 & EN 55024

* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required

LIST

Power Backup Modules:

Ordering Information

Nuvo-7100VTC

Intel® 8th-Gen Core™ in-vehicle controller with 4x M12 PoE+ Ports, DIO, CAN bus and RAID

Nuvo-7104VTC

Intel® 8th-Gen Core™ in-vehicle controller with 4x RJ45 PoE+ Ports, DIO, CAN bus and RAID

Nuvo-7108VTC

Intel® 8th-Gen Core™ in-vehicle controller with 8x RJ45 PoE+ Ports, DIO, CAN bus and RAID

Optional Accessories

Cbl-M12X8M-RJ45-500CM

M12 (8-pole-X-coded) to RJ45, CAT6, length : 500CM

Cbl-M12X8M-RJ45-1000CM

M12 (8-pole-X-coded) to RJ45, CAT6, length : 1000CM

PA-120W-OW

120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C.
