컴팩트한 광범위 작동온도의 Edge AI GPU 컴퓨팅 플랫폼, 75W NVIDIA® GPU 및 Intel® 6th-Gen Core™ 프로세서 지원

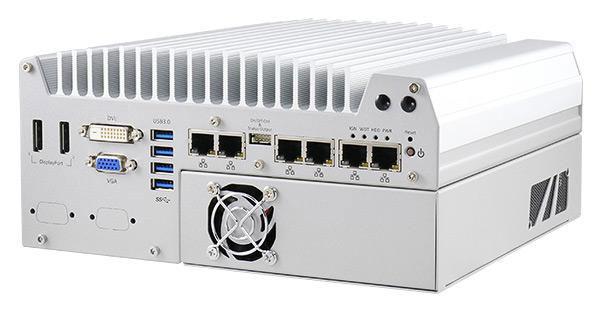

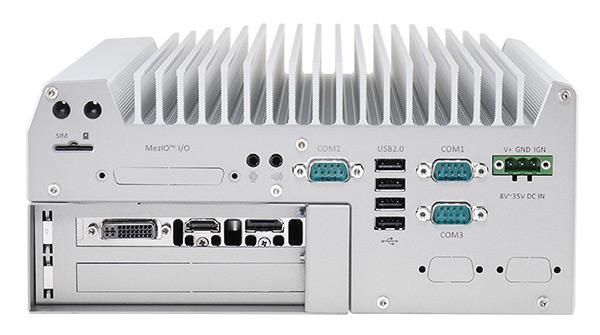

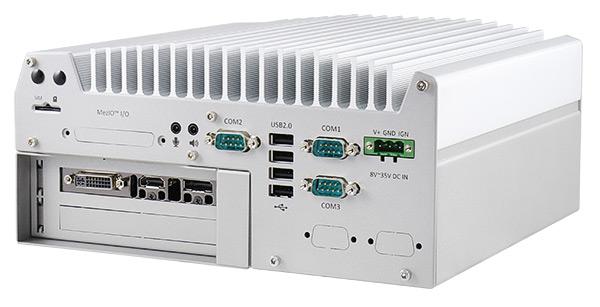

Nuvo-5095GC GPU Computing Edge AI 산업용 PC

Supports nVidia® GPU with up to 75W TDP
Patented thermal design to allow -25°C to 60°C wide temperature system operation
Supports 6th-Gen Intel® Core™ i7/i5 LGA1151 CPU
6x Gigabit Ethenet ports
Supports 9.5 kB jumbo frame
Up to 32 GB, DDR4-2133 SODIMM
240 mm x 225 mm x 111 mm compact footprint
Compatible with MezIO™ interface for function expansion
Accommodates two 2.5" SATA HDD/SSD with RAID 0/1 support
Patented ventilation hole* for graphic card

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-5095GC는 산업용 컴퓨터의 새로운 장을 열었습니다. CUDA 컴퓨팅, 자율, Edge AI 추론 및 가상 현실의 새로운 애플리케이션을 타깃으로 하는 최초의 내장 컨트롤러로써, 산업용 Fanless PC Nuvo-5095GC는 작고 신뢰할 수 있으며, 강력한 최첨단 AI GPU 컴퓨팅 플랫폼에 필요한 모든 기능을 갖추고 있습니다.

75W NVIDIA® GPU를 지원하는 산업용 Fanless PC Nuvo-5095GC는 연산/그래픽 운영을 위한 엄청난 컴퓨팅 성능을 전달하기 위해서 768 CUDA 코어를 보요하고 있습니다. Neousys의 특허된 카세트 기술과 혁신적인 열 설계는 GPU에 의해서 생성된 열을 효과적으로 소멸시키는데 도움이 되고, 따라서 이 소형 시스템은 100% GPU 로드 아래 60°C에서 안정적으로 작동할 수 있습니다.

산업용 Fanless PC Nuvo-5095GC는 35W/65W 6세대 코어 프로세서와 최대 32GB DDR 메모리를 지원하는 인텔 스카이레이크 플랫폼을 기반으로 합니다. 그리고 외부 장치에 연결할 수 있는 GbE USB 3.0과 COM 포트와 같이 다양한 I/O 기능을 제공합니다. 이 모든 특징들은 240 x 225 x 110 mm의 작은 공간에 통합되어 있습니다. 빠르게 성장하는 Edge AI GPU 컴퓨팅 애플리케이션을 위한, 산업용 Fanless PC Nuvo-5095GC는 기존의 산업용 컴퓨터를 훨씬 능가하는 성능을 제공하기 위해서 CPU와 GPU를 통합하여 최초의 산업용, 소형 및 견고한 플랫폼을 보여줍니다.

Nuvo-5095GC opens a new chapter for industrial computers. As the first embedded controller targeted at emerging applications of CUDA computing, Autonomous, Edge AI inference and virtual reality, Nuvo-5095GC has all the features required for a compact, reliable and powerful edge AI GPU computing platform.

Supporting 75W nVidia® GPU, Nuvo-5095GC possesses 768 CUDA cores to deliver tremendous computing power for arithmetic/graphics operations. Neousys’ patented Cassette technology and an innovative thermal design help to effectively dissipate heat generated by the GPU, thus making this compact system capable of operating reliably at 60°C under 100% GPU load.

Nuvo-5095GC is based on Intel® Skylake platform, supporting 35W/65W 6th-Gen ® Core™ processors and up to 32GB of DDR4 memory. It offers rich I/O functions, such as GbE, USB 3.0 and COM ports to connect to external devices. All these features are integrated into a compact, 240 x 225 x 110 mm footprint. For fast-growing GPU-computing applications, Nuvo-5095GC presents the first industrial-grade, compact and rugged platform incorporating CPU and GPU to offer performances far beyond traditional industrial computers.

#Nuvo-5095GC #산업용PC #Fanless PC #CUDA #NVIDIA #스마트 팩토리 #자율주행 #Edge AI

Specifications

System Core
Processor	Supports 6th-Gen Intel® Core™ LGA1151 CPU – Intel® Core™ i7-6700 (8M Cache,3.4/4.0 GHz, 65W TDP) – Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP) – Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP) – Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)
Chipset	Intel® Q170 Platform Controller Hub
Graphics	NVIDIA® GeForce® GTX 1050* GPU (75W TDP), or Integrated Intel® HD 530/510 Controller
Memory	Up to 32 GB DDR4-2133 SDRAM (dual SO-DIMM sockets)
AMT	Supports AMT 11.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	6x Gigabit Ethernet ports, one via Intel® I219 and five via I210
USB	4x USB 3.1 Gen1 ports via native XHCI controller 4x USB 2.0 ports
Video Port (Integrated Graphics)	1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution
Serial Port	2x software-programmable RS-232/422/485 port (COM1 & COM2) 1x RS-232 port (COM3)
Audio	1x Mic-in and 1x Speaker-out

Storage Interface
SATA HDD	2x internal SATA port fors 2.5″ HDD/SSD installation, supporting RAID 0/1
mSATA	1x full-size mSATA port (mux with mini-PCIe)

Expansion Bus
Mini PCI-E	1x internal mini PCI Express socket with front-accessible SIM socket 1x internal mini PCI Express socket with internal SIM socket (mux with mSATA)
Expandable I/O	1x MezIO™ expansion port for Neousys’ MezIO™ modules

Power Supply & Ignition Control
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & Status Output	1x 10-pin (2×5) wafer connector for remote on/off control and status LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 111 mm (H)
Weight	4.8 kg (including CPU, GPU, memory and HDD)
Mounting	Wall-mount by mounting bracket

Environmental
Operating Temperature	with i7-6700TE, i5-6500TE (35W TDP) -25°C ~ 60°C with i7-6700, i5-6500 (65W TDP) -25°C ~ 60°C /* (configured as 35W CPU mode) -25°C ~ 50°C /*** (configured as 65W CPU mode)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMC	CE/FCC Class A, according to EN 55022 & EN 55024

** The high operating temperature specified here is defined under the condition of 100% GPU loading applied using TessMark x64 GPU stress test. For detail testing criteria, please contact Neousys Technology
***For sub-zero operating temperature, a wide temperature range HDD drive or Solid State Disk (SSD) is required.

LIST

Ordering Information

Nuvo-5095GC

Intel® 6th-Gen Core™ GPU-computing platform with 6x GbE and MezIO™, supporting selected nVidia® 75W GPU

Option of 802.3at PoE+ for GbE port 3 ~ port 6

Accessory/Option

PA-160W-OW

160W AC/DC power adapter 20V/8A;18AWGx4C/120cm, cord end terminals for terminal block, operating temperature : -30 to 70 °C.

Fan-40

Fan assembly for 2-slot Cassette, 40x40x10 mm
