임베디드 PC

Nuvo-7200VTC 산업용컴퓨터, 차량용, 기차용 팬리스컴퓨터

Intel® 9th/8th-Gen Core™ 인비어클 컨트롤러, PoE+ 포트 4개 또는 8개, 싱글 슬롯 PCIe 카세트

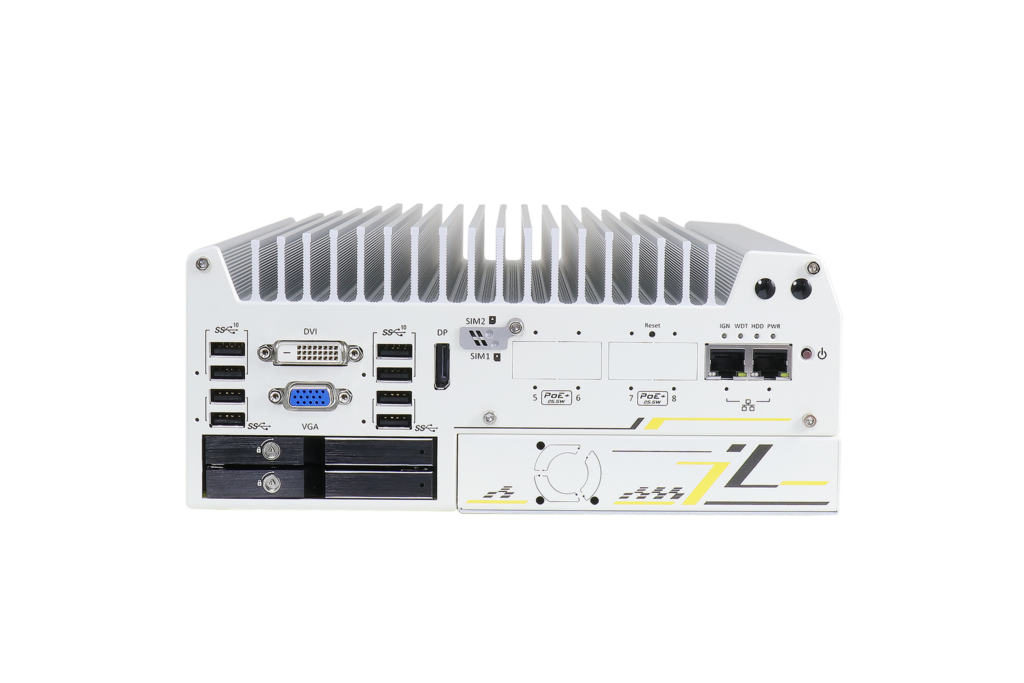

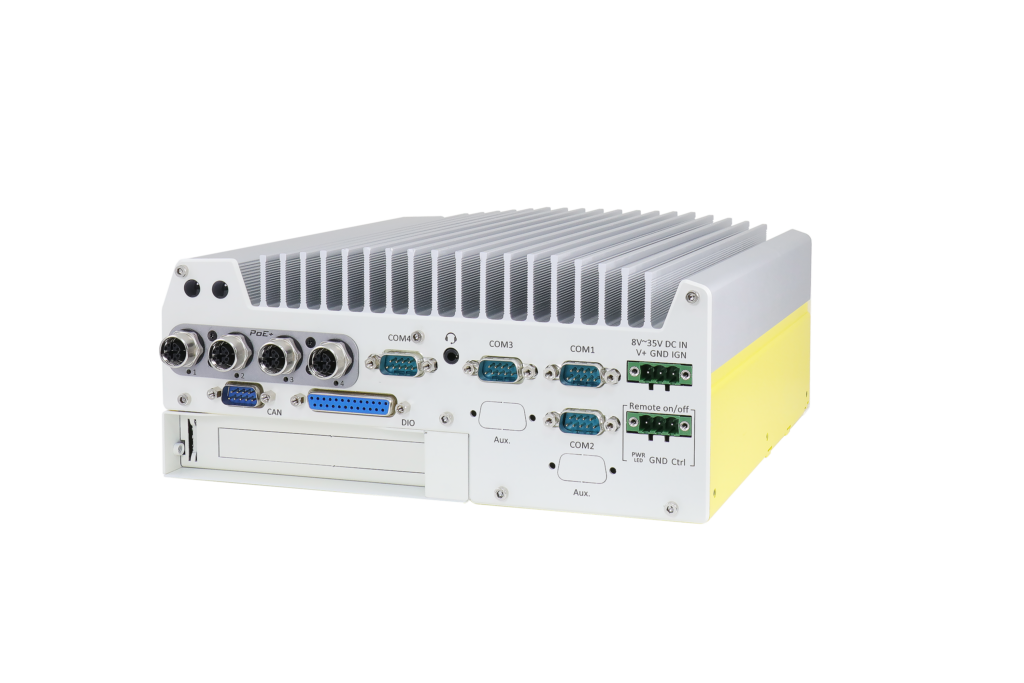

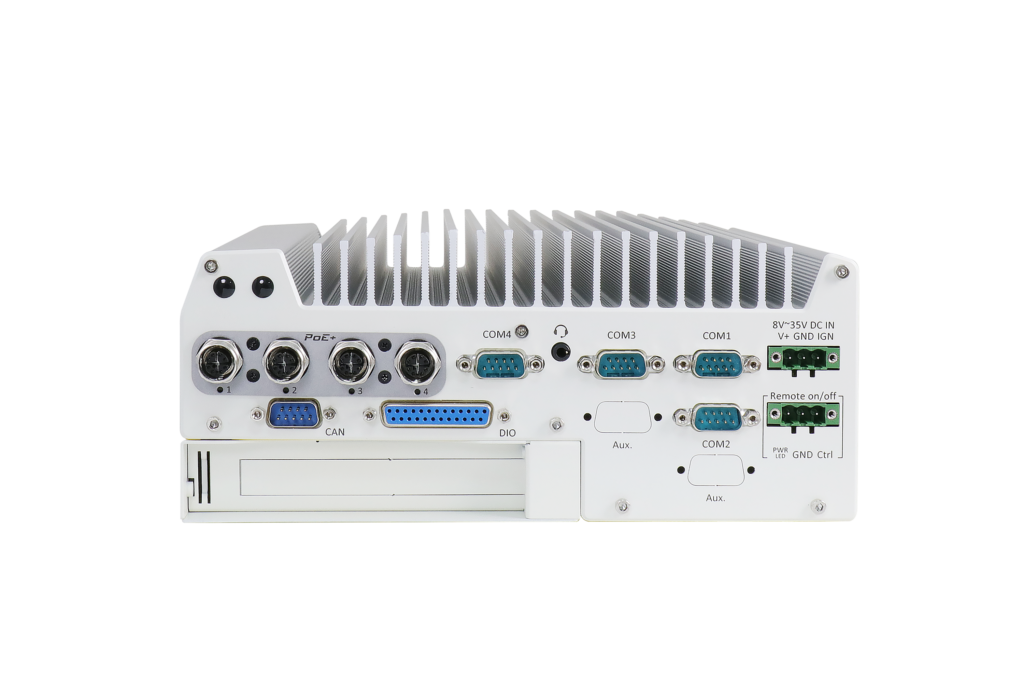

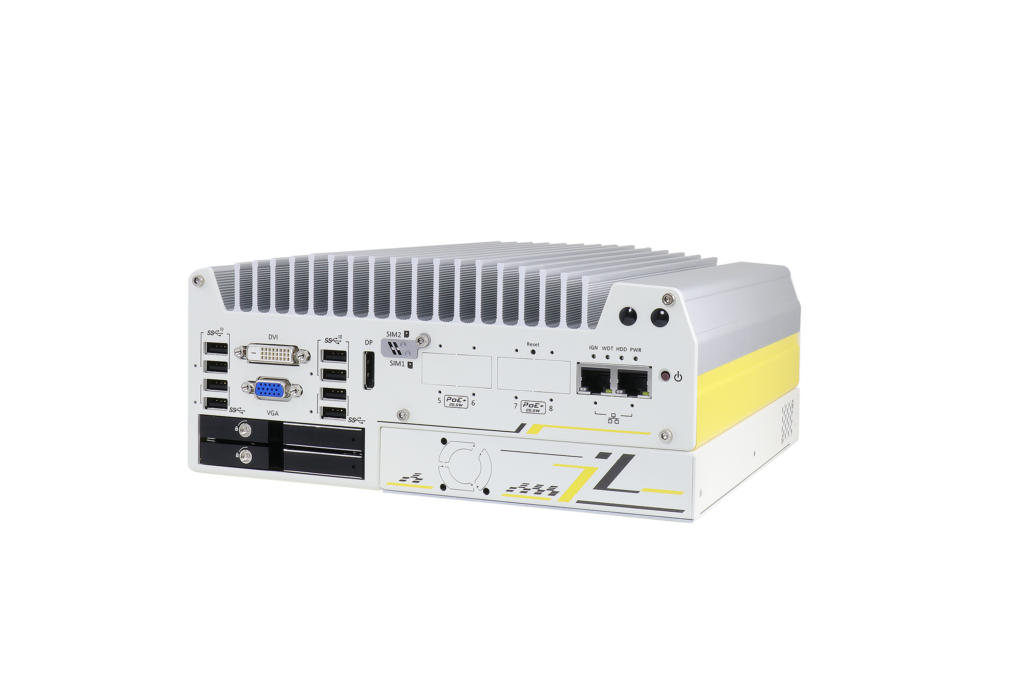

Nuvo-7200VTC 산업용컴퓨터, 차량용, 기차용 팬리스컴퓨터

  • Supports Intel® 8th/ 9th Core™ i7/ i5/ i3 LGA1151 socket-type CPU
  • 4x or 8x 802.3at Gigabit PoE+ ports via M12 or RJ45 connectors
  • Onboard isolated CAN bus for in-vehicle communication
  • 4-CH isolated DI and 4-CH isolated DO
  • 2x hot-swappable SATA HDD trays, supporting RAID 0/1
  • 2x M.2 B key and 3x full-size mini-PCIe sockets
  • 8~35V wide-range DC input with built-in ignition power control
  • Patented Cassette for PCIe add-on card accommodation*
  • E-Mark and EN 50155 certificate
Overview
Introduction



Neousys의 Nuvo-7200VTC는 애플리케이션 카드 추가를 위한 x16 PCIe 슬롯이 장착된 특허받은 카세트 모듈을 특징으로 하는 견고한 차내 컨트롤러입니다. 최대 8-코어/8-스레드 및 64GB DDR4 메모리를 갖춘 8/9세대 코어 프로세서에 의해 움직이는이 시스템은 차내 애플리케이션용으로 이상적입니다. 산업용 Fanless PC Nuvo-7200VTC는 여러가지의 주변창치, 연결장치 그리고 확장 유연성을 제공합니다. 이 제품은 802.3at PoE+ 포트가 4개 또는 8개가 있어, M12(x-코드 연결 장치)와 기가비트 이더넷과 같은 I/O의 커넥터 스큐류 잠금 메커니즘을 사용한 IP 카메라와 같은 연결된 장치에 25W 전원을 공급합니다; USB3.0 및 USB3.1을 통해 충격/진동 환경에서의 탁월한 견고성을 보장합니다.

이 제품은 3G/4G, WIFI, GPS 그리고 무선 통신을 위한 CAN 모듈 등을 설치하기 위해 2개의 M.2와 3개의 미니 PCIe 소켓이 있습니다. Neousys는 또한 구현 시간과 비용을 절약할 수 있는 미국의 유명 통신사와 협력할 수 있도록 인증된 4G 무선 모듈 옵션을 제공합니다.

그 외에도, 특허받은 카세트 디자인은 차내 애플리케이션을 훨씬 더 유연하게 사용할 수 있도록 애드온 카드에 PCIe 슬롯을 하나 추가로 제공합니다. 산업용 Fanless PC Nuvo-7200VTC 또한 핫 스왑이 가능한 SATA HDD 트레이 2개, 차내 통신을 위한 격리된 CAN 버스, 센서/액츄에이터 제어를 위한 격리된 DIO, 점화 전원 제어를 통한 8~35V의 광범위 DC 입력 및 E-Mark와 EN 50155를 준수하는것을 특징으로 합니다. 산업용 Fanless PC Nuvo7200VTC는 다양한 차내 애플리케이션에서 유연하고 신뢰할 수 있는 솔루션입니다.

Nuvo-7200VTC is a rugged in-vehicle controller featuring Neousys’ patented Cassette module with a x16 PCIe slot for add-on application card flexibility. Powered by Intel® 9th/ 8th-Gen Core™ processors with up to 8-core/ 8-thread and 64GB DDR4 memory, the system is ideal for advance in-vehicle applications. Nuvo-7200VTC offers an assortment of peripherals, connections and expansion flexibility. It has four or eight 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on I/Os like Gigabit Ethernet, USB3.0 and USB3.1 to guarantee extreme rugged connectivity in shock/ vibration environments.

There are two M.2 and three mini-PCIe sockets to install 3G/ 4G, WIFI, GPS, and CAN module for wireless communication. Neousys also offers a 4G cellular module option certified to work with renowned US telecommunications company which can save you implementation time and cost.

On top of all that, Neousys’ patented Cassette design offers one additional PCIe slot for an add-on card, making it that much more flexible for invehicle applications. Nuvo-7200VTC also features two hot-swappable SATA HDD trays, isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8~35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155. The Nuvo7200VTC is a flexible and reliable solution for various in-vehicle applications.

Nuvo-7208VTC 제작 블로그 링크입니다.(클릭)

#Nuvo-7200VTC #산업용PC #Fanless PC #E-Mark #CAN Bus #스마트 팩토리 #자율주행 #Edge AI

Specifications
System Core
Processor Supports Intel® 8th/9th-Gen Coffee Lake CPU (LGA1151 socket, 35W TDP)
– Intel® Core™ i7-8700T/ i7-9700TE
– Intel® Core™ i5-8500T/ i5-9500TE
– Intel® Core™ i3-8100T/ i3-9100TE
Chipset Intel® Q370 platform controller hub
Graphics Integrated Intel® HD Graphics 630
Memory Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT Supports AMT 12.0
TPM Supports TPM 2.0



I/O Interface
Ethernet 2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+ 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
– M12 x-coded connector (Nuvo-7200VTC);
– RJ45 connector (Nuvo-7204VTC)8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
– RJ45 connector (Nuvo-7208VTC)
CAN 1x isolated CAN 2.0 port
Isolated DIO 4x isolated DI and 4x isolated DO
USB 4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio 1x Mic-in and 1x speaker-out



Storage Interface
SATA HDD 2x hot-swappable HDD tray for 2.5″ HDD/ SSD installation
mSATA 1x full-size mSATA port (mux with mini-PCIe)
M.2 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation



Expansion Bus
PCI Express 1x PCIe x16 slot @Gen3, 16-lanes PCIe signals in Cassette
Mini PCI-E 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2 2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35V DC input (IGN/ GND/ V+)
Remote Ctrl.&
Status Output		 1x 3-pin pluggable terminal block for remote control and PWR LED output



Mechanical
Dimension 240 mm (W) x 225 mm (D) x 103mm (H)
Weight 3.7 kg
Mounting Neousys’ patented damping bracket (standard) or optional DIN-rail mounting



Environmental
Operating Temperature -40°C ~ 70°C **
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC EN 50155 (Nuvo-7200VTC),
E-Mark (Nuvo-7208VTC)
CE/FCC Class A, according to EN 55022 & EN 55024



* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.



LIST
Ordering Information
Nuvo-7200VTC

Intel® 8th/ 9th-Gen Core™ in-vehicle controller with 4x M12 PoE+ ports, DIO, CAN bus and RAID, single-slot PCI Express Cassette

Nuvo-7204VTC

Intel® 8th/ 9th-Gen Core™ in-vehicle controller with 4x RJ45 PoE+ ports, DIO, CAN bus and RAID, single-slot PCI Express Cassette

Nuvo-7208VTC

Intel® 8th/9th-Gen Core™ in-vehicle controller with 8x RJ45 PoE+ ports, DIO, CAN bus and RAID, single-slot PCI Express Cassette

Optional Accessories
Cbl-M12X8M-RJ45-500CM

M12 (8-pole-X-coded) to RJ45, CAT6, length : 500CM

Cbl-M12X8M-RJ45-1000CM

M12 (8-pole-X-coded) to RJ45, CAT6, length : 1000CM

PA-120W-OW

120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C.
