4600 w.s 독립형 지능형 슈퍼커패시터 기반 무정전 전원 백업 모듈

PB-4600J-SA Series 독립형 전원 백업 모듈

Universal standalone power backup module compatible with all box-PCs
Supercapacitor-based, -25 to 65°C wide temperature operation
4600 watt-second energy capacity
Maximum 100W output power for the connected back-end system
Over 10 years lifespan, and 500,000 charging/ discharging cycles
Patented CAP energy management technology*
Extending back-up time in the event of an unforeseen power outage
Monitoring energy and power consumption to extend operation time for safe system shutdown
Versatile operating mode
Normal backup mode
Ignition control mode for standard box-PC and in-vehicle controller
EN50155 certificate
*R.O.C. Patent No. I598820

Overview

Introduction

Neousys의 PB-4600J-SA는 정전으로부터 박스 PC를 보호할 수 있는 독립형 전원 백업 모듈입니다. 최신의 슈퍼커패시터 기술을 활용해 -25~65°C의 혹한 환경에서 동작할 수 있으며, 10년 이상 지속되는 내구성이 매우 높습니다.

산업용 Fanless PC PB-4600J-SA는 370F/ 3.0V 슈퍼캐피터 4개로 구성되어 있으며, 2.7V보다 수명이 훨씬 길며 4600와트 초의 에너지를 저장하여 시스템 백업에 소요되는 운영 시간을 추가로 연장합니다. 백엔드 시스템에 180W의 전력을 안정적으로 공급할 수 있으며, 드라이버/소프트웨어를 추가로 설치하지 않고도 부팅과 종료를 자동으로 관리할 수 있습니다. UPS와 같은 전원 백업 모드 외에도 차내 사용을 위한 2가지 고급 점화 제어 모드를 제공합니다.

산업용 Fanless PC PB-4600J-SA는 표준 박스-PC 또는 차내 컨트롤러와 함께 작동하여 안정적인 전원 공급을 제공하고 IGN 신호 입력에 따라 사용자가 구성할 수 있는 전원 켜기/끄기 지연을 실행할 수 있습니다.

다양한 모드, 자동 정지 제어 및 최대 180W의 출력 전력을 갖춘 산업용 Fanless PC PB-4600J-SA는 대부분의 기성품 박스 PC와 함께 작동할 수 있습니다. 그리고 산업용 Fanless PC PB-4600J-SA는 유지관리 없는 에너지 스토리지 및 무정전 전원 공급과 같은 특성을 통해 열악한 산업 환경에서 정전 시 연결된 백엔드 시스템의 데이터 손실을 방지할 수 있습니다.

PB-4600J-SA is a standalone power backup module that can protect your box-PC against power outages. Utilizing state-of-the-art supercapacitor technology, it can operate in harsh environments from -25 to 65°C, and have extremely high durability lasting over 10 years.

PB-4600J-SA is composed of four 370F/ 3.0V supercapacitors, which offers much longer lifespan than its 2.7V counterpart, and stores 4600 watt-second energy to offer extra extended operation time to backup your system. Thanks to Neousys’ patented CAP energy management technology, It can reliably supply 180W power to the back-end system and automatically manage boot and shutdown without installing additional drivers/ software. In addition to UPS-like power backup mode, it also offers two advanced ignition control modes for in-vehicle usage.

PB-4600J-SA can work with either standard box-PC or in-vehicle controller to provide stable power supply and execute user-configurable power-on/ power-off delay according to IGN signal input.

Featuring various modes, automatic shutdown control and up to 180W output power, PB-4600J-SA can work with most off-the-shelf box-PCs. And with properties such as maintenance-free energy storage and uninterruptible power supply, PB-4600J-SA can prevent the connected back-end system from data loss during power outage in harsh industrial environments!

#PB-4600J-SA #산업용PC #Fanless PC #전원백업모듈 #스마트 팩토리 #슈퍼커패시터 #Edge AI

Specifications

Supercapacitor Configuration
Composition	4x 370F, 3.0V supercapacitors
Capacity	4600 watt-second
Expected lifespan	>10 years*
Cycle life	500,000 charging/ discharging cycles*

Power Specification

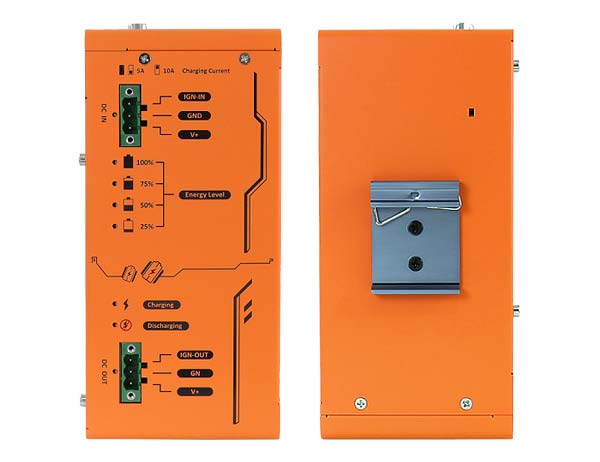

Input Voltage	12~35 VDC
Input Connector	1x 3-pin pluggable terminal block (V+, GND, IGN_IN)
Output Voltage	Charge mode: DC_IN bypass (DC_OUT = DC_IN) Discharge mode: 12 or 24V
Output Power	Maximum 180W output**
Output Connector	1x 3-pin pluggable terminal block (V+, GND, IGN_OUT)

I/O Interface

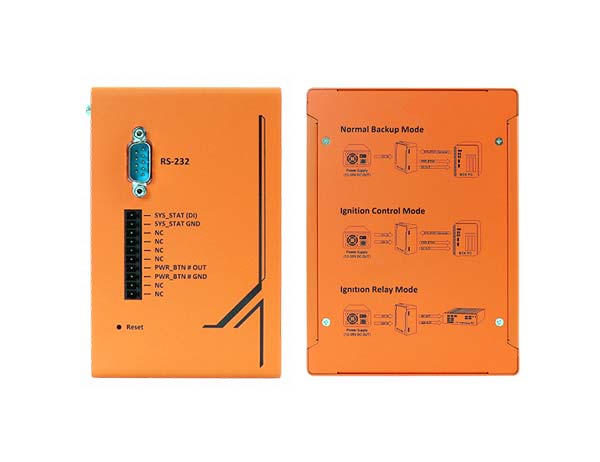

COM Port	1x DB9 for 3-wire RS-232
Iso. DIO	1x 10-pin pluggable terminal block for – PWR_BTN# output – SYS_STAT input

Mechanical
Dimension	82.5mm(W) x 175.2mm(H) x 128.2mm(D)
Weight	1.68kg
Mounting	DIN-rail mounting and wall-mounting

Environmental
Operating Temperature	-25°C ~ 65°C -40°C ~ 85°C with reduced energy capacity
Storage Temperature	-40°C ~ 85°C
Vibration	Compliant with IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock	Compliant with IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
EMC	Compliant with EN50155:2007, CE/FCC Class A, according to EN 55032 & EN 55035

* To achieve > 10 years lifespan under 24/7 at 65°C operation, please charge PB-9250J-SA to 6525J energy level using the 4.8x SuperCAP Lifetime Extension setting (please refer to the user manual for details). Once the rated lifetime or cycle life has been reached, the capacity of supercapacitor may decrease up to 30% and ESR may increase up to 100% from initial values.
** Backup time for uninterruptible operation may be reduced when sustaining a back-end system with high power consumption. Please consult with Neousys Technology if your computer accepts only constant-voltage input.
*** To ensure PB-9250J and PB-4600J’s power backup operation functions as intended, please contact Neousys Technology technical support if your connecting back-end system accepts only constant voltage input.

LIST

Ordering Information

PB-4600J-SA

Standalone intelligent supercapacitor-base power backup module with 4600 W∙s energy capacity.
