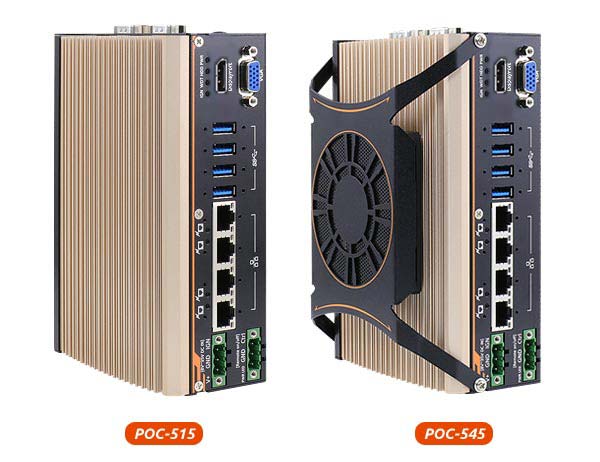

AMD Ryzen™ V1000 울트라 컴팩트 임베디드 컨트롤러, PoE+ 4개, USB 3.0 4개 및 MezIO® 인터페이스 적용

POC-500 Series 팬리스컴퓨터, 산업용 컴팩트 PC

AMD Ryzen™ embedded V1000 series quad-core 15W/ 45W CPU
-25 °C to 70 °C rugged wide-temperature operation
Four Gigabit PoE+ ports with screw-lock
Four USB 3.1 Gen1 ports with screw-lock
M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access
DP + VGA dual display outputs

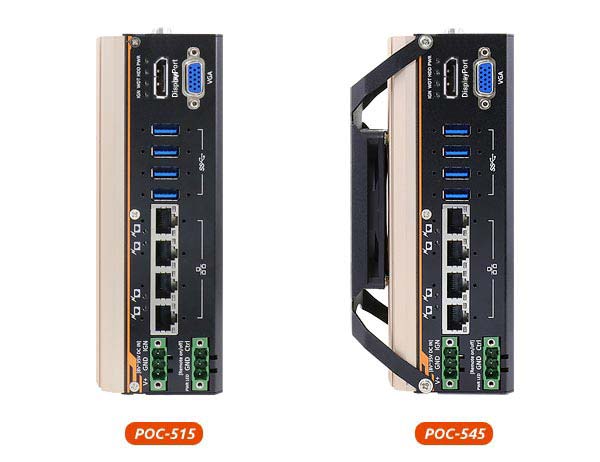

Front I/O access and DIN-rail mounting design
MezIO™ compatible

Overview

Introduction

Neousys의 POC-500 시리즈는 이 폼 팩터에서 이전에는 볼 수 없었던 성능을 제공하는 차세대 초소형 임베디드 컨트롤러입니다. AMD Ryzen Embedded V1000 4-core/8-thread 프로세서를 탑재한 이 제품은 이전 POC 시리즈보다 CPU 성능을 최대 3배 향상시켰습니다. GPU의 성능은 물론, 초소형 폼 팩터 내장 컨트롤러를 위해 FP16에서 전례 없는 3.6 TFLOPS를 제공합니다. 또 다른 놀라운 특징은 M.2 2280 NVMe SSD(PCIe Gen3 x2)를 통합하여 일반적인 2.5″ SATA SSD에 비해 디스크 읽기/쓰기 속도를 2배 향상시킨 것입니다.

산업용 Fanless PC POC-500 시리즈는 독창적인 DIN-레일 장착 기계 설계를 지속하며, 많은 전면 액세스가 가능한 I/O를 제공합니다. 크기는 단지 63 x 176 x 116 mm(2.5″ x 6.9″ x 4.6″)지만, 4x PoE+ 포트, 4x USB 3.0 포트, 4x COM 포트가 있습니다. 그리고 무엇보다도, 모든 데이터 포트는 나사 잠금 기계장치와 함께 제공되어 케이블이 항상 고정되어 있으므로 안심할 수 있습니다. 산업용 Fanless PC POC-500 시리즈는 두 가지 CPU 모델로 제공되며, V1807B(45W) 모델은 높은 컴퓨팅 전력 수요를 위한 것이고 V1605B(15W) 모델은 견고한 팬리스 작동을 위해 설계되었습니다.

산업용 Fanless PC POC-500 시리즈의 출시는 다양한 애플리케이션을 위한 더 나은 I/O 설계, 뛰어난 견고성, 월등한 성능의 CPU/ GPU를 갖춘 혁신적인 울트라 컴팩트 임베디드 컨트롤러의 출현을 의미합니다.

POC-500 series is the next generation ultra-compact embedded controller offering performances never-seen-before in this form factor. Featuring AMD Ryzen™ Embedded V1000 4-core/ 8-thread processor, it delivers up to 3x times the CPU performance over previous POC series. GPU performance wise, it delivers an unheard of 3.6 TFLOPS in FP16 for an ultra-compact form factor embedded controller. Another amazing feat is that it manages to incorporate an M.2 2280 NVMe SSD (PCIe Gen3 x2) to support 2x times the disk read/ write speed over typical 2.5″ SATA SSDs.

POC-500 series continues the POC series ingenious DIN-rail mounting mechanical design and offers plenty of front-accessible I/Os. Measuring just 63 x 176 x 116 mm (2.5″ x 6.9″ x 4.6″), it has 4x PoE+ ports, 4x USB 3.0 ports and 4x COM ports. And best of all, all data ports come with screw-lock mechanism so you can be rest assured that cables are always secured. POC-500 series is available in two CPU variants, the V1807B (45W) variant is for high computing power demand and the V1605B (15W) variant is designed for rugged fanless operation.

The arrival of POC-500 series signifies a new breed of ultra-compact embedded controller; one with better I/O design, extraordinary ruggedness and significantly more CPU/ GPU oomph for versatile applications.

POC-500시리즈 제작 블로그 링크입니다.(클릭)

#POC-500 #산업용PC #Fanless PC #임베디드PC #스마트 팩토리 #Edge AI #초소형컨트롤러

Specifications

System Core
	POC-515	POC-545
Processor	AMD Ryzen™ embedded V1605B CPU (4C/ 8T, 2M Cache, 2.0/ 3.6 GHz,12W – 25W TDP)	AMD Ryzen™ embedded V1807B CPU (4C/ 8T, 2M Cache, 3.35/ 3.8 GHz,35W – 54W TDP)
Graphics	Vega GPU with 8 compute units	Vega GPU with 11 compute units
Memory	Up to 32 GB DDR4-2400 SDRAM by one SODIMM socket	Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket
TRM	Supports TPM 2.0

Panel I/O Interface
Ethernet	4x Gigabit Ethernet ports with screw-lock
PoE+	IEEE 802.3at PoE+ on port #1~ 4 100 W total power budget
USB	4x USB 3.1 Gen1 ports with screw-lock
Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2160 resolution

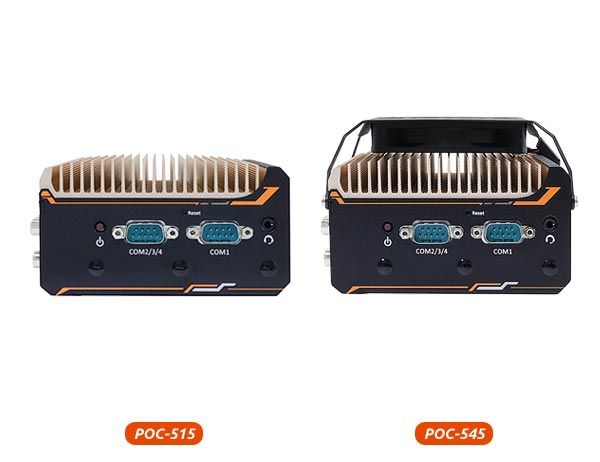

Serial Port	1x software-programmable RS-232/ 422/ 485 ports (COM1) 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port(COM2)
Audio	1x 3.5mm jack for mic-in and speaker-out

Internal I/O Interface
Mini-PCIe	1x full-size mini PCI Express socket with internal SIM socket
Expandable I/O	1x MezIO® expansion interface for Neousys MezIO® modules

Storage Interface
M.2 NVMe	1x M.2 2280 M key NVMe socket (PCIe Gen3 x2)for NVMe SSD installation

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 35V DC input
Remote Ctrl.& LED Output	1×3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	64(W) x116(D) x176(H) mm	81(W) x118(D) x176(H) mm
Weight	1.2kg	1.4kg
Mounting	DIN-rail mount (standard) or wall-mount (optional)

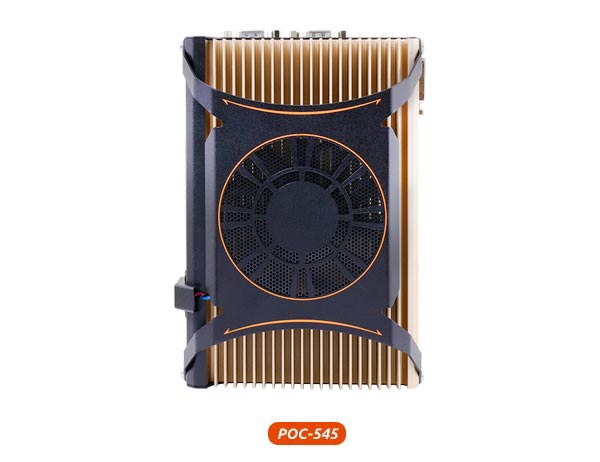

Fan	–	External-accessible 80mm x 80mm fan for system heat dissipation

Environmental
Operating Temperature	-25°C ~ 70°C/*
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Safety	EN62368-1
EMC	CE/ FCC Class A, according to EN 55032 & EN 55024

* For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
** For POC-545, operating temperature is up to 70°C only if external-accessible fan is installed.

LIST

Power Backup Modules:

Ordering Information

POC-515

AMD Ryzen™ V1605B ultra-compact embedded controller with 4x PoE+ ports, 4x USB 3.0 ports and MezIO™ interface

POC-516

AMD Ryzen™ V1605B ultra-compact embedded controller with 4x PoE+ ports, 4x USB 3.0 ports and MezIO-R12

POC-545

AMD Ryzen™ V1807B ultra-compact embedded controller with 4x PoE+ ports, 4x USB 3.0 ports and MezIO™ interface

POC-546

AMD Ryzen™ V1807B ultra-compact embedded controller with 4x PoE+ ports, 4x USB 3.0 ports and MezIO-R12

Optional Accessories

PA-120W-OW

120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C.

PA-60W-OW

60W AC/DC power adapter with 12V, 5A DC output, cord end terminals for terminal block. operating temperature : -30 to 60 °C.

Cbl-DB9F-3DB9M-15CM

1x DB9 (Female) to 3x DB9 (Male), length: 15CM
