임베디드 PC

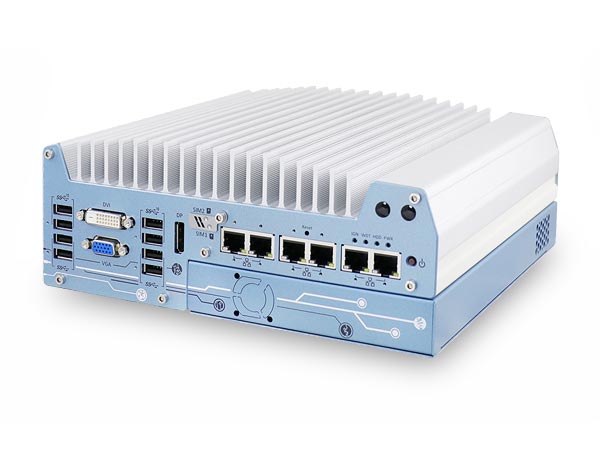

Nuvo-7000E/P/DE Series 산업용 9/8세대 팬리스 PC

Intel® 8th/9th-Gen Core™ i7/i5/i3 팬리스 임베디드 컴퓨터, GbE 포트 6개, 특허받은 카세트, MezIO™ 인터페이스 적용

Nuvo-7000E/P/DE Series 산업용 9/8세대 팬리스 PC

  • Intel® 9th/ 8th-Gen Core™ i 35W/ 65W LGA1151 CPU
  • Patented Cassette for PCI/PCIe add-on card accommodation
  • MezIO™ interface for easy function expansion
  • Rugged, wide temperature range from -25°C to 70°C fanless operation
  • Up to 6x GigE ports, supporting 9.5 KB jumbo frame
  • M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
Overview
Introduction



Nesouys의 Nuvo-7000 시리즈는 최대 8/6 코어 아키텍쳐로 인텔 9/8 세대 코어 i 프로세서에 의해 움직이는 산업용 Fanless PC Nuvo-7000 시리즈는 이전의 6세대 & 7세대 플랫폼을 넘어 중요한 성능이 크게 향상되었습니다.

산업용 Fanless PC Nuvo-7000 시리즈는 효과적인 Fanless PC 설계, 특허받은 확장 카세트 및 독점 MezIO 인터페이스와 같은 뛰어난 견고성과 다재다능성을 위한 트랙 검증 기술을 포함합니다. 또한 이 제품은 최대 10Gbps의 처리량을 가진 USB 3.1 Gen2와 같은 최첨단 컴퓨터 I/O와 NVMe SSD 또는 인텔 Optane 메모리를 위한 M.2 2280 M 키 소켓이 통합되어 궁극적인 시스템 성능을 발휘합니다. 온보드 I/O 포트(GbE, USB & COM)는 ESD와 전력 급증으로 인한 스트레스를 견디기위해 정교한 보호 회로를 특징으로 합니다. 이것으로 지금까지 만든 것 중 가장 견고한 산업용 Fanless PC Nuvo-7000시리즈를 만들었습니다.

다양한 애플리케이션을 위한 유연하고 다재다능한 산업용 PC 산업용 Fanless PC Nuvo-7000 모델은 카세트 확장 옵션이 서로 다릅니다. 산업용 산업용 Fanless PC Nuvo-7000 시리즈로, 애플리케이션의 요구사항에 따라 단일 PCIe 카드(Nuvo-7000E) 또는 이중 PCIe 카드(Nuvo-7000DE) 또는 단일 PCI 카드(Nuvo-7000P)를 수용할 수 있는 견고한 플랫폼을 얻을 수 있습니다.

Introducing Neousys Technology’s 2018 flagship rugged fanless embedded computers, the new Nuvo-7000 series, powered by Intel® 9th/ 8th-Gen Core™ i processors with up to 8/ 6-core architecture that offer significant performance improvement over previous 6th and 7th-Gen platforms.

Nuvo-7000 series includes Neousys’ track-proven technologies for superior ruggedness and versatility, such as effective fanless design, patented expansion Cassette and proprietary MezIO™ interface. It also incorporates cutting-edge computer I/O like USB 3.1 Gen2 with up to 10 Gbps throughput and M.2 2280 M key socket for NVMe SSD or Intel® Optane™ memory for ultimate system performance. The plethora of on-board I/O ports (GbE, USB and COM) feature sophisticated protection circuits to endure stress from ESD and power surge. This makes Nuvo-7000 series by far the most rugged embedded computer we’ve ever created.

Flexible and versatile for a variety of applications, Nuvo-7000 variants are available with different Cassette expansion options. With Neousys Nuvo-7000 series, you get a true rugged platform that can accommodate a single PCIe card (Nuvo-7000E), dual PCIe cards (Nuvo-7000DE) or a single PCI card (Nuvo-7000P) according your application needs.

Nuvo-7000시리즈 제작 블로그 링크입니다.(클릭)

#Nuvo-7000 #산업용PC #Fanless PC #확장슬롯 # #스마트 팩토리 #임베디드PC #Edge AI

Specifications
System Core
Processor Supporting Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP)
– Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE
– Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE
– Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE
– Intel® Pentium® G5400/ G5400T
– Intel® Celeron® G4900/ G4900T
Chipset Intel® Q370 Platform Controller Hub
Graphics Integrated Intel® UHD Graphics 630
Memory Up to 64 GB DDR4 2666/2400 SDRAM (two SODIMM slots)
ANT Supports AMT 12.0
TPM Supports TPM 2.0

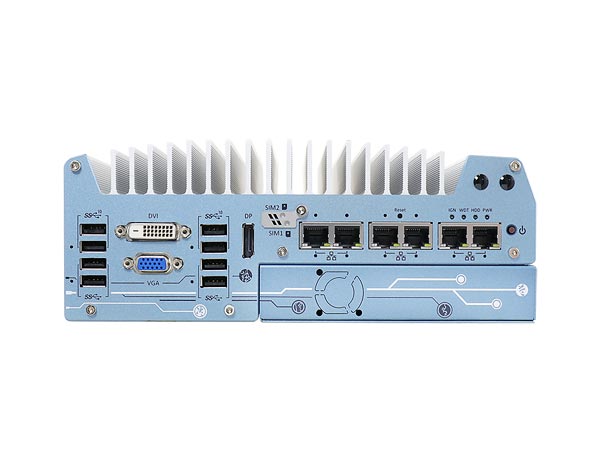

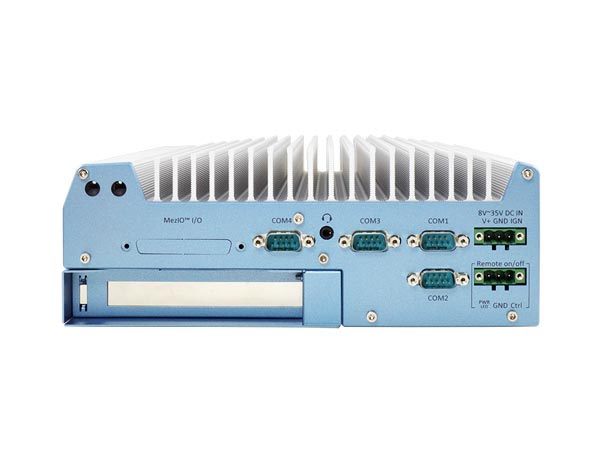

I/O Interface
Ethernet 2x Gigabit Ethernet ports by I219 and I210 (Nuvo-7002E/ P/ DE)
6x Gigabit Ethernet ports by I219 and 5x I210 (Nuvo-7006E/ P/ DE)
POE+ Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
USB 4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio 1x 3.5 mm jack for mic-in and speaker-out



Internal Expansion Bus
PCI/PCI Express 1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-7000E)
1x PCI slot in Cassette (Nuvo-7000P)
2x PCIe x16 slots @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-7000DE)
Mini PCI-E 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
M.2 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Expandable I/O 1x MezIO™ expansion port for Neousys MezIO™ modules
Storage interface
SATA HDD 2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/1
M.2 1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® OptaneTM memory installation
mSATA 1x full-size mSATA port (mux with mini-PCIe)



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl.
& Status Output		 1x 3-pin pluggable terminal block for remote control and PWR LED output



Mechanical
Dimension 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-7000E/ P series)
240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-7000DE series)
Weight 3.58 kg (Nuvo-7000E/P series)
3.7 kg (Nuvo-7000DE series)
Mounting Wall-mounting (standard) or DIN-Rail mounting (optional)



Environmental
Operating temperature with 35W CPU
-25°C ~ 70°C **

with 65W CPU
-25°C ~ 70°C */** (configured as 35W TDP)
-25°C ~ 50°C */** (configured as 65W TDP)
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC CE/FCC Class A, according to EN 55022 & EN 55024
Safety UL62368-1, IEC62368-1

* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.



LIST
Expansion PCIe Cards:
Ordering Information
Nuvo-7002E

Intel® 9th/8th-Gen Core™ fanless embedded computer with 2x GbE, single-slot PCI Express Cassette and MezIO™

Nuvo-7002DE

Intel® 9th/8th-Gen Core™ fanless embedded computer with 2x GbE, dual-slot PCI Express Cassette and MezIO™

Nuvo-7002P

Intel® 9th/8th-Gen Core™ fanless embedded computer with 2x GbE, single-slot PCI Cassette and MezIO™

Nuvo-7006E

Intel® 9th/8th-Gen Core™ fanless embedded computer with 6x GbE, single-slot PCI Express Cassette and MezIO™

Nuvo-7006DE

Intel® 9th/8th-Gen Core™ fanless embedded computer with 6x GbE, dual-slot PCI Express Cassette and MezIO™

Nuvo-7006P

Intel® 9th/8th-Gen Core™ fanless embedded computer with 6x GbE, single-slot PCI Cassette and MezIO™



Supported MezIO™ Modules



Neousys MezIO™ module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO, CAN bus, ignition power control and storage expansion

Optional of 802.3at PoE+ for GbE port 3 ~ port 6
