Intel® 9th/8th-Gen Core™ i7/i5/i3 러기드 Edge AI 산업용 컴퓨터, 7개의 PCIe/ PCI 확장 슬롯

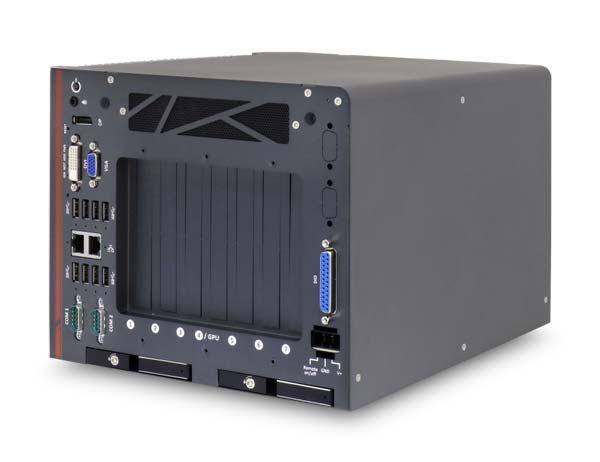

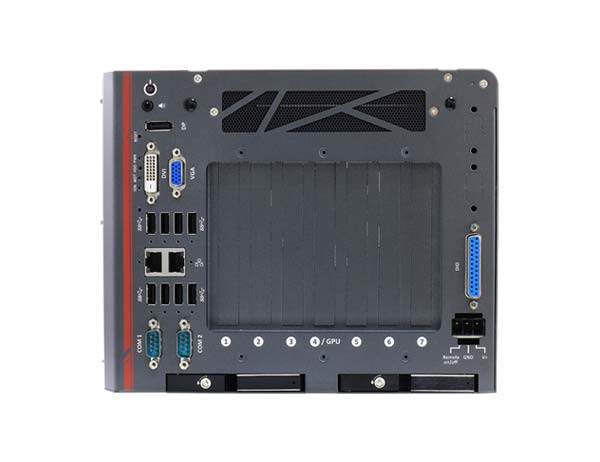

Nuvo-8034 산업용 9/8세대 임베디드 PC

Supports Intel® 9th/ 8th-Gen Core™ i7/ i5 /i3 LGA1151 CPU
Two x16 PCIe, two x8 PCIe, and three PCI slots
Supports single NVIDIA® GPU card with up to 180W TDP
8-ch isolated DI and 8-ch isolated DO
2x GbE ports with screw-lock
4x USB 3.1 Gen2 and 4x USB 3.1 Gen1 ports with screw-lock
Two front-accessible, hot-swappable 2.5″ SATA HDD/ SSD with RAID 0/ 1 support
M.2 2280 M key NVMe (Gen3 x4) for fast storage access

Overview

Introduction

Neousys의 Nuvo-8034는 비교적 작은 크기의 7개의 확장 슬롯을 제공하는 새로운 유형의 box-PC 산업용 Fanless PC입니다. PCIe 슬롯 4개 중 2개는 CPU PEG 포트에 직접 연결된 x16 슬롯(@ Gen3, 8-레인)으로 GPU 및 고속 I/O 카드의 대역폭을 최대 8GB/s까지 제공하며, 2개는 PCH의 x8 슬롯(@ Gen3, 4-레인)으로 범용 용도로 사용됩니다. 이 시스템은 최신 Edge AI 애플리케이션을 위해 하나의 180W NVIDIA® GPU를 장착할 수 있습니다. 또한 일반 산업용 PCI 카드를 지원하는 3개의 PCI 슬롯이 있습니다.

산업용 Fanless PC Nuvo-8034는 워크스테이션급 Intel® C246 칩셋이 포함된 Intel® 9/8세대 Core™ i 프로세서를 지원하여 탁월한 Edge AI 컴퓨팅 성능을 제공합니다. 산업용 Fanless PC Nuvo-8034는 독특한 전력 설계를 활용하여 8~48V 더 넓은 범위의 DC 입력으로 여러 PCIe 및 PCI 확장 카드의 전력 소비량을 처리할 수 있습니다. 이 시스템은 RAID 0/1 지원으로 전면 패널에 2.5″ SATA SSD/ HDD를 지원하는 핫 스왑 가능 트레이 2개를 갖추고 있어 캐비닛 내부에 배치하면 접근이 용이합니다. Nuvo-8034는 산업 자동화를 위해 8채널 절연 DI 및 8채널 절연 DO, USB3 카메라용 스크류 잠금 장치가 있는 8개의 USB 3.1 Gen1/Gen2 포트를 제공합니다.

다양한 I/O 포트와 유연한 7-슬롯 PCIe/PCI 확장성을 갖춘 산업용 Fanless PC Nuvo-8034는 머신 비전, 산업 자동화 및 데이터 분석과 같은 다양한 산업 애플리케이션을 만족시킬 수 있는 종합 솔루션입니다.

Nuvo-8034 is a new-breed of box-PC offering 7 expansion slots in a comparatively compact size. Of its four PCIe slots, two are x16 slots (@Gen3, 8-lanes) connected directly to the CPU PEG port to deliver up to 8 GB/s bandwidth for GPU and high speed I/O cards, and two are x8 slots (@Gen3, 4-lanes) from PCH for general-purpose usage. The system is capable of accmmodating one 180W NVIDIA® GPU for modern AI applications. Additionally, there are 3 PCI slots to support legacy PCI cards for general industrial usage.

Nuvo-8034 supports Intel® 9th/ 8th-Gen Core™ i processor with workstation-grade Intel® C246 chipset to offer superior computing power. Utilizing Neousys’ distinctive power design, Nuvo-8034 can handle heavy power consumption of multiple PCIe and PCI expansion cards with 8~48V widerange DC input. The system features two hot-swappable trays that support 2.5″ SATA SSD/ HDD on the front panel with RAID 0/ 1 support, making it easier to access when placed inside a cabinet. External I/O wise, Nuvo-8034 offers 8-channel isolated DI and 8-channel isolated DO for industrial automation, eight USB 3.1 Gen1/ Gen2 ports with screw-lock for USB3 cameras.

With an assortment of I/O ports and flexible 7-slot PCIe/ PCI expandability, Nuvo-8034 is an all-around rugged solution that can satisfy various industrial applications such as machine vision, industrial automation and data analytics.

Nuvo-8034 제작 블로그 링크입니다.(클릭)

#Nuvo-8034 #산업용PC #Fanless PC #워크스테이션급 #확장 슬롯 #RAID0/1 #GPU PC #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supporting Intel® Xeon® E and 9th/ 8th – Gen CPU(LGA1151 socket) – Intel® Xeon® Processor E-2176G/ E-2124G/ E-2278GE/ E-2278GEL – Intel® Core™ i7-9700E/ i7-9700TE/ i7-8700/ i7-8700T – Intel® Core™ i5-9500E/ i5-9500TE/ i5-8500/ i5-8500T – Intel® Core™ i3-9100E/ i3-9100TE/ i3-8100/ i3-8100T
Chipset	Intel® C246 platform controller hub
Graphics	Independent GPU via x16 (@ x8 signals) PEG port, or integrated Intel® UHD graphics 630
Memory	Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM(four SODIMM slots)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	1x Gigabit Ethernet port by Intel® I219-LM with screw-lock 1x Gigabit Ethernet port by Intel® I210-IT with screw-lock
Video Port	1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
USB 3.1	4x USB 3.1 Gen2 (10 Gbps) ports with screw-lock 4x USB 3.1 Gen1 (5 Gbps) ports with screw-lock
USB 2.0	1x USB 2.0 port (internal use)
Isolated DIO	8x isolated DI and 8x isolated DO
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage interface
SATA HDD/ SSD	2x hot-swappable trays for 2.5” HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory
mSATA	2x full-size mSATA port (mux with mini-PCIe)

Internal Expansion Bus
PCI/PCI Express	2x PCIe x16 slot@Gen3, 8-lanes 2x PCIe x8 slots@Gen3, 4-lanes
PCI	3x 33MHz/ 32-bit 5V PCI slots
M.2	1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module
mini-PCIe	2x full-size mini PCI Express socket with internal SIM socket(mux. with mSATA)

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 35V DC input
Remote Ctrl.	1x 3-pin pluggable terminal block for remote control

Mechanical
Dimension	259mm(W) x 280mm(D) x 198mm(H)
Weight	7kg
Mounting	Wall-mount

Environmental
Operating temperature	-25°C ~ 60°C with 100% CPU/ GPU loading
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55032 & EN 55024

* For i7-9700E and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Expansion PCIe Cards:

Ordering Information

Nuvo-8034

Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3 embedded computer with 2x PCIe x16(@ x8 signals), 2x PCIe x8(@ x4 signals) and 3x PCI slots

Optional Accessories

PA-160W-OW

160W AC-DC power Adapter, 20V 8A , 90~264VAC 127~370VDC, Open-Wire Terminal, -30°C~70°C

PA-280W-ET2

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C

PA-480W-DIN

480W AC-DC power Adapter(SDR-480-24) DIN-rail mount, 24V 20A, 90~264VAC/127~370VDC, Terminal Block, -20°C~70°C

Cbl-IDC210F-DB9M-20CM

10Pin Female to DB9 Male Cable, 20CM
