Intel® Atom™ E3950 Apollo Lake 울트라 컴팩트 팬리스 인비어클 커뮤니케이션 게이트웨이 컨트롤러, GbE, PoE+, Isolated CAN

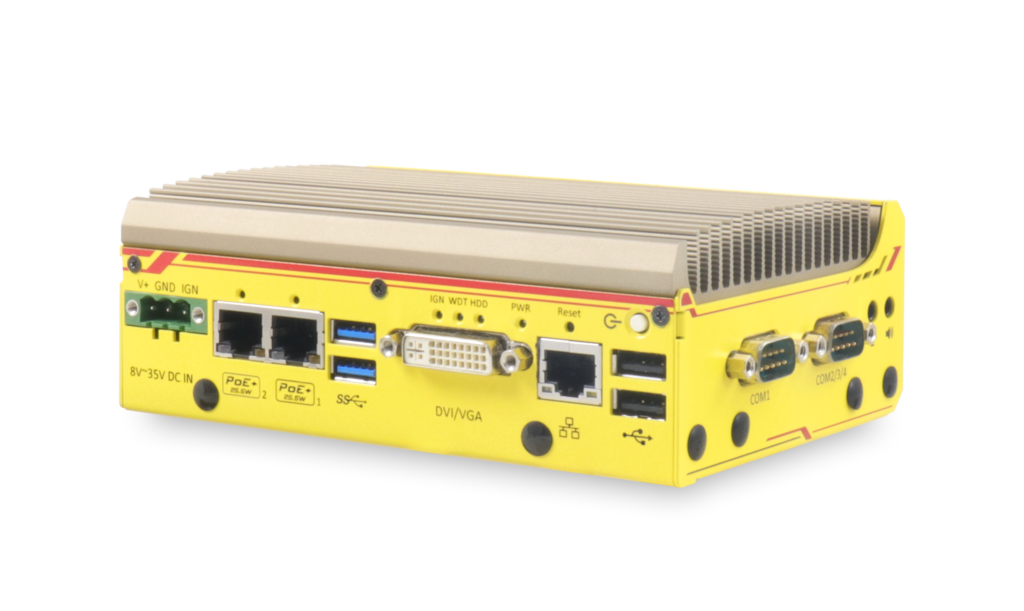

POC-351VTC series 산업용 Apollo Compact PC

Intel® Apollo Lake Atom™ E3950 quad-core processor
Rugged, -25 °C to 70 °C fanless operation

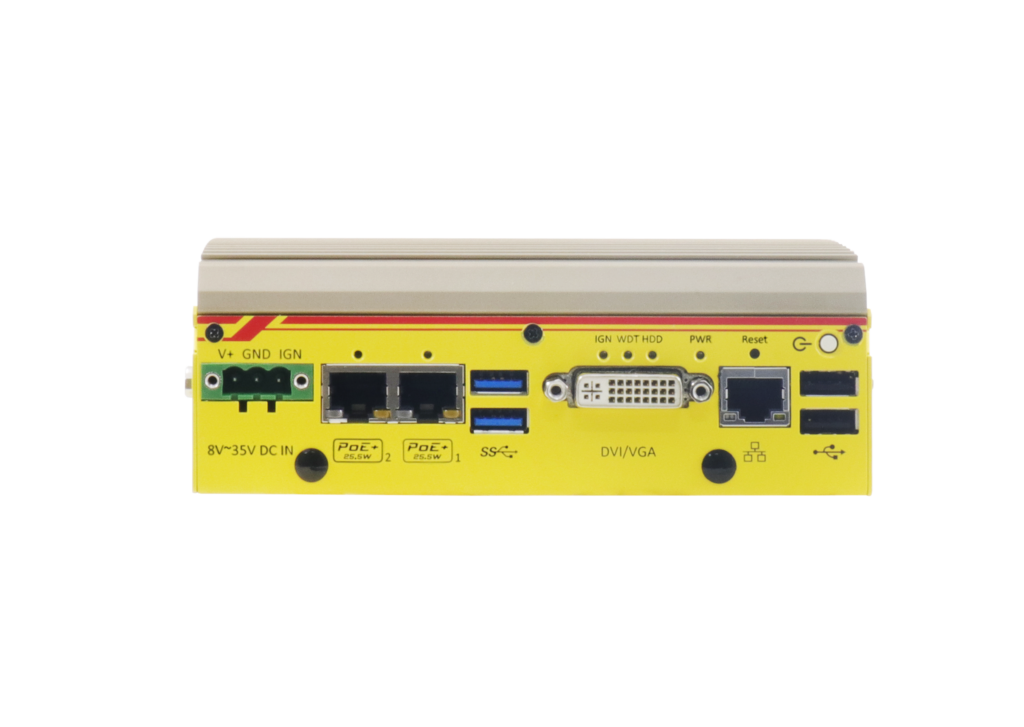

Two IEEE 802.3at PoE+ ports and one GbE port
One isolated CAN port for in-vehicle communication
One M.2 socket and three mini-PCIe sockets
Aluminum heat-spreader for M.2/ mPCIe modules
4-CH isolated DI and 4-CH isolated DO
8~35V DC input with built-in ignition power control

Overview

Introduction

Neousys의 POC-351VTC는 Intel® Atom™ Apollo Lake E3950 쿼드코어 프로세서로 구동되는 울트라 컴팩트 팬리스 임베디드 인비어클 컨트롤러입니다. 최고급 성능, 탁월한 안정성, 합리적인 비용을 범용성 높은 인비어클 애플리케이션 안에 결합시켰습니다.

산업용 Fanless PC POC-351VTC는 IP 카메라 등의 디바이스에 전원을 공급할 수 있는 2개의 PoE+ 포트와 데이터 통신을 위한 1개의 추가 GbE 포트를 제공합니다. 또한 차량 CAN Bus 시스템, 개별 ECU 또는 기타 차량용 디바이스와 통신하기 위한 Isolated CAN 2.0 포트와 RS-232/422/485 포트를 갖췄습니다. 광범위한 DC 입력과 차량전원 컨트롤을 지원하는 산업용 Fanless PC POC-351VTC는 대부분의 차량 카테고리에 적합합니다.

무선 및 인터넷 액세스 오늘날의 인비어클 애플리케이션에 필수적입니다. 산업용 Fanless PC POC-351VTC는 총 4개의 M.2/mPCIe Socket과 6개의 안테나 홀이 있어 인비어클 및 V2V(차량 대 차량) 통신을 만족시키는 4G, 3G, WIFI, GPS의 다양한 모듈을 장착할 수 있습니다. 알루미늄 히트-스프레드는 모듈에서 발생하는 열을 냉각시켜 시스템과 통신 모듈의 뛰어난 작동 안정성을 유지할 수 있도록 세심하게 설계되었습니다.

POC-351VTC is an ultra-compact, fanless embedded in-vehicle controller powered by Intel® Atom™ Apollo Lake E3950 quad-core processor. It combines finesse performance, extraordinary reliability and affordable cost for versatile in-vehicle applications.

POC-351VTC offers two PoE+ ports to power devices such as IP cameras, and one additional GbE port for data communication. It also features isolated CAN 2.0 port and RS-232/ 422/ 485 ports for communicating with vehicle CAN bus system, individual ECUs or other automotive devices. Wide-range DC input and ignition power control make POC-351VTC fit for most vehicle categories.

Wireless and internet access is essential for modern day in-vehicle applications. POC-351VTC has a total of four M.2/ mPCIe sockets and six antenna holes to accommodate a variety of 4G, 3G, WIFI and GPS modules to satisfy in-vehicle and V2V(vehicle to vehicle) communications. An aluminum heat-spreader is thoughtfully designed to dissipate heat generated by modules to maintain superior operating stability, for the system and communication modules.

POC-351VTC 제작 블로그 링크입니다.(클릭)

#POC-351VTC #산업용PC #Fanless PC #Apollo Lake E3950 #초소형PC #스마트 팩토리 #인비어클 #Edge AI

Specifications

System Core
Processor	Intel® Atom™ E3950 1.6/2.0 GHz quad-core processor
Graphics	Integrated Intel® HD Graphics 505
Memory	Up to 8GB DDR3L-1866 (single SO-DIMM slot)

Panel I/O Interface
Ethernet	3x Gigabit Ethernet ports by Intel® I210 GbE controller
POE	IEEE 802.3at PoE+ on port #2 and #3
Video Port	VGA and DVI dual display outputs via DVI-I connector

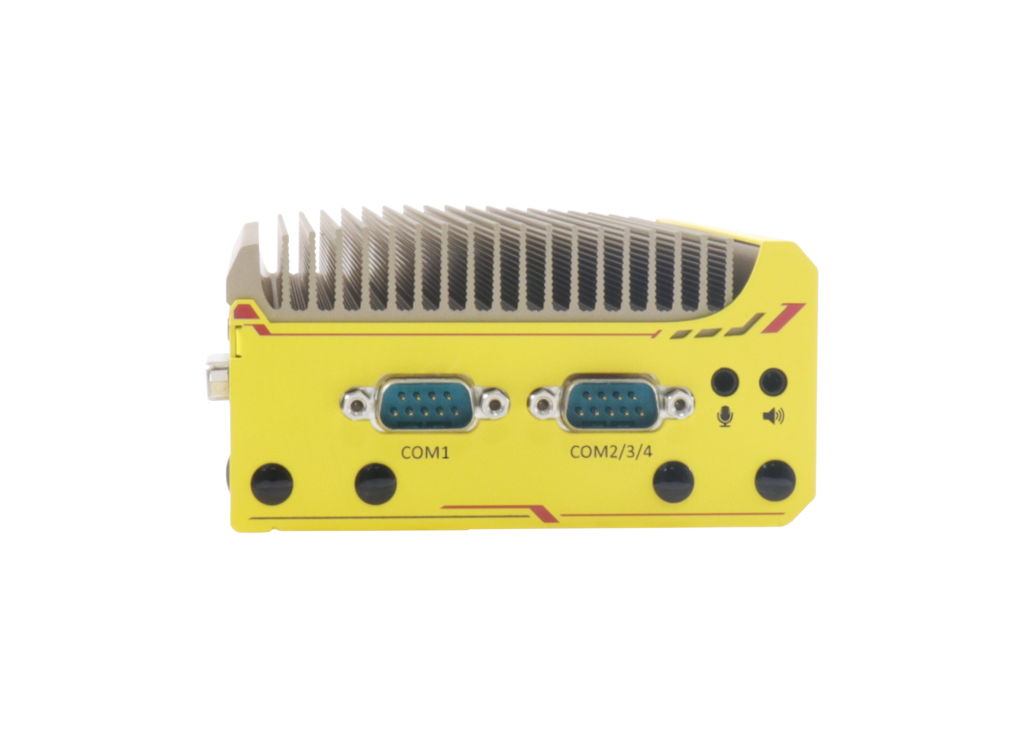

Serial Port	1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/COM3/COM4) or 1x RS-422/485 port (COM2)
USB	2x USB 3.1 Gen1 ports 2x USB 2.0 ports
Audio	1x Mic-in and 1x speaker-out

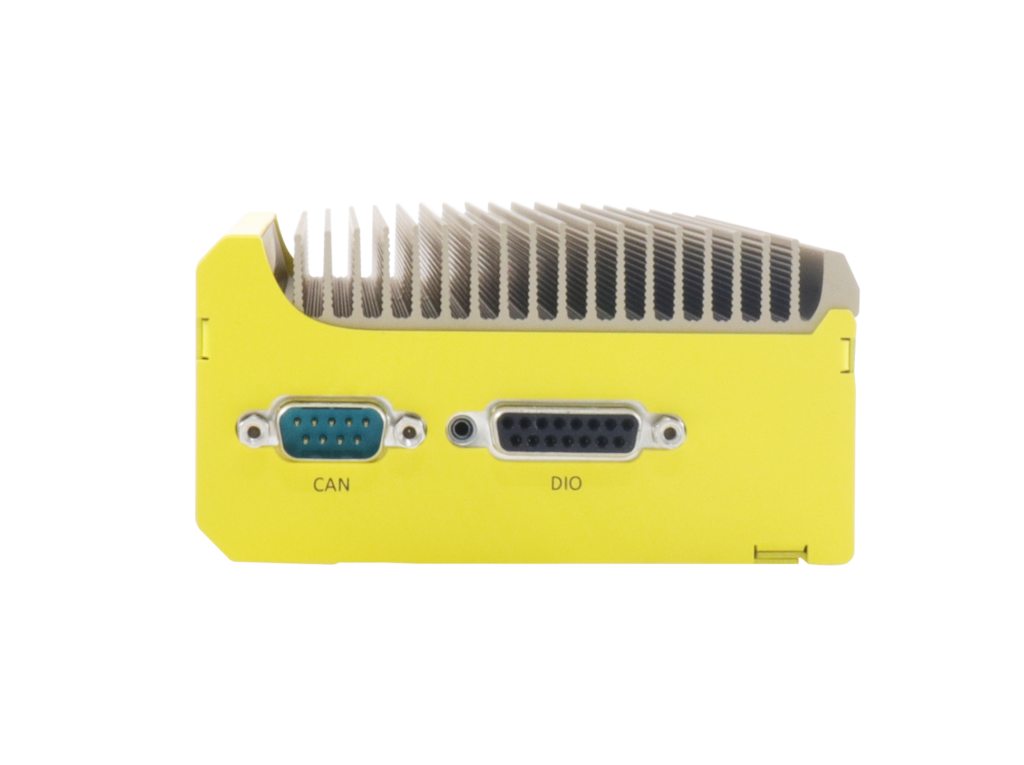

CAN Bus	1x isolated CAN 2.0 port
Isolated DIO	4x isolated DI and 4x isolated DO

Internal I/O Interface
M.2	1x M.2 B key socket for 3G/4G option with USIM support
Mini-PCIe	3x full-size mini PCI Express sockets with USIM support

Storage Interface
mSATA	1x half-size mSATA port 1x full-size mSATA port

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 35V DC input with built-in ignition power control (IGN/GND/V+)

Mechanical
Dimension	153 mm (W) x 108 mm (D) x 56 mm (H) (POC-351VTC) 153 mm (W) x 108 mm (D) x 68 mm (H) (POC-351VTC-70)
Weight	1.0 kg (POC-351VTC) 1.1 kg (POC-351VTC-70)
Mounting	Horizontal wall-mount (standard) Vertical wall-mount (optional)

Environmental
Operating Temperature	-25°C ~ 70°C /* -40°C ~ 70°C (optional) /**
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ mSATA, according to IEC60068-2-64)
Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ mSATA, according to IEC60068-2-27)
EMC	E-Mark for in-vehicle applications CE/FCC Class A, according to EN 55032 & EN 55024

* For wide temperature use condition, a wide temperature/industrial mSATA module is required
** For full function use condition (mini-PCIe, M.2, and mSATA are all adopted), the recommended operating temperature is -25ºC ~ 60ºC
*** For extreme wide temperature -40ºC ~ 70ºC, it is optional with 100% screening, please contact Neousys Technology.

LIST

Power Backup Modules:

Ordering Information

POC-351VTC

Intel® Apollo Lake Atom™ E3950 ultra-compact in-vehicle controller with 1x GbE, 2x PoE+ and Isolated CAN

POC-351VTC-70

Intel® Apollo Lake Atom™ E3950 ultra-compact in-vehicle controller supporting optional LTE socket modem

Optional Accessories

64GB mSATA mini SSD with pre-installed Windows 10 IoT English version*

128GB mSATA mini SSD with pre-installed Windows 10 IoT English version*

PA-60W-OW

60W AC/DC power adapter with 12V, 5A DC output, cord end terminals for terminal block. operating temperature : -30 to 60 °C

WM-300V

Wall mounting assembly for POC-351VTC, vertical type
