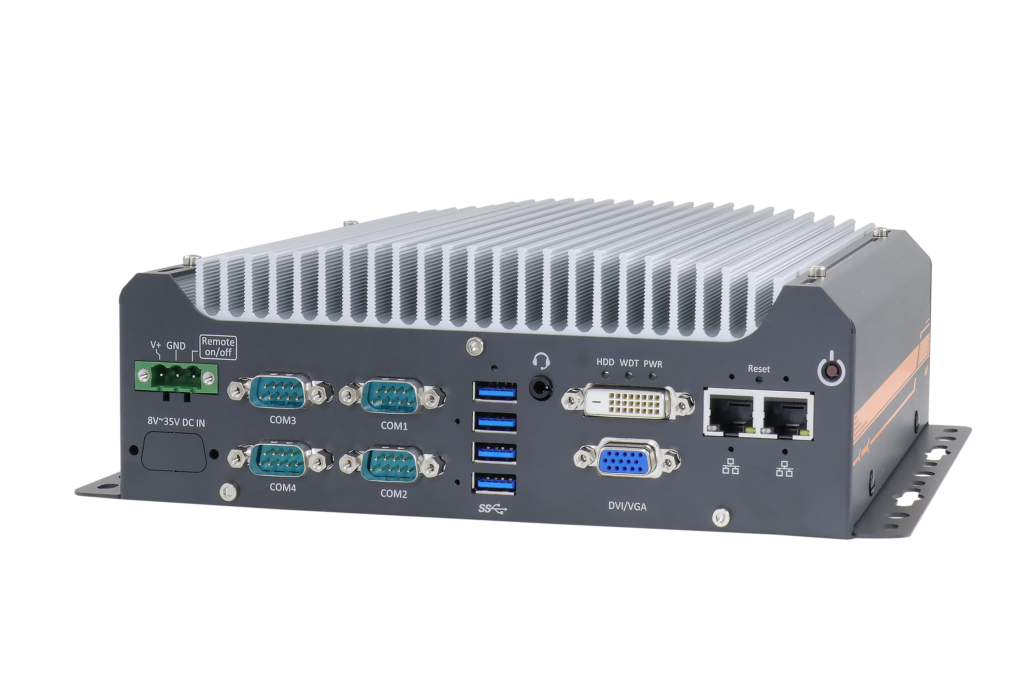

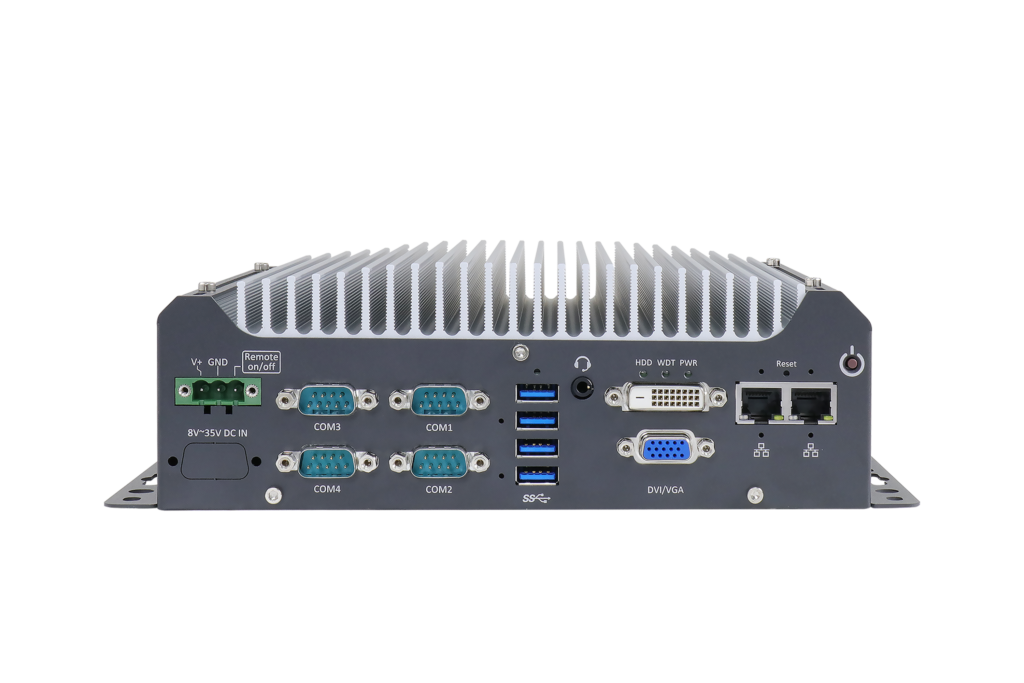

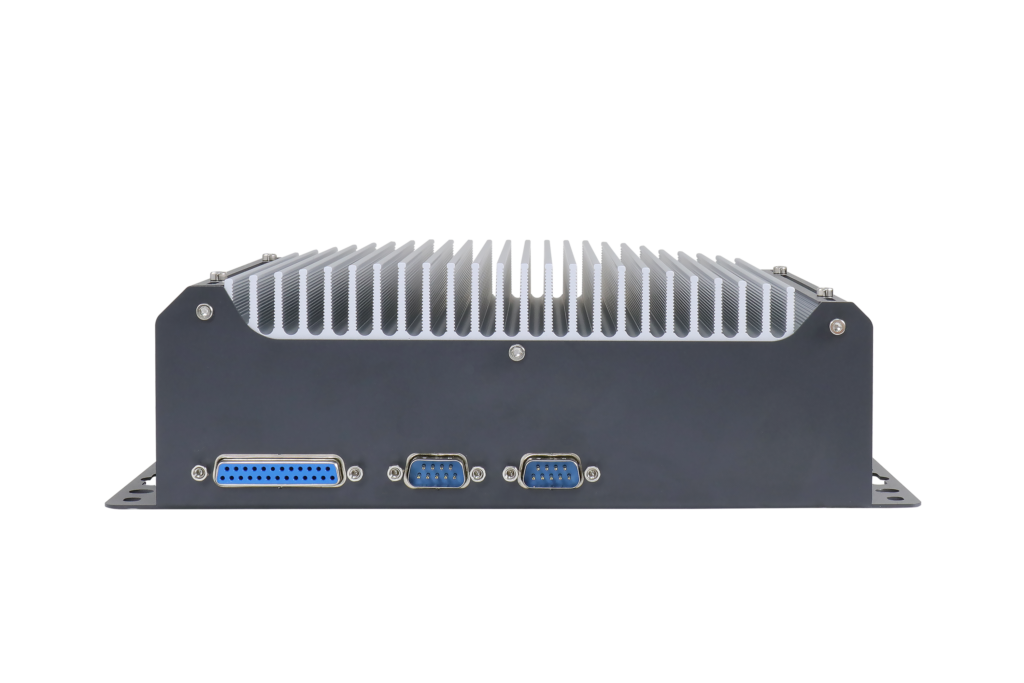

격리된 DIO, 격리된 COM 및 2x GbE를 갖춘 Intel® 9세대/8세대 Core™ i7/i5/i3 컴팩트 팬리스 임베디드 컴퓨터

Nuvo-7505D 산업용 컴퓨터 Fanless PC 9세대

Compact 255 x 173 x 76 mm footprint
Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
Rugged, -25°C to 60°C fanless operation
2x GbE and 4x USB 3.1 Gen1
6x COM ports, isolation on ports 1~ 4
VGA + DVI dual display outputs
Accommodates one 3.5″ or 2.5″ HDD/ SSD
8-CH isolated DI and 8-CH isolated DO

Overview

Introduction

Neousys의 Nuvo-7505D는 255 x 173 x 76 mm의 컴팩트한 크기이며 비용 효율적이고, 작지만 강력한 산업용 Fanless PC입니다. 인텔 9세대/8세대 Hexa/Octa 코어 CPU로 구동되어, 제품은 이전 세대에 비해 50% 이상의 연산 성능을 향상시켰습니다.

산업용 Fanless PC Nuvo-7505D는 견고하고 내장형 팬리스 솔루션의 필수 요소를 유지하면서, 단순하고 컴팩트하게 설계되었습니다. 일반적인 산업용 애플리케이션을 위해 2개의 GbE, 4개의 USB3.0 및 6개의 컴포트와 같은 I/O를 특징으로 합니다. M.2 2280 SATA 슬롯(SATA 신호) 외에 2.5″ SSD/HDD 또는 3.5″ HDD도 지원할 수 있습니다. 또한, 산업용 Fanless PC Nuvo-7505D는 가혹한 환경에서 그라운드 루프로부터 컨트롤러를 보호할 수 있는 격리된 DIO와 격리된 COM을 제공합니다.

산업용 PC에 특화된 산업용 Fanless PC Nuvo-7501은 비용, 크기, 성능 면에서 만족할 수 있는 팬리스 임베디드 플랫폼입니다. 그리고 Nuvo-7501은 다양한 산업용 애플리케이션을 위한 이상적인 팬리스 임베디드 솔루션입니다.

Nuvo-7505D is a cost-effective, compact and yet powerful fanless embedded computer with a 255 x 173 x 76 mm footprint. Powered by an Intel® 9th/ 8th-Gen Core™ hexa/ octa core CPU, it offers more than 50% computation performance improvement over the previous generation.

Nuvo-7505D is designed to be simple and compact while retaining essential elements of a rugged embedded fanless solution. It features I/Os such as 2x GbE, 4x USB3.0 and 6x COM ports for common industrial applications. In addition to the M.2 2280 SATA SSD, it can also support a 2.5″ SSD/ HDD or a 3.5″ HDD. Besides, Nuvo-7505D offers isolated DIO and isolated COM, which can protect the controller against ground loops in harsh environments.

Nuvo-7505D is a fanless embedded platform that has hit the sweet spot in terms of cost, size and performance. And Nuvo-7505D is an ideal fanless embedded solution for various industrial applications.

Nuvo-7505D 제작 블로그 링크입니다.(클릭)

#Nuvo-7505D #산업용PC #Fanless PC #DIO #임베디드PC #스마트 팩토리 #Edge AI

Product Highlights

9th/ 8th-Gen Core i CPU

Powered by Intel® 9th/ 8th-Gen Core™ processor running with advanced Intel® Q370 chipset, The Nuvo-7505D fanless embedded computer provides outstanding performance for emerging high-end requirement than 6th & 7th generations.

Wide Temperature Range Operation

The Nuvo-7505D fanless embedded computer has patented passive cooling thermal design that can effectively channel heat from heat sink and truly operate in wide temperature range from -25℃ to 70℃ while under 100% CPU loading.

Specifications

System Core
Processor	Supporting Intel® 8th/ 9th-Gen Core™ CPU (LGA1151 socket) – Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE – Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE – Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE
Chipset	Intel® H310 platform controller hub
Graphics	Integrated Intel® UHD graphics 630
Memory	Up to 32 GB DDR4 2666/ 2400 SDRAM (one SODIMM slots)
TPM	Supports fTPM 2.0

I/O Interface
Ethernet Port	2x Gigabit Ethernet ports by I219 and I210
USB	4x USB 3.1 Gen1 (5 Gbps) ports
Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution
Serial Port	2x isolated software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x isolated RS-232 ports (COM3/ COM4) 2x RS-232 ports (COM5/ COM6)
Audio	1x 3.5 mm jack for mic-in and speaker-out
Isolated DIO	8-CH isolated DI and 8-CH isolated DO

Internal Expansion Bus
Mini PCI-E	1x full-size mini PCI Express socket
M.2	1x M.2 2242 B key socket with internal SIM socket

Storage interface
SATA HDD	1x internal SATA port for 3.5″ HDD or 2.5″ HDD/ SSD
M.2	1x M.2 2280 SATA interface

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & LED Output	1x 10-pin (2×5) pin header for remote on/off control and status LED output

Mechanical
Dimension	255mm (W) x 173 mm (D) x 76 mm (H)
Weight	2.68 kg
Mounting	Wall-mount or optional DIN-Rail

Environmental
Operating temperature	-25°C ~ 60°C **
Storage Temperature	-40°C ~ 85°C
Humidity	10%~ 90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55032 & EN 55024

* Due to thermal limitations, 65W CPUs will be configured to operate in 35W mode by default.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
*** For i7 CPUs, thermal throttling may occur when sustained full-loading applied at 60°C ambient temperature.

LIST

Ordering Information

Nuvo-7505D

Intel® 8th/ 9th-Gen Core™ i7/ i5/ i3 compact fanless embedded computer with isolated DIO, isolated COM and 2x GbE

Optional Accessories

PA-120W-OW

120W AC/ DC power adapter 20V/ 6A; 18AWG/ 120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C

DINRAIL-31

DIN-rail mounting assembly for Nuvo-7501 series
