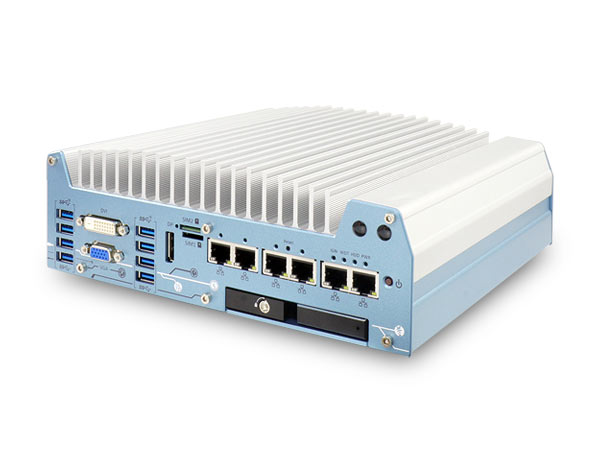

Intel® 9th/8th-Gen Core™ i7/i5/i3 팬리스 컴퓨터, GbE 포트 6개, MezIO™ 인터페이스, 슬림형 Low-Profile 구조

Nuvo-7000LP Series 산업용 PC 9/8세대 팬리스 PC

Intel® 9th/ 8th-Gen Core™ i 35W/ 65W LGA1151 CPU

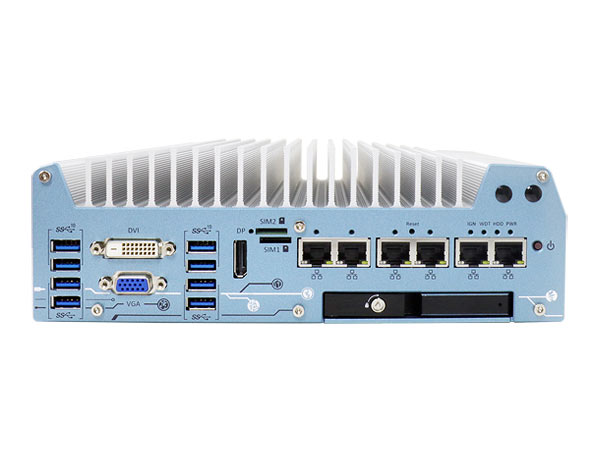

Low-profile chassis with hot-swappable 2.5″ HDD/ SSD tray
MezIO™ interface for easy function expansion
Rugged, wide temperature range from -25°C to 70°C fanless operation
Up to 6x GigE ports, supporting 9.5 KB jumbo frame
M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
VGA/DVI/DP triple independent display, supporting 4K2K resolution

Overview

Introduction

Neousys의 Intel 8세대 산업용 Fanless PC Nuvo-7000LP는 최대 6-코어/12-스레드 아키텍쳐가 장착된 인텔 8세대 코어 i 프로세서로 작동하는 신제품 산업용 Fanless PC Nuvo-7000LP 시리즈는 이전의 6세대 또는 7세대 플랫폼을 넘어 중요한 성능이 향상되었습니다.

산업용 산업용 Fanless PC Nuvo-7000LP 시리즈는 Nuvo-7000 시리즈의 파생 제품으로 79mm 로우 프로파일 섀시와 동일한 수준의 내구성과 다양성을 제공합니다. 효과적인 팬리스 설계, 독점적 MezIO 인터페이스 및 수 많은 온보드 I/O 인터페이스 이외에도 산업용 산업용 Fanless PC Nuvo-7000LP 시리즈는 내부 SATA 포트와 결합했을 때, RAID 0/1로 구성할 수 있는 전면 액세스 가능한 핫 스왑 가능 HDD/SSD 트레이를 1개 갖추고 있습니다. 또한 최첨단 M.2 NVMe SSD 기술을 사용하여 2000MB/s 이상의 디스크 읽기 / 쓰기 속도를 구현하거나 궁극의 시스템 가속화를 위해 인텔 Optane 메모리를 설치합니다.

산업용 Fanless PC Nuvo-7000LP 시리즈는 최신 Intel Hexa-core CPU, 고속 I/O 인터페이스, 초고속 디스크 액세스 및 유연한 스토리지 구성을 통합하여 고성능의 견고한 내장형 컴퓨터를 구성합니다. 또한 내장 MezIO 인터페이스를 활용하여 애플리케이션 별 I/O 모듈을 추가 할 수도 있습니다.

Introducing Neousys Technology’s 2018 flagship rugged fanless embedded computers, the new Nuvo-7000LP series, powered by Intel® 9th/ 8th-Gen Core™ i processors with up to 8/ 6-core architecture that offer a significant performance improvement over previous 6th or 7th-Gen platforms.

Nuvo-7000LP series is a derivative of Nuvo-7000 series that features the same level of ruggedness and versatility in a 79mm low-profile chassis. In addition to effective fanless design, proprietary MezIO™ interface and plethora of on-board I/O interfaces, Nuvo-7000LP series features one front-accessible, hot-swappable HDD/ SSD tray which can be configured as RAID 0/1 when combined with the internal SATA port. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed, or install an Intel® Optane™ memory for the ultimate system acceleration.

Neousys Nuvo-7000LP series consolidates the latest Intel hexa-core CPU, high-speed I/O interfaces, super-fast disk access and flexible storage configuration to form a high-performance ruggedized embedded computer. In addition, you can also take advantage of the built-in MezIO™ interface to add on modules for application-specific I/Os.

Nuvo-7000LP시리즈 제작 블로그 링크입니다.(클릭)

#Nuvo-7000LP #산업용PC #Fanless PC #RAID0/1 #스마트 팩토리 #임베디드PC #Edge AI

Product Highlights

9th/ 8th-Gen Core i CPU

Powered by Intel® Coffee lake Core™ processor running with advanced Intel® Q370 chipset, The Nuvo-7000 series fanless embedded computer provides outstanding performance for emerging high-end requirement than 6th & 7th generations.

Wide Temperature Range Operation

The Nuvo-7000 series fanless embedded computer has patented passive cooling thermal design that can effectively channel heat from heat sink and truly operate in wide temperature range from -25℃ to 70℃ while under 100% CPU loading.

Specifications

System Core
Processor	Supporting Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) – Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE – Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE – Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE – Intel® Pentium® G5400/ G5400T – Intel® Celeron® G4900/ G4900T
Chipset	Intel® Q370 Platform Controller Hub
Graphics	Integrated Intel® UHD Graphics 630
Memory	Up to 64 GB DDR4 2666/2400 SDRAM (two SODIMM slots)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet Port	2x Gigabit Ethernet ports by I219 and I210 (Nuvo-7002LP) 6x Gigabit Ethernet ports by I219 and 5x I210 (Nuvo-7006LP)
POE+	Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
USB	4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports
Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution

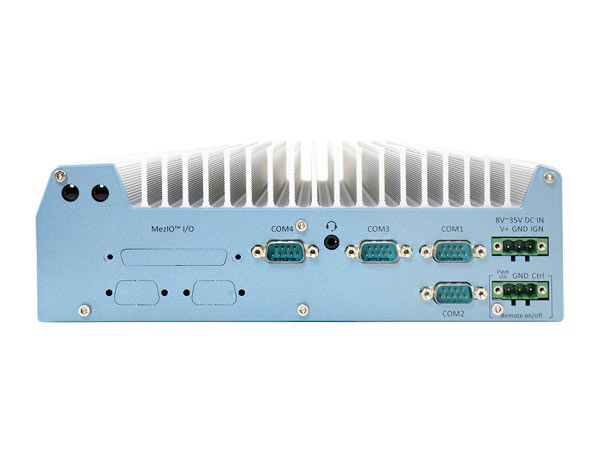

Serial Port	2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Internal Expansion Bus
Mini PCI-E	1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
M.2	1x M.2 2242 B key socket with dual front-accessible SIM sockets
Expandable I/O	1x MezIO™ expansion port for Neousys MezIO™ modules

Storage interface
SATA HDD	1x front-accessible, hot-swappable 2.5″ HDD/SSD tray 1x internal SATA port for 2.5″ HDD/SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® OptaneTM memory installation
mSATA	1x full-size mSATA port (mux with mini-PCIe)

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & Status Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 79 mm (H)
Weight	3.1 kg
Mounting	Wall-mounting (standard) or DIN-Rail mounting (optional)

Environmental
Operating temperature	with 35W CPU -25°C ~ 70°C with 65W CPU -25°C ~ 70°C /* (configured as 35W TDP) -25°C ~ 50°C /* (configured as 65W TDP)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55022 & EN 55024
Safety	UL62368-1, IEC62368-1

* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Power Backup Modules:

Ordering Information

Nuvo-7002LP

Intel® 9th/ 8th-Gen Core™ i7/i5/i3 fanless embedded computer with 2x GbE ports, MezIO™ interface and low-profile chassis

Nuvo-7006LP

Intel® 9th/ 8th-Gen Core™ i7/i5/i3 fanless embedded computer with 6x GbE ports, MezIO™ interface and low-profile chassis

Supported MezIO™ Modules

Neousys MezIO™ module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO, CAN bus, ignition power control and storage expansion

Option of 802.3at PoE+ for GbE port 3 ~ port 6
