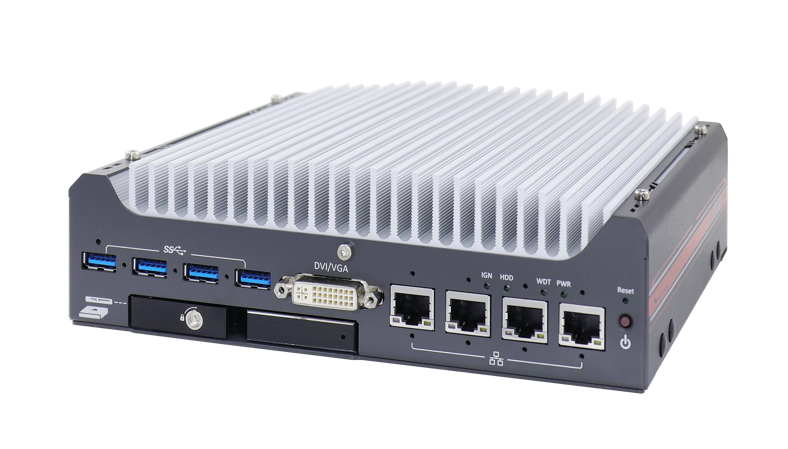

Nuvo-7531 소형 팬리스 임베디드 산업용PC

Intel® 9th/8th-Gen Core™ i7/i5/i3 컴팩트 팬리스 컴퓨터, GbE 4개, USB3.1 4개, Hot-Swap HDD Tray 1개

Nuvo-7531 소형 팬리스 임베디드 산업용PC

  • 212 x 165 x 63 mm low-profile design
  • Intel® 9th/ 8th-Gen Core™ 35W/ 65W LGA1151 CPU
  • Rugged, -25°C to 60°C fanless operation
  • 4x GbE and 4x USB3.1 Gen1 with screw-lock
  • 1x hot-swappable HDD tray and 1x M.2 2280 socket for storage
  • 4-CH isolated DI and 4-CH isolated DO
  • DVI-I + DP dual display outputs
  • Optional ignition power control
Overview
Introduction



Neousys의 Nuvo-7531은 Intel® 9th/8th-Gen Core™ CPU를 지원하는 가장 컴팩트한 임베디드 산업용 Fanless PC 중 하나입니다. 212 x 165 x 63mm의 작은 크기로 좁은 공간에도 쉽게 배치할 수 있습니다. 컴팩트한 사이즈의 Nuvo-7531이지만 성능은 타협하지 않았습니다. Intel® 9th/8th Gen Core™ 65W/35W CPU를 기반으로 하여 이전 세대 제품 대비 50% 이상 향상된 성능을 선사합니다. 산업용 Fanless PC Nuvo-7531은 다양한 산업 애플리케이션을 위한 컴팩트하고 강력한 팬리스 임베디드 컨트롤러입니다.



산업용 Fanless PC Nuvo-7531은 풍부한 I/O 기능을 탑재하고 있습니다. GbE 포트 4개, USB3.1 포트 4개를 갖춰 여러 개의 GbE 및 USB 카메라를 연결할 수 있으며 시스템을 끄거나 섀시를 분리하지 않고도 스토리지 드라이브의 교체가 가능한 HDD Hot-Swap Tray도 있습니다. mPCIe 슬롯 3개로는 필요에 따라 WIFI 또는 3G/4G 무선 통신모듈을 설치할 수 있으며 산업용 Fanless PC Nuvo-7531은 또한 DIO 8개, COM 포트 2개, 듀얼 디스플레이 출력을 탑재하여 애플리케이션에 맞게 사용할 수 있습니다.



산업용 Fanless PC Nuvo-7531은 컴팩트한 임베디드 컨트롤러로지만 뛰어난 컴퓨팅 파워와 풍부한 I/O 기능을 제공하여 다양한 산업 애플리케이션과 특히 공간 제약이 있는 환경에 더욱 적합합니다. 산업용 Fanless PC Nuvo-7531은 러기드 임베디드 컨트롤러계의 작은 거인입니다.

Nuvo-7531 is one of the most compact fanless embedded controller supporting Intel® 9th/ 8th-Gen Core™ CPUs. Measuring just 212 x 165 x 63 mm, it comfortably fits into confined spaces. Despite its compact size, Nuvo-7531 does not compromise on performance. Based on Intel® 9th/ 8th- Gen Core™ 65W/ 35W CPUs, it can deliver more than 50% extra performance compared to the previous generation. Nuvo-7531 is a compact and powerful fanless embedded controller for a variety of industrial applications.



The Nuvo-7531 has abundant I/O functions. It features four GbE ports and four USB3.1 ports for multiple GbE and USB cameras.There is a hot- swappable HDD tray for you to hot-swap the storage drive without turning off the system or dismantle the chassis. There are three mPCIe slots to install WIFI or 3G/ 4G for wireless communication needs. In addition, Nuvo-7531 is also equipped with 8x DIO, 2x COM ports and dual display outputs for your application needs.



For a compact embedded controller, Nuvo-7531 delivers amazing computing power and provides rich I/O functions. It is suitable for a variety of industrial applications, especially when space is limited. Nuvo-7531 is a little giant in the world of rugged embedded controllers.

Nuvo-7531 제작 블로그 링크입니다.(클릭)

#Nuvo-7531 #산업용PC #Fanless PC #Intel core i7 #임베디드PC #스마트 팩토리 #듀얼디스플레이 #Edge AI

Specifications
System Core
Processor Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket)
– Intel® Core™ i7-9700E/ i7-9700TE/ i7-8700/ i7-8700T
– Intel® Core™ i5-9500E/ i5-9500TE/ i5-8500/ i5-8500T
– Intel® Core™ i3-9100E/ i3-9100TE/ i3-8100/ i3-8100T
Chipset Intel® H310 platform controller hub
Graphics Integrated Intel® UHD graphics 630
Memory Up to 32 GB DDR4 2666/ 2400 SDRAM (one SODIMM slot)
TPM Supports fTPM 2.0
I/O Interface
Ethernet 4x Gigabit Ethernet ports by I219 and 3x I210
USB 3.1 4x USB 3.1 Gen1 (5 Gbps) ports
USB 2.0 2x USB 2.0 ports
Video Port
(Integrated Graphics)		 1x DVI-I for DVI/VGA output, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
Audio 1x 3.5 mm jack for mic-in and speaker-out
Isolated DIO 4-CH isolated DI and 4-CH isolated DO



Storage interface
SATA HDD 1x hot-swappable 2.5″ HDD/ SSD tray
M.2 1x M.2 2280 SATA interface



Internal Expansion Bus
Mini PCI Express 3x full-size mini PCI Express sockets with internal SIM sockets



Power Supply
DC Input 1x 3-pin pluggable terminal block
for 8~35V DC input with optional ignition power control
Remote Ctrl. &
LED Output		 1x 10-pin (2×5) pin header for
remote on/off control and status LED output



Mechanical
Dimension 212 mm (W) x 165 mm (D) x 63 mm (H)
Weight 2.5 kg
Mounting Wall-mount (standard) or DIN-rail mount (optional)
Environmental
Operating temperature with 35W CPU
-25°C ~ 60°C */**
with 65W CPU, optional fan kit is required
-25°C ~ 60°C */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
Safety EN62368-1
EMC CE/FCC Class A, according to EN 55032 & EN 55024

* For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
** For i7 CPUs, thermal throttling may occur when sustained full-loading applied at 60°C ambient temperature.



LIST
Power Backup Modules:
Ordering Information
Nuvo-7531(Optional ignition power control)

Intel® 9th/ 8th -Gen Core™ i7/ i5/ i3 compact fanless computer with 4x GbE , 4x USB 3.1 and a hot-swappable HDD tray

Optional Accessories
PA-120W-OW

120W AC/ DC power adapter 20V/ 6A; 18AWG/ 120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C

DINRAIL-31

DIN-rail mounting assembly for Nuvo-7531

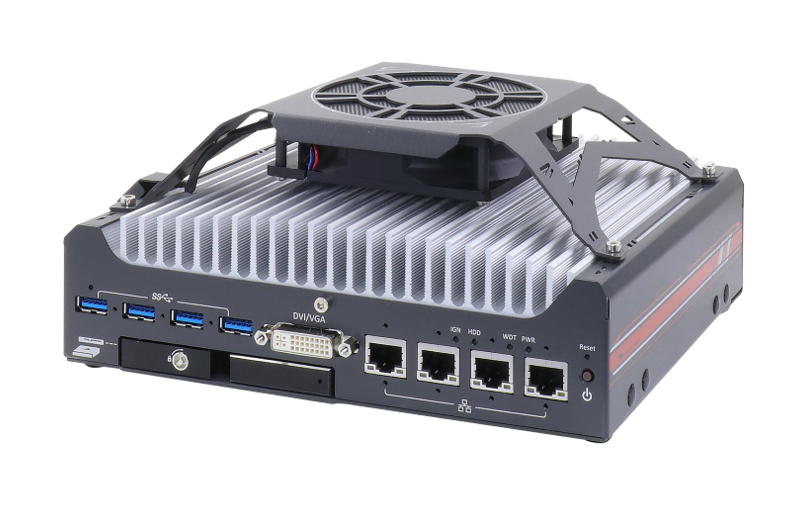

Fan kit

Fan kit with 92mm x 92mm fan for Nuvo-7531 series
