Intel® 6th-Gen Core™ i7/i5/i3 팬리스 임베디드 컴퓨터, 듀얼 PCIe 슬롯 확장 카세트, GbE 6개, MezIO™ 인터페이스

Nuvo-5026E 듀얼 PCIe 슬롯 산업용 PC

Intel® 6th Gen Core™ i7/ i5/ i3 LGA1151 35W/ 65W
Dual PCIe x8 slots in patented expansion Cassette*
MezIO™ interface for easy function expansion
Rugged, wide temperature range from -25°C to 70°C fanless operation
6x GbE ports, supporting 9.5 KB jumbo frame
Up to 32 GB, DDR4-2133 SODIMM
Accommodates two 2.5″ SATA HDD/ SSD with RAID 0/1 support
VGA/ DVI/ DP triple independent display, supporting 4K2K resolution

Overview

Introduction

Neousys의 Nuvo-5026E 임베디드 산업용 Fanless PC는 이중 PCIe 슬롯을 가진 산업용 Fanless PC Nuvo-5000 제품군입니다. 이중 PCIe 슬롯은 견고성, 성능 및 다기능성과 같은 모든 실용적 기능을 유지하면서 확장 능력을 강화합니다.

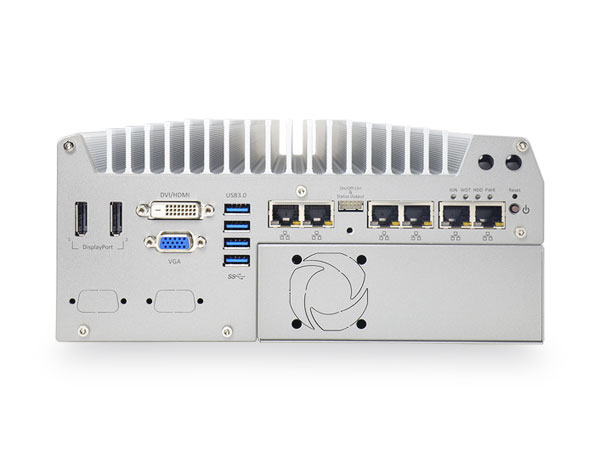

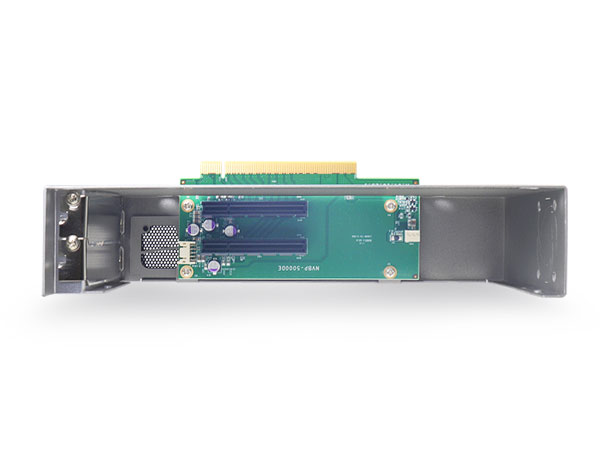

확장성을 통해 산업용 Fanless PC Nuvo-5026E는 2개의 PCIe 슬롯에 비해서 시스템을 분해하지 않고도 PCIe 카드 설치를 위해 쉽게 접근할 수 있는 특허받은 확장 카세트로 다양한 애플리케이션 요구에 더 잘 적응할 수 있습니다.

산업용 Fanless PC Nuvo-5026E는 LGA 1151 6세대 코어 프로세서를 지원합니다. 이 제품은 성능 요구사항부터 운영 환경에 따라 코어 i7부터 Celeron까지 프로세서 선택 유연성을 제공합니다. 또한 6개의 GbE, 4개의 USB3.0, 3개의 COM 포트 및 3배 독립적인 디스플레이 등 다양한 I/O 기능을 제공합니다. 게다가 MezIO 인터페이스는 선택적 MezIO 모듈을 설치하여 최대 11개의 COM 포트, 10개의 GbE, 8개의 USB3.0, 32개의 DIO 또는 점화 전원 컨트롤을 제공하는 시스템 I/O를 더욱 확장할 수 있습니다.

산업용 Fanless PC Nuvo-5026E는 다양한 산업용 애플리케이션을 위한 수많은 I/O 기능을 갖춘 확장 가능하고 유연한 플랫폼입니다.

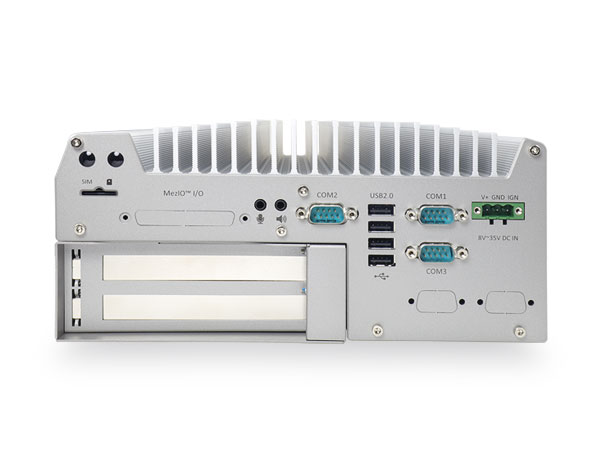

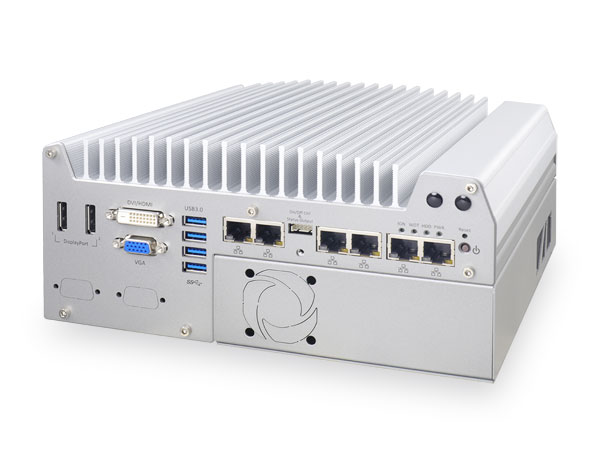

Nuvo-5026E fanless embedded computer is the latest Nuvo-5000 family member with dual PCIe slots. The dual PCIe slots enhance expansion abilities while preserving all practical features such as ruggedness, performance and versatility.

The expandability makes Nuvo-5026E more adaptable to various application needs while the two PCle slots in the patented expansion Cassette are easy to access for PCIe card installation without the need to disassemble the system.

Nuvo-5026E supports LGA1151 6th Gen Core™ processors. It offers processor selection flexibility from Core™ i7 to Celeron according to performance needs and operating environment. It also offers plenty of I/O functions such as 6x GbE, 4x USB3.0, 3x COM ports and triple independent display. In addition, Neousys’ MezIO™ interface can also further expand system I/Os offering up to either 11x COM ports, 10x GbE, 8x USB3.0, 32x DIO or ignition power control by installing an optional MezIO™ module.

Nuvo-5026E is an expandable and flexible platform with numerous I/O functions for various industrial applications.

Nuvo-5026E 제작 블로그 링크입니다.(클릭)

#Nuvo-5026E #산업용PC #Fanless PC #LGA 1151 #임베디드PC #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	-Intel® Core™ i7-6700 (8M Cache,3.4/ 4.0 GHz, 65W TDP)* -Intel® Core™ i5-6500 (6M Cache, 3.2/ 3.6 GHz, 65W TDP)* -Intel® Core™ i3-6100 (3M Cache, 3.7 GHz, 51W TDP)* -Intel® Pentium® G4400 (3M Cache, 3.3 GHz, 54W TDP)* -Intel® Celeron® G3900 (2M Cache, 2.8 GHz, 51W TDP)* -Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP) -Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP) -Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP) -Intel® Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP) -Intel® Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP))
Chipset	Intel® Q170 platform controller hub
Graphics	Integrated Intel® HD graphics 530 or 510 (CPU dependent)
Memory	Up to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
AMT	Supports AMT 11.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	6x Gigabit Ethernet ports by Intel® I219 and 5x I210
POE+	Optional IEEE 802.3at PoE+ PSE for GbE Port 3 ~ Port 6, 80 W total power budget
USB	4x USB 3.1 Gen1 ports via native xHCI controller 4x USB 2.0 ports
Video Port	1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution
Serial Port	Port 2x software-programmable RS-232/422/485 port (COM1 & COM3) 1x RS-232 port (COM2)
Audio	1x Mic-in and 1x Speaker-out

Storage Interface
SATA HDD	2x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1
mSATA	1x full-size mSATA port (mux with mini-PCIe)

Expansion Bus/ Internal I/O Interface
PCI/PCI Express	2x PCIe x8 slot @ Gen3, 4-lanes PCIe signals in expansion Cassette
Mini PCI-E	1x internal mini PCI Express socket with front-accessible SIM socket 1x internal mini PCI Express socket with internal SIM socket (mux with mSATA)
Expandable I/O	1x MezIO™ expansion port for Neousys’ MezIO™ modules

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 35V DC input
Remote Ctrl. & Status Output	1x 10-pin (2×5) wafer connector for remote on/off control and status LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 111 mm (H)
Weight	3.7 kg (including CPU, GPU, memory and HDD)
Mounting	Wall-mount by mounting bracket (standard) or DIN-Rail mounting (optional)

Environmental
Operating Temperature	with i7-6700TE, i5-6500TE, i3-6100TE, Pentium G4400TE(35W TDP) -25°C ~ 70°C * with i7-6700, i5-6500, i3-6100 (65W/51W TDP) -25°C ~ 70°C / * (configured as 35W CPU mode) -25°C ~ 50°C / * (configured as 65W/51W CPU mode)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMC	CE/ FCC Class A, according to EN55022, EN55024 & EN55032

* The 100% CPU loading is applied using Passmark® BurnInTest 8.1. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required

LIST

Expansion PCIe Cards:

Ordering Information

Nuvo-5026E

Intel® 6th-Gen Core™ fanless controller with dual PCIe Cassette, 6x GbE and MezIO™

Optional 802.3at PoE+ for GbE port 3 ~ port 6

Supported MezIO™ Modules

Neousys MezIO™ module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO, CAN bus, ignition power control and storage expansion

Optional Accessories

20V, 160W AC/ DC power adapter

DIN-Rail mounting kit
