Intel® 9th/8th-Gen Core™ 인비어클 컨트롤러, PoE+ 포트 4개 또는 8개, 수퍼커패시터 기반 파워 백업 모듈

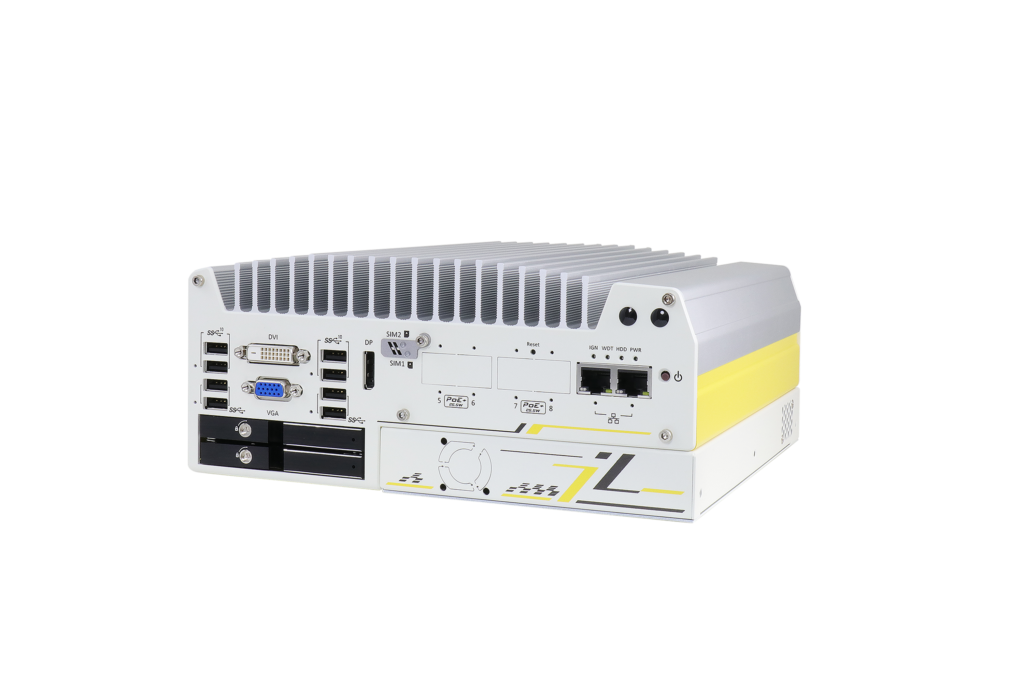

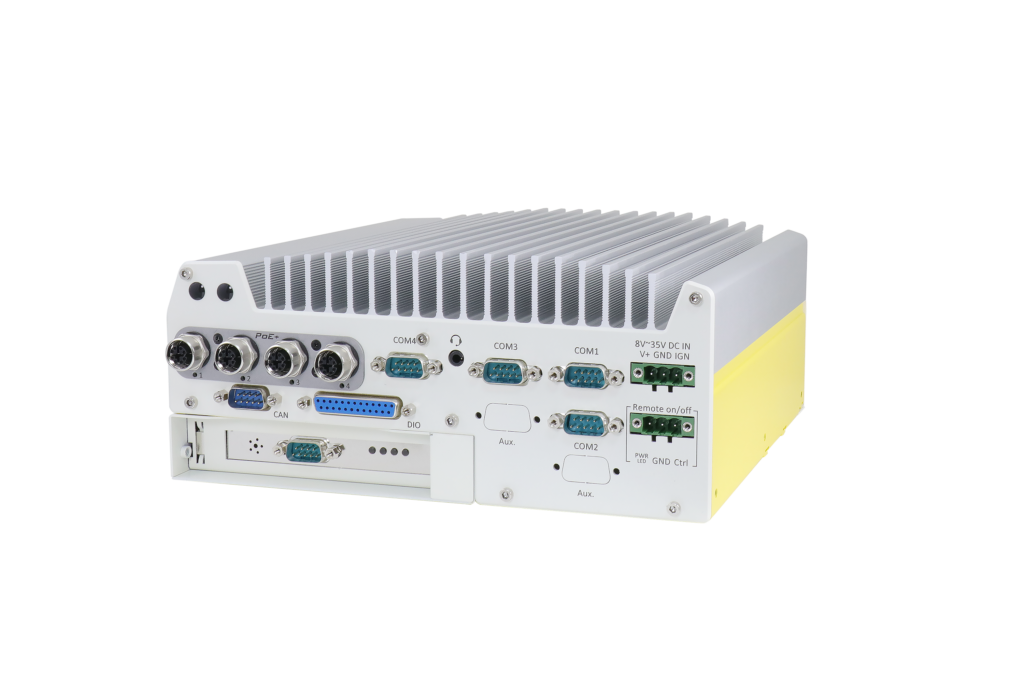

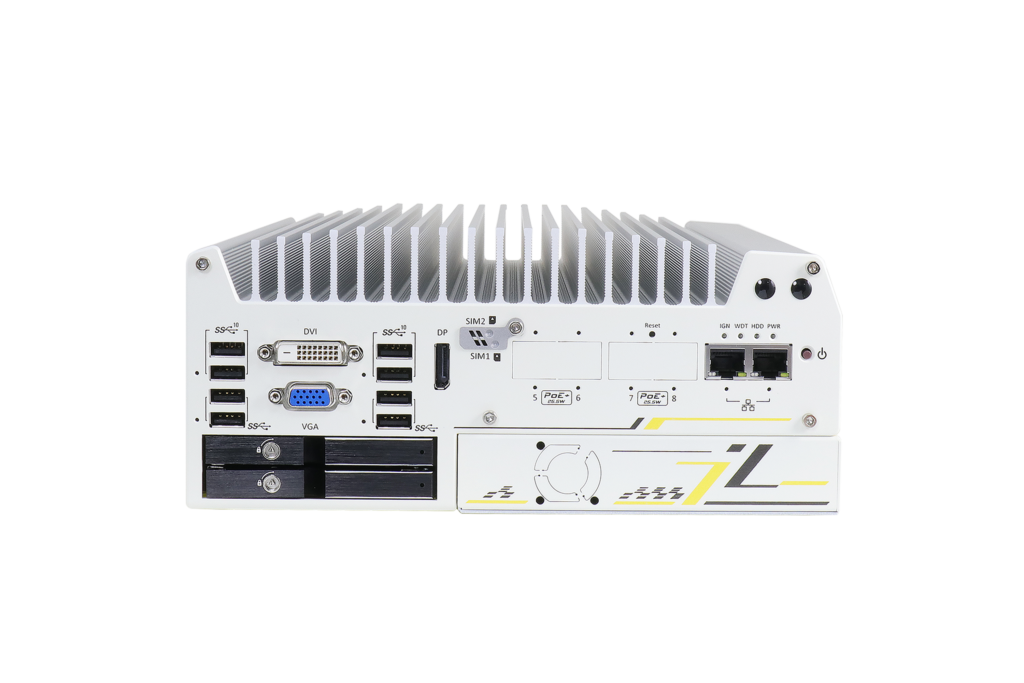

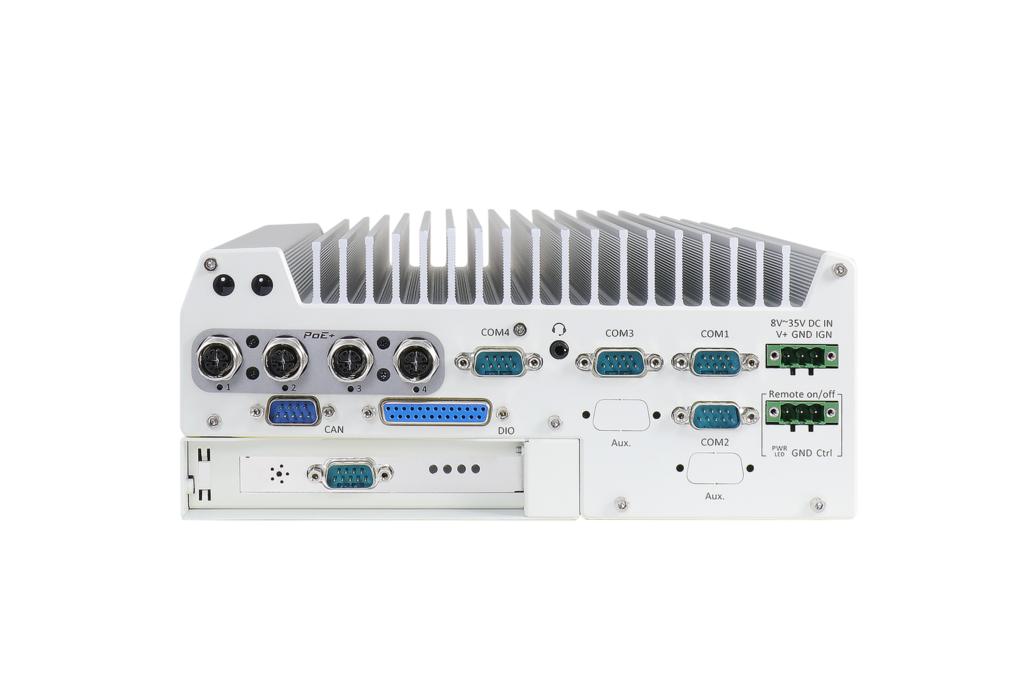

Nuvo-7250VTC Series 인텔 9/8세대 산업용 팬리스 PC

Supports Intel® 9th/ 8th-Gen Core™ i7/i5/i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE+ ports via M12 or RJ45 connectors
Onboard isolated CAN bus for in-vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x hot-swappable SATA HDD trays, supporting RAID 0/1
2x M.2 B key and 3x full-size mini-PCIe sockets
8V to 35V wide-range DC input with built-in ignition power control
Patented Supercapacitor-based Uninterruptible Power Backup
E-Mark/ EN45545 certified and EN 50155 EMC compliant

Overview

Introduction

Neousys의 Nuvo-7250VTC는 혁신적인 슈퍼카피터 기반 전력 백업 솔루션을 활용하는 강력한 차내 컨트롤러입니다. 최대 8-코어/16-스레드 그리고 DDR4 메모리와 같이 인텔 8/9세대 코어 프로세서로 움직이는 이 제품은 다양한 차내 용도에 대해 이전 세대보다 50% 이상 향상된 성능을 제공합니다.

산업용 Fanless PC Nuvo-7250VTC는 예기치 못한 정전동안 시스템이 안전하게 정지할 수 있도록 1초당 2500와트를 발생시켜 저장된 에너지를 제공하는 슈퍼카피터 기술을 갖추고 있습니다. 그리고 다양한 주변 장치 및 연결 장치를 제공합니다. 802.3at PoE+ 포트가 4개 또는 8개가 있어, M12(x-코드 연결 장치)와 기가비트 이더넷과 같은 I/O의 커넥터 스큐류 잠금 메커니즘을 사용한 IP 카메라와 같은 연결된 장치에 25W 전원을 공급합니다; USB3.0 및 USB3.1을 통해 충격/진동 환경에서의 탁월한 견고성을 보장합니다. 내부 확장에 현명하게 3G/4G, WIFI, GPS, 무선통신용 CAN 모듈에 해당하는 무선 모듈이 장착된 M.2와 미니 PCIe 소켓 3개를 가지고 있습니다.

또한, 구현 시간과 비용을 절약할 수 있는 미국 유명 통신사와 협력할 수 있도록 인증된 4G 무선 모듈 옵션이 있습니다. 그 외에도, 산업용 Fanless PC Nuvo-7250VTC는 또한 차내 통신을 위한 격리된 CAN 버스, 센서/액츄에이터 제어를 위한 격리된 DIO, 점화 전원 제어를 통한 8~35V의 광범위 DC 입력 및 EN 50155를 준수하는것이 특징입니다. 슈퍼캐피터 파워 백업 기술과 결합한 산업용 Fanless PC Nuvo-7250VTC는 데이터 보호를 제공하며 다양한 차내 애플리케이션을 위한 완벽한 솔루션입니다.

Nuvo-7250VTC is a rugged in-vehicle controller that utilizes Neousys’ innovative supercapacitor-based power backup solution. Powered by Intel® 8th/ 9th Gen Core™ processors with up to 8-core/ 16-thread and 64GB DDR4 memory, it offers over 50% performance increase over previous generations for versatile in-vehicle applications.

Nuvo-7250VTC is equipped with supercapacitor technology to provide 2500 watt-second stored energy to sustain the system to safely shutdown during unforeseen power outages. Nuvo-7250VTC offers a variety of peripherals and connections. It has four or eight 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on I/Os like Gigabit Ethernet; USB3.0 and USB3.1 to guarantee extreme rugged connectivity in shock/ vibration environments. Internal expansion wise, it has two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G/ 4G, WIFI, GPS, and CAN module for wireless communication.

Additionally, there is a 4G cellular module option that is certified to work with renowned US telecommunications company which can save you implementation time and cost. To top it off, Nuvo-7250VTC also features isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8~35V wide-range DC input with ignition power control and is in compliance with EN 50155. Coupled with supercapacitor power backup technology, the Nuvo-7250VTC offers data protection and is the perfect solution for various in-vehicle applications.

#Nuvo-7250VTC #산업용PC #Fanless PC #DIO #CAN Bus #스마트 팩토리 #자율주행 #Edge AI

Specifications

System Core
Processor	Supports Intel® 8th/9th-Gen Coffee Lake CPU (LGA1151 socket, 35W TDP) – Intel® Core™ i7-8700T/ i7-9700TE – Intel® Core™ i5-8500T/ i5-9500TE – Intel® Core™ i3-8100T/ i3-9100TE
Chipset	Intel® Q370 platform controller hub
Graphics	Integrated Intel® HD Graphics 630
Memory	Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+	4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 – M12 x-coded connector (Nuvo-7200VTC); – RJ45 connector (Nuvo-7204VTC) 8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 – RJ45 connector (Nuvo-7208VTC)
CAN	1x isolated CAN 2.0 port
Isolated DIO	4x isolated DI and 4x isolated DO
USB	4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports
Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Audio	1x Mic-in and 1x speaker-out

Storage Interface
SATA HDD	2x hot-swappable HDD tray for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
mSATA	1x full-size mSATA port (mux with mini-PCIe)
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation

Expansion Bus
Mini PCI-E	1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2	2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35V DC input (IGN/ GND/ V+)
Remote Ctrl.& Status Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 103mm (H)
Weight	4.1 kg
Mounting	Wall-mount with damping brackets (Standard) or DIN-rail mount (optional)

Environmental
Operating Temperature	-40°C ~ 70°C **
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
EMC	E-Mark, EN 50155, EN45545(Nuvo-7258VTC), CE/FCC Class A, according to EN 55032 & EN 55024
EN 45545	EN 45545-2 (Nuvo-7258VTC)

* For i7-9700E and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Ordering Information

Nuvo-7250VTC

Intel® 9th/ 8th-Gen Core™ in-vehicle controller with 4x M12 PoE+ ports, ultracapacitor-based power backup module

Nuvo-7254VTC

Intel® 9th/ 8th-Gen Core™ in-vehicle controller with 4x RJ45 PoE+ ports, ultracapacitor-based power backup module

Nuvo-7258VTC

Intel® 9th/ 8th-Gen Core™ in-vehicle controller with 8x RJ45 PoE+ ports, ultracapacitor-based power backup module

Optional Accessories

Cbl-M12X8M-RJ45-500CM

M12 (8-pole-X-coded) to RJ45, CAT6, length : 500CM

Cbl-M12X8M-RJ45-1000CM

M12 (8-pole-X-coded) to RJ45, CAT6, length : 1000CM

PA-120W-OW

120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C.
