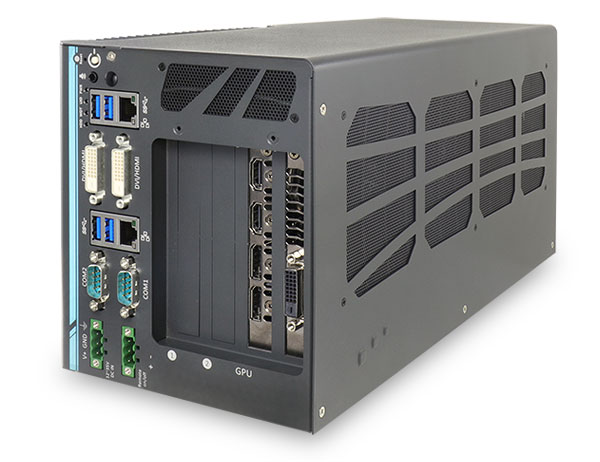

러기드 Edge AI GPU 컴퓨팅 플랫폼, NVIDIA® RTX 3070및 Intel® Xeon® E3 v5 또는 6th-Gen Core™ 프로세서 지원

Nuvo-6108GC series 자율주행 산업용 팬리스 PC

Supports Intel® Xeon® E3 v5 or 6th-Gen Core™ i7/i5 LGA1151 CPU
Supports NVIDIA® RTX 3070

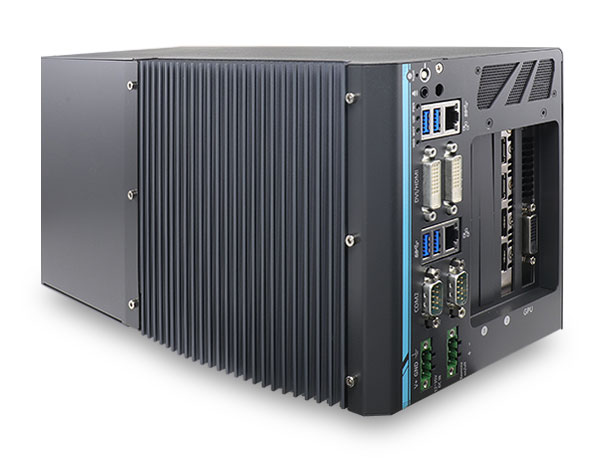

Patented thermal design for -25℃ to 60℃ rugged operation*(* R.O.C Patent No. M534371)
Two x8, Gen3 PCIe slots for add-on cards
Dual GbE ports and four USB 3.1 Gen1 ports
Four 2.5″ SATA drives with RAID 0/1/5/10 support
Automatic temperature sensing and fan control
Patented damping brackets to withstand 1 Grms Vibration*(* R.O.C Patent No. M491752)

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-6018GC은 하이엔드 그래픽 카드를 지원하는 세계 최초의 산업 등급 Edge AI GPU 컴퓨터입니다. 최대 250W TDP의 NVIDIA GPU를 지원함으로써 AI(인공지능) 인퍼런스, VR, 자율주행, CUDA 컴퓨팅 등의 성장하고 있는 GPU-가속 애플리케이션을 충족하기 위해 설계되었습니다.

Intel® C236 칩셋이 장착된 산업용 Fanless PC Nuvo-6018GC는 Xeon® E3 V5 또는 6th-Gen Core™ i7/i5 CPU를 최대 32 GB ECC/Non-ECC DDR4 memory로 지원합니다. Gigabit Ethernet, USB 3.0, 시리얼 포트 등 일반적인 컴퓨터 I/O를 탑재했으며 GPU 설치를 위한 PCIe x16 포트와 더불어 PCIe x8 슬롯을 제공하여 정보 수집 및 통신을 위한 추가 디바이스를 사용할 수 있습니다.

산업용 Fanless PC Nuvo-6018GC는 정밀한 전원설계로 전력소모가 큰 250W GPU의 연산을 지원하며 또한 산업환경에서의 안정적인 GPU 퍼포먼스를 위해 외부의 차가운 공기를 흡입하여 GPU에서 발생하는 열을 효과적으로 냉각하는 Neousys의 특허 설계를 적용하였습니다. 이 독창적인 설계를 통해 산업용 Fanless PC Nuvo-6108GC는 60°C 환경의 GPU 100% 로딩 조건에서도 정상 작동을 보장하며, 열악한 현장에서 매우 안정적으로 사용할 수 있습니다.

Nuvo-6108GC is world’s first industrial-grade Edge AI GPU computer supporting high-end graphics cards. It’s designed to fuel emerging GPU-accelerated applications, such as AI (artificial intelligence) inference, VR, autonomous driving and CUDA computing, by accommodating nVidia GPU with up to 250W TDP.

Leveraging Intel® C236 chipset, Nuvo-6108GC supports Xeon® E3 V5 or 6th-Gen Core™ i7/i5 CPU with up to 32 GB ECC/ non-ECC DDR4 memory. It incorporates general computer I/Os such as Gigabit Ethernet, USB 3.1 Gen1 and serial ports. In addition to the x16 PCIe port for GPU installation, Nuvo-6108GC further provides two x8 PCIe slots so you can have additional devices for information collection and communication.

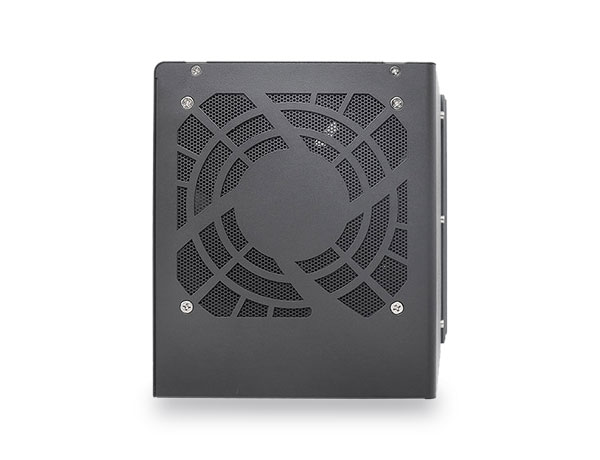

Nuvo-6108GC comes with sophisticated power design to handle heavy power consumption and power transient of a 250W GPU. Furthermore, to have reliable GPU performance for industrial environments, Nuvo-6108GC inherits Neousys’ patented design*, a tuned cold air intake to effectively dissipate the heat generated by GPU. This unique design guarantees operation at 60°C with 100% GPU loading and makes Nuvo-6108GC extremely reliable for demanding field usage.

#Nuvo-6018GC #산업용PC #Fanless PC #AI GPU #스마트 팩토리 #자율주행 #Edge AI

Specifications

System Core
Processor	Supports Intel® Xeon® E3 V5 and 6th-Gen Core™ LGA 1151 CPU -Intel® Xeon® Processor E3-1275 v5 (8M Cache, 3.6/ 4.0 GHz)* -Intel® Xeon® Processor E3-1268L v5 (8M Cache, 2.4/ 3.4 GHz) -Intel® Core™ i7-6700 (8M Cache, 3.4/ 4.0 GHz)* -Intel® Core™ i5-6500 (6M Cache, 3.2/ 3.6 GHz)* -Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz) -Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz)
Memory	Up to 32 GB ECC/ non-ECC DDR4-2133
Graphics	Independent GPU via x16 PEG port, or integrated Intel® HD 530 graphics
Chipset	Intel® C236 platform controller hub

I/O Interface
Ethernet	1x Gigabit Ethernet port by Intel I219-LM 1x Gigabit Ethernet port by Intel I210-IT
Native Video Port	2x DVI-D connectors for DVI outputs, supporting 1920×1200 resolution
Video Port	1x DVI-I connector for both analog RGB and DVI outputs
Serial Port	2x Software-programmable RS-232/ 422/ 485 ports
USB	4x USB 3.1 Gen1 ports
Audio	1x Speaker-out

Expansion Bus/ Internal I/O Interface
PCI Express	1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals for GPU 2x PCIe x8 slot @ Gen3, 4-lanes PCIE signals
M.2	1x M.2 B key socket for 3G/4G options with SIM socket
mini-PCIe	1x full-size mini PCI express socket
Remote Ctrl. & Status Output	1x 2×6-pin 2.0mm pin-header connector for remote on/off control and status LED output

Storage Interface
SATA	4x SATA ports for 2.5” HDD/ SSD installation, supporting RAID 0/ 1/ 5/ 10

Power Supply
DC Input	1x 3-pin pluggable terminal block for 24 VDC input
Remote ctrl.	1x 3-pin pluggable terminal block for remote on/off control

Mechanical
Dimension	164 mm (W) x 174 mm (H) x 330 mm (D)
Weight	4.7 kg
Mounting	Wall-mounting with damping bracket

Environmental
Operating Temperature	-25°C ~ 60°C with 100% CPU/GPU loading /*
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, 0.5 Grms, 5-500 Hz, 3 Axes (w/ GPU, fan and HDD), according to IEC60068-2-64
Shock	–
EMC	CE/FCC Class A, according to EN 55022 & EN 55024

* The 100% CPU loading is applied using Passmark® BurnInTest 8.1. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required

LIST

Expansion PCIe Cards:

Ordering Information

Nuvo-6108GC

Industrial-grade GPU computing platform supporting 180W NVIDIA® GPU and Intel® Xeon® E3 v5 and 6th-Gen Core™ processor

Nuvo-6108GC-TI

Industrial-grade GPU computing platform supporting 250W NVIDIA® GPU and Intel® Xeon® E3 v5 and 6th-Gen Core™ processor

Optional Accessories

PA-280W-OW

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; Cord end terminals for terminal block, operating temperature : -30 to 60 °C

PA-480W-DIN

480W AC-DC power adapter DIN-rail mount, 24V 20A, 90~264VAC/127~370VDC, terminal block, -20 to70°C, Meanwell SDR-480-24
