비전별 I/O 및 실시간 제어 기능을 갖춘 AMD Ryzen™ V1000 초소형 비전 컨트롤러

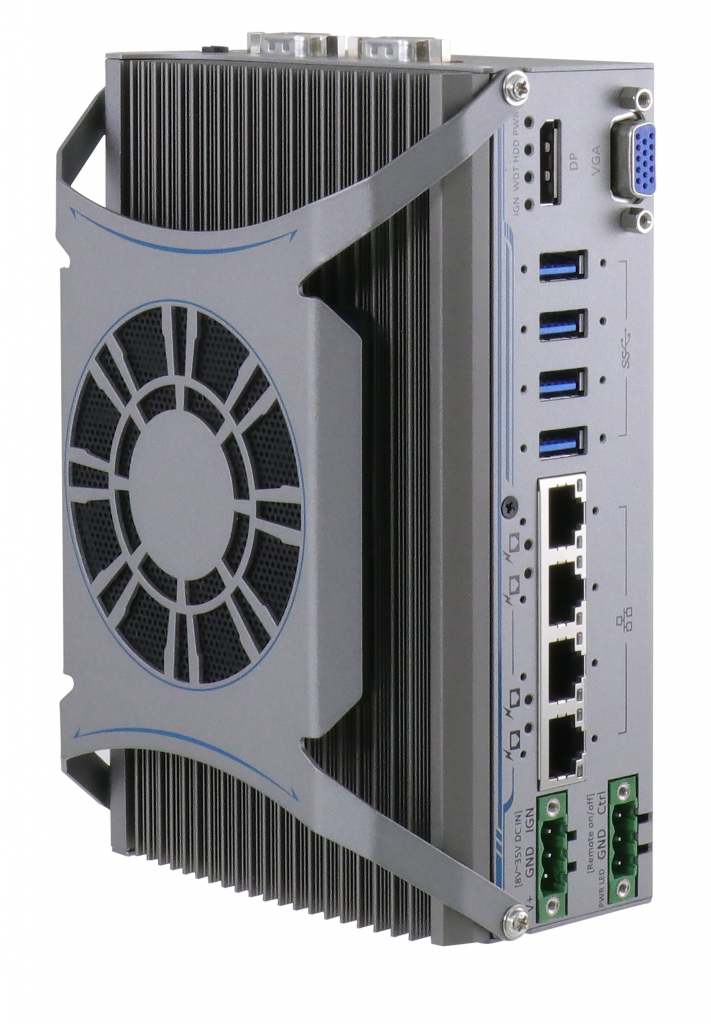

Nuvis-534RT 초소형 비전 컨트롤러

AMD Ryzen™ Embedded V1807B quad-core 45W CPU
Integrated vision-specific I/O
4-CH CC/ CV lighting controller
4-CH camera trigger outputs
1-CH quadrature encoder input
8-CH isolated DI and 8-CH isolated DO
Patented MCU-based, real-time I/O control by DTIO V2* and NuMCU
Built-in camera interfaces, Four Gigabit PoE+ ports with screw-lock Four USB 3.1 Gen1 ports with screw-lock
M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access

Overview

Introduction

Neousys의 Nuvis-534RT는 통합 카메라 인터페이스, 비전별 I / O 및 머신 비전 애플리케이션을 위한 실시간 컨트롤 기능을 갖춘 고성능의 초소형 비전 컨트롤러입니다. AMD Ryzen ™ Embedded V1807B 4코어 / 8스레드 프로세서로 구동되는 이 제품은 소형 8.2cm x 11.8cm x 17.6cm (3.4 “x 4.6″x 6.9 “) 크기를 유지하면서 메인 스트림 데스크톱 CPU와 동등하게 뛰어난 성능을 제공합니다.

산업용 Fanless PC Nuvis-534RT는 LED 조명을 직접 구동하는 정전류 조명 컨트롤러, 카메라를 활성화하기 위해 격리된 12V 트리거를 출력하고, 위치 정보를 얻기 위해 인코더 입력, 센서 / 액추에이터에 연결하기 위한 DIO를 포함하여 고유한 비전 지향 I / O 구성을 제공합니다. 위의 모든 비전 지향 I / O는 특허받은 DTIO V2 또는 NuMCU 기술로 관리하여 마이크로 초 단위로 실시간 트리거 / 응답을 보장 할 수 있습니다.

산업용 Fanless PC Nuvis-534RT는 고성능과 작은 설치 공간의 조합으로 공간 제약없이 USB3.0 및 GigE 카메라와 함께 비전 시스템을 쉽게 배치 할 수있는 독특한 1-2 펀치 이점을 제공합니다.

Nuvis-534RT is a high-performance, ultra-compact vision controller with integrated camera interfaces, vision-specific I/Os and real-time control for machine vision applications. Powered by AMD Ryzen™ Embedded V1807B 4-core/ 8-thread processor, it provides superb performances equivalent to mainstream desktop CPUs while retaining a compact 8.2 cm x 11.8 cm x 17.6 cm (3.4″ x 4.6″ x 6.9″) dimensions.

Nuvis-534RT offers unique vision-oriented I/O configurations, including constant-current lighting controller to directly drive LED lights, isolated 12V trigger output to activate cameras, encoder input to acquire position information and DIO to connect to sensors/ actuators. All of the above visionoriented I/Os can be managed by Neousys’ patented DTIO V2 or NuMCU technology to guarantee real-time trigger/ response in micro-second scale.

The combination of high performance and small footprint gives Nuvis-534RT a distinctive 1-2 punch advantage where the vision system can be easily deployed with USB3.0 and GigE cameras and without space restrictions.

#Nuvis-534RT #산업용PC #Fanless PC #스마트 팩토리 #초소형비전컨트롤러 #머신비전 #Edge AI

Specifications

System Core
Processor	AMD Ryzen™ V1807B CPU (4C/ 8T, 2M Cache, 3.35/ 3.8 GHz,35W – 54W TDP)
Graphics	Vega GPU with 11 compute units
Memory	Up to 16 GB DDR4-3200 SDRAM by one SODIMM sockets

Vision-Specific I/O Interface
LED Lighting Controller	4-CH LED lighting controller output , supporting – Constant current mode (up to 2 A per channel, 100 kHz dimming control) – Constant voltage mode (24 VDC, 100 kHz dimming control)
Camera Trigger	4-CH camera trigger output (12 VDC output)
Encoder Input	1-CH quadrature encoder input (A/ B/ Z)
Isolated Digital Output	4-CH isolated high-speed DO (< 2 us transient time, for strobe/PWM) 4-CH isolated high-current DO (up to 500 mA rated current)
Isolated Digital Input	8-CH isolated high-speed digital input (< 2 us transient time)
Real-time I/O Control	Patented MCU-based real-time I/O control with DTIO V2 or NuMCU firmware

General I/O Interface
Ethernet port	4x Gigabit Ethernet ports by Intel® I350-AM4 controller
PoE+	IEEE 802.3at PoE+ PSE, 80 W total power budget
USB	4x USB 3.1 Gen1 (5 Gbps) ports
Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DP connector, supporting 4k2k resolution
Serial Port	1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
M.2	1x M.2 2280 M key NVMe socket (PCIe Gen3 x2)for NVMe SSD

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & Status Output	1×3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	82 mm (W) x 118 mm (D) x 176 mm (H)
Weight	1.5 kg
Mounting	DIN-rail mount (standard) or Wall-mount (optional)
Fan	External-accessible 80mm x 80mm fan for system heat dissipation

Environmental
Operating Temperature	-25°C ~ 70°C /*
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55032 & EN 55024

* For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
** Operating temperature is up to 70°C only if external-accessible fan is installed.

LIST

Ordering Information

Nuvis-534RT-DTIO

AMD Ryzen™ V1807B ultra-compact vision controller with vision-specific I/O and real-time control by DTIO

Nuvis-534RT-NuMCU

AMD Ryzen™ V1807B ultra-compact vision controller with vision-specific I/O and real-time control by NuMCU
