POC-451VTC series 초소형 차량 내 팬리스 PC

Intel® Elkhart Lake Atom® x6425E 초소형 차량 장착용 팬리스 컴퓨터 WIFI/4G/5G 모듈용M.2/mPCIe 슬롯 및 3x 2.5G, PoE+ 지원

POC-451VTC series 초소형 차량 내 팬리스 PC

  • Intel® Atom® x6425E quad-core processor
  • Rugged -40°C to 70°C fanless operation
  • 2x 2.5GbE PoE+ ports and 1x 2.5GbE port
  • 1x M.2 2242/ 3052 B key for 4G/5G module
  • 2x M.2 2230 E key for WIFI and edge TPU module
  • Conduction-cooled heatsink for M.2/ mPCIe modules
  • Dual M.2 2280 M key for SATA SSD
  • 8~35V DC input with built-in ignition power control
Overview
Introduction



Neousys의 POC-451VTC는 모바일 게이트웨이, 모바일 감시 및 승객 정보 시스템 같은 차량 내 애플리케이션을 위한 E-Mark 인증의 초소형 차량 장착용 산업용 Fanless PC입니다. 이전 세대 제품과 비교했을 때 Intel® Elkhart Lake Atom® x6425E CPU를 활용하여 1.8배의 CPU 및 2배의 GPU 성능 개선을 이루었습니다.



산업용 Fanless PC POC-451VTC는 최신의 차량 내 애플리케이션을 위한 4G/5G, WiFi5/6, CAN BUS 및 TPU 모듈을 설치할 수 있도록 다중 M.2와 mPCIe 슬롯을 제공합니다. 따라서 컴팩트한 사이즈임에도 AI 추론 기능을 지원(TPU)할 뿐만 아니라 최신 규격의 WiFi와 광대역 무선 통신도 확장할 수 있습니다. 고성능 모듈을 처리할 수 있도록, POC-451VTC에는 고온 환경에서 최적의 시스템 성능을 유지하기 위하여 M.2/mPCIe 모듈에서 발생하는 열을 분산시키는 전용 방열판(Heatsink)이 추가되어 있습니다.



연결성에 있어서 산업용 Fanless PC POC-451VTC는 IP와 GigE 카메라 같은 PoE PD 장치를 작동시키기 위해 PoE+ 전원공급이 가능한 2.5GBASE-T 이더넷 포트 3개를 제공합니다. 해당 포트들은 기존 대부분의 이더넷 장치를 사용할 수 있도록 1000/100 Mbps 이더넷과 하위 호환이 가능합니다. 이 시스템은 또한 차량 내에 배치하기 위해 점화 전원 컨트롤 기능을 가진 8V-35V 광범위한 DC 전원입력을 지원하고 센서/액츄에이터 제어를 위한 Isolated(절연) DIO 포트를 제공합니다.



뛰어한 성능 부스팅, 2.5G PoE+ 포트, 통신 및 추론을 위해 월등한 써멀 관리 신뢰성을 가진 산업용 Fanless PC POC-451VTC는 차량용 애플리케이션에 더 많은 가능성의 문을 여는 AI 가능 모바일 게이트웨이 솔루션입니다.



POC-451VTC is an ultra-compact in-vehicle computer with E-Mark certificate for in-vehicle applications, such as a mobile gateway, mobile surveillance and passenger information system. Leveraging the Intel® Elkhart Lake Atom® x6425E CPU, it delivers 1.8x the CPU and 2x the GPU performance improvement when compared to the previous generation.



POC-451VTC provides multiple M.2 and mPCIe slots to install 4G/5G, WiFi5/6, CAN bus, and edge TPU modules for modern in-vehicle applications. It can therefore extend WiFi and broadband wireless communications as well as provide AI inference functionality inside a compact footprint. To cope with the high-performance modules, POC-451VTC has a dedicated conduction-cooled heat spreader to dissipate the heat generated by M.2/mPCIe modules to maintain optimal system performance in high-temperature environments.



Connectivity-wise, POC-451VTC offers three 2.5GBASE-T Ethernet ports with PoE+ capability for powering PoE PD devices, such as IP and GigE cameras. The ports are backward-compatible with 1000/100 Mbps Ethernet to work with most existing Ethernet devices. The system also provides isolated DIO for sensor/ actuator control and 8V-35V wide range DC input with ignition power control for in-vehicle deployment.



With a significant performance boost, 2.5G PoE+ ports, superior thermal reliability for communication and inference, POC-451VTC is an AI-capable, mobile gateway solution that opens the door to more possibilities for in-vehicle applications.



Wireless and internet access is essential for modern day in-vehicle applications. POC-351VTC has a total of four M.2/ mPCIe sockets and six antenna holes to accommodate a variety of 4G, 3G, WIFI and GPS modules to satisfy in-vehicle and V2V(vehicle to vehicle) communications. An aluminum heat-spreader is thoughtfully designed to dissipate heat generated by modules to maintain superior operating stability, for the system and communication modules.

#POC-451VTC #산업용PC #Fanless PC #Elkhart Lake Atom® x6425E #스마트 팩토리 #초소형PC #모바일감시 #Edge AI

Specifications
System Core
Processor Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor
Graphics  Integrated Intel® UHD Graphics
Memory Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket
TPM Supports fTPM 2.0

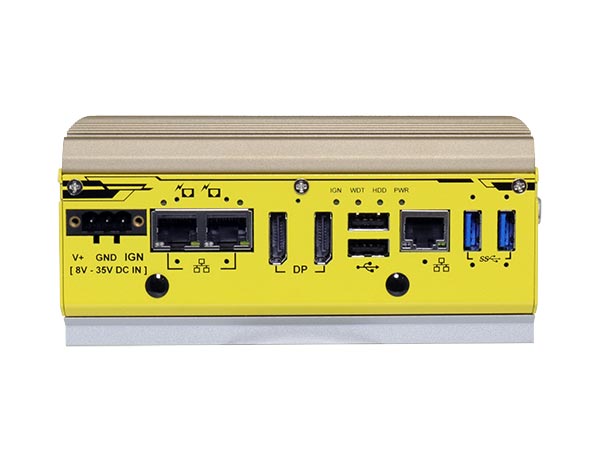

Panel I/O Interface
Ethernet 3x 2.5GBASE-T Ethernet ports by Intel® I225 GbE controllers
POE IEEE 802.3at PoE+ on port #2 and #3
Video Port 2x DisplayPort connector, supporting 4096 x 2160 resolution @ 60Hz
USB 2x USB 3.2 Gen1 (5 Gbps) ports
2x USB 2.0 ports

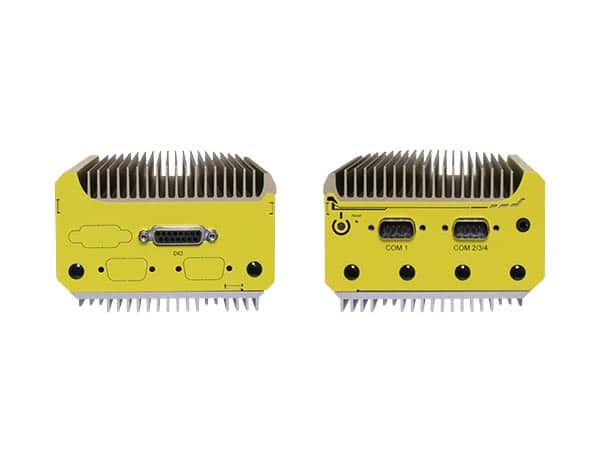

Serial Port 1x software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
Audio Optional 1x 3.5 mm jack for mic-in and speaker-out
Isolated DIO 4x isolated DI and 4x isolated DO



Internal Expansion Bus
M.2 E key 2x M.2 2230 E key socket for WiFi or Google edge TPU
M.2 B key 1x M.2 2242/ 3052 B key socket for 4G/5G module with dual SIM support
Mini-PCIe 1x full-size mini-PCIe socket (USB2 signal only)



Storage Interface
M.2 2x M.2 2280 M key sockets for SATA SSD



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8 to 35V DC input



Mechanical
Dimension 153 mm (W) x 108 mm (D) x 72 mm (H)
Weight 1.4 kg
Mounting Vertical-type wall-mount (standard)
DIN-rail mount (optional)



Environmental
Operating Temperature -40°C ~ 70°C*/**
Storage Temperature -40°C ~85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC E-Mark
CE/FCC Class A, according to EN 55032 & EN 55035

* For wide temperature use condition, a wide temperature/industrial M.2 M key SATA SSD module is required.
** For full function use condition (mini-PCIe and M.2 are all adopted), the operating temperature may be constrained by mini-PCIe and M.2 modules.Please contact Neousys Technology.

LIST
Power Backup Modules:
Ordering Information
POC-451VTC

Intel® Elkhart Lake Atom® x6425E ultra-compact in-vehicle computer with 3x 2.5G, PoE+ and M.2/mPCIe for WIFI/4G/5G modules

Optional Accessories
PA-120W-OW

120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C

PA-60W-OW

60W AC/DC power adapter with 12V, 5A DC output, cord end terminals for terminal block. Operating temperature : -30 to 60 °C

Optional Cellular Module
Cbl-DB9F-3DB9M-15CM

1x DB9 (Female) to 3x DB9 (Male), length: 15CM
