임베디드 PC

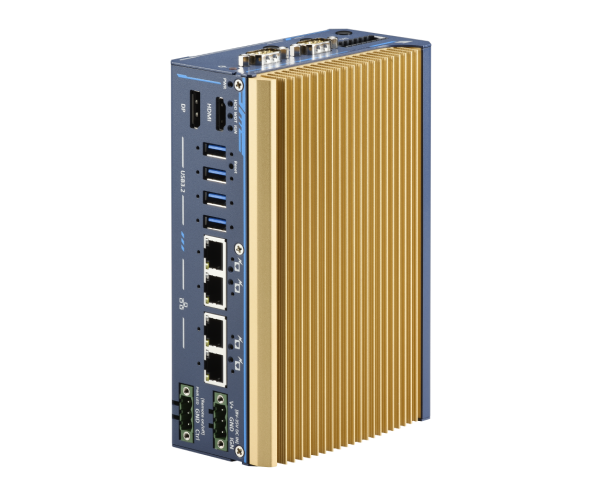

POC-700 Series Intel i3/Atom x7425E 초소형PC

Intel® Core™ i3-N305 / Atom® x7425E 기반의 울트라 컴팩트 임베디드 컴퓨터, PoE+ 4개, USB 3.2 4개 및 MezIO® Interface 지원

POC-700 Series Intel i3/Atom x7425E 초소형PC

  • Intel® Alder Lake Core™ i3-N305 processor 15W with 8 E-Cores or Atom® x7425E
  • Up to 16GB DDR5-4800 SODIMM
  • -25 °C to 70 °C rugged wide temperature operation

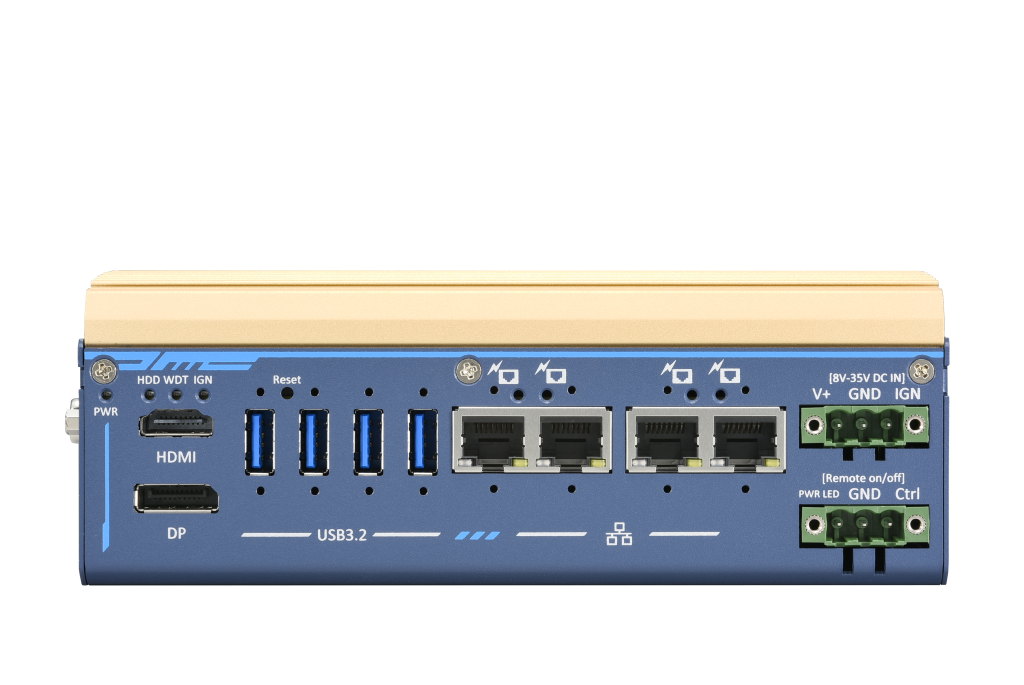

  • 4x GbE ports PoE+ / 4x USB3.2 Gen 2 with screw-lock
  • M.2 2280 M key SATA socket
  • DP++ / HDMI 1.4b dual display outputs
  • 4-CH isolated DI + 4-CH isolated DO
  • Front I/O access DIN-mounting design
  • MezIO® compatible
Overview
Introduction



Neousys의 POC-700은 이전 POC-500 시리즈에 비해 최대 1.3배의 CPU 성능을 전달하는 최신 Intel® Alder Lake i3-N305 또는Atom® x7425E 프로세서를 선택한 Neousys(네오시스)의 차세대 울트라 컴팩트 임베디드 컨트롤러 산업용 Fanless PC입니다.



산업용 Fanless PC POC-700은 AI 인퍼런스 작업을 위해 Intel OpenVINO™를 지원할 수 있도록 32EUs급 UHD 그래픽이 포함된 8-코어/8-스레드의 Intel Alder Lake i3-N305 또는 24EUs급 UHD 그래픽이 포함된 4-코어/4-스레드의 Intel Atom® x7425E로 구동됩니다. 이 시스템은 전반적 시스템 성능을 높일 수 있도록 기존의 DDR4에 비해 최대 1.8배의 메모리 대역폭을 제공하는 DDR5-4800을 지원합니다. 또한 머신 비전 애플리케이션에 맞는 산업용 카메라를 연결하기 위한 4x GigE PoE+ 포트 및 4x USB3.2 Gen2 포트를 갖추고 있으며 이들 포트는 견고한 체결을 위해 스크류-락 매커니즘을 채용하였습니다. 산업용 Fanless PC POC-700은 디스플레이 출력에 있어서, 고화질의 디스플레이 장치를 지원하는 HDMI 및 DP 비디오 출력을 지원합니다. 또한 연결성 및 확장성을 위해 디바이스 모니터링/제어용 Isolated DIO, M.2 2280 SSD M-Key(SATA signal) 및 WiFi, LTE/5G 또는 CAN Bus 모듈용 mini-PCIe 소켓을 가지고 있습니다.



산업용 Fanless PC POC-700은 단지 64 x 116 x 176mm의 초소형의 크기로 한정된 공간에 편리하게 배치할 수 있으며 기존의 산업용 Fanless PC POC-500의 사용자를 위해 동일한 풋프리트를 유지하였기 때문에 손쉽게 시스템을 업그레이드할 수 있습니다. 최신 Intel CPU, 광범위한 작동온도의 팬리스 설계, 풍부한 산업용 카메라 및 I/O 인터페이스가 집약된 산업용 Fanless PC POC-700은 머신 비전 및 스마트 시티 애플리케이션에 완벽하게 적합한 산업용 Fanless PC입니다.

POC-700 is next-generation ultra-compact embedded controller, with a choice of the latest Intel® Alder Lake i3-N305 or x7425E processor that is capable of delivering up to 1.3x the CPU performance when compared to previous POC-500 series.



POC-700 is powered by Intel’s Alder Lake i3-N305 featuring 8-core/ 8-thread processor with 32EUs UHD Graphics or Atom® x7425E featuring 4-core/ 4-thread with 24EUs UHD Graphics to support Intel OpenVINO™ for AI inference capabilities. The systems adopts DDR5-4800 to offer up to 1.8x the memory bandwidth over DDR4 to boost overall system performance. It also has four USB3.2 Gen2, and four GigE PoE+ ports with screw lock mechanisms to connect and secure industrial cameras for machine vision applications. Display output wise, there are HDMI and DP video outputs to support high-definition display devices. As for connections and expansions, POC-700 features isolated DIO for device monitoring/control, M.2 2280 M key for SATA SSD and a mini-PCIe socket for wireless WiFi, LTE/5G or CAN bus device.



Measuring just 64 x 116 x 176mm, the ultra-compact POC-700 can easily fit into confined spaces and is a seamless upgrade from POC-500 series with identical footprint. Benefiting from the performance gains of the latest Intel CPU, wide-temperature fanless design, and ample interfaces for industrial cameras and I/Os, POC-700 is perfect for machine vision and smart city applications.

#POC-700 #산업용PC #Fanless PC #OpenVINO #PoE+ #스마트 팩토리 #CAN Bus #Edge AI

Specifications
POC-715 POC-712
System Core
Processor Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP) Intel® Alder Lake Atom® x7425E processor (4C/4T, 1.5 /3.4 GHz, 12W TDP)
Graphics Integrated Intel® UHD Graphics with 32EUs Integrated Intel® UHD Graphics with 24EUs
Memory Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket)
TPM Supports dTPM 2.0
Panel I/O Interface
Ethernet 4x Gb Ethernet ports by Intel® I350-AM4
PoE+ IEEE 802.3at PoE+ on port #1~ 4 -　　　　　　　　　　　
Native Video Port 1x DP++, Supporting 4096 x 2160 resolution
1x HDMI1.4b, Supporting 3840 x 2160 30Hz

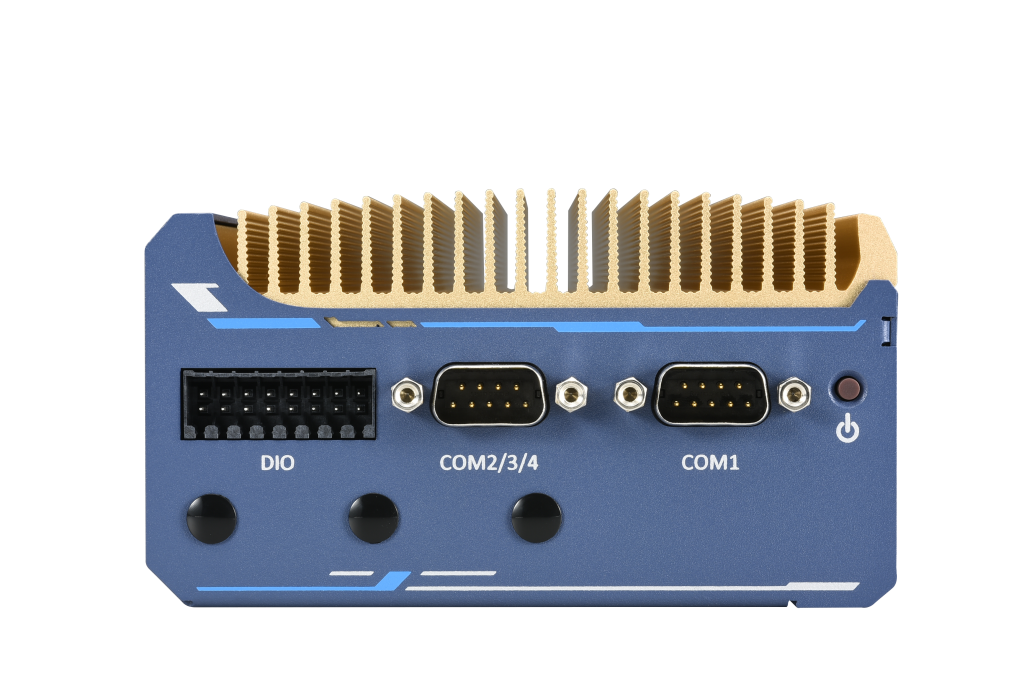

Serial Port 1x Software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
USB 4x USB 3.2 Gen2 ports with screw-lock

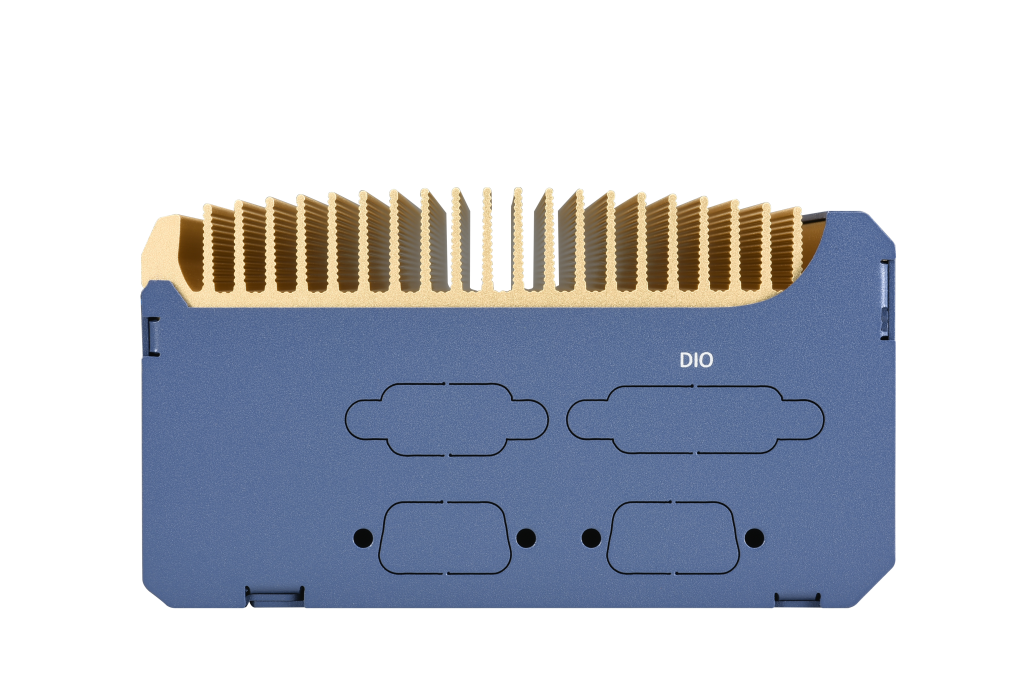

Isolated DIO 4-CH isolated DI and 4-CH isolated DO
Storage Interface
M.2 1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal)



Expansion Bus
Mini-PCIe 1x full-size mini PCI Express socket with internal micro SIM socket
Expandable I/O 1x MezIO® expansion interface for Neousys MezIO® modules



POC-715 POC-712
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8 to 35V DC input
1x 3-pin pluggable terminal block for 12 to 35V DC input (UL series)
Remote Ctrl.& LED Output 1x 3-pin pluggable terminal block for remote control and PWR LED output
Mechanical
Dimension 64 (W) x 116 (D) x 176 (H) mm
Weight 1.2kg
Mounting DIN-rail mount (standard) or wall-mount (optional)
Fan Optional external-accessible 80mm x 80mm fan for system heat dissipation



Environmental
Operating Temperature -25°C ~ 70°C*
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration MIL-STD-810H, Method 514.6, Category 4
Shock MIL-STD-810H, Method 516.6, Procedure I
Safety EN62368-1
EMC CE/ FCC Class A, according to EN 55032 & EN 55035
Safety UL 62368-1, IEC 62368-1 (UL series only)

* For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.



LIST
Power Backup Modules:
Ordering Information
POC-715

Intel® Core™ i3-N305 Ultra-Compact Embedded Computer with 4x PoE+, 4x USB 3.2 and MezIO® Interface

POC-712

Intel® Atom® x7425E Ultra-Compact Embedded Computer with 4x GbE, 4x USB3.2 and MezIO® Interface

POC-715-UL

Intel® CoreTM i3-N305 Ultra-Compact Embedded Computer with 4x PoE+, 4x USB 3.2 and MezIO® Interface & UL certified

POC-712-UL

Intel® Atom® x7425E Ultra-Compact Embedded Computer with 4x GbE, 4x USB3.2 and MezIO® Interface & UL certified

Optional Accessories
PA-60W-OW

60W AC/DC power adapter with 12V, 5A DC output, cord end terminals for terminal block. Operating temperature : -30 to 70°C

PA-120W-OW

120W AC/DC power adapter with 20V, 6A DC output, cord end terminals for terminal block. Operating temperature : -30 to 60°C

Wmkit-V-POC500

Wall-mount assembly for POC-500 and POC-700 series, vertical type

Wmkit-H-POC500

Wall-mount assembly for POC-500 and POC-700 series, horizontal type

Cbl-DB9F-3DB9M-15CM

1x DB9 (Female) to 3x DB9 (Male), length: 15CM

AccsyBx-FAN-POC-700

Fan assembly for POC-700 series, 80x80x15 mm
