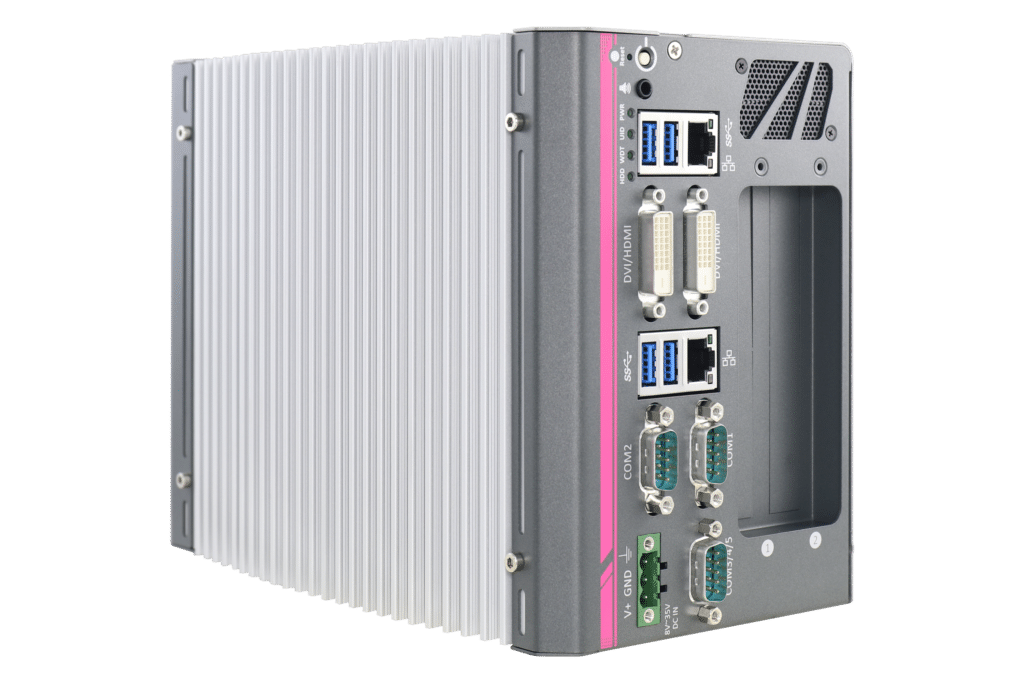

Nuvo-6002 팬리스컴퓨터 컴팩트한-산업용-PC

Intel® 6th-Gen Skylake Core™ i7/i5 팬리스 임베디드 컴퓨터, PCIe/PCI 확장 슬롯

Nuvo-6002 팬리스컴퓨터 컴팩트한-산업용-PC

  • Supports 6th-Gen Intel® Core™ i7/ i5/ i3, Pentium and Celeron® LGA1151 CPU
  • Two expansion slots – one x16 PCIe and one x8 PCIe
  • Rugged, -25 °C to 60 °C fanless operation
  • 2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
  • Dual DVI display outputs
  • Wall-mounted (optional DIN-rail and rack-mounting)
  • Optional fan with automatic temperature sensing and fan control
Overview
Introduction



Neousys의 Nuvo-6002는 부피가 큰 랙 마운트 또는 월 마운트 IPC 시스템을 완벽하게 대체하는 산업용 Fanless PC 제품입니다. 인텔 6세대 스카이레이크 플랫폼을 활용하여 이 제품은 컴팩트한 폼팩터와 팬리스 작동안에서 기존 IPC와 동일한 컴퓨팅 성능을 제공합니다.

산업용 Fanless PC Nuvo-6002는 LGA1151 소켓형 CPU를 지원하므로, 성능 요구사항과 예산에 따라 코어 i7부터 Celeron까지 선택할 수 있습니다. 이 제품의 2개 슬롯 확장성은 대부분의 IPC와 비슷합니다. 2개의 GbE, 4개의 USB 3.0 및 5개의 COM 포트를 포함한 전면 접근 가능한 I/O 설계를 통해, 산업용 Fanless PC Nuvo-6002가 캐비닛 또는 랙 내부에 배치될 때 쉽게 접근할 수 있습니다.

산업용 Fanless PC Nuvo-6002에 대한 입증된 팬리스 설계를 통해 모든 상황에서 탁월한 신뢰성을 제공하며, 데스크탑, 캐비닛, 또는 19″ 랙에 이상적인 솔루션입니다. 산업용 Fanless PC Nuvo-6002는 유사한 성능과 비용, 더 나은 폼팩터 및 신뢰성을 통해 그 자체를 증명합니다!

Nuvo-6002 is the perfect replacement for your bulky rack-mount or wall-mount IPC systems. Leveraging 6th-Gen Intel® Skylake platform, It delivers the same computing power as traditional IPCs in a compact form-factor and fanless operation.

Nuvo-6002 supports LGA1151 socket-type CPU, thus you can choose from Core™ i7 to Celeron® depending on your performance needs and budget. Its 2-slot expandability is similar to that of most IPCs. The front-accessible I/O design, including 2 GbE, 4 USB 3.0 and 5 COM ports, makes it easier to access your Nuvo-6002 when it’s placed inside a cabinet or a rack.

Neousys’ proven fanless design on Nuvo-6002 presents extraordinary reliability in all situations and its versatile mounting options make it the ideal solution for desktop, cabinet or a 19″ rack. With similar performance and cost, better form-factor and reliability, Nuvo-6002 speaks for itself!



Nuvo-6002 제작 블로그 링크입니다.(클릭)



#Nuvo-6002 #산업용PC #Fanless PC #Intel 6세대 #Windows 7 #임베디드PC #스마트 팩토리 #Edge AI

Specifications
System Core
Processor Supports 6th-Gen Intel® Core™, Pentium® and
Celeron® LGA1151 CPU
Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)
Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)
Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)
Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP)
Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP)
Chipset Intel® H110 Platform Controller Hub
Graphics Integrated Intel® HD 530/510 Controller
Memory Up to 16 GB DDR4-2133 by one SODIMM socket



I/O Interface
Ethernet Port 1x Gigabit Ethernet port by Intel® I219-LM
1x Gigabit Ethernet port by Intel® I210-IT
Video Port 2x DVI-D connectors for DVI outputs,
supporting 1920×1200 resolution
Serial Port 2x Software-programmable RS-232/422/485 ports
3x 3-wire RS-232 ports
USB 4x USB 3.1 Gen1 ports
Audio 1x Speaker-out
Expansion Bus/ Internal I/O Interface
Remote Ctrl. & Status Output 1x 2×6-pin 2.0mm pin-header connector for remote on/off control and status LED output
PCI Express 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals
1x PCIe x8 slot @ Gen2, 4-lanes PCIE signals



Storage Interface
SATA 1x SATA port for 2.5″ HDD/SSD installation
mSATA 1x full-size mSATA socket
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35 VDC input
Mechanical
Dimension 124 mm (W) x 225 mm (D) x 174 mm (H)
Weight 2.8 Kg (Nuvo-6002)
Mounting Wall-mounting (standard)
DIN-Rail mounting (optional)
rack-mounting (optional)



Environmental
Operating Temperature -25°C ~ 60°C */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022 & EN 55024



* The 100% CPU loading is applied using Passmark® BurnInTest 8.1. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required



LIST
Expansion PCIe Cards:
Ordering Information
Nuvo-6002

– Intel® 6th-Gen Core™ i7/i5/i3 Fanless Box-PC with x16 and x8 PCIe expansion slots

Accessories

– Option of 80mm x 80mm smart fan

– Option of DIN-Rail mounting clip

– Option of rack mounting kit

– 20V, 120W AC/DC power adapter

– 20V, 160W AC/DC power adapter
