Nuvo-10007

Intel® 6th-Gen Core™ i7/i5/i3 팬리스 모바일 영상 감시 시스템, PoE+ 8개, DIO, CAN Bus, 3.5" HDD 2개(RAID 0/1)

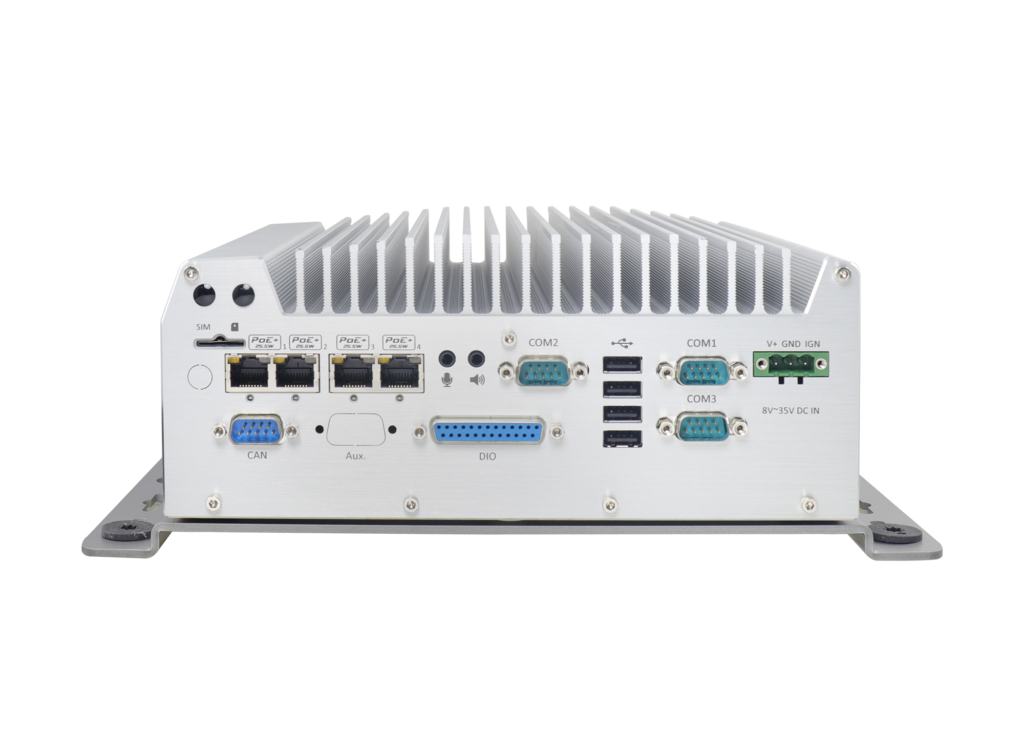

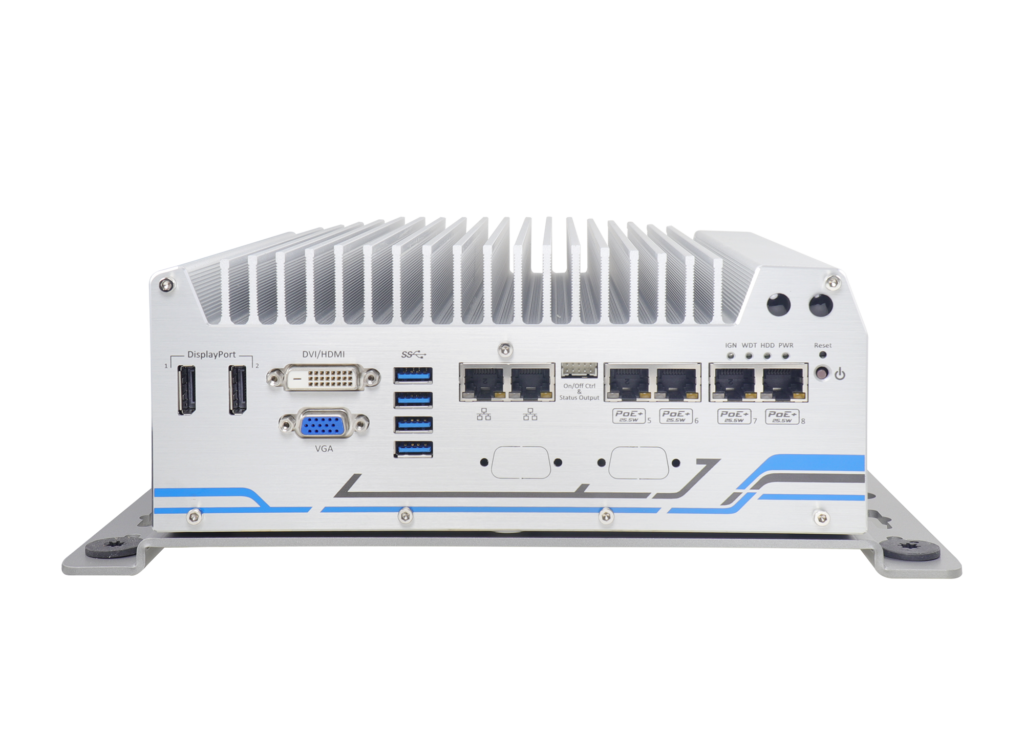

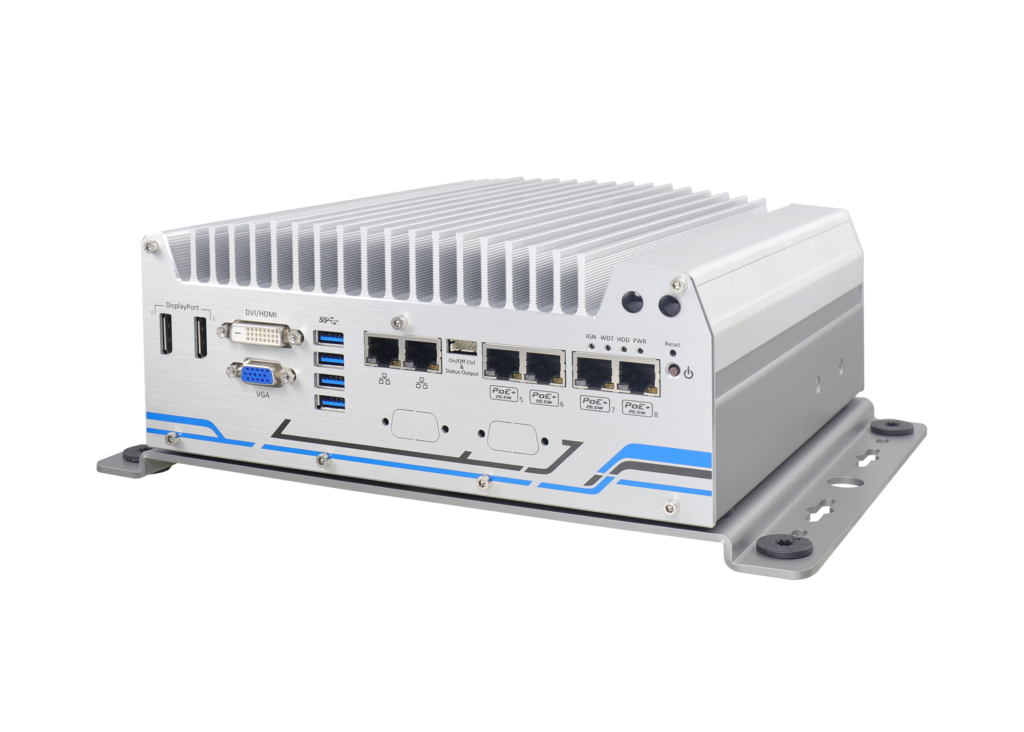

Nuvo-5608VR Series 팬리스 보안 감시 시스템

Supports Intel® 6th-Gen Core™ i7/ i5/ i3 LGA1151 socket-type CPU
8x 802.3at PoE+ ports and 2x GbE ports
2x 3.5″ HDD accommodation, support RAID 0/1 with over 24 TB capacity
Dedicated HDD heat-spreader for optimized thermal performance
4x full-size mini-PCIe sockets with SIM support
4-CH isolated DI and 4-CH isolated DO
1x CAN 2.0 port
8~35V wide-range DC input with built-in ignition power control
Patented damping brackets to withstand 1 Grms vibration

Overview

Introduction

Neousys의 Nuvo-5608VR은 실시간 비디오 분석과 스트리밍을 위해 설계된 최신 팬리스 보안 감시 시스템입니다. 6세대 코어 i CPU, IP 카메라 연결성 및 새롭게 부상하는 지능형 보안 감시/보안 애플리케이션을 위한 대용량 스토리지를 통합한 제품입니다.

8개의 기가비트 PoE+ 포트가 특징인 산업용 Fanless PC Nuvo-5608VR은 IP 카메라로부터 고화질 비디오 스트림을 수집하기에 충분한 대역폭을 제공하며, 6세대 Gen Core i7 CPU는 실시간 비디오 분석을 수행할 수 있습니다. 이것은 3개월 이상 8CH, 1080p @H.264 비디오 녹화를 위한 24TB 이상의 스토리지 용량을 지원하기 위해 RAID 0/1 구성의 3.5인치 하드 드라이브 2개를 수용합니다.

Neousys의 특허받은 댐핑 브라켓은 가혹한 환경 조건에서의 진동으로부터 시스템을 보호하기 위해 산업용 Fanless PC Nuvo-5608VR과 함께 출하됩니다.

견고한 보안 감시 플랫폼인, 산업용 Fanless PC Nuvo-5608VR에는 적절한 HDD 작동 온도를 유지하기 위한 전용 HDD 히트 스페이서가 장착되어 있으며, DIO, CAN 버스 및 점화 컨트롤과 같은 추가 기능 제공하는 산업용 Fanless PC Nuvo-5608VR은 정지 및 모바일 보안 감시 애플리케이션 모두에 적합합니다.

Nuvo-5608VR is Neousys’ latest fanless surveillance system designed for real-time video analysis and streaming. It incorporates 6th-Gen Core™ i CPU, IP camera connectivity and massive storage capacity for emerging intelligent surveillance/ security applications.

Featuring eight Gigabit PoE+ ports, Nuvo-5608VR provides sufficient bandwidth to collect high-definition video streams from IP cameras, while its 6th-Gen Core™ i7 CPU is capable of performing real-time video analytics. It accommodates two 3.5″ hard drives with RAID 0/1 configuration to support more than 24 TB storage capacity for recording 8-CH, 1080p @H.264 video for over 3 months.

Neousys’ patented damping-bracket is shipped with Nuvo-5608VR to protect the system against vibration in harsh environmental conditions.

Being a rugged surveillance platform, Nuvo-5608VR is equipped with dedicated HDD heat-spreaders to maintain adequate HDD operating temperature and along with extra features such as DIO, CAN bus and ignition control, Nuvo-5608VR is the perfect fit for both stationary and mobile surveillance applications.

#Nuvo-5608VR #산업용PC #Fanless PC #스마트 팩토리 #보안감시시스템 #Edge AI

Specifications

System Core
Processor	Supports 6th-Gen Intel® Core™ i7/ i5/ i3 LGA1151 CPU Intel® Core™ i7-6700 (8M Cache,3.4/ 4.0 GHz, 65W TDP) Intel® Core™ i5-6500 (6M Cache, 3.2/ 3.6 GHz, 65W TDP) Intel® Core™ i3-6100 (3M Cache, 3.7 GHz, 51W TDP) Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP) Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP) Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz,35W TDP)
Chipset	Intel® Q170 Platform Controller Hub
Graphics	Integrated Intel® HD Graphics 530
Memory	Up to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
ANT	Supports AMT 11.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	2x Gigabit Ethernet ports by Intel® I219 and I210
POE+	8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210, 120W total power budget*
USB	4x USB 3.1 Gen1 ports via native XHCI controller 4x USB 2.0 ports
Video Port	1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1 & COM3) 1x RS-232 port (COM2)
Isolated DIO	4x isolated DI and 4x isolated DO
CAN	1x CAN 2.0 port
Audio	1x mic-in and 1x speaker-out

Storage Interface
SATA HDD	2x internal SATA port for 3.5” HDD installation, supporting RAID 0/ 1
mSATA	1x full-size mSATA port (mux with mini-PCIe)

Expansion Bus
Mini PCI-E	1x full-size mini-PCIe socket with panel-accessible SIM socket 1x full-size mini-PCIe socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets

Power Supply & Ignition Control
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & Status Output	1x 10-pin (2×5) wafer connector for remote on/off control and status LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 98 mm (H)
Weight	3.5 kg
Mounting	Neousys’ patented damping bracket

Environmental
Operating Temperature	-25°C ~ 70°C (with mSATA/SSD) -10°C ~ 60°C (with 3.5” HDD) /***
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ HDD and damping bracket installed, according to IEC60068-2-64)
Shock	Operating, 30 Grms, Half-sine 11 ms Duration (w/ HDD, damping bracket installed, according to IEC60068-2-27)
EMC	CE/FCC Class A, according to EN 55022 & EN 55024

*The total power budget for Nuvo-5608VR is related to input voltage. 120W total budget is available with 24 VDC input. When 12 VDC input is applied, the total power budget is limited to 100W.
**Operating temperature is verified with 100% CPU loading and 100% HDD loading applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology.
***Depending on the HDD selected, users may encounter performance degradation in sequential disk write at low/high ambient temperature. No data integrity issue was observed in -10°C ~ 60°C operating temperature range.

LIST

Power Backup Modules:

Ordering Information

Nuvo-5608VR

Intel® 6th-Gen Core™ i fanless surveillance system with 8x PoE+ Ports, DIO, CAN bus and 2x 3.5″ HDD RAID

Optional Accessories

PA-160W-OW

160W AC/DC power adapter 20V/8A;18AWGx4C/120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C

PA-280W-OW

280W AC/DC power adapter 24V/11.67A;16AWG/100cm; cord end terminals for terminal block, operating temperature : -30 to 60 °C
