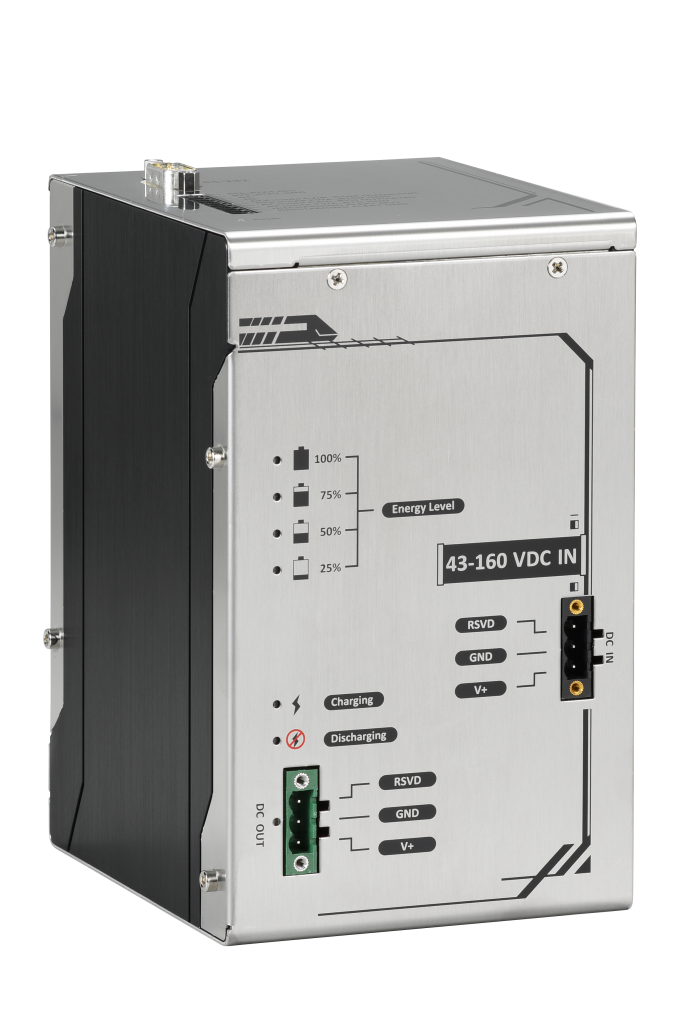

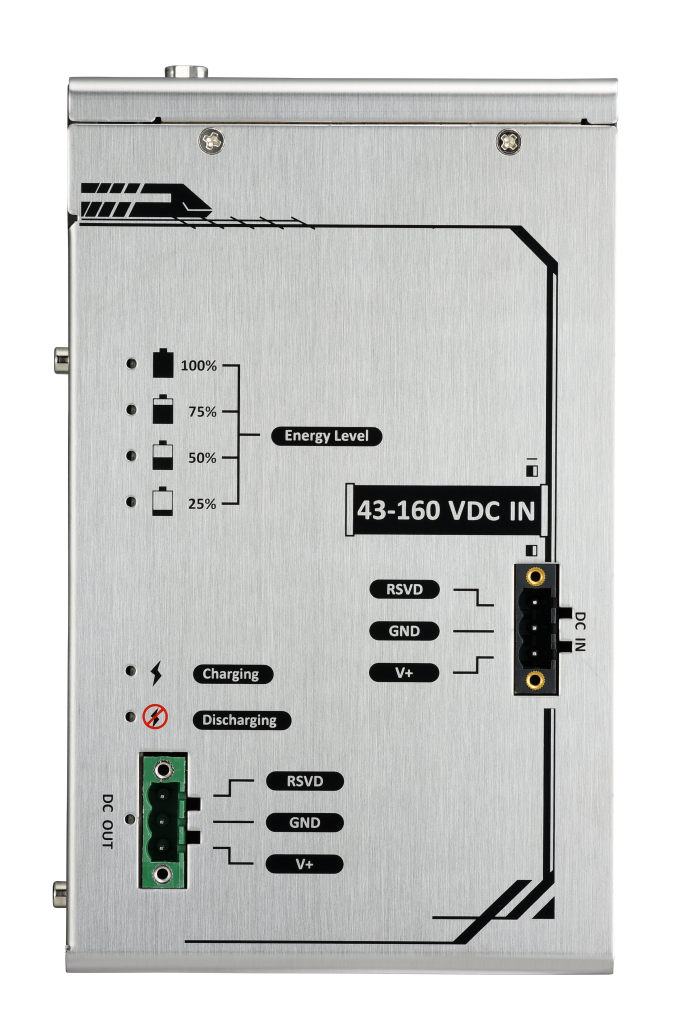

PB-9250J-110V 110V DC입력, 9250w·s UPS 모듈 (New!)

9250 w·s 독립 슈퍼커패시터의 UPS 모듈(철로 어플리케이션용 110V DC)

PB-9250J-110V 110V DC입력, 9250w·s UPS 모듈 (New!)

  • Universal standalone power backup module compatible with all box-PCs
  • Supports 43-160V wide-range DC input for railway application
  • Supercapacitor-based, -40 to 70°C operation for EN 50155 OT4 class conformity
  • 9250 watt-second energy capacity
  • Maximum 120W output power for the connected back-end system
  • Over 10 years lifespan, or 500,000 charge/ discharge cycles
  • Patented CAP energy management technology* Extending back-up time in the event of an unforeseen power outage Monitoring energy and power consumption to extend operation time for safe system shutdown
  • EN 50155 and EN 45545 certificate
Overview
Introduction



Neousys의 PB-9250J-110V는 빠르게 성장하는 철도 애플리케이션을 위해 110V DC 입력을 수용하는 새로 설계된 SuperCAP UPS입니다. 8개의 370F 슈퍼커패시터로 구성된 산업용 Fanless PC PB-9250J-110V는 전력 손실 중에 백엔드 시스템을 몇 초에서 몇 분까지 유지하기 위해 9250와트초의 저장 에너지를 제공합니다. 기존 배터리 기반 UPS 시스템과 달리 슈퍼커패시터는 넓은 작동 온도 범위와 최대 10년의 긴 작동 수명을 제공합니다. 산업용 Fanless PC PB9250J-110V는 -40~70°C의 작동 온도 범위와 매우 높은 내구성이 특징입니다.

산업용 Fanless PC PB-9250J-110V는 Neousys의 특허받은 CAP 에너지 관리 기술 덕분에 실시간 에너지/전력 소비 모니터링, 고/저전압 보호, 자동/수동 종료 제어 등 정교한 기능을 제공합니다. 불안정한 전원이 사용되는 열차에서도 시스템이 원활하게 작동할 수 있도록 부팅 및 종료를 자동으로 관리합니다. 충전/방전 및 전원 버튼 제어와 같은 시스템 상태를 표시하기 위해 추가 디지털 출력 채널이 통합되었습니다.

컴퓨터 시스템은 다양한 철도 애플리케이션에 널리 배포되지만 철도 차량의 전기적 안정성은 여전히 핵심이며 시스템 신뢰성에 매우 중요합니다. 산업용 Fanless PC PB-9250J-110V는 열차가 건널목이나 선로 스위치를 통과할 때 정전으로부터 컴퓨터나 기타 장비를 보호할 수 있습니다. 또한 EN 50155 및 EN 45545 인증을 받은 산업용 Fanless PC PB-9250J-110V는 기존 컴퓨터/장비와 함께 쉽게 설치 및 구현되거나 온보드 배전 시스템과 통합될 수 있습니다.

Neousys’ PB-9250J-110V is a newly designed SuperCAP UPS accepting 110V DC input for fast-growing railway applications. Composed with eight 370F supercapacitor, PB-9250J-110V provides 9250 watt-second stored energy to sustain back-end system from seconds to minutes during power loss. Different from traditional battery-based UPS systems, supercapacitor has a wide operating temperature range and long operating life up to 10 years. Neousys’ PB9250J-110V features -40 to 70°C operating temperature range and extremely high durability.

Thanks to Neousys’ patented CAP energy management technology, PB-9250J-110V provides sophisticated features such as real-time energy/ power consumption monitoring, high/low voltage protection, and auto/ manual shutdown control. It automatically manages boot and shutdown to help your system thrive on trains with unstable power source. Additional digital output channels are incorporated for indicating system status such as charging/ discharging and power button control.

While computer systems are widely deployed in various railway applications, the rolling stock’s electrical stability still remains a focal point and is crucial for system reliability. PB-9250J-110V can protect the computer or other equipment against power interruption when a train passes through a level crossing or a railroad switch. Furthermore, with its EN 50155 and EN 45545 certificate, PB-9250J-110V can be easily installed and implemented with existing computer/equipment or integrated with onboard power distribution system.



#PB-9250J-110V #산업용PC #Fanless PC #UPS모듈 #스마트 팩토리 #철도애플리케이션 #Edge AI

Specifications
Supercapacitor Configuration
Composition 8x 370F, 3.0V supercapacitors
Capacity 9250 watt-second
Expected lifespan >10 years*
Cycle life 500,000 charging/ discharging cycles*



Power Specification
Input Voltage 43-160 VDC
Input Connector 1x 3-pin pluggable terminal block (V+, GND)
Output Voltage 24 VDC
Output Power Maximum 120W output
Output Connector 1x 3-pin pluggable terminal block (V+, GND)



I/O Interface

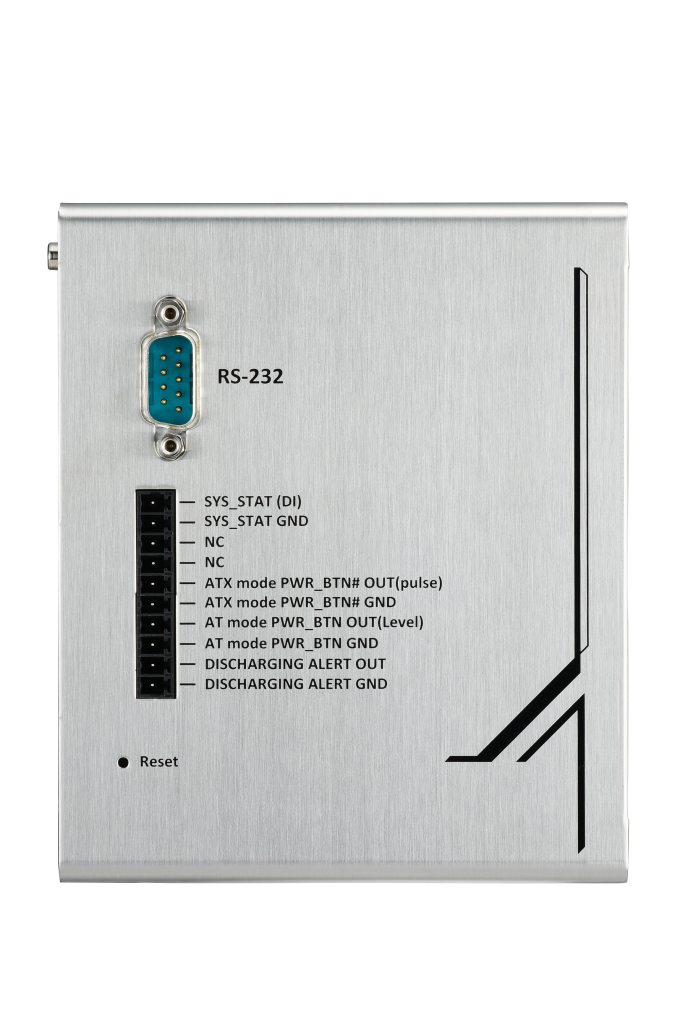

COM Port 1x DB9 for 3-wire isolated RS-232
Iso. DIO 1x 10-pin pluggable terminal block for
– ATX mode PWR_BTN# output (open-drain, pulse type)
– AT mode PWR_BTN output (open-drain, level type)
– DISCHARGING ALERT output (open-drain, level type)
– SYS_STAT input



Mechanical
Dimension 110(W) x 175.2mm(H) x 128.2mm(D)
Weight 2.33kg
Mounting DIN-rail mounting or optional wall-mounting



Environmental
Operating Temperature -40°C ~ 70°C EN50155 OT4 class
Storage Temperature -40°C ~85°C
Vibration Compliant with IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock Compliant with IEC61373:2010, Category 1, Class B Body mounted(part of EN50155)
EMC EN 50155:2017, Clause 13.4.8
CE/FCC Class A, according to EN 55032 & EN 55035
EN50155 EN50155 All mandatory sections of EN 50155:2017
EN45545 EN45545 EN 45545-2 (Fire protection on railway vehicles)



To achieve > 10 years lifespan under 24/7 at 70°C operation, please charge PB-9250J-SA to 6525J energy level using the 4.8x SuperCAP Lifetime Extension setting (please refer to the user manual for details). Once the rated lifetime or cycle life has been reached, the capacity of supercapacitor may decrease up to 30% and ESR may increase up to 100% from initial values.
** Backup time for uninterruptible operation may be reduced when sustaining a back-end system with high power consumption. Please consult with Neousys Technology if your computer accepts only constant-voltage input.
*** To ensure PB-9250J‘s power backup operation functions as intended, please contact Neousys Technology technical support if your connecting back-end system accepts only constant voltage input.



LIST
Ordering Information
PB-9250J-110V

9250 w·s Standalone Supercapacitor-based UPS Module with 110V DC input for Railway Application

Optional Accessories
Wmkit-V-PB9250J-110V

Wall-mount assembly for PB-9250J-110V, vertical type
