비전별 I/O, 실시간 컨트롤러 및 GPU 컴퓨팅을 갖춘 Intel® 9세대/8세대 Core™ i Edge AI 머신 비전 컴퓨터

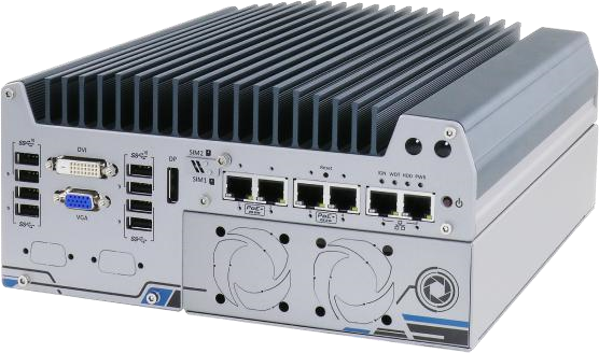

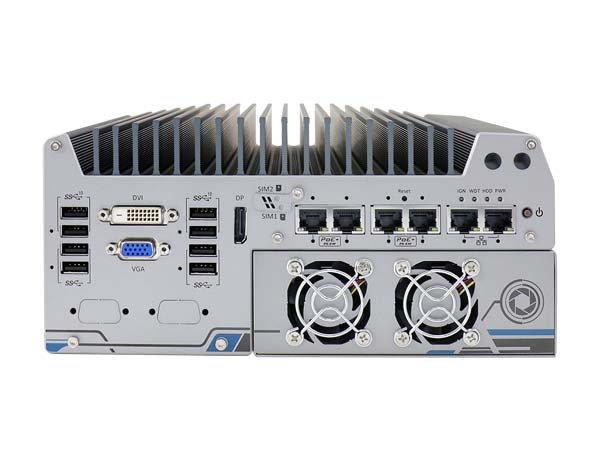

Nuvis-7306RT GPU Computing 지원 비전 컨트롤러

Intel® 9th/ 8th-Gen Core™ i7/i5 LGA1151 socket-type CPU
Integrated vision-specific I/O
– 4-CH CC/CV lighting controller
– 4-CH camera trigger outputs
– 1-CH quadrature encoder input
– 8-CH isolated DI and 8-CH isolated DO
Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
Built-in camera interfaces
– 4-CH IEEE 802.3at Gigabit PoE+ ports with screw-lock
– 8-CH USB 3.1 ports with screw-lock
Two x16 PCIe slots for NVIDIA 120W GPU and/or image capture card

Overview

Introduction

Neousys의 Nuvis-7306RT 시리즈는 머신 비전 애플리케이션에 필요한 모든 기능을 통합 강력한 Edge AI 비전 컨트롤러입니다. 산업용 Fanless PC Nuvis-7306RT는 Intel 9/8 세대 코어 i7 / i5를 기반으로 이미지 처리에 엄청난 컴퓨팅 성능을 제공합니다.

산업용 Fanless PC Edge AI Nuvis-7306RT는 정전류 조명 컨트롤러, 분리된 12V 카메라 트리거 출력, 위치 정보를 위한 인코더 입력 및 센서/액추에이터를 연결하기 위한 DIO를 통합합니다. 특허받은 MCU 기반 아키텍처와 DTIO/NumCU 펌웨어로인해 산업용 Fanless PC Nuvis-7306RT는 센서 입력과 트리거 출력 간의 대기 시간을 극복할 수 있습니다. 실시간 또는 위치 내 이미지 캡처를 보장하는 마이크로 초 규모의 실시간 I/O 제어 기능을 제공합니다.

딥 러닝 비전 애플리케이션의 경우 산업용 Fanless PC Nuvis-7306RT는 NVIDIA ® 120W TDP GPU를 수용하여 최신 객체 감지/분류 신경망 모델을 활용할 수 있습니다. 산업용 Fanless PC Nuvis-7306RT는 뛰어난 성능과 비전 지향 I/O가 내장되어 있으며 현대 비전 산업에 적합한 최고의 비전 컨트롤러입니다.

Nuvis-7306RT series is an all-in-one powerful vision controller incorporating every function needed for machine vision applications. Powered by Intel® 9th/ 8th-Gen Core™ i7/i5, Nuvis-7306RT brings tremendous computing power for image processing.

For deep learning vision applications, Nuvis-7306RT can accommodate an NVIDIA® 120W TDP GPU to leverage state-of-the-art object detection/classification neural network models. Built-in vision-oriented I/O along with remarkable performance makes Nuvis-7306RT the most exceptional vision controller that fits right into the modern vision industry.

#Nuvis-7306RT #산업용PC #Fanless PC #머신비전 #비전컨트롤러 #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supporting Intel® 9th/ 8th-Gen Coffee Lake CPU (LGA1151 socket, 65W/ 35W TDP) – Intel® Core™ i7-9700E/ i7-9700TE/ i7-8700/ i7-8700T – Intel® Core™ i5-9500E/ i5-9500TE/ i5-8500/ i5-8500T
Chipset	Intel® Q370 platform controller hub
Graphics	Integrated Intel® UHD graphics 630
Memory	Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

Vision-Specific I/O Interface
LED Lighting Controller	4-CH LED lighting controller output, supporting – Constant current mode (up to 2A per channel, 100 kHz dimming control) – Constant voltage mode (24 VDC, 100 kHz dimming control)
Camera Trigger	4-CH camera trigger output (Isolated 12 VDC output)
Encoder Input	1-CH quadrature encoder input (A/B/Z)
Isolated Digital Output	4-CH isolated high-speed digital output (<2 us transient time, for strobe/PWM) 4-CH isolated high-current digital output (up to 500 mA rated current for actuator)
Isolated Digital Input	8-CH isolated high-speed digital input (<2 us transient time)
Real-time I/O Control	Patented MCU-based real-time I/O control with DTIO V2 or NuMCU firmware

I/O Interface
Ethernet port	6x Gigabit Ethernet ports by I219 and I210
PoE+	4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 with RJ45 connector
USB 3.1	4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports
USB 2.0	1x USB 2.0 port (internal use)
Video Port	1x VGA , supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD/ SSD	2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
mSATA	1x full-size mSATA port (mux with mini-PCIe)

Expansion Bus
PCI Express	2x PCIe x16 slot @ Gen3, 8-lane PCIe signals in Cassette, supporting – 120W NVIDIA® GPU card – COTS CameraLink and CoaXPress camera interface card
Mini PCI-E	1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
M.2	1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & Status Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 111 mm (H)
Weight	3.7 kg
Mounting	Wall-mount

Environmental
Operating Temperature	with 35W CPU and NVIDIA® 120W GPU -25°C ~ 60°C ** with 65W CPU and NVIDIA® 120W GPU -25°C ~ 60°C / * (configured as 35W TDP mode) -25°C ~ 50°C / * (configured as 65W TDP mode)
Storage Temperature	-40°C ~ 85°C**
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55032 & EN 55024

* For i7-9700E and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.

** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Power Backup Modules:

Ordering Information

Nuvis-7306RT-DTIO

Intel® 9th/ 8th-Gen Core™ i machine vision controller with vision-specific I/O, real-time controller by patented DTIO V2 and GPU computing

Nuvis-7306RT-NuMCU

Intel® 9th/ 8th-Gen Core™ i machine vision controller with vision-specific I/O, real-time controller by patented NuMCU and GPU computing

Ordering Information

PA-280W-ET2

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.

PA-480W-DIN

480W AC/ DC power adapter DIN-rail mount, 24V 20A, 90~264VAC/ 127~370VDC, terminal block, -20 to 70°C
