NVIDIA® 2000 ADA를 탑재하고 Intel® 14세대/13세대/12세대 Core™ 프로세서를 지원하는 2U 19인치 랙 마운트 팬리스 GPU 컴퓨터

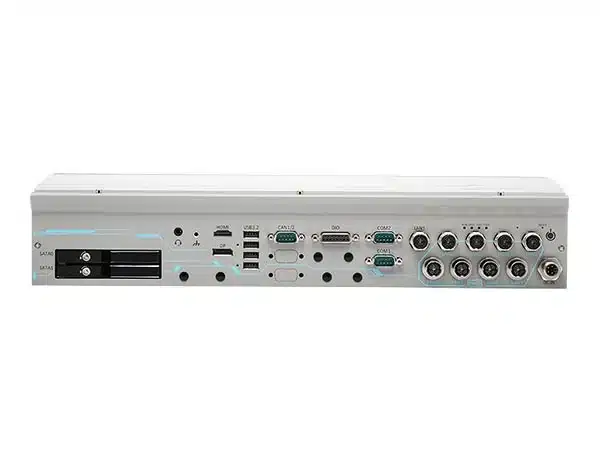

GT-92GC, NVIDIA® 2000 ADA 지원 산업용 팬리스 컴퓨터 (New!)

Intel® 14th/ 13th/ 12th-Gen LGA1700 processor (35W/65W)
Fanless GPU computer with NVIDIA® RTX 2000 ADA
2U 19” chassis for rack-mount or wall-mount
8V to 48V wide-range DC input via M12 L-Coded connector
8x GbE PoE+, 1x GbE ports via M12 X-Coded connectors
On-board isolated CAN bus for in-vehicle communication
1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storge
2x full-size mPCIe sockets with internal SIM sockets
-25°C to 55°C wide-temperature fanless operation

Overview

Introduction

Neousys의 산업용 Fanless PC GT-92GC는 Intel® 14세대, 13세대, 12세대 플랫폼과 NVIDIA® RTX 2000 ADA를 기반으로 뛰어난 CPU와 GPU 성능을 제공하는 19인치 랙 마운트 팬리스 GPU 컴퓨터입니다. 광범위한 온도 환경에서도 안정적으로 작동하며, 고성능과 유연한 카메라 확장 기능을 갖추고 있어 AI 검사, 로봇 안내, 자율 기계 등 실시간 응답이 필요한 멀티 카메라 애플리케이션에 최적화되어 있습니다.

산업용 Fanless PC GT-92GC는 -25°C부터 55°C까지 안정적인 시스템 작동을 보장하는 검증된 열 설계를 갖추고 있습니다. 마더보드와 70W GPU 카드에 수동 냉각 설계를 적용해 효율적인 열 관리를 실현했습니다. 또한 8개의 GigE 카메라(또는 IP 카메라)와 4개의 USB3 카메라를 지원해 다양한 비전 기반 AI 애플리케이션에 적합합니다. 데이터 스토리지 측면에서는 최대 7000MB/s의 읽기/쓰기 속도를 제공하는 M.2 2280 Gen4x4 NVMe 슬롯 1개와 스토리지 용량 확장을 위한 2개의 2.5″ SATA HDD/SSD 슬롯을 제공하여 유연성을 극대화했습니다.

산업용 Fanless PC GT-92GC는 향상된 성능과 다양한 I/O 포트를 통해 검사 차량, 스마트 농업, 자율 주행 기계 등과 같은 산업 환경에 최적화된 완벽한 에지 AI 추론 플랫폼을 제공합니다.

GT-92GC is a 19″ rack mount, wide-temperature, fanless GPU computer that delivers excellent CPU and GPU performance by leveraging Intel® 14th/ 13th/ 12th-Gen platform and NVIDIA® RTX 2000 ADA. Thanks to its high-performance and flexible camera expansion, GT-92GC is ideal for multicamera applications requiring real time responses, e.g., AI inspection, robotic guidance, and autonomous machines.

GT-92GC has a proven thermal design to guarantee reliable system operation from -25°C to 55°C. It features a passive-cooling design for the motherboard and 70W GPU card. Supporting eight GigE cameras (or IP cameras) and four USB3 cameras, GT-92GC is ideal for various vision-based AI application deployments. It also provides flexible data storage options, including one M.2 2280 Gen4x4 NVMe providing up to 7000 MB/s extreme read/write speeds and two 2.5″ SATA HDD/SSD to expand storage capacity.

With performance enhancements and comprehensive I/Os, GT-92GC is the perfect edge AI inference platform for industrial environments such as inspection vehicle, smart agriculture, and autonomous machines.

#GT-92GC #산업용PC #Fanless PC #rack mount #2U #NVIDIA #RTX 2000 ADA #Edge AI

Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2] – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® R680E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU)
Acceleration GPU	NVIDIA® RTX 2000 ADA
Memory	Up to 64 GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	1x GbE Ethernet by Intel I219-LM via M12 x-coded connector(with WoL) 8x GbE Ethernet by Intel I350-AM4 via M12 x-coded connectors
POE+	8x IEEE 802.3at PoE+ PSE with – with 70 W total power budget [1] (12V vehicle power input) – with 100 W total power budget (24V vehicle power input)
CAN Bus	2x isolated CAN 2.0 port, supporting SocketCAN in Linux
USB 3.2	4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
Video Port	1x HDMI 1.4, supporting 4096×2160 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	2x isolated 3-wire RS232/ 422/ 485 port (COM1/ COM2)
Isolated DIO	4-CH isolated DI and 4-CH isolated DO
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD	2x hot-swappable HDD trays for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD

Internal Expansion Bus
Mini PCI Express	2x full-size mini PCI Express socket with SIM slot

Power Supply
DC Input	8V to 48V DC input (M12 L-coded)
Ignition Control	Built-in ignition power control

Mechanical
Dimension	440mm (W) x 250mm (D) x 88mm (H) (excl. rack-mount bracket)
Weight	7.7 kg
Mounting	Rack-mounting (optional) and wall-mounting (optional)

Environmental
Operating Temperature	with 35W CPU -25°C ~ 55°C [3] (without PoE) -25°C ~ 50°C[3] (with PoE 50W) with 65W CPU -25°C ~ 35°C [2][3] (without PoE)
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
Shock	EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
EMC	EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035

[1] The 12V vehicle power input system imposes a strict limit of 70W on the PoE power budget due to the high current draw caused by the voltage drop to 8V.
[2] For 65W CPUs, the recommended DC input range is 18V to 48V.
[3] For sub-zero operating temperature, a wide temperature Memory, HDD or Solid State Disk (SSD) is required.

LIST

Ordering Information

GT-92GC

2U 19″ rack mount fanless GPU computer including NVIDIA® 2000 ADA, supporting Intel® 14th / 13th / 12th-Gen Core™ processor

Optional Accessories

PA-280W-CW6P-2P

280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C w/ Wafer FML6P to 2P End Terminal cable for AWP/SEMIL

PA-600W-C4PY-4P

600W AC-DC power adapter 24V 25A, 85~264VAC, -20~+70°C, w/ 4PY Terminal to 4P End Terminal cable for AWP/SEMIL

Cbl-M12K5F-CordEnd4-180CM

M12 K-Code Female 5P to Cord End Terminal 4P, Lenght:180cm

Cbl-M12X8M-RJ45-CAT6A-500CM

M12( 8-pole-X-coded) to RJ45, CAT6A, Length: 500CM

Cbl-DB9F-2DB9M-15CM

DB9 (Female) to 2x DB9 (Male), Length: 15CM for CAN1/2

AccsyBx-SplicingConnector

Accessory box kits for Splicing Connector 2-Pole, included 10pcs

Rmkit-GT92

Rack-mount assembly for GT-92 series

Wmkit-GT92

Wall-mount assembly for GT-92 series

mPCIe-M2B

NGFF M.2 key B to mini-PCIe adapter with dual nano-SIM slots

mPCIe-M2E

NGFF M.2 key E to mini-PCIe adapter

mPCIe-M2M

NGFF M.2 key M to mini-PCIe adapter
