Intel® 14/13/12세대 Core™ 팬리스 산업용 PC(6x 2.5GbE, USB 3.2 Type-C, 특허 카세트 및 MezIO® 인터페이스 포함)

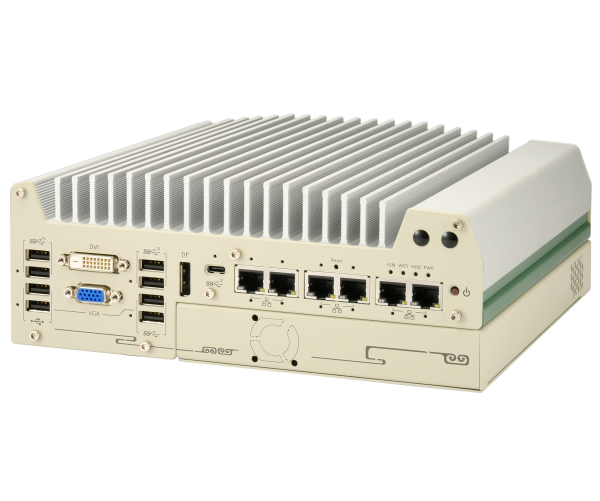

Nuvo-9000 Series Intel® 14/13/12세대 Fanless PC

Supports Intel® 14th/13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU
Patented Cassette for PCI/PCIe add-on card accommodation
Rugged, -25°C to 70°C fanless operation
Up to 5x 2.5GbE and 1x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
Supports M.2 Gen4x4 NVMe and 2x SATA ports
MezIO® interface for easy function expansion
VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
UL인증 옵션 PC

Overview

Introduction

Neousys의 Nuvo-9000 시리즈는 Intel® 14th/13th/12th-Gen Alder Lake 플랫폼에 기반한 Neousys의 새로운 러기드 임베디드 산업용 Fanless PC입니다. 최첨단 Intel 7 포토리소그래피(photolithography) 기술이 가져온 최신 Core™ 데스크탑 프로세서에 24 코어와 32 스레드가 내장되어 있으며 놀라운 부스트의 컴퓨팅 성능을 보여줍니다. DDR5 메모리 대역폭의 증가와 PCIe Gen4 NVMe 고속 디스크 읽기/쓰기 기능이 결합되어, 사용자들은 이전 10세대 또는 11세대 플랫폼에 비해 최대 2배 빠른 전반적 시스템 성능 향상을 기대할 수 있습니다.

산업용 Fanless PC Nuvo-9000 시리즈는 Neousys의 특허받은 확장 카세트 설계를 계승하여 PCIe 또는 PCI 애드온 카드를 추가로 설치할 수 있어 뛰어난 다용성을 제공합니다. 산업용 Fanless PC Nuvo-9000 시리즈에는 세 가지 확장 카세트 옵션을 사용할 수 있으며, 산업용 Fanless PC Nuvo-9000E는 x16 Gen3 PCIe 슬롯, Nuvo-9000DE는 듀얼 x16 PCIe 슬롯, Nuvo-9000P는 단일 PCI 슬롯을 제공합니다. 보다 유연한 스토리지가 필요한 사용자를 위해 Nuvo-9000LP에는 확장 카세트 대신 2.5″ HDD 트레이가 있어 핫스왑이 가능한 2.5″ HDD/SSD를 지원합니다.

I/O 기능도 종합적으로 향상되었습니다. PoE+ PSE 옵션이 포함된 6개의 기가비트 이더넷 포트 외에도, 산업용 Fanless PC Nuvo-9000 시리즈는 외부 장치와의 데이터 교환을 위한 20Gbps 대역폭을 제공하는 USB 3.2 Gen2x2 type-C 포트와 USB3 카메라 연결을 위한 8개의 USB 3.2 Gen2x1 type-A 포트를 제공합니다. 또한 M.2 Gen4x4 슬롯이 업그레이드되어 최신 NVMe SSD를 지원하여 디스크 읽기/쓰기 속도를 최대 7000MB/s까지 향상시킵니다. I/O 추가를 원하시면 확장 카세트를 사용하여 기능별 PCIe/PCI 카드, 전용 MeZIO 인터페이스 및 내부 미니 PCIe/M.2 인터페이스에 추가할 수 있습니다.

현장에서 입증된 열 설계, 탁월한 CPU & I/O 업그레이드 및 다중 확장 방식 덕분에, 산업용 Fanless PC Neousys Nuvo-9000 시리즈는 견고성, 성능 및 다양한 애플리케이션을 위한 범용성 등에 대한 사용자의 요구에 적합합니다.

Nuvo-9000 series is Neousys’ new rugged embedded computer based on Intel® 14th/ 13th/12th-Gen platform. Benefiting from cutting-edge Intel® 7 photolithography, the latest Core™ desktop processor comes with up to 24 cores and 32 threads and presents an incredible boost of computational performance. Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 2x when compared to previous 10th or 11th- Gen platforms.

Nuvo-9000 Fanless PC series inherits Neousys’ patented expansion Cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards. There are three expansion Cassette options available for Nuvo-9000 Fanless PC series, the Nuvo-9000E features a single x16 Gen3 PCIe slot; Nuvo-9000DE has dual x16 PCIe slots, and Nuvo-9000P has a single PCI slot. For users who need more flexible storage, Nuvo-9000LP has a 2.5″ HDD tray instead of an expansion Cassette to support a hotswappable 2.5″ HDD/SSD.

I/O functions are also comprehensively enhanced. In addition to six gigabit Ethernet ports with PoE+ PSE option, Nuvo-9000 Fanless PC series features a USB 3.2 Gen2x2 type-C port offering 20 Gbps bandwidth for data exchange with external devices, plus another eight USB 3.2 Gen2x1 type-A ports for USB3 camera connectivity. It also has an upgraded M.2 Gen4x4 slot to support the latest NVMe SSD to boost disk read/write speed up to 7000 MB/s. For unfulfilled I/O requirements, users can utilize the expansion Cassette to add on function-specific PCIe/ PCI card, the proprietary MezIO interface, and internal mini-PCIe/M.2 interfaces.

With its field-proven thermal design, significant CPU and I/O upgrades, and multiple expansion methods, the Neousys Nuvo-9000 Fanless PC series fits your need for ruggedness, performance, and versatility for a variety of applications.

Nuvo-9000시리즈 제작 블로그 링크입니다.(클릭)

#Nuvo-9000 #산업용PC #Fanless PC #임베디드PC #확장슬롯 #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® Q670E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
Memory	Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface
Ethernet Port[2]	1x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-9002E/ P/ DE/ LP) with screw-lock 5x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-9006E/ P/ DE/ LP) with screw-lock
PoE+	Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
USB	1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen 1×1 (5 Gbps) ports in type-A connectors 2x USB 2.0 ports
Video Port (Integrated Graphics)	1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD/ SSD	2x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1(Nuvo-9000E/ 9000P/ 9000DE) 1x hot-swappable 2.5″ HDD tray (7mm HDD/ SSD) and 1x internal 2.5″ SATA port (Nuvo-9000LP)
M.2 NVMe	1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD

Expansion Bus
PCI Express	1x PCIe x16 slot@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002E/ 9006E) 2x PCIe x16 slots@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002DE/ 9006DE) 1x PCI slot in Cassette (Nuvo-9002P/ 9006P)
Mini PCI Express	1x full-size mini PCI Express socket
M.2	1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
Expandable I/O	1x MezIO® expansion port for Neousys MezIO® modules

Power Supply
DC Input	11x 3-pin pluggable terminal block for 8 to 48V DC input 1x 3-pin pluggable terminal block for 24V DC input (UL series)
Remote Ctrl. & LED Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-9000E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-9000DE series) 240 mm (W) x 225 mm (D) x 79 mm (H) (Nuvo-9000LP series)
Weight	3.58 kg (Nuvo-9000E/ P series)/ 3.89 kg (Nuvo-9000DE series) 3.36 kg (Nuvo-9000LP series)
Mounting	Wall-mount (standard) or DIN-rail mount (optional)

Environmental
Operating Temperature	with 35W CPU -25°C ~ 70°C with 65W CPU** -25°C ~ 70°C /* (configured as 35W TDP) -25°C ~ 50°C /* (configured as 65W TDP)
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035
Safety	UL 62368-1, IEC62368-1 (UL series only)

[1]A BIOS update may be required for the system to recognize 13th-Gen processors. Please contact Bemax Technology for more information.
[2]Due to I225-IT specification limitation, for systems running 2.5G Ethernet link speeds, please limit the operating temperature to 60°C.
[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[4] For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.

LIST

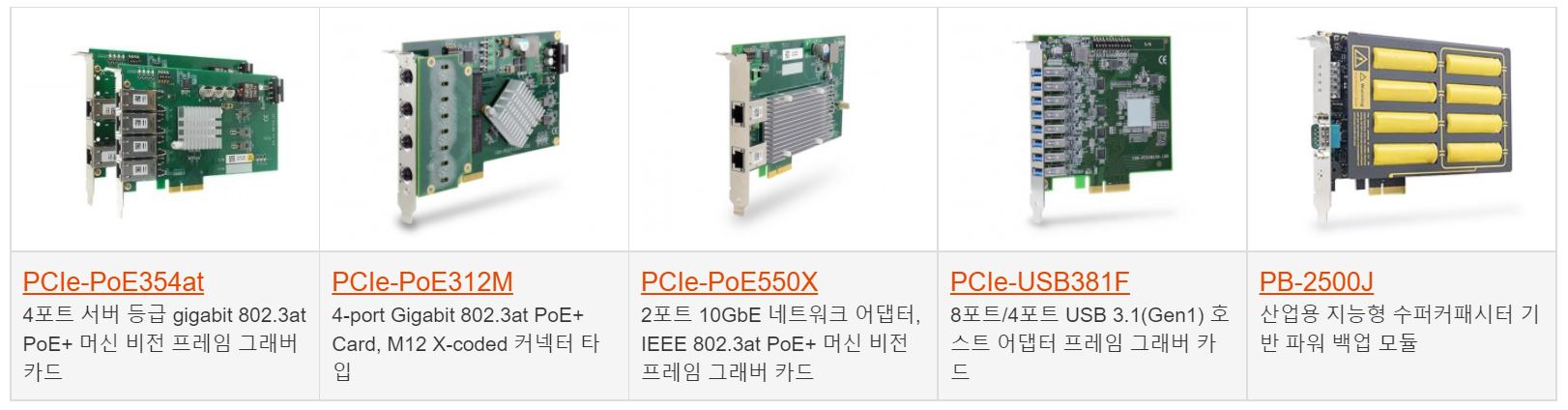

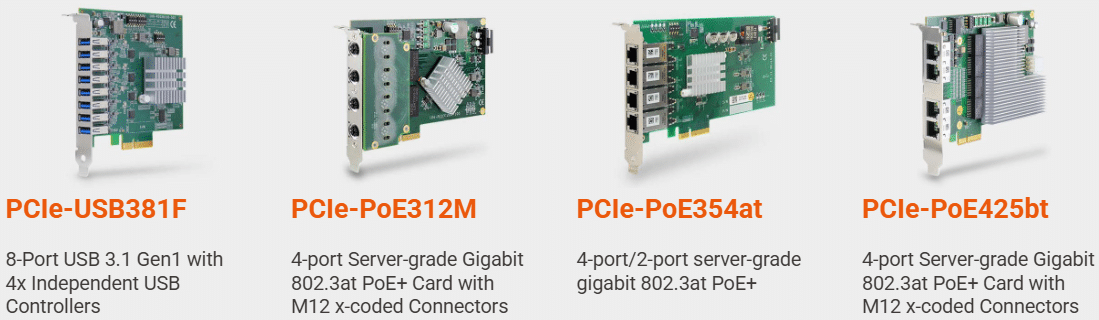

Expansion PCIe Cards

Ordering Information

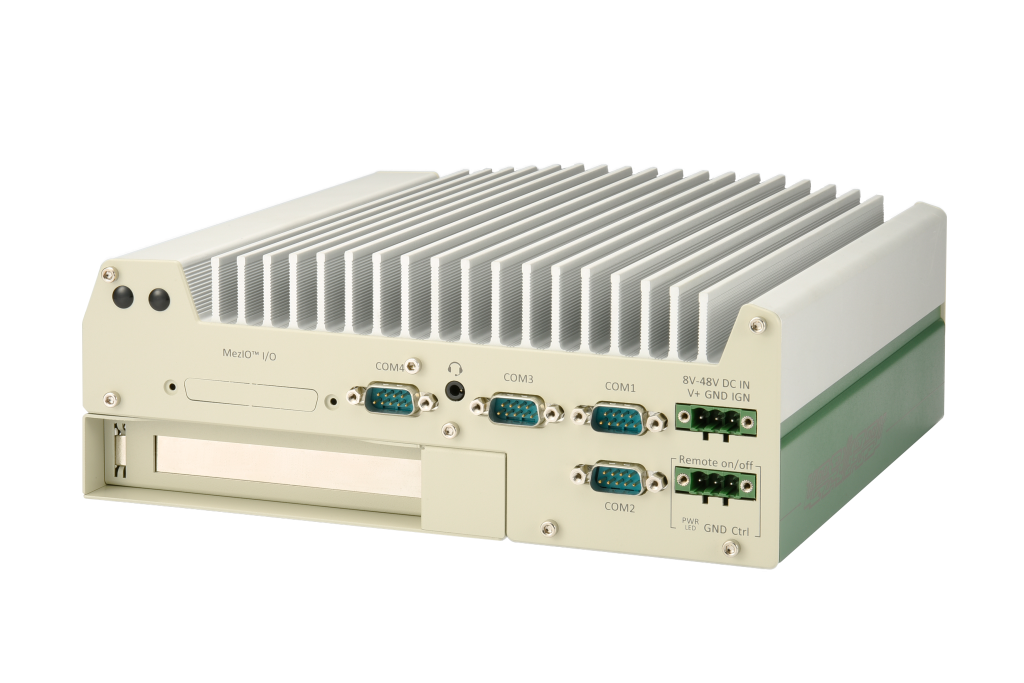

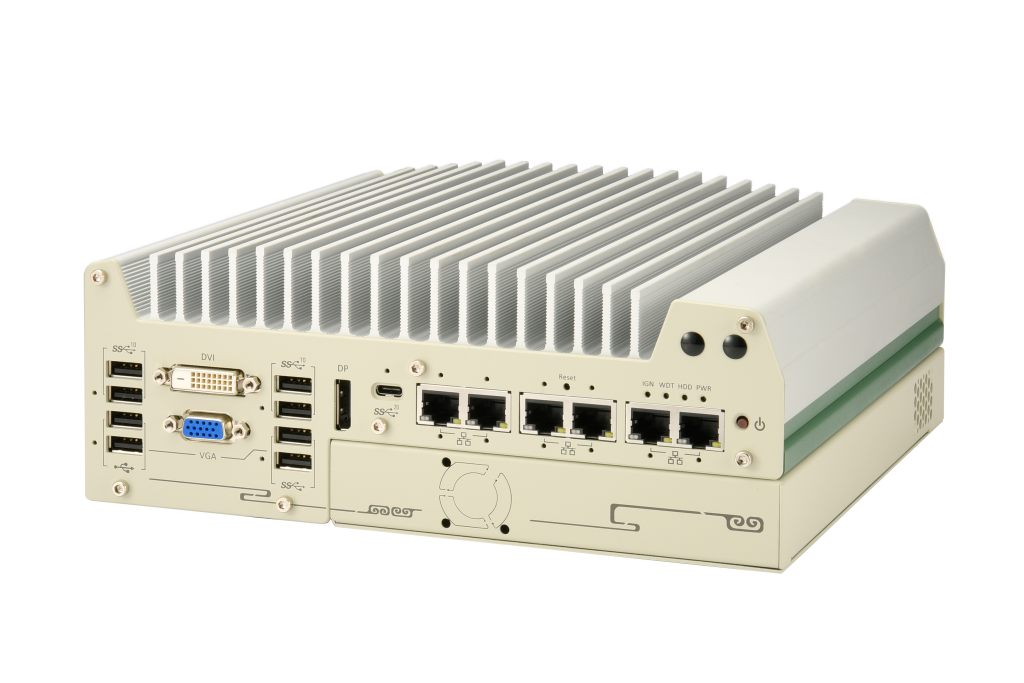

Nuvo-9002E

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 2x 2.5GbE/ GbE, USB 3.2 Type-C, single-slot PCIe Cassette & MezIO® Interface

Nuvo-9002P

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 2x 2.5GbE/ GbE, USB 3.2 Type-C, single-slot PCI Cassette & MezIO® Interface

Nuvo-9006E

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, single-slot PCIe Cassette & MezIO® Interface

Nuvo-9006P

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, single-slot PCI Cassette & MezIO® Interface

Nuvo-9002E-UL

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 2x 2.5GbE/ GbE, USB 3.2 Type-C, single-slot PCIe Cassette, MezIO® Interface & UL certified

Nuvo-9002P-UL

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 2x 2.5GbE/ GbE, USB 3.2 Type-C, single-slot PCI Cassette, MezIO® Interface & UL certified

Nuvo-9006E-UL

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, single-slot PCIe Cassette, MezIO® Interface & UL certified

Nuvo-9006P-UL

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, single-slot PCI Cassette, MezIO® Interface & UL certified

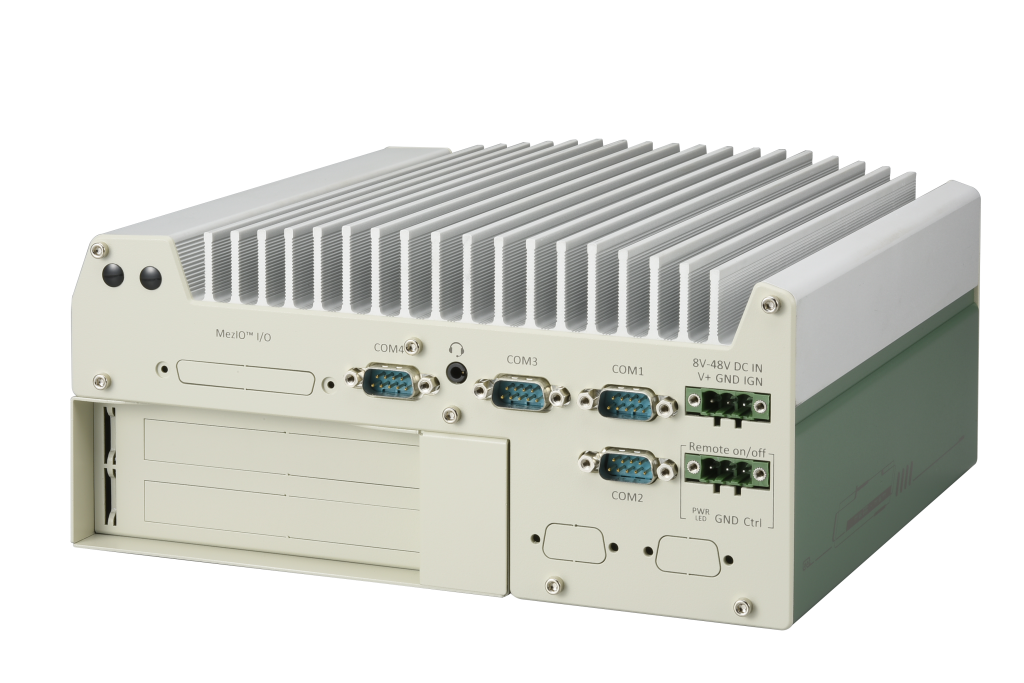

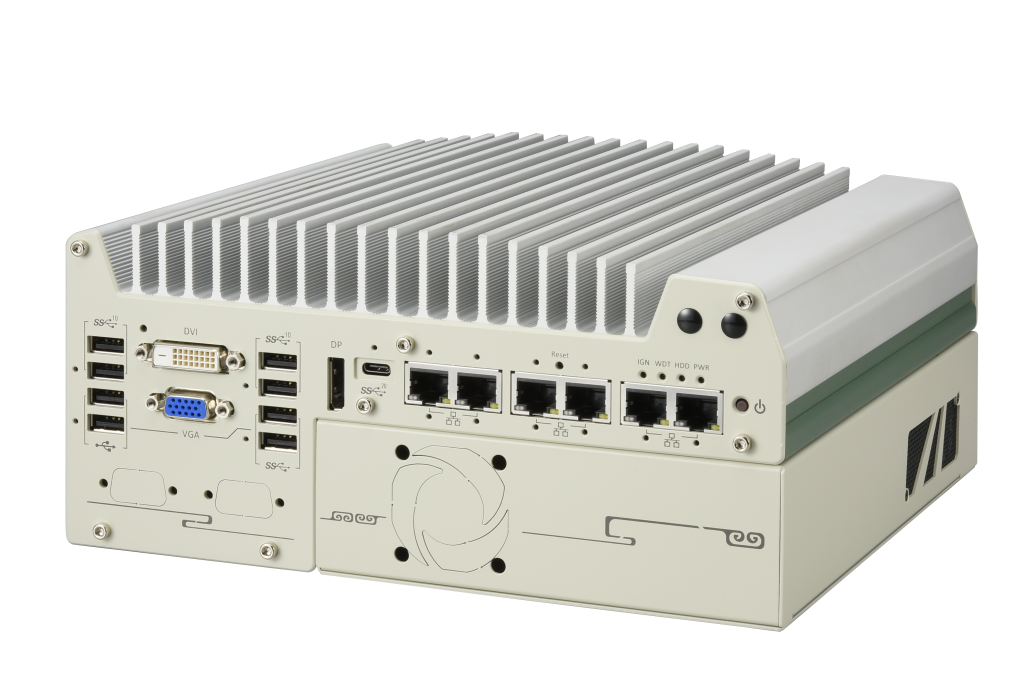

Nuvo-9002DE

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 2x 2.5GbE/ GbE, USB 3.2 Type-C, dual-slot PCIe Cassette & MezIO® Interface

Nuvo-9006DE

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, dual-slot PCIe Cassette & MezIO® Interface

Nuvo-9002DE-UL

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 2x 2.5GbE/ GbE, USB 3.2 Type-C, dual-slot PCIe Cassette, MezIO® Interface & UL certified

Nuvo-9006DE-UL

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, dual-slot PCIe Cassette, MezIO® Interface & UL certified

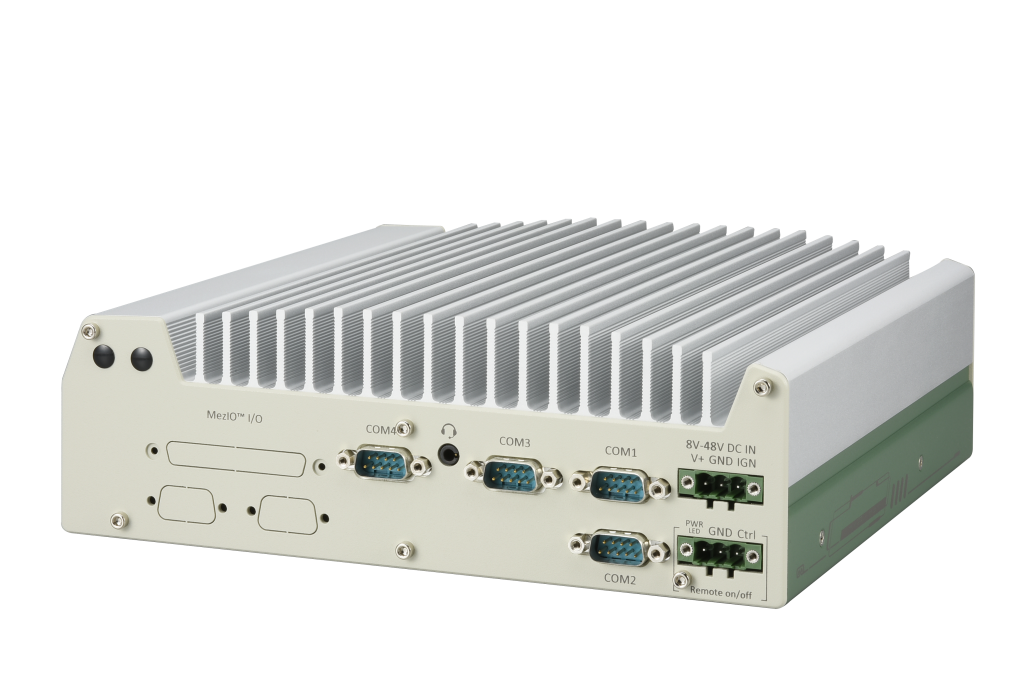

Nuvo-9002LP

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 2x 2.5GbE/ GbE, USB 3.2 Type-C, MezIO® Interface & 2.5″ HDD tray

Nuvo-9006LP

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, MezIO® Interface & 2.5″ HDD tray

Nuvo-9002LP-UL

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 2x 2.5GbE/ GbE, USB 3.2 Type-C, MezIO® Interface, 2.5″ HDD tray & UL certified

Nuvo-9006LP-UL

Intel® 14th/ 13th/12th-Gen Core™ Rugged Embedded Computer with 6x 2.5GbE/ GbE, USB 3.2 Type-C, MezIO® Interface, 2.5″ HDD tray & UL certified

PoE+ Option

Option of 802.3at PoE+ PSE for 2.5GbE port 3~ port 6

Supported MezIO® Modules

Neousys MezIO® module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.

Optional Accessories

DINRAIL-O

DIN-rail mount assembly for Nuvo-9000 series

Dmpbr Nuvo5000_7000

Neousys’ patented damping brackets assembly for Nuvo-9000 Series

Fankit-25

Fan assembly for 1-slot Cassette, 25x25x10 mm

PA-160W-OW

160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C.
(recommended for 35W CPU)

PA-280W-ET2

280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.
(recommended for 65W CPU or 35W CPU with PoE+ option)
