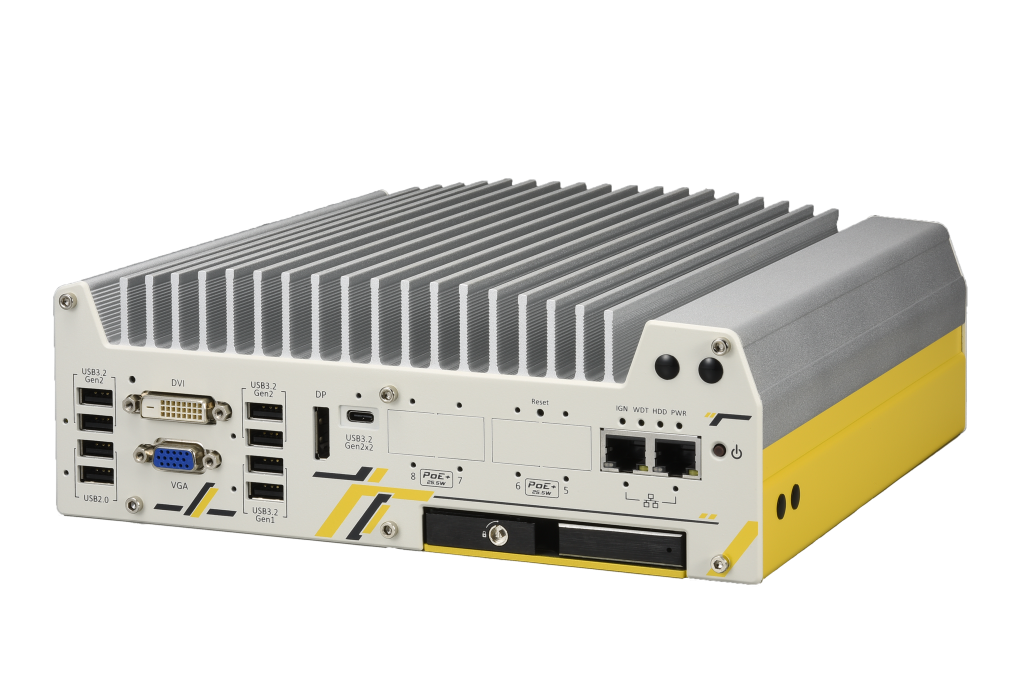

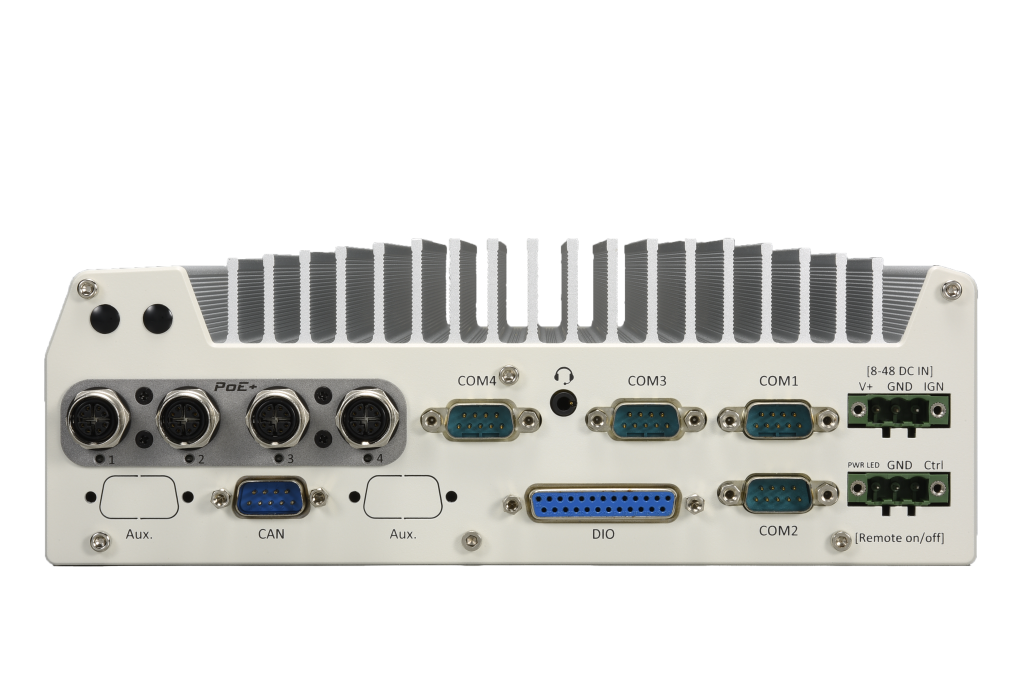

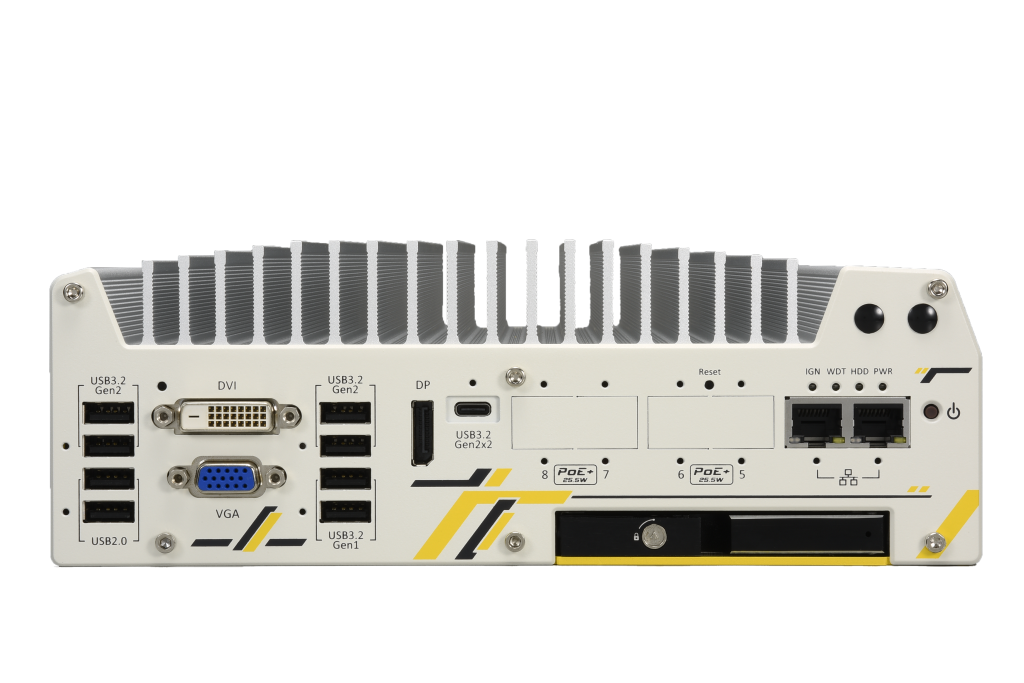

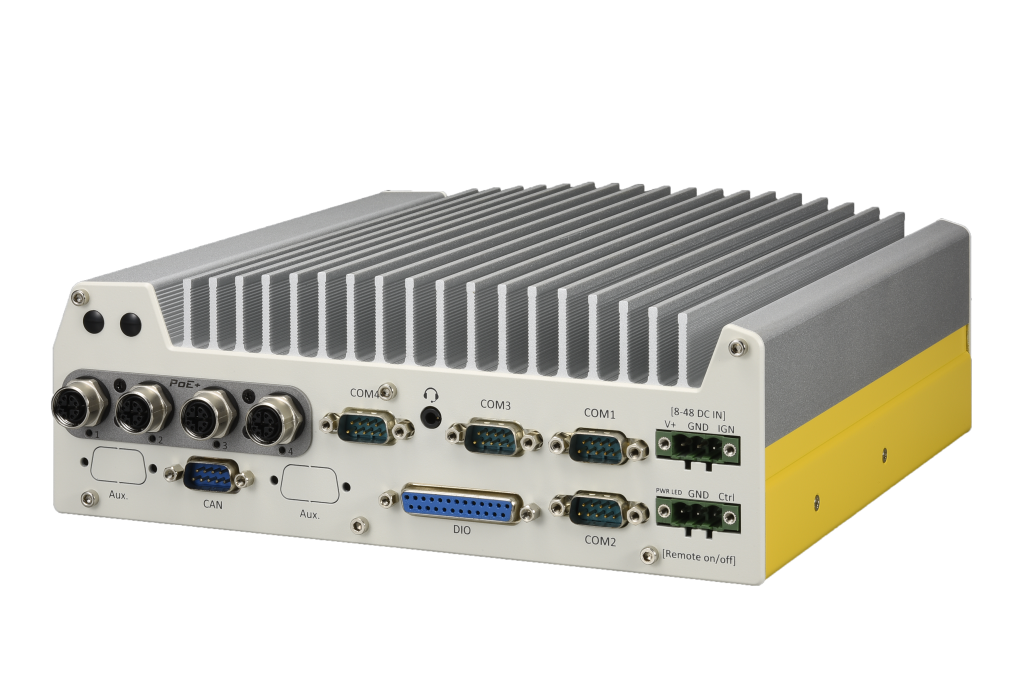

Nuvo-9100VTC Series Intel® 14/13/12세대 차량용PC

4개의 M12/4개의 RJ45/8개의 RJ45 PoE+ 포트가 있는 Intel® 14/13/12세대 코어™ 차량용 컴퓨터

Nuvo-9100VTC Series Intel® 14/13/12세대 차량용PC

  • Supports Intel® 14th/ 13th/ 12th-Gen Core™ 24C/ 32T 35W/ 65W CPU
  • 4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
  • 1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
  • On-board isolated CAN bus for in-vehicle communication
  • 4-CH isolated DI and 4-CH isolated DO
  • M.2 Gen4 x4 NVMe SSD slot
  • 8V to 48V wide-range DC input with built-in ignition power control
  • 2x SATA ports with 1x hot-swappable HDD tray, supporting RAID 0/1
  • E-Mark/ EN 45545 certified and EN 50155 EMC compliant
Overview
Introduction

Neousys의 Nuvo-9100VTC는 Intel® 14/13/12세대 코어™ 프로세서에 기초한 Neousys의 최신 러기드 차량용 컨트롤러입니다. 최첨단의 Intel® 7 포토리소그라피의 이점을 활용한 최신 코어™ 데스크톱 프로세서에는 놀라운 연산 능력을 제공하는 최대 24 코어/32 스레드가 딸려 있습니다. DDR5 메모리 대역폭 처리량과 PCIe Gen4 NVMe 고속 디스크 읽기/쓰기 기능을 결합하여, 사용자는 기존 10세대 또는 11세대 플랫폼에 비해 최대 1.8배의 전반적인 시스템 성능 향상을 기대할 수 있습니다.



산업용 Fanless PC Nuvo-9100VTC는 일정 범위의 주변장치 및 연결을 지원하는 유연성을 제공합니다. IP 카메라 같은 커넥티드 장치에 25W의 전원을 공급하는 2.5Gb 및 1Gb 이더넷 포트, 4개 또는 8개의 802.3at PoE+ 포트가 있습니다. 이 시스템에는 또한 충격/진동 환경에서 극한의 견고한 연결성을 보장할 수 있도록 기가비트 이더넷, USB 3.2 Gen1 및 USB 3.2 Gen2 같은 컴퓨터 I/O의 스크류-락 방식 기제 및 x-코디드 M12 커넥터가 있습니다. 무선 연결은 요즘 차량용 애플리케이션에 필수적이며, 사용자는 5G/4G용 무선 모듈, WiFi, GPS 및 통신용 CAN 모듈에 대등되는 2개의 M.2 및 3개의 미니-PCIe 소켓을 동시에 활용할 수 있습니다.



무엇보다도, 산업용 Fanless PC Nuvo-9100VTC는 차량 내 통신을 위한 절연 CAN 버스, 센서/액츄에이터 제어를 위한 절연 DIO, 점화 전원 컨트롤 포함 8V ~ 48V의 광범위한 DC 입력 등의 특징을 보이며 E-마크 인증을 받아 여러 차량용 애플리케이션을 위한 상당한 신뢰성을 보이는 완벽한 솔루션입니다.



Nuvo-9100VTC is Neousys’ latest rugged in-vehicle controller based on Intel® 14th/ 13th/ 12th-Gen Core™ processors. Benefiting from cutting-edge Intel® 7 photolithography, the latest Core™ desktop processors come with up to 24 cores/ 32 threads, offering an incredible boost of computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.



Nuvo-9100VTC provides flexibility to support a range of peripherals and connections. It has 2.5Gb and 1Gb Ethernet ports, and four or eight 802.3at PoE+ ports to supply 25W of power to connected devices such as IP cameras. The system also has x-coded M12 connectors and screw-lock mechanisms on the computer I/Os like Gigabit Ethernet, USB 3.2 Gen1 and USB 3.2 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity is essential for modern-day in-vehicle applications, and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 5G/ 4G, WiFi, GPS, and CAN module for communication.



On top of all that, Nuvo-9100VTC also features an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 48V wide-range DC input with ignition power control, and is E-Mark/ EN 45545 certified, making it the perfect solution with extraordinary reliability for various in-vehicle applications.



#Nuvo-9100VTC #산업용PC #Fanless PC #차량용컨트롤러 #CAN Bus #M12커넥터 #스마트 팩토리 #자율주행 #Edge AI

Specifications
System Core
Processor

Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
– Intel® Core™ i9-14900/ i9-14900T
– Intel® Core™ i7-14700/ i7-14700T
– Intel® Core™ i5-14500/ i5-14400/ i5-14500T
– Intel® Core™ i3-14100/ i3-14100T



Supporting Intel® 13th-Gen Core™ CPU(LGA1700 socket, 65W/ 35W TDP)
– Intel® Core™ i9-13900E/ i9-13900TE
– Intel® Core™ i7-13700E/ i7-13700TE
– Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
– Intel® Core™ i3-13100E/ i3-13100TE

Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 65W/ 35W TDP)
– Intel® Core™ i9-12900E/ i9-12900TE
– Intel® Core™ i7-12700E/ i7-12700TE
– Intel® Core™ i5-12500E/ i5-12500TE
– Intel® Core™ i3-12100E/ i3-12100TE
– Intel® Pentium® G7400E/ G7400TE
– Intel® Celeron® G6900E/ G6900TE
Chipset Intel® Q670E platform controller hub
Graphics Integrated Intel® UHD Graphics 770 (32EU)
Memory Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT Supports Intel vPro/ AMT 16.0
TPM Supports dTPM 2.0
I/O Interface
Ethernet 1x 2.5G Ethernet by I225-ITand 1x Gigabit Ethernet by I219-LM with screw-lock
PoE+ 4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210
– M12 X-coded connector (Nuvo-9100VTC)
– RJ45 connector (Nuvo-9104VTC)
4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210 and 4x 2.5G PoE+ ports by I225-IT
– RJ45 connector (Nuvo-9108VTC)
USB 3.2 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock
4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors
USB 2.0 2x USB 2.0 ports
CAN Bus 1x isolated CAN 2.0 port
Video Port
(Integrated Graphics)		 1x VGA, supporting 1920 x 1200 resolution
1x DVI-D, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)
2x RS-232 ports (COM3/COM4)
Audio 1x 3.5 mm jack for mic-in and speaker-out
Isolated DIO 4-CH isolated DI and 4-CH isolated DO



Storage Interface
SATA HDD 1x hot-swappable 2.5″ HDD tray (7mm HDD/ SSD) and 1x internal 2.5″ SATA ports
M.2 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD
Expansion Bus
Mini PCI Express 1x full-size mini-PCIe socket
2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2

1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module

1x M.2 2242/3052 B key socket with SIM slot for M.2 4G module
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8V to 48V DC input (IGN/ GND/ V+)
Ignition Control Built-in ignition power control
Remote Ctrl. & LED Output 1x 3-pin pluggable terminal block for remote control and PWR LED output
Mechanical
Dimension 240 mm (W) x 225 mm (D) x 84 mm (H)
Weight 3.7kg
Mounting Wall-mount with damping bracket



Environmental
Operating temperature

With 35W CPU
-40°C ~ 70°C[1] (with 1 memory module installed)
-40°C ~ 60°C[2][3] (with 2 memory modules installed)



With 65W CPU
-40°C ~ 50°C[2][3] (configured as 65W TDP with 2-slots memory)
Storage temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
Shock EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
EMC E-Mark, EN 50121 (EN 50155 EMC)
CE/FCC Class A, according to EN 55032 & EN 55035
EN 45545 EN 45545-2

[1] Due to high heat generation of DDR5 memory, please configure the CPU to 35W mode and utilize only one memory slot, while operating at a temperature of 70°C.
[2] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[3] For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.

LIST
Ordering Information
Nuvo-9100VTC

Intel® 14th/ 13th/ 12th-Gen Core™ in-vehicle controller with 4x M12 PoE+ Ports, DIO, CAN bus and RAID

Nuvo-9104VTC

Intel® 14th/ 13th/ 12th-Gen Core™ in-vehicle controller with 4x RJ45 PoE+ Ports, DIO, CAN bus and RAID

Nuvo-9108VTC

Intel® 14th/ 13th/ 12th-Gen Core™ in-vehicle controller with 8x RJ45 PoE+ Ports, DIO, CAN bus and RAID

Optional Accessories
Cbl-M12X8M-RJ45F100CM

M12 (8-pole-X-coded) to RJ45 Female, CAT6A, Length : 100CM

Cbl-M12X8M-RJ45-CAT6A-500CM

M12 (8-pole-X-coded) to RJ45, CAT6A, Length : 500CM

PA-280W-ET3

280W AC-DC power Adapter(GST280A24-YI), 24V 11.67A, 85~264VAC 120~370VDC, C6P Plug, w/ terminal block, -30°C to 70°C
