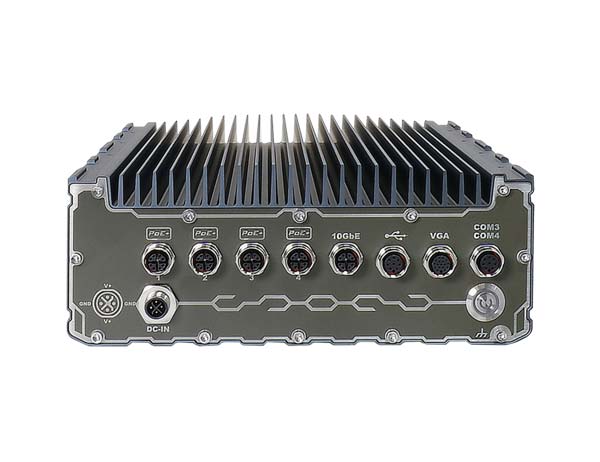

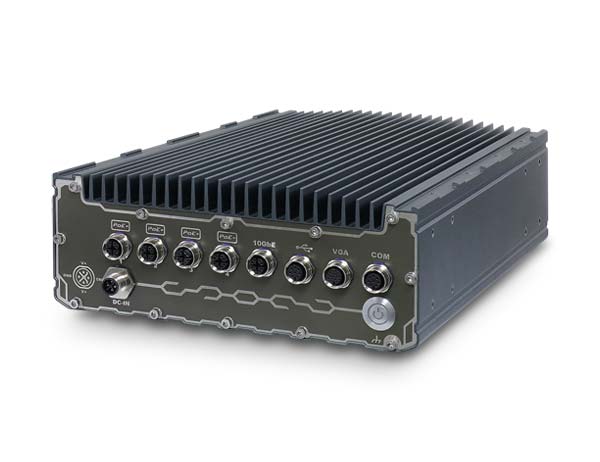

SEMIL-1700 Series Intel® Xeon E 9/8세대 방수 PC

Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Extremely rugged, IP67-rated waterproof and dustproof
-40°C to 70°C wide-temperature fanless operation
2U 19″ half-rack form-factor for rack or wall-mount
Up to 8x 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
Patented SuperCAP-based uninterruptible power backup* (SEMIL-1710J)
8V to 48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 EMC compliant

Overview

Introduction

SEMIL-1700 시리즈는 IP67 등급의 방수 및 방진 설계를 갖춘 매우 견고한 2U 하프 랙 컴퓨터입니다. Intel® Xeon® E 또는 9/8세대 Core™ CPU로 구동되며 워크스테이션급 Intel® C246 칩셋과 결합되어 최대 64GB ECC/비 ECC DDR4 메모리를 지원할 수 있습니다. 2U 하프 랙 폼팩터 산업용 팬리스 컴퓨터 SEMIL-1700 시리즈는 Neousys의 최고의 열 설계를 통합하여 최대 2개의 SEMIL을 나란히 벽에 장착하거나 랙에 장착할 수 있는 유연성을 제공합니다.

산업용 팬리스 컴퓨터 SEMIL-1700은 스테인리스 스틸과 알루미늄으로 만든 부식 방지 섀시를 채택하여 습기와 염분에 대항합니다. 충격 및 진동 환경에서 매우 견고한 연결을 보장하기 위해 M12 커넥터를 활용하는 다양한 I/O 연결 기능을 제공하며, 연결된 장치에 25W의 전력을 공급하기 위해 최대 8개의 802.3at PoE+ 포트를 갖추고 있습니다. 내부 확장 측면에서는 NVMe SSD를 지원하는 M.2 M 키 소켓과 기능 세트 확장을 위한 미니PCIe 소켓이 있습니다. 또한 산업용 팬리스 컴퓨터 SEMIL-1700은 2개의 2.5” SATA SDD/HDD 수용할 수 있으며, 점화 전원 제어 기능이 있는 8-48V의 광범위한 DC 입력을 갖추고 있습니다. 산업용 팬리스 컴퓨터 SEMIL-1700은 MIL-STD-810G 및 EN 50155를 준수합니다.

무엇보다도 SEMIL-1710J에는 예상치 못한 정전 시 시스템을 유지하거나 안전하게 종료할 수 있도록 2500W/S의 저장 에너지가 포함된 혁신적인 SuperCAP 기반 UPS *가 장착되어 있습니다. 물, 먼지, 고온/저온, 충격/진동 및 정전으로부터 보호되는 Neousys의 산업용 팬리스 컴퓨터 SEMIL-1700 시리즈는 내구성이 중요한 에지 애플리케이션 컴퓨팅을 재정의하도록 설정되었습니다.

SEMIL-1700 series is an extremely rugged 2U half-rack computer with an IP67-rated waterproof and dustproof design. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it can support up to 64 GB ECC/ non-ECC DDR4 memory. The 2U half-rack form-factor SEMIL-1700 series incorporates Neousys’ best-in-class thermal design and offers mounting flexibility where you can wall or rack-mount up to two SEMILs side by side.

SEMIL-1700 adopts a corrosion-proof chassis made of stainless steel and aluminum to counteract against moisture and salinity. Offering a variety of I/O connectivities that utilize M12 connectors to guarantee extremely rugged connections in shock and vibration environments, it has up to eight 802.3at PoE+ ports to supply 25W of power to connected devices. Internal expansion wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, SEMIL-1700 features two 2.5″ SATA SDD/ HDD accommodation, 8-48V wide-range DC input with ignition power control and complies with MIL-STD-810G and EN 50155.

To top it off, SEMIL-1710J is equipped with Neousys’ innovative SuperCAP-based UPS* containing 2500 watt-second stored energy to sustain or safely shut down the system during unforeseen power outages. Protected against water, dust, high/ low temperature, shock/ vibration and power interruption, Neousys’ SEMIL-1700 series is set to redefine edge application computing, where ruggedness matter.

Specifications

System Core
	SEMIL-1704	SEMIL-1714J	SEMIL-1708	SEMIL-1718J
Processor	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) – Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) – i7-9700E, i7-9700TE, i7-8700, i7-8700T – i5-9500E, i5-9500TE, i5-8500, i5-8500T – i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset	Intel® C246 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630
Memory	Up to 64 GB DDR4-2666/ 2400 SDRAM (two SODIMM sockets)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
PoE+	1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded)
PoE+	3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)	7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
10 GbE Port(Build Option)	Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)**
Native Video Port	1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
Series Port	2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded)
USB	2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal)	4x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal)
Audio	–	1x mic-in and speaker-out (M12 A-coded)

Storage Interface
SATA HDD	2x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
mSATA	2x full-size mSATA port (mux with mini-PCIe)
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation

Expansion Bus
Mini PCI-E	2x full-size mini PCI Express socket (mux with mSATA)		2x full-size mini PCI Express socket (mux with mSATA) 2x full-size mini PCI Express socket

Power Supply
DC Input	8V to 48V DC input (M12 S-coded)
Ignition Control	Built-in ignition power control (IGN/ GND signal via M12 serial port connector)

SuperCAP UPS
Capacity	–	2500 watt-second	–	2500 watt-second

Mechanical
Dimension	220mm (W) x 310mm (D) x 90.5mm (H)
Weight	5.8 kg	6 kg	5.9 kg	6.2 kg
Mounting	Rack-mounting and wall-mounting

Environmental
Operating Temperature	with 35W CPU -40°C ~ 70°C [3] with >= 65W CPU -40°C ~ 70°C[2]/[3] (configured as 35W TDP mode) -40°C ~ 50°C[2]/[3] (configured as 65W TDP mode)
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810G, Method 514.7, Category 4
Shock	MIL-STD-810G, Method 516.7, Procedure I
EMC	EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035

[2] For Xeon E 2176G/ 2278GE, i7-9700E, and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required

LIST

Ordering Information

SEMIL-1704

Half-rack IP67 waterproof computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with 4x M12 PoE+ ports

SEMIL-1714J

Half-rack IP67 waterproof computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with 4x M12 PoE+ ports and SuperCAP UPS

SEMIL-1708

Half-rack IP67 waterproof computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with 8x M12 PoE+ ports

SEMIL-1718J

Half-rack IP67 waterproof computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with 8x M12 PoE+ ports and SuperCAP UPS

SEMIL-1704-10G

Half-rack IP67 waterproof computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with 4x M12 PoE+ ports and 10GbE port

SEMIL-1708-10G

Half-rack IP67 waterproof computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with 8x M12 PoE+ ports and 10GbE port

SEMIL-1714J-10G

Half-rack IP67 waterproof computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with 4x M12 PoE+ ports, SuperCAP UPS and 10GbE port

SEMIL-1718J-10G

Half-rack IP67 waterproof computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with 8x M12 PoE+ ports and SuperCAP UPS and 10GbE port

Optional Accessories

PA-160W-OW

160W AC-DC power adapter, 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70°C.

JPlate-SL

Joint plate assembly for SEMIL

Cblkit-M12

Click here to download the SEMIL-Cable-Kit datasheet
