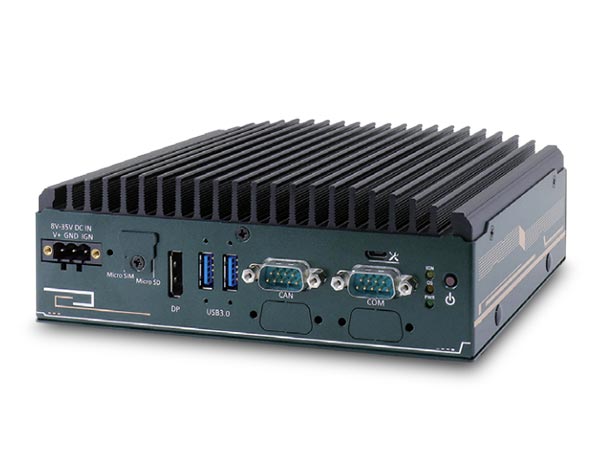

NRU-52S+/ NRU-52S Jetson Orin NX/ Xavier NX Edge

4개의 PoE++ 포트를 갖춘 IVA(지능형 영상 분석)용 러기드 NVIDIA® Jetson Orin™ NX / Xavier™ NX Edge AI 컴퓨터

NRU-52S+/ NRU-52S Jetson Orin NX/ Xavier NX Edge

  • Powered by NVIDIA® Jetson Orin™ NX or Xavier™ NX SOM bundled with JetPack 5.1.1
  • Rugged -25°C to 70°C fanless operation
  • 4x IEEE 802.3bt PoE++ GbE ports with screw-lock
  • 2x mini-PCIe sockets for WIFI/GNSS/NVMe/CAN modules
  • 1x 3042/3052 M.2 B key socket for 4G/5G mobile communication
  • 1x hardware configurable RS232/RS422/RS485 port
  • 8V to 35V wide-range DC input with built-in ignition power control
  • MIL-STD-810G and EN 50155 certified
Overview
Introduction

Neousys의 산업용 Fanless PC NRU-52S 시리즈는H.264/H.265 영상 디코딩 및 실시간 인퍼런스가 요구되는 AI 기반 영상 분석 애플리케이션을 위해 최대 100 TOPs의 컴퓨팅 성능을 제공하는 광범위한 온도 작동의 팬리스 러기드 Edge AI 컴퓨터입니다. 산업용 Fanless PC NRU-52S 시리즈는 NVIDIA® Ampere GPU(Orin NX), CUDA 코어, Tensor 코어 및 NVDLA(NVIDIA®딥 러닝 가속기)로 구성된 NVIDIA® Jetson Orin™ NX / Xavier™ NX 시스템 온 모듈(SOM)이 핵심입니다.

산업용 Fanless PC NRU-52S+의 NVIDIA® Jetson Orin™ NX는 단지 25W의 전력만 소비함에도 불구하고 30 FPS에서 1080p 영상을 최대 18개 스트림까지 디코딩할 수 있으며 또한 100 TOPs의 인퍼런스 성능을 제공합니다.와트 당 높은 Edge AI 성능 덕분에 NRU-52S+는 로봇, 차량 또는 철도 차량 같은 제한된 전원을 활용하는 애플리케이션에 이상적입니다. 또한, Neousys의 산업 등급의 써멀 설계를 바탕으로 도로변, 거리, 건설 현장, 농업 현장 또는 분진이 많은 공장 등 광범위한 온도에서의 팬리스 작동이 요구되는 엣지에 배치하기에 이상적입니다.

산업용 Fanless PC NRU-52S+는 4개의 IEEE 802.3bt PoE++ 포트를 갖추고 있으며, 각 포트는 AI 기반 탐지, 추적 및 인식 애플리케이션용 IP 카메라 또는 PTZ 카메라에 최대 90W의 전력을 공급할 수 있습니다. NRU-52S+는 유연한 확장성으로 NVMe 스토리지, WIFI, GNSS 또는 V2X 모듈을 위한 2개의 mPCIe 소켓과 4G LTE 또는 5G NR 모듈 장착을 위해 전용 써멀 설계가 적용된 1개의 M.2 B-Key 소켓, 그리고 모바일 광대역용 5개의 안테나 홀을 제공합니다. 아울러 1개의 하드웨어 설정 방식 RS232/RS422/RS485 포트, 1개의 GPS PPS 입력 포트 및 외부 장치와 통신하기 위한 Isolated(절연) 3-ch DI/4-ch DO 포트가 있습니다.

PoE++ 연결, 100 TOPs 인퍼런스 성능, 다양한 NVIDIA AI JetPack 툴킷을 통합한 산업용 Fanless PC NRU-52S+는 자율 기계, 보안 경보, 법률 집행과 V2X 애플리케이션 같은 실시간 영상 분석에 더 많은 가능성을 부여할 수 있습니다. -25°C ~ 70°C의 팬리스 작동, 광범위한 DC 입력, 점화 컨트롤 및 4G/5G 연결이 가능한 NRU-52S+는 실내/고정 설치뿐만 아니라 거친 환경의 엣지에 배치하기에 이상적입니다.

NRU-52S+ is a rugged, wide temperature, fanless edge AI computer delivering 100 TOPS for AI-based video analytics applications requiring H.264/H.265 video decoding and real-time inference. Powered by NVIDIA® Jetson Orin™ NX system on module (SOM), it comprises an 8-core ARM Cortex-A78AE CPU and NVIDIA Ampere GPU with 1024 CUDA cores, 32 Tensor cores, and 2 NVDLA (NVIDIA® deep learning accelerator).

Benefiting from the power-efficiency of NVIDIA® Jetson Orin™ NX, which consumes only 25W of power, NRU-52S+ can decode up to 18 streams of 1080p video at 30 FPS, and also offer 100 TOPS inference performance. The high AI performance per watt makes NRU-52S+ ideal for applications with a limited power source, such as in a robot, vehicle, or rolling stock. Also, with Neousys’ industrial-grade thermal design, NRU-52S+ is ideal for edge deployments that require fanless wide temperature operations, such as at roadside, wayside, construction site, agriculture, or in a dusty factory.

NRU-52S+ offers four IEEE 802.3bt PoE++ ports, each port can supply up to 90W to IP cameras or PTZ speed dome cameras for AI-based detection, tracking, and recognition applications. NRU-52S+ also offers flexible expansions with two mPCIe sockets for NVMe storage, WIFI, GNSS, or V2X module; one M.2 B key for 4G LTE or 5G NR module with dedicated passive thermal design, and a total of five antenna holes for mobile broadband. It also has one hardware configurable RS232/RS422/RS485, 1 GPS PPS input, 3-CH isolated DI, and 4-CH isolated DO for communication with external devices.

By integrating PoE++ connectivity, 100 TOPS inference performance, a vast of NVIDIA AI JetPack toolkits, NRU-52S+ can enable more possibilities for real-time video analytics such as autonomous machines, security alerts, law enforcement, and V2X applications. With its -25°C to 70°C fanless operation, wide-range DC input, ignition control, and 4G/ 5G connectivity, NRU-52S+ is not only for indoor/ stationary installations but also ideal for harsh edge deployments.



#NRU-52S+ #NRU-52S #산업용PC #Fanless PC #Jetson Orin NX #Xavier NX #PoE #스마트 팩토리 #영상디코딩 #Edge AI

Specifications
System Core
Processor NVIDIA® Jetson Orin™ NX system-on-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU
Memory 8GB/ 16GB LPDDR5 @ 3200 MHz on SOM



I/O Interface
Ethernet port 4x Gigabit ports with screw-lock, share 1 Gbps total bandwidth
PoE Capability In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximum 90W output on single PoE++ port Compatible with 802.3at (PoE+) and 802.3af (PoE) PD
USB 2x USB 3.1 Gen1 ports (total 5 Gbps shared with M.2 B key)
Video Port 1x DisplayPort, supporting 3840×2160 at 60Hz
Serial Port 1x hardware configurable RS-232/422/485 port
CAN Bus 1x isolated CAN FD port
Isolated DIO 1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO
Micro SD 1x front-accessible microSD card slot
Ground Terminal 1x M4 ground terminal for chassis ESD shielding



Storage Interface
Mini PCI Express With Orin NX:
1x full-size mini PCI Express socket (PCIe + USB 2.0) for M.2 M 2242 NVMe with adapter for storage
1x full-size mini PCI Express socket (PCIe + USB 2.0) for GNSS, V2X, or CAN
With Xavier NX:
1x full-size mini PCI Express socket (PCIe + USB 2.0) for WiFi, NVMe storage
1x full-size mini PCI Express socket (USB 2.0) for GNSS, V2X, or CAN
M.2 1x 3042/3052 M.2 B key (USB 3.1 Gen 1 + USB 2.0) for 4G/5G module with dual SIM support (1x front-accessible, 1x internal)



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8V to 35V DC input and ignition power control (V+/ GND/ IGN)



Mechanical
Dimension 173 mm (W) x 144 mm (D) x 60 mm (H)
Weight 1.4 kg
Mounting Wall-mount bracket (optional)



Environmental
Operating Temperature -25°C ~ 70°C with passive cooling
(15W TDP mode with 50W PoE++ power supply)
-25°C ~ 70°C with optional fan kit
(15W TDP mode with 144W PoE++ power supply)
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.7, Category 4
Shock Operating, MIL-STD-810G, Method 516.7, Procedure I
EMC CE/FCC Class A, according to EN 55032 & EN 55035
EN 50121-3 (EN 50155:2017, Clause 13.4.8)



* For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.



LIST
Ordering Information
NRU-52S+-JON8

Rugged NVIDIA® Jetson Orin™ NX(8GB) Edge AI Computer with 4x PoE++ Ports for Intelligent Video Analytics

NRU-52S+-JON16

Rugged NVIDIA® Jetson Orin™ NX(16GB) Edge AI Computer with 4x PoE++ Ports for Intelligent Video Analytics

NRU-52S+-JXN8

Rugged NVIDIA® Jetson Xavier™ NX(8GB) Edge AI Computer with 4x PoE++ Ports for Intelligent Video Analytics

NRU-52S+-JXN16

Rugged NVIDIA® Jetson Xavier™ NX(16GB) Edge AI Computer with 4x PoE++ Ports for Intelligent Video Analytics

NRU-52S+-JONANO4

Rugged NVIDIA® Jetson Orin™ Nano(4GB) Edge AI Computer with 4x PoE++ Ports for Intelligent Video Analytics with 128GB M.2 2242 M NVMe

NRU-52S+-JONANO8

Rugged NVIDIA® Jetson Orin™ Nano(8GB) Edge AI Computer with 4x PoE++ Ports for Intelligent Video Analytics with 128GB M.2 2242 M NVMe

Optional Accessories
PA-160W-OW

160W AC/DC 전원 어댑터, 20V / 8A; 18AWG / 120cm; 단자 대용 코드 끝 단자, 작동 온도 : -30 ~ 70 ° C

PA-120W-OW

120W AC/DC 전원 어댑터, 20V / 6A; 18AWG / 120cm; 단자 대용 코드 끝 단자, 작동 온도 : -30 ~ 70 ° C

Wmkit-NRU-50

Wall mounting kit for NRU-50 series, including wall mounting brackets and screws

AccsyBx-FAN-NRU-50

Fan kit for NRU-50 series, including 92x92mm fan, fan frame, fan cable cover, and screws

Tpkit-NRU-50

3 pcs of 30x30x2 mm thermal pad for mPCIe modules with the max component height between 1.3 mm and 2.4 mm, and M.2 B key modules with the max component height between 0.7 mm and 2.0 mm
