IP66 방수 10.1인치 AI 패널 PC, Jetson Orin™ NX/ Nano 기반, 6x GMSL2 또는 4x PoE+ GbE 포트

NRU-170-PPC Series IP66 방수 Jetson Orin™ NX/ Nano 기반 산업용 팬리스 컴퓨터 (New!)

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM bundled with JetPack
IP66 waterproof and dustproof
- No throttling at 55°C with JAO64 MAXN Mode Rugged -40°C to 75°C fanless operation (JAOi) - No throttling at 50°C with JAOi MAXN Mode
10.1" touchscreen with 1920 x 1200 resolution, 1000 cd/m2 brightness, 1000:1 high contrast ratio
-25°C to 60°C fanless operation (No throttling at 60°C with MAXN TDP Mode)
6x GMSL2 automotive cameras via FAKRA Z connectors (NRU-171V-PPC)
4x PoE+ GbE via M12 X-coded connectors (NRU-172S-PPC)
1x CAN FD and 1x RS232 via M12 A-coded connectors
8V to 35V wide-range DC input with built-in ignition power control

Overview

Introduction

Neousys의 산업용 Fanless PC NRU-160-AWP 시리즈는 NVIDIA® Jetson Orin™ NX 또는 Orin™ Nano로 구동되는 견고한 IP66 방수 에지 AI 컴퓨터입니다. 대상 애플리케이션에는 스마트 시티 도로변 설치, 식품 공장의 AI 검사, 야외 로봇의 인식 장치, 오프로드 차량의 ADAS가 포함됩니다. 또한 합리적인 비용으로 방수 기능을 갖춘 견고한 광범위한 온도 에지 AI를 재정의하는 것을 목표로 하며, 간소화된 기계 설계, 신중하게 선택된 방수 커넥터 및 표준화된 케이블 키트를 통해 달성합니다.

NVIDIA® Jetson Orin™ NX로 구동되는 NRU-160-AWP는 최대 100개의 스파스 TOPS(INT8)로 뛰어난 AI 추론을 제공하고 최대 18개의 1080P 비디오 스트림을 동시에 트랜스코딩할 수 있습니다. 비전 기반 AI 애플리케이션에 대한 다양한 카메라 요구 사항을 수용하도록 설계된 산업용 Fanless PC NRU-160-AWP는 두 가지 모델로 제공됩니다. IMX390, ISX031 및 IMX490 CMOS 센서가 있는 선택된 카메라에 대한 사전 빌드 드라이버가 있는 최대 6개의 GMSL2 자동차 카메라를 지원하는 산업용 Fanless PC NRU-161V-AWP와 IP 또는 산업용 GigE 카메라에 대한 4개의 PoE+ GbE 포트를 제공하는 NRU-162S-AWP입니다. 또한 다른 컴퓨터 또는 LiDAR와의 데이터 전송을 위한 방수 GbE 포트가 제공됩니다.

산업용 Fanless PC NRU-160-AWP는 캐비닛, 차량 또는 로봇 내부에서 엣지 배포를 위해 설계되었습니다. 225 x 136 x 55mm의 소형 프로필로 좁은 공간에 이상적입니다. 8V~35V의 넓은 DC 입력 범위, 점화 전원 제어, 1x CAN FD 버스 포트, 1x RS232 포트가 장착되어 있습니다. 또한 CAN/COM/WiFi 모듈용 miniPCIe 소켓 1개와 4G LTE/5G NR 모바일 통신 모듈용 M.2 B-키 소켓 1개가 있습니다.

IP66 방수 기능, Orin NX AI 성능, 풍부한 온보드 카메라 연결의 통합은 견고성, 성능, 비용 간의 균형을 이룹니다. 스마트 농업, 광산, 건설, 도로변 애플리케이션, 엣지 검사 및 야외 AMR을 위한 즉시 배포 가능한 방수 엣지 AI 플랫폼입니다.

The NRU-170-PPC series is an IP66-rated, 10.1″ AI panel PC, powered by NVIDIA® Jetson Orin™ NX or Orin™ Nano, delivering up to 100 TOPS of AI processing capability. This series is tailored for edge AI applications that demand water resistance and human-machine interaction, including ADAS for off-highway vehicles, autonomous marine vessels, AI-driven inspection in food processing, smart livestock management, and precision agriculture.

Leveraging the NVIDIA® Jetson Orin™ NX, the NRU-170-PPC achieves superior AI inference, offering up to 100 sparse TOPS (INT8) and the ability to transcode up to 18 simultaneous 1080P video streams. The series also incorporates waterproof features at a competitive price point, accomplished through a refined mechanical design, the use of carefully selected waterproof connectors, and standardized cable kits. For adaptability in various semi-outdoor environments, the unit is equipped with a 10.1″ touch panel boasting 1000 cd/m² brightness and a 1000:1 contrast ratio, with the added functionality of single-finger touch sensitivity in wet conditions.

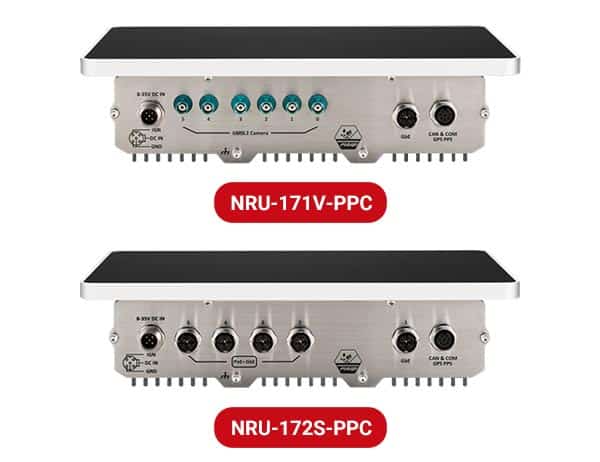

The NRU-170-PPC series includes two models: the NRU-171V-PPC, supporting up to six GMSL2 automotive cameras with pre-integrated drivers for select cameras utilizing IMX390, ISX031, and IMX490 CMOS sensors; and the NRU-172S-PPC, which offers four PoE+ GbE ports for IP or industrial GigE cameras. Additionally, a waterproof GbE port is provided for interfacing with external computers or LiDAR. The NRU-170-PPC is designed as a compact, all-in-one edge AI platform that simplifies in-vehicle cabling. It supports an 8V to 35V wide-range DC input, ignition power control, a CAN FD bus port, and an RS232 port. Expansion options include a mini-PCIe socket for CAN/ COM/ WiFi modules and an M.2 B-key socket for 4G LTE/ 5G NR communication modules.

By integrating a 10.1″ touch panel, IP66 rating, Orin NX AI performance, and comprehensive onboard camera connectivity, the NRU-170-PPC strikes an optimal balance between ruggedness, performance, cost efficiency, and ease of deployment. It represents a cutting-edge edge AI solution for applications in smart agriculture, mining, construction, smart animal husbandry, edge inspection, and outdoor autonomous mobile robots (AMRs).

#NRU-160-AWP #산업용PC #Fanless PC #IP66 방수 #스마트 팩토리 #방수 #방진 #Edge AI

Specifications

System Core
Processor	NVIDIA® Jetson Orin™ NX system-onmodule (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU	NVIDIA® Jetson Orin™ Nano systemon-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU
Memory	16GB/ 8GB LPDDR5 @ 3200 MHz on SOM	8GB/ 4GB LPDDR5 @ 2133 MHz on SOM
eMMC	N/A

Panel
Touch Screen	10.1″ touch screen with 1920 x 1200 resolution, 1000 cd/m2 brightness, and 1000:1 high contrast ratio. (Single-finger touch capability when screen is wet)

Panel I/O Interface
GMSL2	NRU-171V-PPC	6x waterproof GMSL2 FAKRA Z connectors, supporting multiple configurations: Configuration A. 6x AC-IMX390 (2MP@30FPS) Configuration B. 6x AC-ISX031 (3MP@30FPS) Configuration C. 4x AC-IMX490 (5MP@30FPS)
Ethernet Port	NRU-171V-PPC	1x Gigabit Ethernet port via M12 X-coded 8-pin connector
Ethernet Port	NRU-172S-PPC	Port 0: 1x Gigabit Ethernet port via M12 X-coded 8-pin connector Port 1 to Port 4: 4x GbE ports by Intel® I350-AM4 via M12 X-coded 8-pin connector
PoE+	NRU-172S-PPC	IEEE 802.3at PoE+ PSE for Port 1 to Port 4 with 50W total power budget

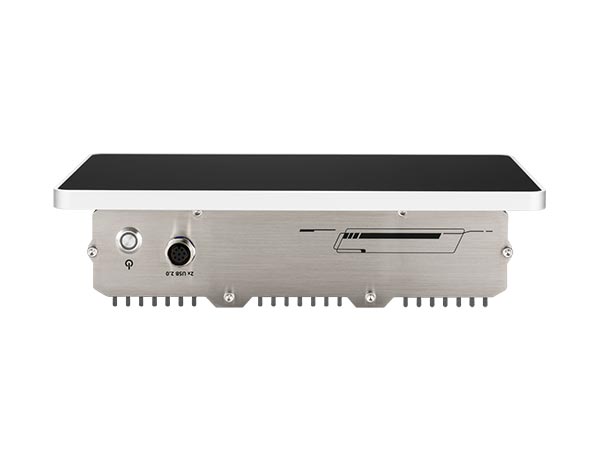

USB	2x USB 2.0 ports via M12 A-coded 8-pin connector 1x USB Type C port (for system flashing and OTG, under service door)
Serial Port	1x RS-232 port via M12 A-coded 8-pin connector
CAN bus	1x CAN FD port via M12 A-coded 8-pin connector
Isolated DIO	1x isolated GPS PPS input via M12 A-coded 8-pin connector

Internal I/O Interface
Mini PCI Express	1x full-size mini PCI Express socket (PCIe + USB 2.0)
M.2	1x M.2 3042/3052 B key (USB 3.2 Gen 1 + USB 2.0) for LTE/5G module with dual micro SIM support

Storage
M.2 NVMe	1x M.2 2242 M key socket (PCIe Gen 3×1) for NVMe SSD

Power Supply
DC Input	8V to 35V DC input and ignition power control via M12 A-coded, 5-pin connector (IGN/ GND/ V+) [1]

Mechanical
Dimension	257 mm (W) x 65 mm (D) x 176 mm (H)
Weight	3.8 kg
Mounting	VESA 75 mount (standard)

Environmental
Operating temperature	-25°C to 60°C with passive cooling (MAXN TDP mode)[2] With full CPU+GPU stressing: NRU-170-PPC non-throttling at 60°C with 25W TDP mode (Orin NX MAXN)
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/ FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) (NRU-162S-AWP only)

[1]The required DC input range is 8V to 35V when the system load is under 60W. The required DC input range is 12V to 35V when the system load is between 60W to 96W. The required DC input range is 20V to 35V when the system load is between 96W to 160W.
[2] For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Ordering Information

NRU-171V-PPC

10.1″ AI Panel PC Powered by Jetson Orin™ NX/ Nano with 6x GMSL2 Ports

NRU-172S-PPC

10.1″ AI Panel PC Powered by Jetson Orin™ NX/ Nano with 4x PoE+ GbE Ports

Jetson Module Option

Options for Different Jetson Orin™ NX and Jetson Orin™ Nano SKUs

NVMe Option

Options for Different Capacities of M.2 2242 NVMe Storage

Optional Accessories

GMSL2 cameras

The system compatible with a wide range of GMSL2 2D and 3D cameras with pre-built driver, including TIER IV, e-con, StereoLabs, Intel RealSense. For the complete list, please click on this link

PA-60W-OW

60W AC/DC power adapter 12V/5A; cord end terminals for terminal block, operating temperature: -30 to 60 °C

PA-160W-OW

160W AC/DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30 to 70 °C
