Nuvo-10000 Series Intel 14/13/12세대 산업용 컴퓨터

Intel® 14세대/13세대/12세대 Core™ i9/ i7/ i5/ i3 확장 Edge AI 박스-PC(최대 7개의 PCIe/PCI 슬롯 포함)

Nuvo-10000 Series Intel 14/13/12세대 산업용 컴퓨터

  • Supports Intel® 14th/ 13th/ 12th-Gen Core™ i9/ i7/ i5/ i3, Pentium® and Celeron® LGA 1700 CPU
  • Compact footprint with up to seven expansion slots
  • -Two x16 PCIe, three x8 PCIe and two x4 PCIe slots (Nuvo-10007)

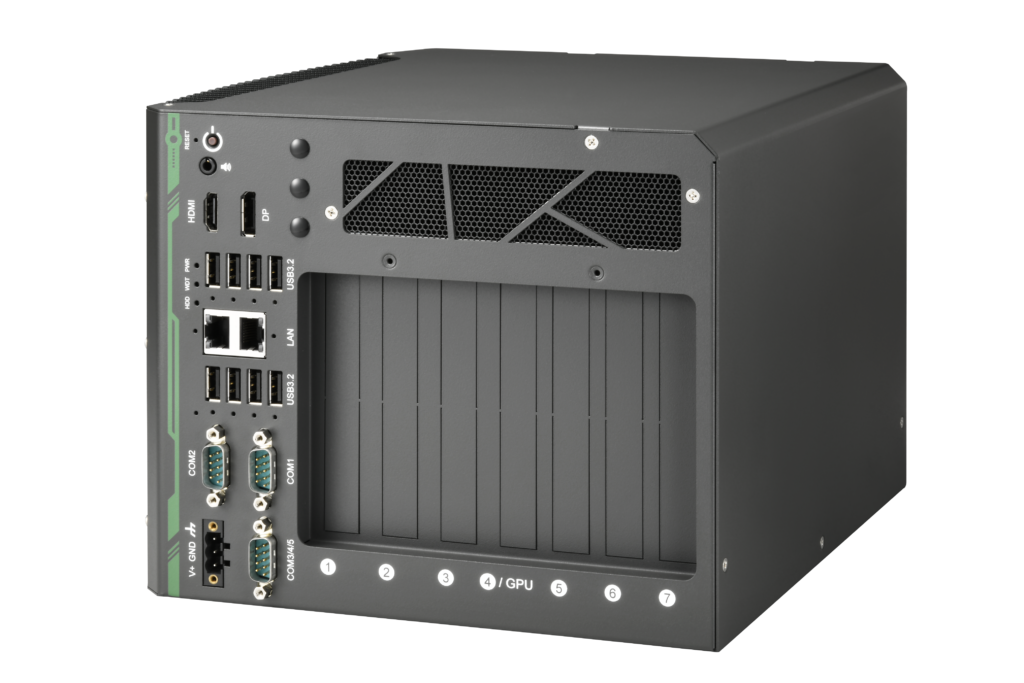

  • -Two x16 PCIe, two x8 PCIe and three PCI slots (Nuvo-10034)

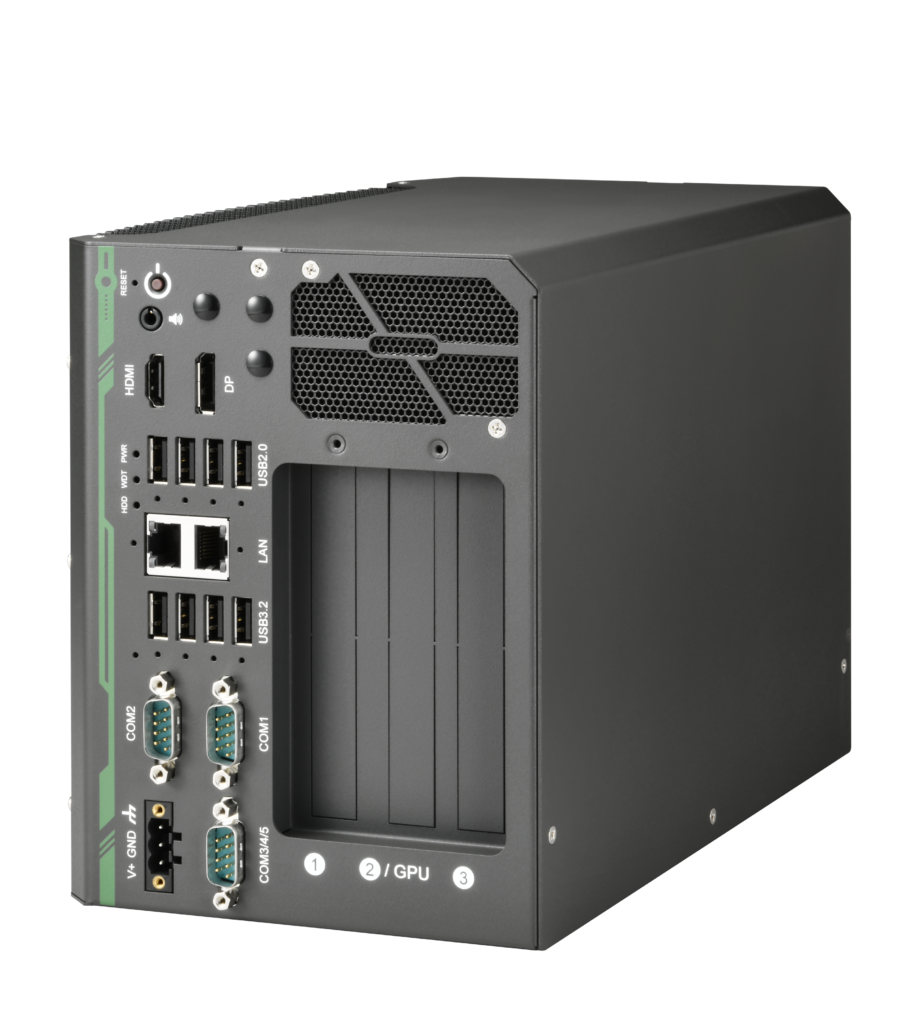

  • - One x16 PCIe and two x8 PCIe slots (Nuvo-10003)
  • 8x USB 3.2 Gen2 ports with screw-lock
  • 1x 2.5G and 1GbE ports with screw-lock
  • DP++ / HDMI 1.4b dual display outputs
  • 2x 2.5" SATA HDD/ SSD accommodation support RAID control
  • Supports single NVIDIA® GPU card with up to 115W TDP
Overview
Introduction



Neousys의 Nuvo-10000 시리즈는 부피가 큰 랙마운트 또는 월마운트 IPC 시스템을 대체하는 이상적인 Edge AI 산업용 Fanless PC입니다. Nuvo-10000 시리즈는 컴팩트한 섀시에 최대 7개의 PCIe/PCI 슬롯을 제공하여 기성품 4U 19″ IPC와 동일한 수준의 확장성을 제공합니다. 사용자는 다양한 AIO, DIO, 통신, 이미지 캡처 및 모션 제어를 설치할 수 있습니다.



산업용 Fanless PC Nuvo-10000 시리즈 는 Q670 칩셋을 탑재한 Intel® 14th/13th/12th-Gen Alder Lake Core™i 데스크톱 프로세서를 활용하여 경쟁력 있는 가격으로 비교적 소형 크기의 기존 IPC보다 뛰어난 컴퓨팅 성능을 제공합니다. USB3 카메라를 위한 나사 잠금 메커니즘을 갖춘 8개의 USB 3.2 포트가 있습니다. 1개의 GbE, 1개의 2.5 GbE, 5개의 COM 포트가 있고 2개의 2.5″ HDD/SSD장착이 가능하며 세 번째 HDD/SSD를 위한 내부 SATA 포트도 추가됩니다. 이 시스템은 115W NVIDIA® GPU를 지원하여 현대 딥 러닝 애플리케이션에 상당한 Edge AI 컴퓨팅 성능을 제공할 수도 있습니다.



산업용 IoT, 비전 검사 및 스마트팩토리에 대한 수요가 증가함에 따라 산업용 Fanless PC Nuvo-10000 시리즈는 다양한 산업 애플리케이션을 만족시킬 수 있는 유연하고 만능인 견고한 솔루션입니다. 다양한 I/O 포트와 유연한 7슬롯 PCIe/PCI 확장성을 갖춘 산업용 Fanless PC Nuvo-10000 시리즈는 5차 산업 혁명에 적합합니다.



Nuvo-10000 series is the ideal choice to replace your bulky rack-mount or wall-mount IPC systems. The system offers up to seven PCIe/ PCI slots in its compact chassis to deliver the same level of expandability as off-the-shelf 4U 19″ IPCs. Users can install a wide variety of AIO, DIO, communication, image capture and motion control cards for versatile applications.



Leveraging Intel® 14th/ 13th/ 12th-Gen Alder Lake Core™ i desktop processors with Q670 chipset, Nuvo-10000 series delivers exceptional computing power over traditional IPCs in a comparatively compact size with a competitive price. It features eight USB 3.2 ports with screw-lock mechanism for USB3 cameras. There is one GbE, one 2.5 GbE, 5 COM ports, and accommodates two 2.5″ HDDs/ SSDs with the addition of an internal SATA port for a third HDD/SSD. The system can also support a 115W NVIDIA® GPU to offer significant AI computing power for modern deep-learning applications.



Driven by the increasing demand for industrial IoT, vision inspection and machine automation, Nuvo-10000 series is a flexible all-around rugged solution that can satisfy various industrial applications. With an assortment of I/O ports and flexible 7-slot PCIe/ PCI expandability, Nuvo-10000 series is geared for the fifth industrial revolution.



Nuvo-10000 시리즈 제작후기(클릭)

#Nuvo-10000 #산업용PC #Fanless PC #랙마운트 #확장 슬롯 #딥러닝 #스마트 팩토리 #Edge AI

Specifications
System Core
Processor

Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
– Intel® Core™ i9-14900/ i9-14900T
– Intel® Core™ i7-14700/ i7-14700T
– Intel® Core™ i5-14500/ i5-14400/ i5-14500T
– Intel® Core™ i3-14100/ i3-14100T

Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
– Intel® Core™ i9-13900E/ i9-13900TE / i9-12900E/ i9-12900TE/
– Intel® Core™ i7-13700E/ i7-13700TE
– Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
– Intel® Core™ i3-13100E/ i3-13100TE

Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
– Intel® Core™ i9-12900E/ i9-12900TE
– Intel® Core™ i7-12700E/ i7-12700TE
– Intel® Core™ i5-12500E/ i5-12500TE
– Intel® Core™ i3-12100E/ i3-12100TE
– Intel® Pentium® G7400E/ G7400TE
– Intel® Celeron® G6900E/ G6900TE
Chipset Intel® Q670E platform controller hub
Graphics CPU dependent Integrated Intel® UHD graphics 770 (32EU)/ 730 (24EU)
Memory Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT Supports Intel vPro/ AMT 16.0
TPM Supports dTPM 2.0
I/O Interface
Ethernet

1x 2.5G Ethernet port by I226-IT

1x Gigabit Ethernet port by I219-LM
Video Port
(Integrated Graphics)		 1x HDMI 1.4b, supporting 3840 x 2160 resolution
1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/422/485 ports (COM1/ COM2)
3x 3-wire RS-232 ports (COM3/ COM4/ COM5)
USB 3.2 4x USB 3.2 Gen2 (10 Gbps) ports
4x USB 3.2 Gen2 (5 Gbps) ports
USB 2.0 1x USB 2.0 port with Type-A connector (internal)
Audio 1x 3.5 mm jack for mic-in and speaker-out
Storage Interface
SATA HDD 2x SATA ports for internal 2.5” HDD/ SSD installation (support RAID 0/ 1)
M.2 NVMe 1x M.2 2280 SATA interface



Internal Expansion Bus
PCI/PCI Express

– Nuvo-10007

2x PCIe x16 slot @ Gen3, 8-lanes
3x PCIe x8 slot @ Gen3, 4-lanes
2x PCIe x4 slot @ Gen3, 2-lanes

-Nuvo-10034

2x PCIe x16 slot @ Gen3, 8-lanes
2x PCIe x8 slot @ Gen3, 4-lanes

3x 33MHz/ 32-bit 5V PCI slots

-Nuvo-10003

1x PCIe x16 slot @Gen3, 16-lanes
2x PCIe x8 slot @ Gen3, 4-lanes
Mini PCI Express 2x full-size mini PCI Express socket with internal micro SIM socket



Power Supply
DC Input 1x 3-pin pluggable terminal block for 12 to 35V DC input
Remote Ctrl. &
LED Output		 1x 10-pin (2×5) wafer connector for remote on/off control and status LED output
Mechanical
Dimension

-Nuvo-10007/10034

241mm (W) x 280 mm(D) x 188mm (H)

-Nuvo-10003

157mm (W) x 280mm(D) x 188mm (H)
Weight

-Nuvo-10007/10034

5.2kg

-Nuvo-10003

4.2kg
Mounting Wall-mount (standard)



Environmental
Operating temperature -25°C ~ 60°C*
Storage temperature -40°C ~ 85°C
Humidity 10% ~ 90% , non-condensing
Vibration Operating, MIL-STD-810H, Method 514.8, Category 4
Shock Operating, MIL-STD-810H, Method 516.8, Procedure I
EMC CE/FCC Class A, according to EN 55032 & EN 55035
* *For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
LIST
Expansion PCIe Cards:
Ordering Information
Nuvo-10007

Intel® 14/ 13/ 12th-Gen Core™ i9/ i7/ i5/ i3 Expansion Box-PC with 7x PCIe slots

Nuvo-10034

Intel® 14/ 13/ 12th-Gen Core™ i9/ i7/ i5/ i3 Expansion Box-PC with 4x PCIe and 3x PCI slots

Nuvo-10003

Intel® 14/ 13/ 12th-Gen Core™ i9/ i7/ i5/ i3 Expansion Box-PC with 3x PCIe slots

Optional Accessories
PA-280W-ET2

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature: -30°C to 60°C.

PA-600W-ENC

600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.

Cbl-W212F-W210F-23CM

Cable Wafer 2.0 Female 12P to 10P, Length: 23cm

Rmkit-Nuvo10000

Rack mounting assembly for Nuvo-10000 series
