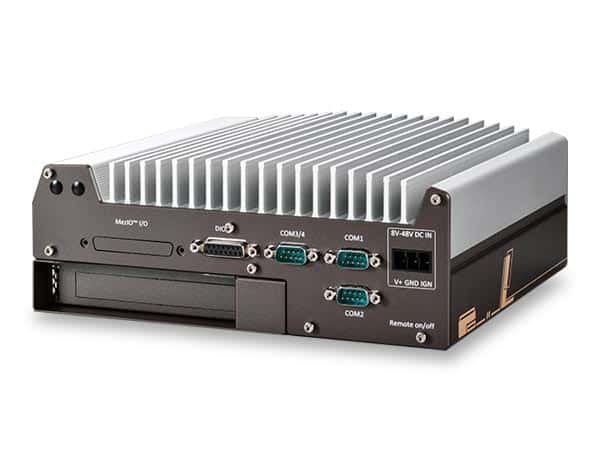

2.5GbE/GbE, USB 3.2, 8채널 DIO, 옵션 10GbE 및 확장 카세트 및 MezIO® 인터페이스가 있는 Intel® Core™ Ultra 200 시리즈 팬리스 임베디드 컴퓨터

Nuvo-11000 Series, Intel® Core™ Ultra 200 Series 팬리스 컴퓨터 (Coming soon)

Supports Intel® Core™ Ultra 200 Series 24C/ 24T 35W/ 65W LGA1851 CPU
Rugged, -25°C to 70°C fanless operation
Up to 5x 2.5GbE and 1x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
Up to 8x USB 3.2 Gen2 ports
4-CH isolated DI and 4-CH isolated DO
1x optional 10GBASE-T Ethernet
Expansion Cassette for PCIe add-on card accommodation
MezIO® interface for easy function expansion

Overview

Introduction

Neousys의 산업용 팬리스 PC Nuvo-11000 시리즈는 Intel® Core™ Ultra 200 시리즈 플랫폼을 기반으로 한 플래그십 견고한 임베디드 컴퓨터입니다. 최첨단 TSMC의 3nm포토리소그래피 기술로 제작된 최신 Core™ Ultra 200 프로세서는 최대 24코어/24스레드를 지원하며, 더 높은 CPU 클록 속도와 AI 가속을 위한 통합 신경 처리 장치(NPU)를 갖추고 있습니다. 이를 통해 CPU 성능이 1.2배 향상되고, 최대 36TOP의 AI 컴퓨팅 성능을 제공합니다. 또한, DDR5-6400 메모리와 PCIe Gen5 지원이 결합되어 더욱 강력한 컴퓨팅 성능을 발휘하며, 다양한 산업용 애플리케이션에서 탁월한 성능을 제공합니다.

산업용 팬리스 PC Nuvo-11000 시리즈는 산업용 애플리케이션을 위한 폭넓은 I/O 기능을 제공합니다. PoE+ 기능 옵션이 포함된 2.5Gb 및 1Gb 이더넷 포트 5개를 비롯해, 고속 데이터 전송이나 10Gb 산업용 카메라 연결을 위한 옵션 10GbE 포트 1개, USB3 카메라를 지원하는 USB 3.2 Gen2 포트 8개를 갖추고 있습니다. 또한, 업그레이드된 M.2 Gen5x4 슬롯을 지원하여 최신 NVMe SSD를 지원하며, 11,000MB/s 이상의 빠른 읽기/쓰기 속도를 제공합니다. 이와 함께, 산업용 팬리스 PC Nuvo-11000 시리즈는 자동화 및 머신 비전 애플리케이션을 위한 4개의 독립된 DI 및 4개의 독립된 DO도 지원하여 뛰어난 확장성과 활용성을 제공합니다.

확장성을 극대화하기 위해 산업용 팬리스 PC Nuvo-11000 시리즈는 확장 카세트, 독자적인 MezIO® 인터페이스, 내부 mPCIe 슬롯을 통해 추가 카드를 지원합니다. 이를 통해 다양한 애플리케이션 요구 사항에 유연하게 대응할 수 있습니다.

최신 Intel® Core™ Ultra 200 프로세서는 산업용 팬리스 PC Nuvo-11000 시리즈 플랫폼에 뛰어난 에너지 효율성을 제공합니다. 이전 세대 대비 전력 소모는 20% 감소하면서도 성능은 최대 120% 향상되었습니다. 검증된 열 설계와 다양한 I/O 기능이 결합된 산업용 팬리스 PC Nuvo-11000 시리즈는 폭넓은 산업용 애플리케이션에 최적화된 견고하고 고성능의 팬리스 임베디드 컴퓨팅 솔루션을 제공합니다.

Nuvo-11000 series is Neousys’ flagship rugged embedded computer built on the Intel® Core™ Ultra 200 series platform. Powered by TSMC’s advanced 3nm photolithography, the latest Core™ Ultra 200 processors offer up to 24 cores/ 24 threads with higher CPU clock rates, and an integrated neural processing unit (NPU) for AI acceleration. This results in a 1.2x boost in CPU performance and AI computing capabilities of up to 36 TOPs. Combined with DDR5-6400 memory and PCIe Gen5 support, it delivers a significant improvement in computing power, enhancing performance across diverse industrial applications.

Nuvo-11000 series provides comprehensive I/O capabilities for industrial applications. It includes five 2.5Gb and a 1Gb Ethernet ports with optional PoE+ capability, one optional 10GbE port for high-speed data transfer or 10Gb industrial camera, and eight USB 3.2 Gen2 ports for USB3 cameras. Additionally, an upgraded M.2 Gen5x4 slot supports the latest NVMe SSDs, achieving read/ write speeds over 11,000 MB/s and the system also features 4x isolated DI and 4x isolated DO for automation and machine vision applications.

For extended functionality, the series supports add-on cards via its expansion Cassette, proprietary MezIO® interface, and internal mini-PCIe slots, ensuring adaptability to diverse application requirements.

The advanced Intel® Core™ Ultra 200 processors also bring better energy efficiency to the Nuvo-11000 platform. Compared to the previous generation, they can deliver nearly 120% the performance while consuming only 80% of the power*. Combining a proven thermal design with versatile I/O functions, Nuvo-11000 offers a rugged, high-performance embedded computing solution tailored for a wide range of industrial applications.

#Nuvo-11000 #산업용PC #Fanless PC #팬리스 컴퓨터 #Intel Core Ultra 200 #PoE+ #DIO #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supports Intel® Core™ Ultra 200 series CPU (LGA 1851 socket), 35W and 65W TDP – Intel® Core™ Ultra 9 285/285T – Intel® Core™ Ultra 7 265/265T – Intel® Core™ Ultra 5 245/245T/225/225T
Chipset	Intel® H810/ Q870 Platform Controller Hub
Graphics	Integrated Intel Xe LPG Graphics
AI Engine	Integrated neural processing unit
Memory	Up to 96 GB non-ECC DDR5 6400 SDRAM (Dual SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface

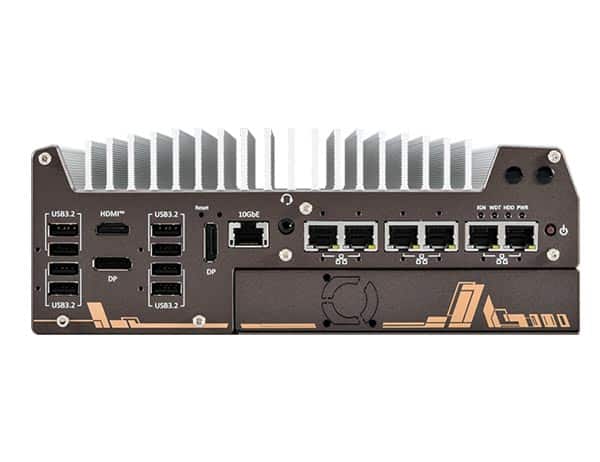

Ethernet Port[2]	1x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-11002E/LP) with screw-lock 5x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-11006E/DE/LP) with screw-lock 1x optional 10GBASE-T Ethernet (Nuvo-11006E/ DE/ LP)
PoE+	Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
USB	8x USB 3.2 Gen2 ports (Nuvo-11006LP/E/DE) 2x USB 3.2 Gen2, 2x USB3.2 Gen1 and 4x USB2.0 ports (Nuvo-11002LP/E)
Isolated DIO	4-CH isolated DI and 4-CH isolated DO
Video Port	1x HDMI™, supporting 3840 x 2160 resolution 2x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/ 2) 2x 3-wire RS-232 ports (COM3/ 4)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD/ SSD	2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1(Nuvo-11000E/11000DE) 1x hot-swappable 2.5″ HDD tray (7mm HDD/ SSD) and 1x internal 2.5″ SATA port, supporting RAID 0/ 1 (Nuvo-11000LP)
M.2 NVMe	1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD (Nuvo-11006E/DE/LP)

Expansion Bus
PCI Express	1x PCIe x16 slot@Gen4, 16-lanes PCIe signals in Cassette (Nuvo-11002E/ 11006E) 2x PCIe x16 slots@Gen4, 8-lanes PCIe signals in Cassette (11006DE)
Mini PCI Express	2x full-size mini PCI Express socket
Expandable I/O	1x MezIO® expansion port for Neousys MezIO® modules

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 48VDC DC input(V+/ GND/ IGN)
Remote Ctrl. & LED Output	1x 10-pin (2×5) wafer connector for remote on/oﬀ control and status LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-11000E series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-11000DE series) 240 mm (W) x 225 mm (D) x 79 mm (H) (Nuvo-11000LP series)
Weight	3.58 kg (Nuvo-11000E Series) 3.89 kg (Nuvo-11000DE series) 3.36 kg (Nuvo-11000LP series)
Mounting	Wall-mount (standard) or DIN-rail mount (optional)

Environmental
Operating Temperature	With 35W CPU – 25°C to 70°C* With 65W CPU – 25°C to 70°C* (conﬁgured as 35W TDP) – 25°C to 50°C* (conﬁgured as 65W TDP)
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

* For sub-zero and over 60°C operating temperature, a wide temperature HDD/ SSD/ NVMe is required.

LIST

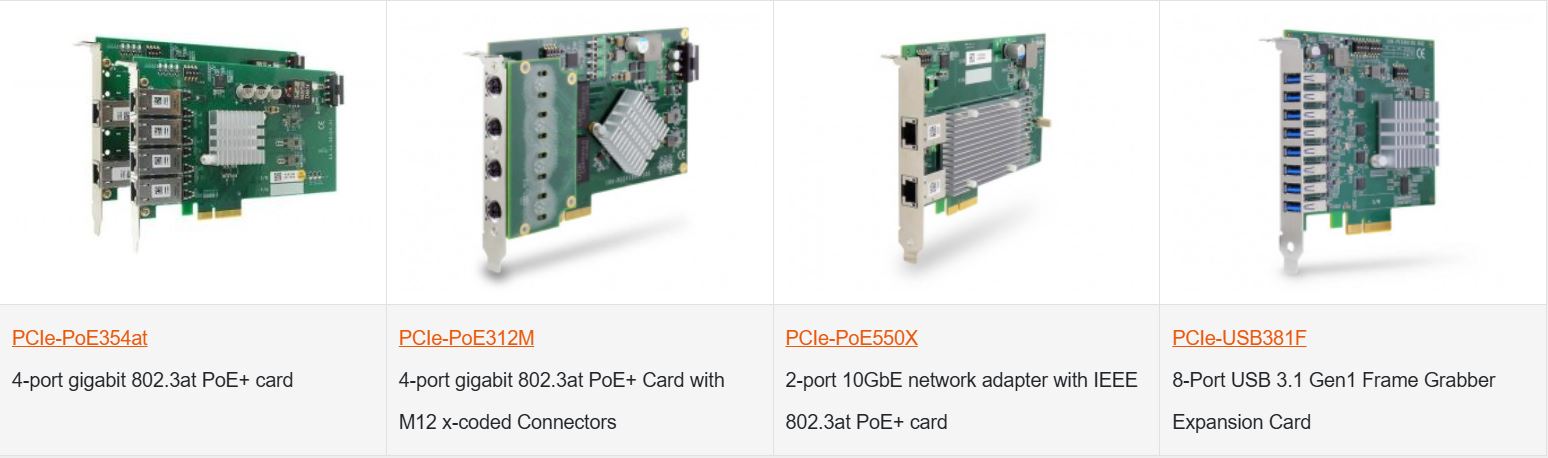

Expansion PCIe Cards

Ordering Information

Nuvo-11002E

Intel® Core™ Ultra 200 Series Rugged Embedded Computer with 2x 2.5GbE/GbE, USB 3.2, single-slot PCIe Cassette & MezIO® Interface

Nuvo-11006E

Intel® Core™ Ultra 200 Series Rugged Embedded Computer with 6x 2.5GbE/GbE, USB 3.2, single-slot PCIe Cassette & MezIO® Interface

Nuvo-11006DE

Intel® Core™ Ultra 200 Series Rugged Embedded Computer with 6x 2.5GbE/GbE, USB 3.2, dual-slot PCIe Cassette & MezIO® Interface

Nuvo-11002LP

Intel® Core™ Ultra 200 Series Rugged Embedded Computer with 2x 2.5GbE/GbE, USB 3.2, MezIO™ Interface & 2.5” HDD tray

Nuvo-11006LP

Intel® Core™ Ultra 200 Series Rugged Embedded Computer with 6x 2.5GbE/GbE, USB 3.2, MezIO™ Interface & 2.5” HDD tray

PoE+ Option

Option of 802.3at PoE+ PSE for 2.5GbE port 3 to port 6

10G Ethernet

Option of 10GBASE-T Ethernet port

Supported MezIO® Modules

Neousys MezIO® module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.

Optional Accessories

PA-280W-ET2

280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.

(recommended for 65W CPU or 35W CPU with PoE+ option)

PA-160W-OW

160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C.

(recommended for 35W CPU)

Dmpbr-Nuvo5000_7000

Neousys’ patented damping brackets assembly for Nuvo-11000 series

DINRAIL-O

DIN-rail mount assembly for Nuvo-11000 series
