110 VDC 입력 및 4x M12 PoE+를 지원하는 EN50155 & EN45545 Intel® Elkhart Lake Atom® x6425E 철도 컴퓨터

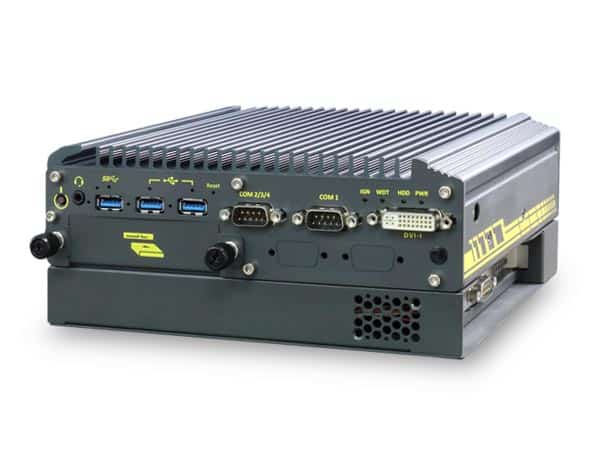

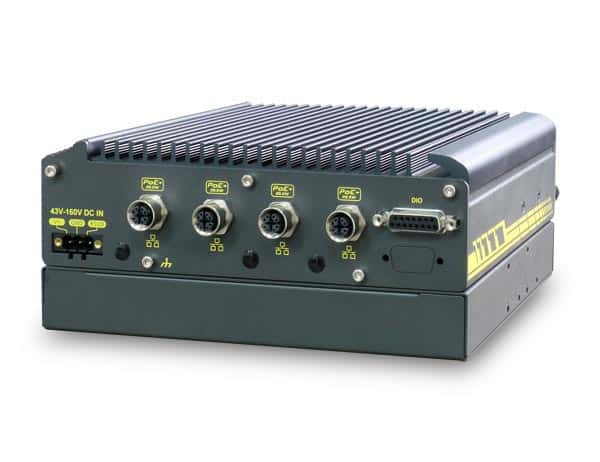

Nuvo-2615RL Series Intel® Elkhart Lake Atom® x6425E 철도 컴퓨터

Compliant with EN 50155 mandatory tests and EN 45545-2
Rugged -40°C to 70°C fanless operations, compliant with EN 50155 Class OT4
43V to 160V wide-range DC input with 1500Vdc insulation
Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
4x PoE+ GbE ports via M12 x-coded connectors
Built-in SuperCAP UPS for power interruptions > 30 seconds (Nuvo-2615RL only)
1x front-accessible 2.5" 15mm HDD tray and 1x M.2 2280 SATA SSD
2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B Key

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-2615RL 시리즈는 NVR(네트워크 비디오 레코더) 및 비디오 애널리틱스 같은 비디오-기반 철도 차량 어플리케이션에 맞춘, EN50155 및 EN45545를 준수하는 팬리스 Intel® Atom®-기반의 철도 컴퓨터입니다.

산업용 Fanless PC Nuvo-2615RL은 최대 CPU 성능 및 최대 50W PoE+ 전달로 EN50155 OT4 등급(-40°C ~ 70°C)의 팬리스 작동을 충족시킬 수 있도록 전용 써멀 설계가 되어 있습니다. 전압 변동부터 정전으로 인한 전력 차단까지 난제가 많은 철로 상황을 극복할 수 있도록, 산업용 Fanless PC Nuvo-2615RL에는 전력 공급 없이도 30초 이상 작동 시간을 유지하기 위한 절연된 43V ~ 160V의 광범위한 DC 입력 및 내장 SuperCAP UPS가 장착되어 있습니다. 정전 시간이 유지 가능한 시간을 초과하는 경우, 내부 마이크로컨트롤러(MCU)는 하드웨어 및 데이터를 보호하기 위해 SuperCAP 에너지가 소진되기 전에 소프트웨어 종료를 시작하며 유지보수 비용을 최소화합니다.

Intel® Elkhart Lake Atom® x6425E 쿼드 코어 CPU로 구동되는, 산업용 Fanless PC Nuvo-2615RL 시리즈는 Intel의 이전 Atom 세대인 Apollo Lake에 비해 1.8배의 CPU 성능을 전달합니다. 산업용 Fanless PC Nuvo-2615RL 시리즈의 특징은 IP 카메라 연결성을 위한 최대 50W의 총 전력 수요예측을 보이는 4개의 PoE+ GbE 포트입니다. 시스템 스토리지용 내부 M.2 2280 SATA SSD 외에도, 산업용 Fanless PC Nuvo-2615RL에는 최대 15mm의 높이와 5TB의 용량을 보이는 2.5″ SATA HDD/SSD를 수용하는 전면 접속 가능한 2.5″ HDD 트레이가 있습니다. 내부 확장의 경우에는 WiFi, GNSS 및 CAN 모듈용 2개의 미니-PCIe 소켓을 제공합니다. 또한 4G/5G 모바일 광대역 모듈용 M.2 3042/3052 B 키 소켓도 있습니다.

Intel Atom® 쿼드 코어 x6425E, -40°C ~ 70°C 온도의 팬리스 작동, M12 PoE+ 연결성, 최대 5TB의 데이터 스토리지 용량, 2500 와트 초 SuperCAP UPS, 43V ~ 160V의 광범위한 DC 입력 및 EN50155와 EN45545 준수 등을 통합하여, 산업용 Fanless PC Nuvo-2615RL 시리즈는 비전-기반 철도 차량 어플리케이션에 맞는 이상적인 러기드 수송용 컴퓨터입니다.

The Nuvo-2615RL series is an EN50155 and EN45545-compliant, fanless Intel® Atom®-based railway computer for video-based rolling stock applications such as NVR (network video recorder) and video analytics.

Nuvo-2615RL has a dedicated thermal design to meet EN50155 OT4 class (-40°C to 70°C) fanless operation with max CPU performance and up to 50W PoE+ delivery. To overcome the challenging railway conditions, from voltage fluctuations to power outage interruptions, Nuvo-2615RL is equipped with an isolated wide 43V to 160V DC input design and a built-in SuperCAP UPS to sustain more than 30 seconds of operation time without power supply. If power outage time exceed the sustainable duration, the internal microcontroller (MCU) will trigger a software shutdown before running out of SuperCAP energy to protect the hardware, data, and minimize maintenance costs.

Powered by Intel® Elkhart Lake Atom® x6425E quad-core CPU, the Nuvo-2615RL series delivers 1.8x the CPU performance compared with Intel’s previous Atom generation, Apollo Lake. The Nuvo-2615RL series features 4x PoE+ GbE ports with up to 50W total power budget for IP camera connectivity. In addition to the internal M.2 2280 SATA SSD for system storage, Nuvo-2615RL has one front-accessible 2.5″ HDD tray accommodating a 2.5″ SATA HDD/SSD up to 15mm in height and 5TB in capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS, and CAN modules. There is also an M.2 3042/3052 B Key socket for 4G/5G mobile broadband modules.

Integrating an Intel Atom® quad-core x6425E, -40°C to 70°C fanless operations, M12 PoE+ connectivity, up to 5TB data storage capacity, 2500 wattsecond SuperCAP UPS, 43V to 160V wide-range DC input, and EN50155 and EN45545 compliance, the Nuvo-2615RL series is the ideal rugged transportation computer for vision-based rolling stock applications.

#Nuvo2615RL #산업용PC #Fanless PC #임베디드PC #EN50155 #EN45545 #철도컴퓨터 #EdgeAI

Specifications

System Core
Processor	Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor
Graphics	Integrated Intel® UHD Graphics
Memory	Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket
TPM	Supports fTPM 2.0

Panel I/O Interface
Ethernet Port	4x Gigabit Ethernet ports via M12 x-coded connectors by Intel® I210
PoE Capability	In compliant with IEEE 802.3at PoE+ PSE, maximum 25.5W output on single PoE+ port. Total PoE+ power budget: 50W
Video Port	VGA and DVI dual display outputs via DVI-I connector
USB 3.1	1x USB 3.1 gen1 ports with screw-lock
USB 2.0	2x USB 2.0 port with screw-lock
Serial Port	1x isolated RS-485 port with 15 kV ESD protection (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2)
Audio	1x 3.5 mm jack for mic-in and speaker-out
Isolated DIO	4-CH isolated DI and 4-CH isolated DO

Expansion Bus
Mini-PCIe	1x full-size mini PCI Express socket with PCIe and USB 2.0 signal 1x full-size mini PCI Express socket with USB 2.0 signal
M.2 B key	1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket

Storage Interface
M.2 SATA	1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation
SATA HDD	1x front-accessible HDD tray for 2.5″ HDD/ SSD installation (up to 15mm height)

Power Supply
DC Input	1x 3-pin pluggable terminal block for isolated 43V to 160V DC input

Power Backup
Capacity	2500 watt-second (Nuvo-2615RL Only)

Mechanical
Dimension	205 mm (W) x 155 mm (D) x 58 mm (H) (Nuvo-2610RL) 205 mm (W) x 156 mm (D) x 86 mm (H) (Nuvo-2615RL)
Weight	2.1kg (Nuvo-2610RL) 2.7kg (Nuvo-2615RL)
Mounting	Damping bracket (default) Wall-mount (optional)

Environmental
Operating temperature	-40°C to 70°C*, compliant with EN50155 Class OT4
Storage temperature	-40°C ~ 85°C
Humidity	10%~90%, non-condensing
Vibration	IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155)
Shock	IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155)
EMC	EN 50155:2017, Clause 13.4.8 CE/FCC Class A, according to EN 55032 & EN 55035
EN50155	All mandatory sections of EN 50155:2017 Nuvo-2610RL: EN50155 Class S1, EN50155 C1 Nuvo-2615RL: EN50155 Class S3, EN50155 C2
EN45545	EN 45545-2 (Fire protection on railway vehicles)

* For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.

LIST

Ordering Information

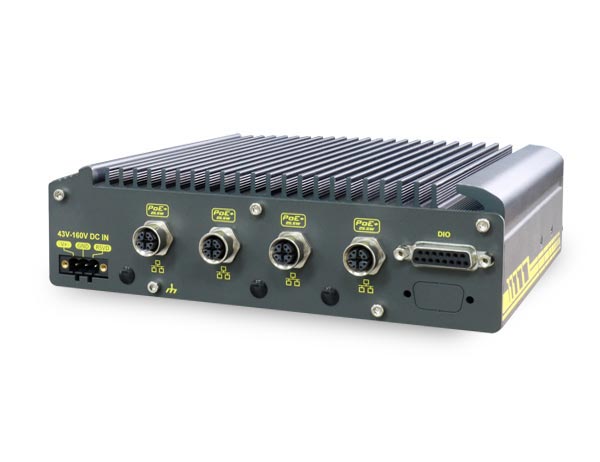

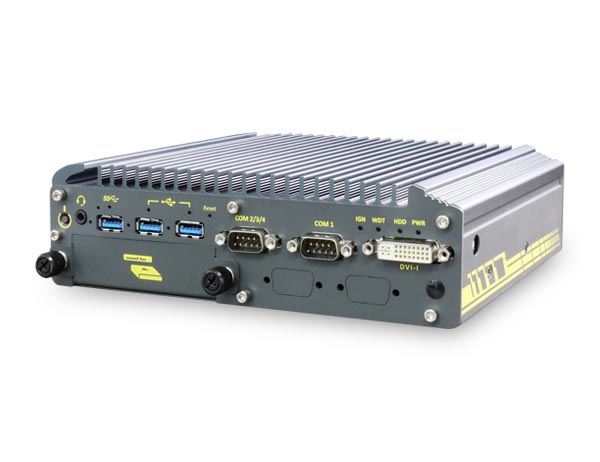

Nuvo-2610RL-H

EN50155 & EN45545 Intel® Elkhart Lake Atom® x6425E Railway Fanless Computer with 4x M12 PoE+ and 43V to 160V ultra-wide-range DC input

Nuvo-2615RL-H

EN50155 & EN45545 Intel® Elkhart Lake Atom® x6425E Railway Fanless Computer with 4x M12 PoE+ , 43V to 160V ultra-wide-range DC input, and built-in SuperCAP UPS
