듀얼 NVIDIA® RTX 30 시리즈 그래픽 카드와 Intel® Xeon® E 및 9/8세대 Core™ CPU를 지원하는 러기드 GPU 컴퓨팅 Edge AI 플랫폼

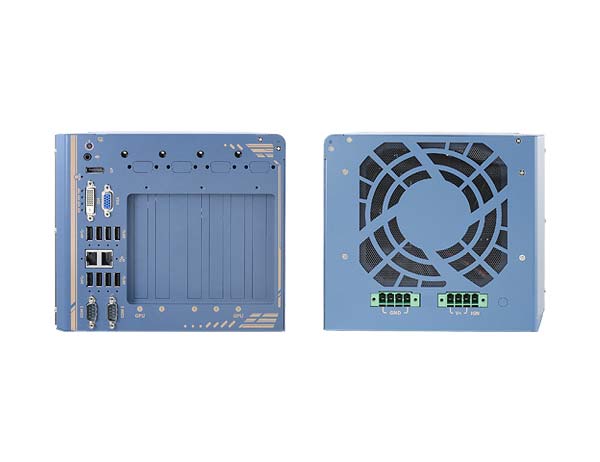

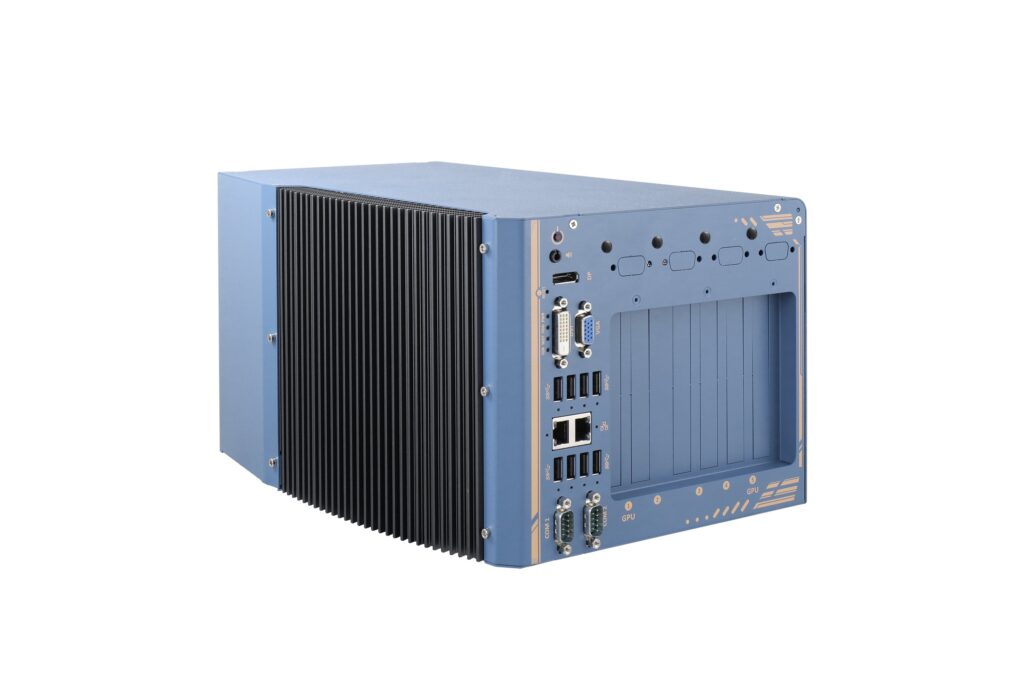

Nuvo-8208GC Fanless 산업용 GPU PC

Supports up to dual NVIDIA RTX 30 series graphics cards
Supports Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5 LGA1151 CPU
Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
Two x8, one x4, Gen3 PCIe slots for add-on cards
Two hot-swappable 2.5" SATA HDD/ SSD with RAID 0/ 1 support
8~ 35V wide-range DC input with built-in ignition power control
Patented thermal design for -25°C to 60°C rugged operation* (* R.O.C Patent No. M534371)
Patented damping brackets* to withstand 3 Grms vibration (* R.O.C Patent No. M491752)

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-8208GC 모델은 산업용 Fanelss GPU가 탑재 가능한 산업용 GPU PC이며 산업용 Fanless PC Nuvo-8208GC는 산업용 PC 디자인 및 차량 내 기능을 갖춘 세계 최초의 듀얼 GPU Edge AI 플랫폼입니다. 산업용 PC에 최적화된 2 개의 250W NVIDIA® 그래픽 카드를 지원하도록 특별히 설계된이 제품은 자율 주행, 시각 검사 및 감시 / 보안과 같은 새로운 GPU 가속 Edge AI Computing을 위해 FP32에서 최대 28 TFLOPS의 놀라운 GPU 전력을 제공합니다.

산업용 Fanless PC Nuvo-8208GC Edge AI Computing 플랫폼은 워크 스테이션 급 Intel® C246 칩셋과 결합 된 Intel® Xeon® E 또는 9th/ 8th-Gen Core™ 8-core/ 16-thread CPU와 최대 128GB ECC 또는 비 ECC DDR4를 지원합니다. 이 시스템은 HDD / SSD를 쉽게 교체 할 수 있도록 핫스왑 가능한 2.5 “트레이 2 개와 디스크 성능을위한 기존 SSD보다 월등한 속도를 보장하는 M.2 2280 NVMe 소켓을 포함하고 있으며 전면 액세스 가능한 GbE 및 USB 3.1 Gen1 / Gen2 포트에는 케이블 고정을위한 나사 고정 장치가 있습니다. 산업용 Fanless PC Nuvo-8208GC에는 GPU 설치용 듀얼 x16 PCIe 슬롯 외에도 데이터 수집, 분석 및 통신과 같은 기능 세트를 확장하기위한 확장 카드 용 x8 PCIe 슬롯 2 개와 x4 PCIe 슬롯 1 개가 있습니다.

산업용 Fanless PC Nuvo-8208GC에는 GPU 설치용 듀얼 x16 PCIe 슬롯 외에도 데이터 수집, 분석 및 통신과 같은 기능 세트를 확장하기위한 확장 카드 용 x8 PCIe 슬롯 2 개와 x4 PCIe 슬롯 1 개가 있습니다. 내장된 점화 컨트롤과 함께 차량에 배치하고 자동차의 동력 시스템을 통해 직접 전원을 공급하는 것이 가능합니다. Nuvo-8208GC는 기계식으로 특허 기술인 방열 설계,댐핑 브래킷 및 특허 출원중인 GPU 프레스 바를 통합하여 다양한 조건에서 견고하고 견고한 제품을 제공합니다.

산업용 Fanless PC Nuvo-8208GC는 산업용 등급의 전력, 열 및 기계 설계를 통해 실험실에서 신뢰성이 중요시되는 분야의 어플리케이션에 이르기까지 다목적 Edge AI 추론 애플리케이션을 구현합니다.

자율주행 산업용 PC에 특화된 모델로, 여러 대기업과 대학교에서 실제로 자율주행 차량에 탑재되어 운행하고 있습니다. 또한 RTX3070, Tesla V100 GPU, Tesla P4, Tesla T4 가 탑재 가능하여 AI 대량의 이미지 프로세싱이 가능하여 AI 프로젝트로 연구 개발되는 모델입니다.

Nuvo-8208GC is the world’s first dual GPU edge ai platform with industrial-grade design and in-vehicle features. Designed specifically to support two highend 250W NVIDIA® graphics cards, it offers tremendous GPU power up to 28 TFLOPS in FP32 for emerging GPU-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/ security.

Nuvo-8208GC edge AI computing platform is powered by Intel® Xeon® E or 8th-Gen Core™ 6-core/ 12-thread CPUs coupled with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory. The system incorporates two hot-swappable 2.5″ trays for easy HDD/ SSD replacement and an M.2 2280 NVMe socket for the ultimate disk performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for securing cable connections. In addition to the dual x16 PCIe slots for GPU installation, Nuvo-8208GC has two other x8 PCIe slots and one x4 PCIe slot for expansion cards to extend function sets like data collection, analytics and communication.

Nuvo-8208GC has a brand new power delivery design to accept 8~ 48V wide-range DC input and to handle heavy power requirements from dual 250W GPUs. Along with built-in ignition control, it’s feasible to deploy it on a vehicle and directly power it via the car’s power system. Mechanical wise, Nuvo-8208GC incorporates Neousys’ patented heat dissipation design*, damping brackets* and patent-pending GPU press bar, making it steady and rock-solid in various conditions.

The Nuvo-8208GC is Neousys’ response to the never-ending demand of TFLOPS in industrial GPU platforms. With industrial-grade power, thermal and mechanical design, it pushes versatile edge AI inference applications from laboratories to field applications, where reliability matters.

Nuvo-8208GC 제작 후기(클릭)

#Nuvo-8208GC #산업용PC #Fanless PC #M.2 2280 NVMe #듀얼GPU #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supporting Intel® Xeon® E and 8th/ 9th-Gen CPU (LGA1151 socket) – Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T) – i7-8700, i7-8700T, i7-9700E, i7-9700TE – i5-8500, i5-8500T, i5-9500E, i5-9500TE – i3-8100, i3-8100T, i3-9100E, i3-9100TE
Memory	Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
Graphics	Independent GPU via x16 PEG port, or integrated Intel® UHD Graphics 630
Chipset	Intel® C246 platform controller hub
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	1x Gigabit Ethernet port by Intel® I219-LM 1x Gigabit Ethernet port by Intel® I210-IT
Native Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
USB	4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports 1x USB 2.0 ports (internal for dongle use)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Expansion Bus/ Internal I/O Interface
PCI Express	2x PCIe x16 slot@Gen3, 8-lanes 2x PCIe x8 slots@Gen3, 4-lanes 1x PCIe x4 slot@Gen3, 1-lane
M.2	1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module
mini-PCIe	2x full-size mini PCI Express socket

Storage interface
SATA	2x hot-swappable HDD trays for 2.5” HDD/ SSD installation
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
mSATA	2x full-size mSATA port (mux with mini-PCIe)

Power Supply
DC Input	2x 4-pin pluggable terminal block for 8V to 35V DC input and 1x 3-pin ignition control^[1]

Mechanical
Dimension	235 mm (W) x 360 mm (D) x 185.6 mm (H)
Weight	8.6 Kg
Mounting	Wall-mounting with damping brackets

Environmental
Operating temperature	with 35W CPU and dual NVIDIA® 250W GPU -25°C ~ 60°C ** with >= 65W CPU and dual NVIDIA® 250W GPU -25°C ~ 60°C (configured as 35W TDP mode) -25°C ~ 50°C / *** (configured as 65W TDP mode)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4; and 3 Grms, 5-500 Hz, 3 Axes
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/ FCC Class A, according to EN 55024 & EN 55032

[1] System load under 100W, the required DC input range is 8V to 35V
System load between 100W to 480W (single GPU), the required DC input range is 18V to 35V
System load between 480W 1000W (dual GPUs), the required DC input is 24V to 35V
[2] For i7-9700E and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Expansion PCIe Cards:

Ordering Information

Nuvo-8208GC

Industrial-grade GPU computing platform supporting dual 250W NVIDIA® graphics cards, Intel® Xeon® E or 8th-Gen Core™ processor with 8~48V DC input and ignition control

Optional Accessories

PA-480W-DIN

480W AC-DC power Adapter(SDR-480-24) DIN-rail mount, 24V 20A, 90~264VAC/127~370VDC, Terminal Block, -20~+70°C, Meanwell SDR-480-24
