듀얼 PCIe 슬롯을 갖춘 NVIDIA® L4 GPU 및 Intel® 14세대/13세대/12세대 Core™ 프로세서를 지원하는 견고한 Edge AI 추론 산업용 컴퓨터

Nuvo-9166GC Series NVIDIA L4 GPU 지원 12/13/14세대

Supports NVIDIA® L4 GPU and one additional PCIe card
Supports Intel® 14th/13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU
Dedicated heat dissipation for -25°C to 60°C wide-temperature operation
5x 2.5GbE and 1x GbE with optional PoE+ (ports 3~6)
1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 type-A ports
M.2 2280 M key socket (Gen4x4) supporting NVMe SSD
Accommodates two 2.5″ SATA HDD/ SSD with RAID 0/ 1 support
MezIO™ interface for add-on expansion

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-9166GC는 Intel® 14/13/12세대 플랫폼과 NVIDIA® L4를 활용하여 뛰어난 CPU 및 GPU 성능을 제공하는 견고하고 넓은 온도 범위의 Edge AI 추론 컴퓨터입니다. 산업용 Fanless PC Nuvo-9166GC는 고성능 밀도와 유연한 카메라 확장 덕분에 AI 검사, 로봇 안내 및 자율 시스템과 같은 실시간 응답이 필요한 멀티 카메라 애플리케이션에 이상적입니다.

최대 24코어/32스레드의 Intel® Core™ CPU를 지원하는 산업용 Fanless PC Nuvo-9166GC는 11/10세대 플랫폼에 비해 최대 2배의 성능을 제공합니다. 이 시스템은 또한 에너지 효율적인 Edge AI 가속 애플리케이션을 위해 NVIDIA® Ada Lovelace 아키텍처를 기반으로 하는 데이터 센터급 GPU인 NVIDIA® L4를 지원하며, FP32에서 최대 30.3 TFLOPS 또는 INT8에서 485 TOPS를 제공하여 산업용 Edge AI 컴퓨팅에 대한 새로운 벤치마크를 설정합니다.

산업용 Fanless PC Nuvo-9166GC는 -25°C ~ 60°C에서 안정적인 시스템 작동을 보장하는 입증된 열 설계를 갖추고 있습니다. CPU 및 DDR5 메모리 모듈을 위한 패시브 냉각 설계가 특징입니다. 또한 최적의 성능을 보장하는 NVIDIA® L4의 패시브 히트 싱크를 통해 냉풍 흐름을 지속적으로 안내하여 최적의 성능을 보장하는 분리형 특허 카세트 모듈이 있습니다. 카메라 연결 측면에서 산업용 Fanless PC Nuvo-9166GC에는 6개의 GbE 포트와 6개의 USB3 포트가 있으며 MezIO® 확장 및 추가 PCIe 슬롯을 통해 산업용 Fanless PC Nuvo-9166GC는 최대 14개의 산업용 GigE 카메라 또는 18개의 산업용 USB3 카메라를 지원할 수 있습니다. 다중 카메라의 모든 데이터를 저장하는 데 도움이 되는 M.2280 Gen4x4 슬롯은 NVMe SSD를 지원하여 최대 7000MB/s의 최고 읽기/쓰기 속도를 제공하고 2.5″ SATA HDD/SSD 슬롯 2개를 사용하여 스토리지 용량을 더욱 확장할 수 있습니다.

산업용 Fanless PC Nuvo-9166GC는 견고한 구조, 넓은 작동 온도, 서버급 AI 추론 성능, 강력한 하이브리드 CPU 및 카메라 확장 기능을 통합함으로써 다양한 AI 애플리케이션을 위한 완벽한 Edge AI 추론 컴퓨터입니다.

Nuvo-9166GC is a rugged, wide-temperature, Edge AI Inference Computer that delivers excellent CPU and GPU performance by leveraging Intel® 14th/13th/12th-Gen platform and NVIDIA® L4. Thanks to its high-performance density and flexible camera expansion, Nuvo-9166GC is ideal for multi-camera applications requiring real time responses, e.g., AI inspection, robotic guidance, and autonomous machines.

Supporting an Intel® Core™ CPU up to 24 cores/ 32 threads, Nuvo-9166GC provides up to nearly twice the performance when compared to 11th/ 10th Gen platforms. The system also supports NVIDIA® L4, a data center grade GPU powered by NVIDIA® Ada Lovelace architecture for energy-efficient AI acceleration applications, it offers up to 30.3 TFLOPS in FP32 or 485 TOPS in INT8 to set new benchmarks for industrial edge AI computing.

Nuvo-9166GC has a proven thermal design to guarantee reliable system operation from -25°C to 60°C. It features a passive-cooling design for the CPU and DDR5 memory module. There is also a segregated and patented Cassette module with an air tunnel to continuously guide cool airflow through the passive heat sink of NVIDIA® L4, guranteeing optimum performance. Camera connectivity wise, Nuvo-9166GC has six GbE ports and six USB3 ports, and with MezIO® expansion and an additional PCIe slot, Nuvo-9166GC can support up to fourteen industrial GigE cameras or eighteen industrial USB3 cameras. To help store all the data from the multiple cameras is an M.2 2280 Gen4x4 slot supporting an NVMe SSD to offer up to 7000 MB/s extreme read/write speeds and two 2.5″ SATA HDD/SSD slots to further expand storage capacity.

By integrating rugged construction, wide operating temperature, server grade AI inference performance, powerful hybrid CPU, and camera expansion capability, Nuvo-9166GC is the perfect Edge AI Inference Computer for versatile AI applications

Nuvo-9166GC 제작 블로그 링크입니다.(클릭)

#Nuvo-9166GC #산업용PC #Fanless PC #NVIDIA L4 #GPU #스마트 팩토리 #자율시스템 #Edge AI

Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2] – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TESupport Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® Q670E Platform Controller Hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
Memory	Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface

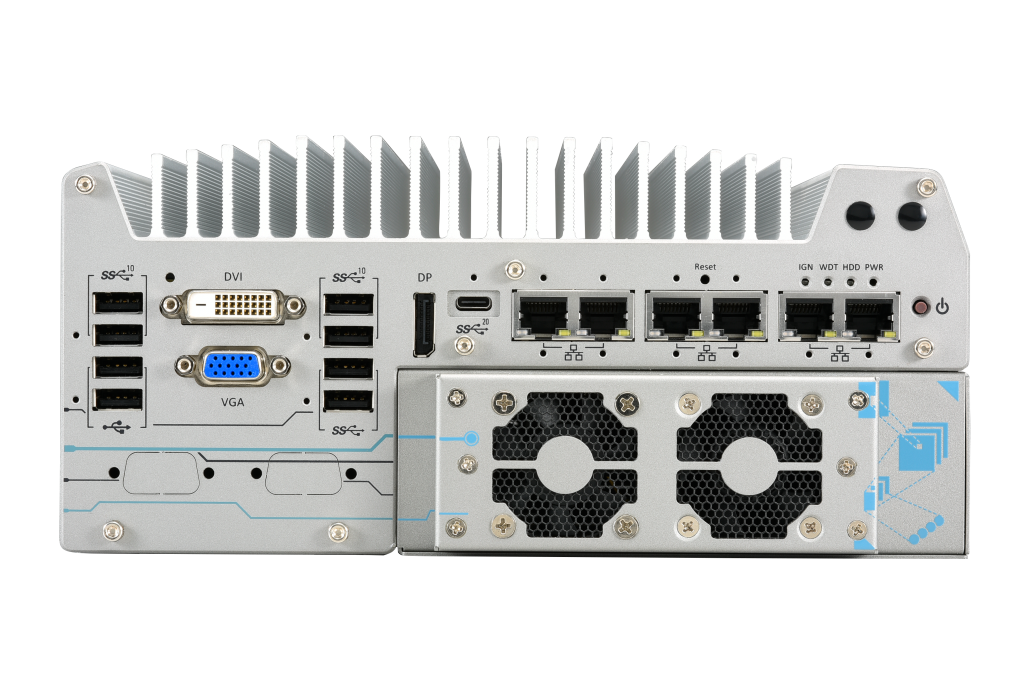

Ethernet Port	5x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock
POE+	Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget
USB 3.2	1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors
USB 2.0	2x USB 2.0 ports
Video Port (Integrated Graphics)	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution

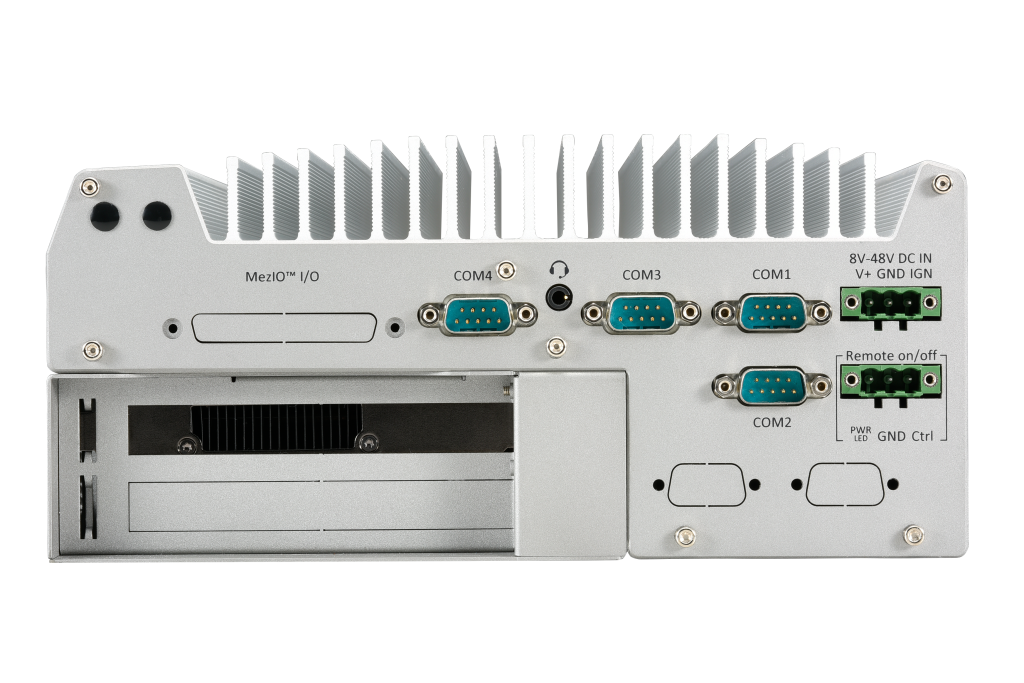

Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x RS-232 ports (COM3/COM4)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage interface
SATA HDD	2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

Expansion Bus
PCI Express	2x PCIe x16 slot@Gen3, 8-lanes PCIe signal in Cassette for installing NVIDIA® L4 GPU and one additional PCIe card
Mini PCI Express	1x full-size mini PCI Express socket
M.2	1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module
Expandable I/O	1x MezIO™ expansion port for Neousys MezIO™ modules

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8 to 48V DC input [1] 1x 3-pin pluggable terminal block for 24V DC input (UL series)
Remote Ctrl. & LED Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 110.5 mm (H)
Weight	4.0 kg
Mounting	Wall-mount (standard) or damping bracket (optional)

Environmental
Operating temperature	With 35W CPU and 130W GPU -25°C to 60°C [2][3] With 65W CPU and 130W GPU -25°C to 60°C[2][3] (configured as 35W TDP) -25°C to 50°C[2][3] (configured as 65W TDP)
Storage Temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4 (with optional damping bracket)
Shock	MIL-STD-810H, Method 516.8, Procedure I (with optional damping bracket)
EMC	CE/FCC Class A, according to EN 55032 & EN 55035
Safety	UL 62368-1, IEC 62368-1 (UL series only)

[1]A BIOS update may be required for the system to recognize 14th/13th-Gen processors. Please contact Neousys Technology for more information.
[2] The system is designed to tolerant 8V to 48V voltage fluctuation. The minimal nominal voltage is required with different system configuration. For system with CPU and L4 GPU, 12V or above nominal DC voltage is recommended.
For system with CPU, L4 GPU and additional PoE+ PD and/or high-watt PCIe card, 24V or above nominal DC voltage is recommended.
[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[4] For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.

LIST

Ordering Information

Nuvo-9166GC

Ruggedized Edge AI Inference Computer supporting NVIDIA® L4 GPU and Intel® 14th/13th/12th-Gen Core™ processor with dual PCIe slots

Nuvo-9166GC-UL

Ruggedized Edge AI Inference Computer supporting NVIDIA® L4 GPU and Intel® 14th/13th/12th-Gen Core™ processor with dual PCIe slots & UL certified

PoE+ Option

Option of 802.3at PoE + PSE for 2.5GbE port 3 ~ port 6

Supported MezIO™ Modules

Neousys MezIO® module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.

Accessories

Dmpbr-Nuvo9160

Neousys’ patented damping brackets assembly for Nuvo-9160GC and Nuvo-9166GC

PA-280W-ET2

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.

PA-600W-ENC

600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.

MezIO® Modules MezIO®-C180

MezIO® module with 4x RS-232/ 422/ 485 ports and 4x RS-232 ports

MezIO®-C181

MezIO® module with 4x RS-232/ 422/ 485 ports and 4x RS-422/ 485 ports

MezIO®-D220

MezIO® module with 8-CH isolated digital input and 8-CH isolated digital output

MezIO®-D230

MezIO® module with 16-CH isolated digital input and 16-CH isolated digital output

MezIO®-V20-EP

MezIO® module with ignition power control function for in-vehicle application

MezIO®-U4

MezIO® module with 4x USB 3.1 ports

MezIO®-G4

MezIO® module with 4x GigE ports

MezIO®-G4P

MezIO® module with 4x IEEE 802.3at PoE+ ports
