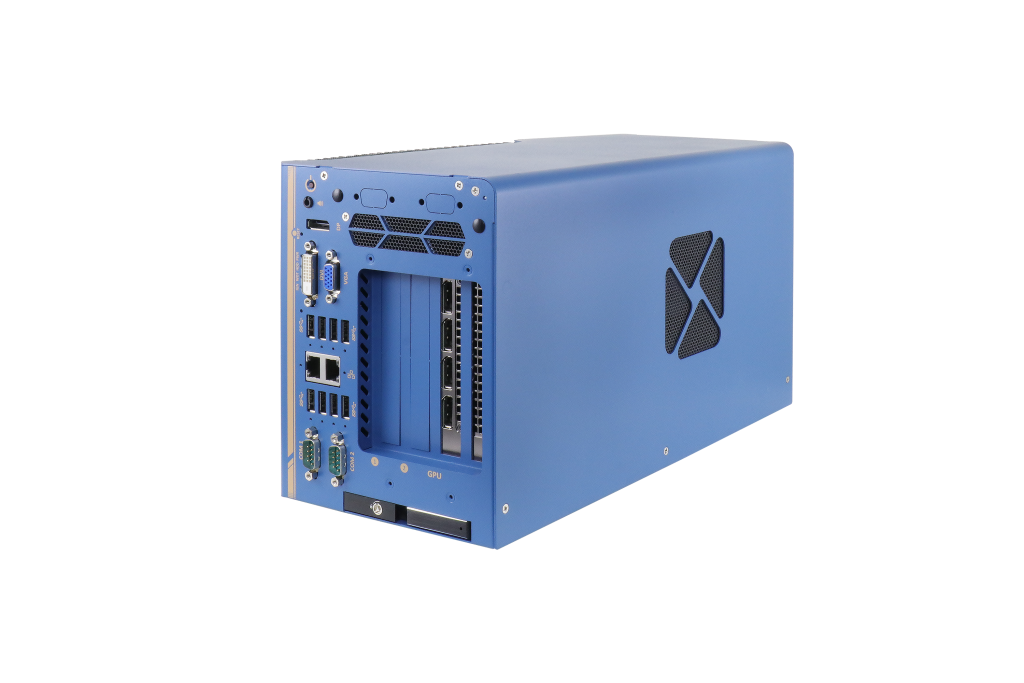

Nuvo-8108GC-QD NVIDIA® RTX A6000/A4500 GPU, Intel® Xeon® E 및 9세대/8세대 Core™ 프로세서를 지원하는 Edge AI Fanless PC

Nuvo-8108GC-QD AI GPU RTX A6000

Supports NVIDIA® RTX A6000/ A4500 GPU cards
Supports Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5 LGA1151 CPU
Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
One x16 (8-lanes), one x8 (4-lanes), Gen3 PCIe slots for add-on cards
Dedicated GPU card bracket
8~48V wide-range DC input with built-in ignition power control
Patented thermal design for -25°C to 60°C rugged operation*
Patented damping brackets* to withstand 3 Grms vibration

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-8108GC-QD는 NVIDIA® RTX A6000과 RTX A4500 Ampere GPU 카드 전용으로 설계된 러기드 Edge AI 플랫폼입니다. 이 GPU는 강력한 컴퓨팅 파워와 긴 제품 공급수명을 바탕으로 신뢰성과 가용성 측면에서 자율주행, 비전 검사, 지능형 영상 분석(IVA) 등 GPU 가속 Edge AI 애플리케이션을 한 차원 높은 수준으로 끌어올립니다.

Intel® Xeon® E 또는 9세대/8세대 Core™(최대 8코어/16스레드) CPU와 워크스테이션 등급의 Intel® C246 칩셋을 사용하여 최대128GB ECC 또는 non ECC DDR4 메모리를 지원하는 만큼, 강력한 AI 엣지 컴퓨팅 플랫폼을 구축하는 데 있어 견고한 기초 역할을 합니다. 동시에 고온 환경에서도 GPU 성능을 최적화하기 위하여 뛰어난 써멀 설계를 적용하였습니다. 또한, 산업용 Fanless PC Nuvo-8108GC-QD에는 RTX A6000/A4500 전용 GPU 브라켓이 있어 GPU 카드를 PCIe 슬롯에 안전하게 고정해 줍니다. 특허받은 진동 흡수 댐핑 브라켓으로 강도 높은 충격 및 진동 조건에서도 확고하고 안정적인 작동을 보장합니다.

RTX A6000/A4500가 Neousys의 GPU 컴퓨터 포트폴리오에 추가되면서 시스템으로서의 긴 제품 공급수명과 최대 38.7 TFLOPS의 컴퓨팅 파워를 갖춘 엣지 AI 플랫폼을 구현합니다. 입증된 파워 설계와 확실한 써멀 성능, 탁월한 기계적 내진동성을 모두 갖춘 산업용 Fanless PC Nuvo-8108GC-QD는 Edge AI 컴퓨팅에 전례 없는 긴 제품 공급수명과 컴퓨팅 파워, 유연성과 신뢰성을 더해 줍니다.

Nuvo-8108GC-QD, the latest member of the well-received Nuvo-8108GC series, is a rugged edge AI platform specially designed for NVIDIA® RTX A6000 and RTX A4500 Ampere GPU cards. The GPUs offer tremendous computing power and product longevity, to take GPU-accelerated edge AI applications such as autonomous driving, vision inspection and intelligent video analytics to the next level of reliability and availability.

Powered by an Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPU with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory, it has a strong foundation for building a powerful AI edge computing platform. It has a refined thermal dissipation design to optimize GPU performance in high-temperature environments. Additionally, Nuvo-8108GC-QD comes with a dedicated mounting bracket for RTX A6000/ A4500 to keep the GPU card firmly secured in the PCIe slot. Along with Neousys’ patented damping brackets*, it ensures rock-solid operation in intensive shock and vibration conditions.

The addition of RTX A6000/ A4500 to Neousys’ GPU computer portfolio realizes an edge AI platform with system-level longevity and up to 28 TFLOPS computing power. Combining proven power design, guaranteed thermal performance, and superior mechanical ruggedness, Nuvo-8108GC-QD brings unprecedented longevity, computing power, flexibility and reliability to edge AI computing.

#Nuvo-8108GC-QD #산업용PC #Fanless PC #RTX A6000 #GPU #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) – Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T) – i7-9700E, i7-9700TE, i7-8700, i7-8700T – i5-9500E, i5-9500TE, i5-8500, i5-8500T – i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset	Intel® C246 Platform Controller Hub
Graphics	Independent NVIDIA® RTX A6000/ A4500 GPU via x16 PEG port,or integrated Intel® UHD graphics 630
Memory	Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

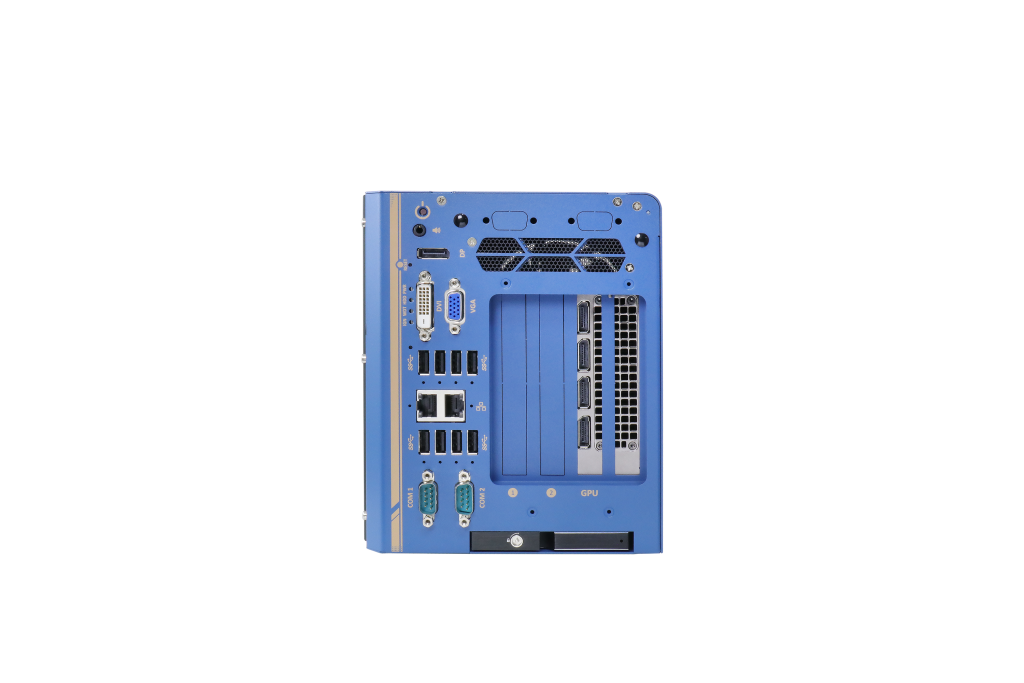

I/O Interface
Ethernet port	1x Gigabit Ethernet port by Intel® I219-LM 1x Gigabit Ethernet port by Intel® I210-IT
Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/ 422/ 485 ports(COM1/ COM2)
USB	4x USB 3.2 Gen2 (10 Gbps) ports 4x USB 3.2 Gen1 (5 Gbps) ports 1x USB 2.0 ports (internal for dongle use)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA	1x hot-swappable HDD tray for 2.5″ HDD/ SSD installation 1x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
mSATA	2x full-size mSATA port (mux with mini-PCIe)

Expansion Bus
PCI Express	2x PCIe x16 slot@Gen3, 8-lanes 2x PCIe x8 slots@Gen3, 4-lanes
M.2	1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module
mini-PCIe	2x full-size mini PCI Express socket

Power Supply
DC Input	2x 4-pin pluggable terminal block for 8~48V DC input with ignition control^[1]

Mechanical
Dimension	170.2 mm (W) x 360 mm (D) x 201.8 mm (H)
Weight	5.8 Kg
Mounting	Neousys’ patented damping brackets

Environmental
Operating Temperature	with 35W CPU and one NVIDIA® RTX A6000/ A4500 GPU -25°C ~ 60°C * with >= 65W CPU and one NVIDIA® RTX A6000/ A4500 GPU -25°C ~ 60°C / * (configured as 35W TDP mode) -25°C ~ 50°C / *** (configured as 65W TDP mode)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/ FCC Class A, according to EN 55024 & EN 55032

[1] System load under 100W, the required DC input range is 8V to 48V
System load between 100W to 480W (single GPU), the required DC input range is 18V to 48V
[2] For i7-9700/ 8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading is applied. Users can configure CPU power in the BIOS to obtain higher operating temperatures.
[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required

LIST

Expansion PCIe Cards:

Ordering Information

Nuvo-8108GC-QD

Industrial-grade edge AI platform supporting NVIDIA® RTX A6000/ A4500 GPU, Intel® Xeon® E and 9th/ 8th-Gen Core™ processor with 8~48V wide-range DC input and built-in ignition control

Optional Accessories

PA-480W-DIN

480W AC-DC power Adapter(SDR-480-24) DIN-rail mount, 24V 20A, 90~264VAC/127~370VDC, Terminal Block, -20~+70°C, Meanwell SDR-480-24

PA-600W-ENC

600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.
