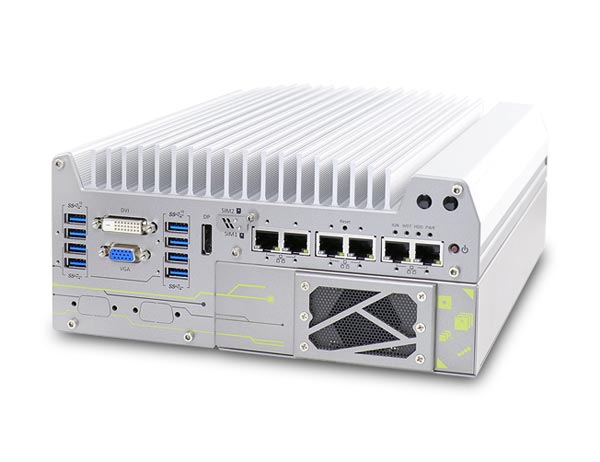

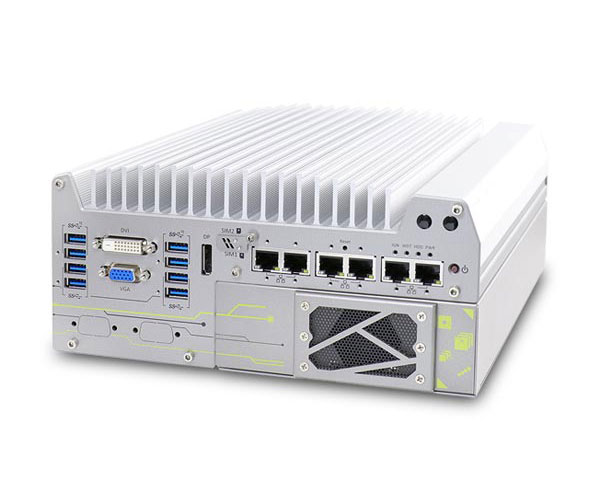

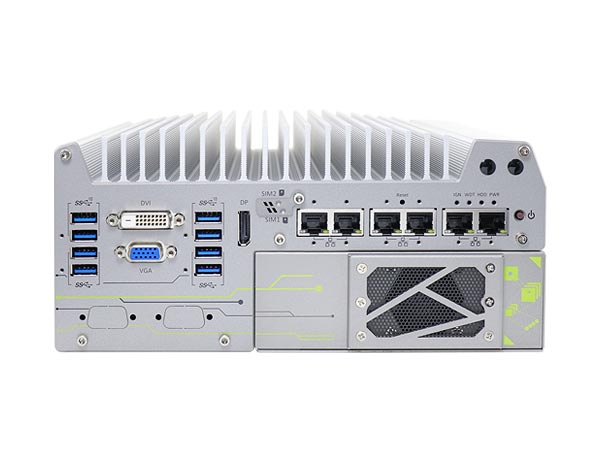

Nuvo-7164GC NVIDIA L4/T4 지원 GPU PC

러기드 엣지 AI 인퍼런스 플랫폼, NVIDIA® L4/ T4/ A2 및 Intel® 8th-Gen Core™ 프로세서 지원

Nuvo-7164GC NVIDIA L4/T4 지원 GPU PC

  • Supports NVIDIA® Tesla P4/ T4 GPU
  • Dedicated heat dissipation for -25°C to 60°C wide-temperature range operation
  • Intel® 8th-Gen Core™ hexa-core 35W/ 65W LGA1151 CPU
  • 6x GigE ports, 802.3at PoE+ option available (ports 3~6)
  • M.2 2280 M key NVMe (Gen3 x4) socket for fast storage access
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • Accommodates two 2.5″ SATA HDD/SSD with RAID 0/1 support
  • MezIO™ interface for easy function expansion
Overview
Introduction

산업용 팬리스 컴퓨터 Nuvo-7164GC는 음성, 비디오, 이미지 및 추천 서비스와 같은 고급 추론 가속 어플리케이션을 위해 고안된 AI neural network 플랫폼입니다. FP32 및 Tesla T4 GPU에서 5.5 TFLOPS를 지원하는 NVIDIA® Tesla P4 GPU를 지원하며, 훈련 된 neural network 모델을 기반으로 실시간 추론을 위해 FP32에서 8.1 TFLOPS 및 INT8에서 130 TAPOPS를 제공합니다. 또한 인텔 ® 8 세대 커피 레이크 코어 ™ 6 코어 / 12 스레드 CPU 및 32GB DDR4-2666을 지원하므로 CPU, GPU 및 메모리 성능간에 큰 균형을 유지합니다.

산업용 팬리스 컴퓨터 Nuvo-7164GC는 NVIDIA® Tesla P4 / T4의 패시브 히트 싱크를 통해 흡입 공기를 흐르게하는 특허 카세트 및 공기 터널 설계 덕분에 GPU에서 발생하는 열을 효과적으로 분산시킬 수 있습니다. 이 유망한 디자인은 지속적인 100 % GPU 로딩과 함께 최대 60 ° C 주변 온도의 시스템 작동을 보장합니다.

산업용 팬리스 컴퓨터 Nuvo-7164GC는 최첨단 I / O 기술을 통합하여 전반적인 시스템 유연성, 기능 및 성능을 향상시킵니다. 이 제품은 2000MB / s 이상의 디스크 읽기 / 쓰기 속도와 HD 비디오 데이터 수집과 같은 빠른 데이터 전송을위한 USB 3.1 / GbE 포트를 지원하는 M.2 NVMe 인터페이스를 갖추고 있습니다. 빠른 CPU와 추론 가속기 GPU를 결합한 산업용 팬리스 컴퓨터 Nuvo-7164GC는 인공 지능 응용 프로그램을위한 이상적인 neural network 플랫폼입니다.

Nuvo-7164GC is a rugged edge AI inference platform designed for advanced inference acceleration applications such as voice, video, image and recommendation services. It supports NVIDIA® Tesla P4 GPU, featuring 5.5 TFLOPS in FP32 and Tesla T4 GPU, featuring 8.1 TFLOPS in FP32 and 130 TOPs in INT8 for real-time inference based on trained neural network model. In addition, it supports Intel® 8th-Gen Coffee Lake Core™ 6-core/ 12-thread CPU and 32 GB DDR4-2666, offering great balance between CPU, GPU and memory performance.

Thanks to Neousys’ patented Cassette and air tunnel design, which guides the intake air to flow through the passive heat sink of NVIDIA® Tesla P4/ T4, Nuvo-7164GC is capable of effectively dissipating the heat generated by the GPU. This promising design guarantees system operation of up to 60°C ambient temperature with sustained 100% GPU loading.

Nuvo-7164GC also incorporates cutting-edge I/O technologies to boost overall system flexibility, functionality and performance. It has an M.2 NVMe interface that supports disk read/ write speeds over 2000 MB/s and USB 3.1/ GbE ports for fast data transfer, such as acquiring HD video data. With the combination of a fast CPU and inference accelerator GPU, Nuvo-7164GC is the ideal inference platform for artificial intelligence applications.

Specifications
System Core
Processor Supporting Intel® 8th-Gen Coffee Lake CPU (LGA1151 socket, 65W/ 35W TDP)
– Intel® Core™ i7-8700/ i7-8700T
– Intel® Core™ i5-8500/ i5-8500T
– Intel® Core™ i3-8100/ i3-8100T
ChipSet Intel® Q370 platform controller hub
Graphics Integrated Intel® UHD graphics 630
Memory Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT Supports AMT 12.0
TPM Supports TPM 2.0



I/O Interface
Ethernet Port 6x Gigabit Ethernet ports by I219 and 5x I210
POE+ Optional IEEE 802.3at PoE+ PSE for port 3 ~ port 6
100 W total power budget
USB 4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio 1x 3.5 mm jack for mic-in and speaker-out



Internal Expansion Bus
PCI/PCI Express 1x PCIe x16 slot@Gen3, 16-lanes PCIe signal in Cassette for installing NVIDIA® Tesla P4/T4 GPU
Mini PCI-E 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
M.2 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Expandable I/O 1x MezIO™ expansion port for Neousys MezIO™ modules



Storage interface
SATA HDD 2x internal SATA ports for 2.5″ HDD/ SSD installation, supporting RAID 0/1
M.2 NVMe 1x M.2 2280 M key NVMe socket (PCIe Gen3/ x4) for NVMe SSD installation
mSATA 1x full-size mSATA port (mux with mini-PCIe)



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & LED Output 1x 3-pin pluggable terminal block for remote control and PWR LED output



Mechanical
Dimension 240mm (W) x 225 mm (D) x 111 mm (H)
Weight 4.5 Kg (including CPU, GPU, memory and HDD)
Mounting Wall-mount mounting bracket or optional DIN-Rail mounting



Environmental
Operating temperature with 35W CPU and NVIDIA® Tesla P4/ T4
-25°C ~ 60°C **With 65W CPU and NVIDIA® Tesla P4/ T4
-25°C ~ 60°C */** (configured as 35W TDP)
-25°C ~ 50°C */** (configured as 65W TDP)
Storage temperature -40°C ~ 85°C
Humidity 10% ~ 90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC CE/FCC Class A, according to EN 55032 & EN 55024



* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature range HDD or Solid State Disk (SSD) is required.



Ordering Information
PA-280W-OW

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; Cord end terminals for terminal block, operating temperature : -30°C to 60°C.

Damping bracket

Neousys’ patented damping bracket assembly for Nuvo-7160GC/ Nuvo-7164GC

Supported MezIO™ Modules



Neousys MezIO™ module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.



Accessories



PA-280W-OW

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; Cord end terminals for terminal block, operating temperature : -30°C to 60°C.



Damping bracket

Neousys’ patented damping bracket assembly for Nuvo-7160GC/ Nuvo-7164GC
