Nuvo-7166GC NVIDIA L4/T4 지원 GPU PC

러기드 Edge AI 인퍼런스 플랫폼, NVIDIA® L4/ T4/ A2 및 Intel® 8th/ 9th-Gen Core™ 프로세서 지원, 듀얼 PCIe

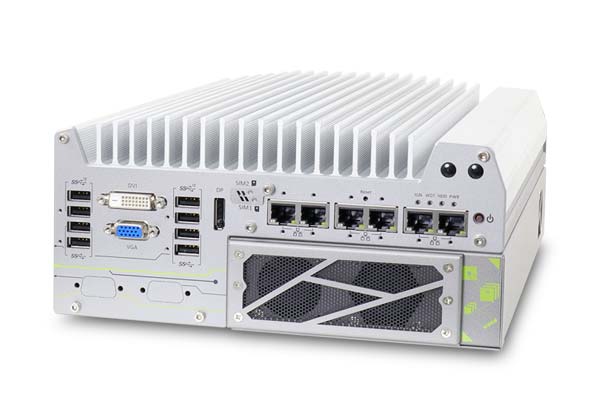

Nuvo-7166GC NVIDIA L4/T4 지원 GPU PC

  • Supports NVIDIA® L4/ T4/ A2 GPU
  • One additional PCIe x16 slot for add-on card
  • Dedicated heat dissipation for -25°C to 60°C wide-temperature operation
  • Intel® 8th/ 9th-Gen Core™ 35W/ 65W LGA1151 CPU
  • 6x GigE ports, 802.3at PoE+ option available (ports 3~6)
  • M.2 2280 M key NVMe (Gen3 x4) socket for fast storage access
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • Accommodates two 2.5″ SATA HDD/SSD with RAID 0/1 support
  • MezIO™ interface for easy function expansion
Overview
Introduction

Neousys의 산업용 Fanless PC Nuvo-7166GC는 신경망 모델에 기반한 실시간 추론을 위해 FP32에 8.1 TFLOPS 및 INT8에 130 TOROPS를 제공하는 NVIDIA® Tesla T4 뉴럴 네트워크 가속기를 지원하는 2 개의 PCIe 슬롯을 특징으로하는 Edge AI 뉴럴 네트워크 플랫폼입니다. 인텔 ® 8th / 9th 코어 ™ 6 / 8 코어 CPU 및 64GB DDR4-2666에 기반한이 제품은 CPU, GPU 및 메모리 성능간에 최적의 균형을 제공합니다.

산업용 Fanless PC Nuvo-7166GC는 흡기가 NVIDIA® Tesla T4의 패시브 히트 싱크를 통과하도록 안내하는 공기 터널 디자인을 갖춘 특허 카세트 모듈을 사용합니다.두 번째 성능 PCIe 카드를 설치해야하는 경우 카세트 모듈에는 공기 흐름을 전달하기위한 두 번째 팬이 장착되어 있습니다. 이 냉각 설계는 산업용 PC에  걸맞게 100 % CPU 및 GPU 로딩을 지속하면서 최대 60 ° C의 작동 온도를 보장합니다.

산업용 Fanless PC는 최첨단 I / O 기술을 통합하여 전반적인 시스템 유연성, 기능 및 성능을 향상시킵니다. 초고속 디스크 액세스를 지원하는 M.2 NVMe 인터페이스와 데이터 입력을위한 USB 3.1 Gen2 / GbE / PoE 포트가 특징입니다. 충분하지 않다면 카세트 모듈은 고성능 PCIe 카드 또는 다양한 센서 / 이미지 획득 카드를 설치하기위한 추가 Gen3, x8 링크 PCIe 슬롯을 제공합니다.

멋진 추론 성능, 강력한 CPU 및 확장 기능을 결합한 산업용 Fanless PC Nuvo-7166GC는 다목적 Edge AI 애플리케이션을위한 완벽한 견고한 플랫폼입니다.

Nuvo-7166GC is Neousys’ruggedized AI inference platform that features two PCIe slots that supports an NVIDIA® Tesla T4 inference accelerator to provide 8.1 TFLOPS in FP32 and 130 TOPs in INT8 for real-time inference based on trained neural network model. Powered by an Intel® 8th/ 9th-Gen Core™ 6/ 8-core CPU and 64 GB DDR4-2666, it offers optimal balance between CPU, GPU and memory performance.

Nuvo-7166GC utilizes Neousys’ patented Cassette module that has an air tunnel design to guide intake air to flow through the passive heat sink of NVIDIA® Tesla T4. Should you need to install a second performance PCIe card, the Cassette module is also equipped with a second fan to deliver air flow. This cooling design guarantees operating temperatures of up to 60°C with sustained 100% CPU and GPU loading.

The system incorporates cutting-edge I/O technologies to boost overall system flexibility, functionality and performance. It features an M.2 NVMe interface that supports ultra-fast disk access and USB 3.1 Gen2/ GbE/ PoE ports for data input. If that’s not enough, the Cassette module offers an additional Gen3, x8 link PCIe slot for installing a high performance PCIe card or a variety of sensor/ image acquisition cards.

Combining stunning inference performance, powerful CPU and expansion capability, Nuvo-7166GC is a perfect ruggedized platform for versatile edge AI applications.

 #Nuvo-7166GC #산업용PC #Fanless PC #GPU #NVIDIA L4 #스마트 팩토리 #Edge AI

Specifications
System Core
Processor Supporting Intel® 9th/ 8th Gen Core™ CPU (LGA1151 socket, 65W/35W TDP)
– Intel® Core™ i7-9700E/ i7-9700TE/ i7-8700/ i7-8700T
– Intel® Core™ i5-9500E/ i5-9500TE/ i5-8500/ i5-8500T
– Intel® Core™ i3-9100E/ i3-9100TE/ i3-8100/ i3-8100T
Chipset Intel® Q370 Platform Controller Hub
Graphics Integrated Intel® UHD Graphics 630
Memory Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT Supports AMT 12.0
TPM Supports TPM 2.0



I/O Interface
Ethernet port 6x Gigabit Ethernet ports by 1x I219 and 5x I210
POE+ Optional IEEE 802.3at PoE+ PSE for port 3 ~ port 6 100 W total power budget
USB 4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio 1x 3.5 mm jack for mic-in and speaker-out



Internal Expansion Bus
PCI/PCI Express 2x PCIe x16 slot@Gen3, 8-lanes PCIe signal in Cassette for installing NVIDIA® L4/ T4/ A2 GPU and one additional PCIe card
Mini PCI-E 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
M.2 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Expandable I/O 1x MezIO™ expansion port for Neousys MezIO™ modules
Storage interface
SATA HDD 2x internal SATA port for 2.5″ HDD/SSD installation, supporting RAID 0/ 1
M.2 1x M.2 2280 M key NVMe socket (PCIe Gen3/ x4) for NVMe SSD installation
mSATA 1x full-size mSATA port (mux with mini-PCIe)
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8V to 35V DC input
Remote Ctrl. & LED Output 1x 3-pin pluggable terminal block for remote control and PWR LED output



Mechanical
Dimension 240mm (W) x 225 mm (D) x 110.5 mm (H)
Weight 4.5 Kg (including CPU, GPU, memory and HDD)
Mounting Wall-mount mounting bracket or optional DIN-Rail mounting
Environmental
Operating Temperature with 35W CPU
-25°C ~ 60°C **

With 65W CPU
-25°C ~ 60°C */** (configured as 35W TDP)
-25°C ~ 50°C */** (configured as 65W TDP)
In compliance with NVIDIA® L4/ T4/ A2 warranty policy, an operating temperature of 0°C~50°C is required for systems with L4/ T4/ A2 installed
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC CE/FCC Class A, according to EN 55032 & EN 55024
* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature range HDD or Solid State Disk (SSD) is required.
LIST
Expansion PCIe Cards:
Ordering Information
Nuvo-7166GC

Intel® 9th/ 8th-Gen Core™ AI Inference Platform with 6x GbE and MezIO™, supporting NVIDIA® L4/ T4/ A2 GPU and one additional PCIe x16 slot

Accessories
PA-280W-OW

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; Cord end terminals for terminal block, operating temperature : -30°C to 60°C.

Damping bracket

Neousys’ patented damping bracket assembly for Nuvo-7160GC/ Nuvo-7166GC
