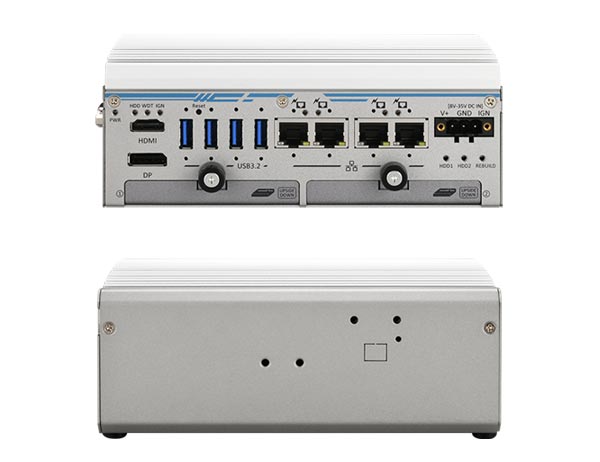

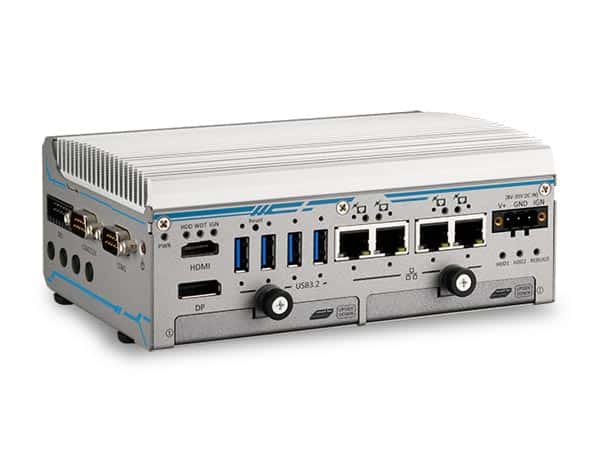

POC-764VR Intel® Core™ i3-N305 초소형 감시 산업용 컴퓨터 (New!)

4개의 PoE+와 2개의 2.5인치 SSD(RAID 0/1 지원)를 지원하는 Intel® Core™ i3-N305 팬리스 감시 시스템

POC-764VR Intel® Core™ i3-N305 초소형 감시 산업용 컴퓨터 (New!)

  • Intel® Alder Lake CoreTM i3-N305 processor 15W with 8 E-Cores
  • Up to 16GB DDR5-4800 SODIMM
  • 4x GbE ports PoE+ and 1x 2.5GbE LAN Port
  • 4x USB 3.2 Gen2 ports with screw-lock
  • 1x M.2 2280 M key socket & 2x MiniPCIe socket with micro SIM card
  • 2x 2.5” SSD support RAID 0/1/JBOD
  • -10 °C to 70 °C temperature operation
  • 8-35V DC input with built-in ignition power control
Overview
Introduction



Neousys의 산업용 Fanless PC POC-764VR은 Neousys의 새로운 초소형 감시 컴퓨터 플랫폼입니다. POC-700 시리즈를 기반으로 구축된 이 플랫폼은 고급 RAID 스토리지와 향상된 네트워킹 기능을 제공하여 감시, 보안 및 스마트 시티 애플리케이션에 이상적입니다. 이 시스템은 중요한 환경에서 데이터 중복성, 안정성 및 원활한 연결을 보장합니다.



4개의 기가비트 PoE+ 포트와 점화 기능을 갖춘 산업용 Fanless PC POC-764VR은 모바일 및 고정 감시 애플리케이션 모두에 최대 4개의 IP 카메라를 연결할 수 있습니다. RJ45 잠금 장치는 동적 환경에서 안정적인 이더넷 연결을 보장합니다. 비디오 녹화의 경우 RAID 0/1 구성에서 듀얼 2.5″ HDD/SSD를 지원하는 내장 하드웨어 RAID 컨트롤러가 함께 제공되어 데이터 중복성을 향상시키거나 광범위한 저장 용량을 제공합니다. 또한 2.5GbE 포트는 백본 인프라와 유연한 데이터 교환을 제공하는 반면, 두 개의 미니 PCIe 소켓은 무선 WiFi, LTE/5G 또는 CAN 버스 장치를 지원합니다.



산업용 Fanless PC POC-764VR은 32EU UHD 그래픽이 탑재된 Intel® Alder Lake Core™ i3-N305 8코어/8스레드 프로세서로 구동되어 상당한 컴퓨팅 성능을 제공할 뿐만 아니라 Intel OpenVINO™를 통한 실시간 AI 추론도 가능합니다. 컴팩트한 크기, PoE+ 기능, RAID 스토리지 덕분에 산업용 팬리스 컴퓨터 POC-764VR은 감시, 공공 안전 모니터링, 자산 관리 애플리케이션에 이상적인 플랫폼입니다.



The POC-764VR is Neousys’ new ultra-compact surveillance computer platform. Built on the foundation of the POC-700 series, it offers advanced RAID storage and enhanced networking capabilities, making it ideal for surveillance, security, and smart city applications. The system ensures data redundancy, reliability, and seamless connectivity in critical environments.



Featuring four Gigabit PoE+ ports and an ignition function, the POC-764VR can connect up to four IP cameras for both mobile and stationary surveillance applications. Its RJ45 locking mechanism guarantees reliable Ethernet connectivity in dynamic environments. For video recording, it comes with a built-in hardware RAID controller that supports dual 2.5″ HDD/SSDs in RAID 0/1 configuration, enhancing data redundancy or providing extensive storage capacity. Additionally, a 2.5 GbE port offers flexible data exchange with backbone infrastructure, while two mini-PCIe sockets support wireless WiFi, LTE/5G, or CAN bus devices.



The POC-764VR is powered by an Intel® Alder Lake Core™ i3-N305 8-core/8-thread processor with 32EUs UHD Graphics, delivering not only significant computing performance but also enabling real-time AI inference through Intel OpenVINO™. Its compact size, PoE+ capabilities, and RAID storage make the POC-764VR an ideal platform for surveillance, public safety monitoring, and asset management applications.



#POC-764VR #산업용PC #Fanless PC #초소형컴퓨터플랫폼 #보안애플리케이션 #스마트 팩토리 #Edge AI

Specifications
System Core
Processor Intel® Alder Lake Core™ i3-N305 processor(8C/8T, 1.8/3.8 GHz, 15W TDP)
Chipset Integrated Intel® UHD Graphics with 32EUs
Memory Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket)
TPM Supports dTPM 2.0
I/O Interface
Ethernet 4x Gb Ethernet ports by Intel® I350-AM4 (port #1~4)
1x 2.5Gb Ethernet port by Intel® I226-IT (port #5)
POE+ IEEE 802.3at PoE+ on port #1~ 4
Native Video Port 1x DP++, Supporting 4096 x 2160 resolution
1x HDMI1.4b, Supporting 3840 x 2160 30Hz
Serial Port 1x Software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
USB 4x USB 3.2 Gen2 ports with screw-lock
Isolated DIO 4-CH isolated DI and 4-CH isolated DO
Storage Interface
M.2 1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal)
SATA HDD 2x internal SATA port for 2.5″ SSD installation, supporting hardware RAID 0/ 1/ JBOD
(with hot-swappable functionality in RAID1 mode only)
Expansion Bus
Mini PCI-E 2x full-size mini PCI Express socket with internal micro SIM socket
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8 to 35V DC input with built-in ignition power control
Mechanical
Dimension 175.8mm (W) x 115.5mm (D) x 67.9mm (H)
Weight 1.45 kg
Mounting DIN-rail mount (standard) or wall-mount (optional)
Environmental
Operating Temperature With FAN Kit
-10°C ~ 70°C [1]/[2]
Without FAN Kit
-10°C ~ 55°C [1]
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration MIL-STD-810H, Method 514.8, Category 4
Shock MIL-STD-810H, Method 516.8, Procedure I
EMC CE/FCC Class A, according to EN 55032 & EN 55035

[1] For sub-zero and over 55°C operating temperature, a wide temperature Solid State Disk (SSD) is required.

[2] The optional fan kit is recommended for operating at ambient temperatures higher than 55°C.

LIST
Ordering Information
POC-764VR

Intel® Core™ i3-N305 Fanless Surveillance System with 4x PoE+ and 2x 2.5” SSD Supporting RAID 0/1

Optional Accessories
PA-120W-OW

120W AC/DC power adapter with 20V, 6A DC output, cord end terminals for terminal block. Operating temperature : -30 to 70°C

PA-160W-OW

160W AC/DC power adapter 20V/ 8A; 18AWGx4C/ 120cm, cord end terminals for terminal block, operating temperature : -30°C to 70 °C

Wmkit-H-POC764VR

Wall mounting assembly for POC-764VR, horizontal type

Wmkit-V-POC500

Wall mounting assembly for POC-500, POC-700 series, vertical type

AccsyBx-FAN-POC-700 Fan assembly for POC-700 series, 80x80x15 mm
