NVIDIA® RTX 2000 Ada GPU와 Intel® Xeon® E 또는 9th/8th-Gen Core™ CPU를 지원하며 M12 커넥터를 채택한 광범위 작동 온도 팬리스 GPU Edge AI 컴퓨터

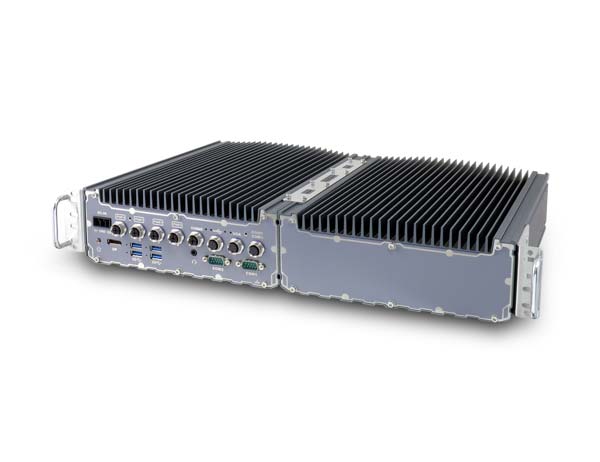

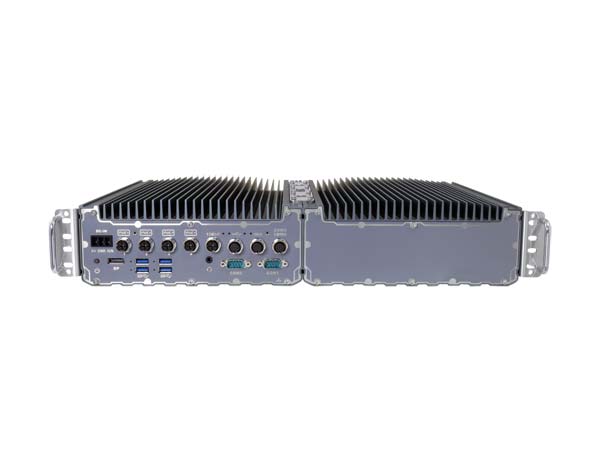

SEMIL-1300GC Series NVIDIA® RTX 2000 Ada을 탑재한 팬리스 GPU 컴퓨터

Fanless GPU computer with NVIDIA® RTX RTX 2000 Ada
Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patented 2U 19" chassis for rack or wall-mount[1]
Four 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
1x DisplayPort and 3x USB 3.1 Gen1 ports
8V to 48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 EMC compliant

Overview

Introduction

Neousys의 SEMIL-1300GC 시리즈는 까다로운 환경에서도 NVIDIA® RTX 2000 Ada을 지원하도록 개발된 세계 최초의 광범위 온도 팬리스 Edge AI 컴퓨터입니다. Intel® Xeon® E 또는 9th/8th-Gen Core™ CPU를 탑재한 시스템은 현대 Edge AI 애플리케이션을 위해 탁월한 CPU와 GPU 성능을 제공합니다.

산업용 Fanless PC SEMIL-1300GC는 -40°C ~ 70°C 환경에서의 팬리스 작동을 보증하는 Neousys의 특허 써멀 시스템 아키텍처*를 특징으로 하며 2U 19” 견고한 케이스의 랙 마운트 또는 월 마운트가 가능합니다.

산업용 Fanless PC SEMIL-1300GC 시리즈는 진보된 써멀 설계로 고온 환경에서도 GPU의 스로틀링 없는 작동을 보장합니다. RTX 2000 Ada GPU를 장착할 수 있는 편의성으로 사용자는 FP32에서 최대 12.0 TFLOPS, INT8에서 191.9 TOPS까지 GPU 성능을 확장할 수 있습니다. Gigabit PoE+, USB 2.0, VGA, COM 포트에 M12 커넥터를 적용하여 견고한 케이블 연결을 제공합니다. 그 외에도 DisplayPort, USB 3.1 Gen1, 옵션인 10G Ethernet 및 NVMe SSD용 M.2, SATA 포트 등의 스토리지 인터페이스가 포함된 고속 컴퓨터 I/O가 산업용 Fanless PC SEMIL-1300GC의 확장성과 활용도를 높여 줍니다.

풍부한 GPU 파워 기반의 딥러닝 시스템이 극도로 거친 환경에서 예상되는 엣지에서 실시간 Edge AI 인퍼런스 애플리케이션을 실현합니다. RTX 2000 Ada GPU, 광범위 온도 팬리스 디자인, 견고한 M12 커넥터를 결합한 산업용 Fanless PC SEMIL-1300GC 시리즈는 지금까지 도달하지 못했던 곳에 AI를 배치할 수 있는 전례 없는 가능성을 펼칩니다.

SEMIL-1300GC series is the world’s first wide-temperature fanless edge AI computer supporting NVIDIA® RTX 2000 Ada for demanding environments. Coupled with Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU, the system delivers excellent CPU and GPU performances for modern edge AI applications. SEMIL-1300GC series features Neousys’ patented thermal system architecture* to guarantee -40°C to 70°C fanless operation in a rack-mountable or wall-mountable 2U 19″enclosure.

SEMIL-1300GC series features an advanced passive cooling design to ensure the CPU/ GPU does not throttle when operating in high-temperature environments. Compatible with a RTX 2000 Ada GPU, users can utilize the scalable GPU performance that offers up to 12.0 TFLOPS in FP32 or 191.9 TOPS in INT8. The system leverages M12 connectors for Gigabit PoE+, USB 2.0, VGA and COM ports to offer rugged cable connectivity. Other high-speed computer I/Os include DisplayPort, USB 3.1 Gen1, optional 10G Ethernet and storage interfaces such as an M.2 for NVMe SSD and SATA ports, making SEMIL-1300GC expandable and versatile.

The GPU-powered deep learning systems actualized real-time AI inference applications at the edge by thriving in rough conditions. Combining a RTX 2000 Ada, wide-temperature fanless design and rugged M12 connectors, the SEMIL-1300GC series reveals unprecedented possibilities of deploying AI to places that have yet to be reached.

#SEMIL-1300GC #산업용PC #Fanless PC #RTX 2000 Ada #GPU #스마트 팩토리 #방수 #방진 #Edge AI

Specifications

System Core
Processor	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) – Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) – i7-9700E, i7-9700TE, i7-8700, i7-8700T – i5-9500E, i5-9500TE, i5-8500, i5-8500T – i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset	Intel® C246 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630
Acceleration GPU	NVIDIA® RTX 2000 Ada for AI inference
Memory	Up to 64 GB ECC/ non ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
PoE+	1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
10 GbE Port(Build Option)	Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)**
Native Video Port	1x VGA (M12 A-coded), supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Series Port	2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) 1x software-programmable RS-232/ 422/ 485 port (COM3, DB9) 1x RS-232 port (COM4, DB9)
USB	3x USB 3.1 Gen1 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD	2x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
mSATA	2x full-size mSATA port (mux with mini-PCIe)
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation

Expansion Bus
Mini PCI-E	2x full-size mini PCI Express sockets (mux with mSATA) 1x M.2 3042/ 3052 B key socket for selected M.2 4G/ 5G module 1x M.2 2242/ 2252 E key for selected WiFi module

Power Supply
DC Input	8V to 48V DC input
Ignition Control	Built-in ignition power control

Mechanical
Dimension	440mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket)
Weight	12Kg
Mounting	Rack-mounting and wall-mounting

Environmental
Operating Temperature	with 35W CPU -40°C ~ 70°C [3] with >= 65W CPU -40°C ~ 70°C [2]/[3] (configured as 35W TDP mode) -40°C ~ 50°C [2]/[3] (configured as 65W TDP mode)
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810G, Method 514.7, Category 4
Shock	MIL-STD-810G, Method 516.7, Procedure I
EMC	EN 50121 (EN 50155 EMC) EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035

** For optional 10GbE support, please contact Neousys Technology
*** For Xeon E 2176G/ 2278GE, i7-9700E, and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required temperature.

LIST

Ordering Information

SEMIL-1321GC-ADA

Wide-temp Fanless GPU Computer w/ NVIDIA® RTX 2000 ADA, 4x M12 PoE+ ports supporting Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU

SEMIL-1321GC-10G-ADA

Wide-temp Fanless GPU Computer w/ NVIDIA® RTX 2000 ADA, 4x M12 PoE+ ports, 10GbE port supporting Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU

Optional Accessories

PA-280W-ET2

280W AC/ DC power adapter 24V/ 11.67A; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature: -30°C to 60°C.

Cblkit-M12

Click here to download the SEMIL-Cable-Kit datasheet
