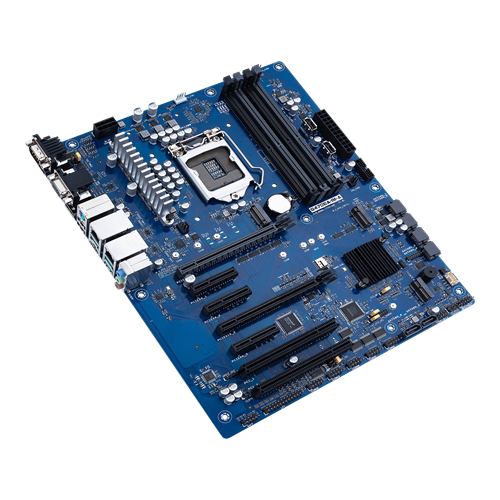

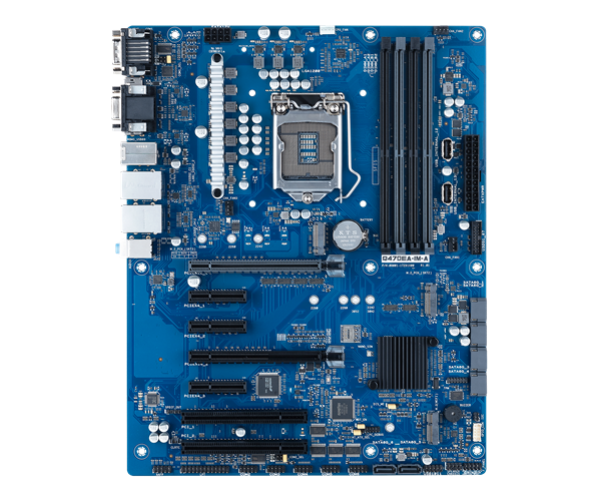

산업용 10세대 ATX 마더보드 Q470EA-IM-A

Intel 10세대 Core™ i9/i7/i5/i3 LGA1200 ATX 마더보드

산업용 10세대 ATX 마더보드 Q470EA-IM-A

  • Q470E ATX motherboard, LGA1200 Socket for 10th Generation
    Core™ i9/ i7/ i5/ i3/Pentium®/Celeron® Processors
  • Supports 3 displays configuration by multiple interface:
    VGA/ DP/HDMI
  • 2 x PCIe x16 slots support dual graphic cards
  • M.2 B key support 5G
  • 7 years of longevity with extended product life cycles
  • Advanced I/O and connectivity features
  • Wide temperature range endurance: 0–60°C
Specifications
Processor System
CPU
  • Intel® Socket 1200 for 10th Generation Core™ i9/ i7/ i5/ i3/Pentium®/Celeron® Processors Max. 125W.
CHIPSET
  • Intel® Q470E Chipset



Memory
Technology
  • DDR4 2400/2666/2933 MHz
Max.
  • 128GB (32GB per U-DIMM)
Socket
  • 4 x U-DIMM



Display
VGA
  • 1, up to 1920 x 1200 @ 60Hz
HDMI
  • 1 support HDMI 1.4b, up to 4096 x 2160 @ 30Hz
DP
  • 2 support DP1.2, up to 4096 x 2160 @ 60Hz
Triple Display
  • VGA + HDMI + DP/ DP + HDMI + DP/ VGA + DP + DP



Expansion Slot
PCIe
  • 2 x PCIe 3.0/2.0 x16 slot (1 x16 mode/ 2 x8 mode)
    *If any expansion card is installed on the second x16 slot, BIOS automatically switches the signal from 1 x16 mode to 2 x8 mode.
  • 3 x PCIe 3.0/2.0 x4 slot (x4, x4, x2 mode)
PCI
  • 2
M.2
  • 1 x M.2 M key, type 2242/2260/2280 (PCIe x4/ SATA mode)
  • 1 x M.2 B key, type 3042/3052/2260/2280 (PCIe x1/USB 3.2 Gen1/USB 2.0)
    *type 3042/3052 support 4G/5G module
  • 1 x M.2 E key, type 2230 (PCIe x1/USB 2.0)
SIM Socket
  • 1



Ethernet
Speed
  • 10/100/1000Mbps/2500Mbps
Controller
  • 1 x Intel® i219LM (1 GbE), support WOL/PXE
  • 1 x Intel® i225V (2.5 GbE), support WOL/PXE
Connector
  • 2 x RJ-45



Audio
Codec
  • Realtek ALC897 High Definition Audio
Connector
  • Line-Out, Line-In, Mic in



Storage
SATA port
  • Up to 6 x SATA Gen 3.0, up to 6Gb/s* , RAID 0/1/5/10
    *If install M.2 PCIe x4/ SATA SSD on M.2 M key slot, 2/ 1 SATA port will be disabled.

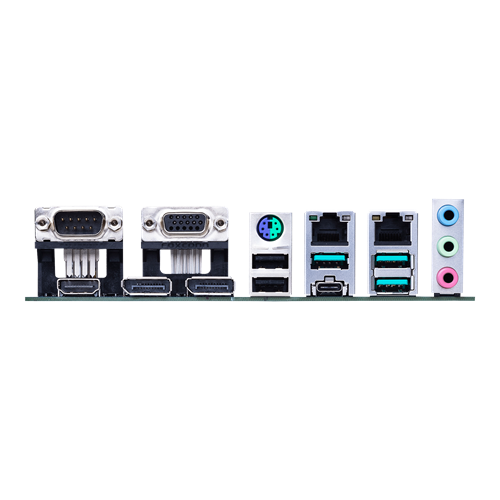

Rear I/O
VGA
  • 1
HDMI
  • 1
DP
  • 2
USB 3.2 Gen2
  • 4 (3 x type A, 1 x Type C)
USB 2.0
  • 2
Ethernet
  • 2
COM Port
  • 1 x RS232/422/485
PS/2
  • 1
Audio jack
  • 3 (Line-Out, Line-In, Mic in)
Internal Connector
COM header
  • 1 x (RS232/422/485); 4 x RS232
USB2.0
  • 1 x Header support additional 2 x USB2.0 connectors
  • 2 x Vertical connector
USB3.2 Gen 1
  • 1 x Header support additional 2 x USB3.2 Gen1 connectors
power connector
  • 1 x 8-pin ATX 12V Power Connector & 1 x 24-pin ATX Power Connector



Watchdog Timer
H/W
  • YES
Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • AT mode/ ATX mode



Operating System
Microsoft Windows
  • Windows 10 (64bit ) / Win10 IoT Enterprise
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Relative Humidity
  • 15%~95%



Dimension
Form Factor
  • ATX, 305 x 244 mm



Certification
EMI & Safety
  • CE, FCC
