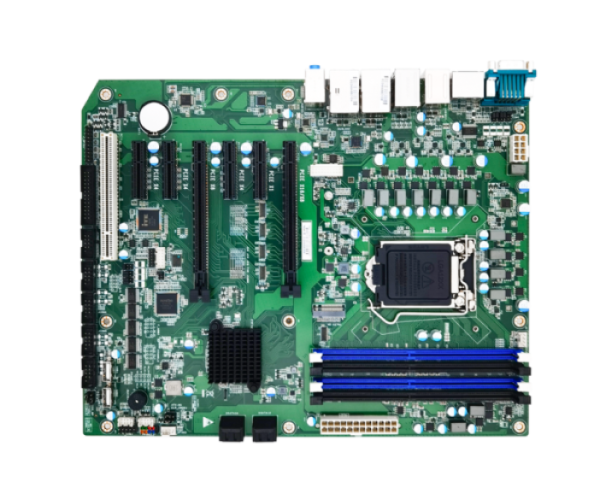

산업용 10&11세대 마더보드 AIoT0-Q570
- 10/11 generation Xeon W-1200/i9/i7/i5/i3/G full series CPU
- 4 DDR4 U-DIMM slots support up to 128GB
- Triple display/4SATA/2GbE
- 14USB/6COM/1PCI/6PCIe
- Using high Tg wide temperature PCB material to ensure widetemperature stability
- Industrial-grade port protection blocks static and surges
- Support dual GPU card artificial intelligence and machine visionapplications
Specifications
| AIoT0-Q570 | |
|---|---|
| CPU | 10,11th Generation Intel® Xeon W-1200/i9/i7/i5/i3/G all series Processors, LGA 1200 Socket |
| Chipset | Intel Q570 Chipset |
| Memory | 4× 288PIN DDR4 UDIMM memory slots, single 32GB maximum support 128GB memory specification DDR4-2133/2400/2666/2933/3200 optional W580 chipset supports ECC memory |

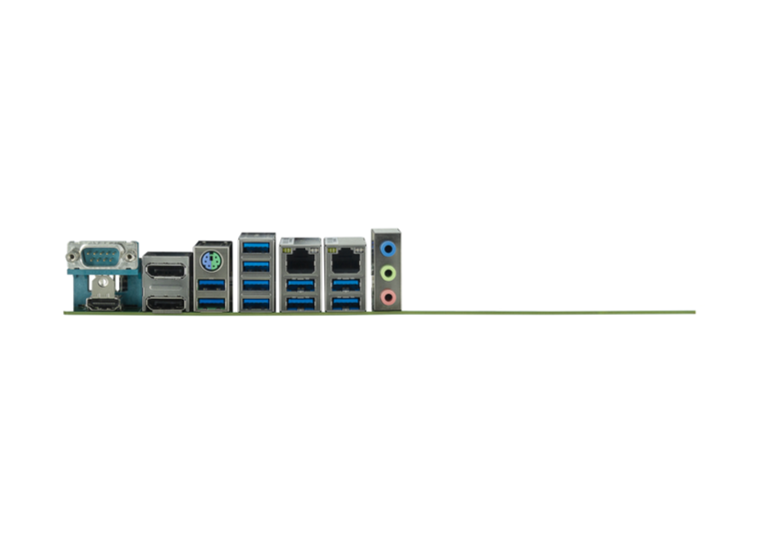

| interface | Quad display output DP+DP+HDMI+DVI-D, support independent three displays |
| storage | 4 SATA3.0 supports SATA RAID 0/1/5 (SATA1 has no signal when SATA SSD is inserted on M.2) 1 M.2 2242/2280 Key-M SSD socket supports SATA bus or Nvme x4 (only Gen11 supports ) |
| audio | Rear IO supports MIC-In, Speaker-Out, Line-In three-hole audio |
| The internet | 2 Intel GbE : LAN1: i225 2.5Gb; LAN2: i219V |
| PCB Dimensions (LxWxH) | 305mm X 244mm |
| SD631-Q170 | |
|---|---|
| USB | 10 USB3.2 Type A rear IO leads directly (2 of which are Gen. 2 and 8 are Gen.1) 2 USB2.0 vertical plugs in the board, preset for USB Dongle; 2 USB2.0 pins (including 2 pins are reserved on the back panel edge for the front panel expansion of the installed customer chassis) |
| LPT print port | One LPT print port (programmable as GPIO) |
| serial port | 6 serial ports (COM1&2 support RS232/422/485, COM3-6 support RS232) |
| keyboard and mouse interface | 1 PS/2 2-in-1 port and two USB using 3-in-1 connectors |
| Digital I/O | One 16-bit digital I/O with isolation, providing power and ground, +5V level |
| eSPI bus interface | Provides 1 eSPI bus interface (2x6Pin wafer can expand up to four RS232/RS422/485 serial ports) |
| TPM/TCM interface | SPI interface can support security encryption module |
| power supply | ATX power supply, support ATX/AT switch mode |
| Expansion bus | 2 x16 slots (2 x16 slots are automatically configured as x8 signals when the remote x16 slot is inserted; when there is no card inserted, the near-end PCIe x16) 4 PCIe x4 expansion slots (3 x4, 1 x1), 1 PCI (32bit) |
| Operating temperature/humidity | Temperature range -10℃～60℃, relative humidity 10%～85%, atmospheric pressure 85～105kPa |
| Non-operating temperature/humidity requirements | Temperature -40℃～85℃; relative humidity 5%～95% (40℃), atmospheric pressure 85～105kPa |
| OS | Windows 10, Linux (Ubuntu 18.04, Fedora Core 28) |
