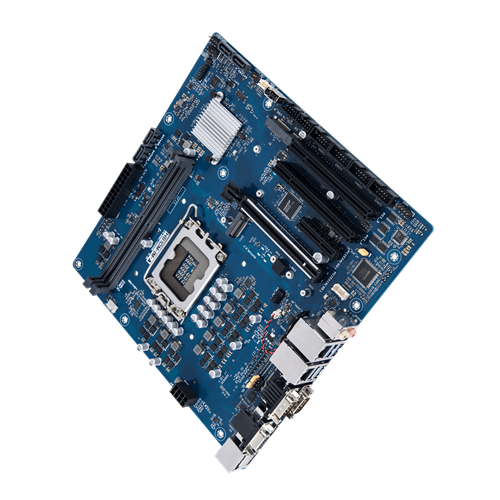

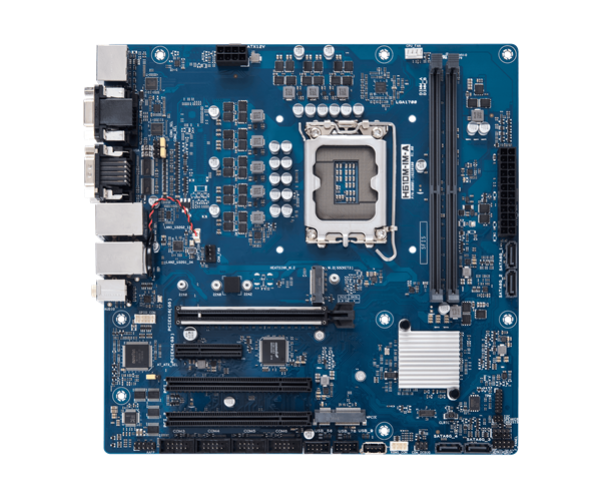

산업용 12/13/14세대 M-ATX 마더보드 H610M-IM-A

Intel 12/13/14세대 Core™ i9/i7/i5/i3 LGA1700 M-ATX 마더보드

산업용 12/13/14세대 M-ATX 마더보드 H610M-IM-A

  • Micro-ATX, LGA1700 socket for the 14th / 13th /12th Gen CPU, H610 chipset, 2*U-DIMM, 1*PCIe x16, 1*PCIe x4, 2*PCI, 1*M.2 Slot, 1* Mini PCIe, 4*SATA , 9*USB, 6*COM, Triple Dispaly
  • 2 x U-DIMM up to 64 GB DDR4 up to 3200 MHz
  • Supports 3 displays configuration by multiple interface: VGA / DP/
    HDMI1 / HDMI2
  • Supports 1 x PCIe5.0 x16 slot, 1 x PCIe3.0/2.0 x4 slot(x1 speed ),
    2 x PCI,1 x Mini PCIe,6 x COM,9 x USB
  • 7 years of longevity with extended product life cycles
  • Wide temperature range endurance: 0–60°C
Specifications
Processor System
CPU LGA1700 Socket for Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
support 14th/13th/12th Gen CPU, Max. 65W TDP
CHIPSET

Intel® H610 chipset
Memory
Technology
  • DDR4 2133/2400/2666/2933/3200 MHz
Max.
  • 64GB
Socket
  • 2 x SO-DIMM
Display
HDMI
  • 2, Supports HDMI 2.1 up to 4096 X 2160 @ 60 Hz
Display Port
  • 1, Supports 1.4 up to 4096 x 2160 @ 60 Hz
VGA
  • 1, Supports 1920 x 1200 @60 Hz
Triple Display
  • VGA / DP / HDMI1 / HDMI2



Expansion Slot
PCIe x16
  • 1 x PCIe 5.0 x16 slot
PCIe x4
  • 1 x PCIe 3.0/2.0 x4 slot(x1 speed)
PCI
  • 2 x PCI slot
Mini PCIe
  • 1 x full/half mini-PCIe
Ethernet
Speed
  • 10/ 100/ 1000 Mbps
Controller
  • 1 x Realtek® 8111H, 1 x Intel® i219V
Connector
  •  2 x RJ-45
Audio
Codec
  • Realtek ALC897 High Definition Audio
Connector
  • Line-Out, Mic-in
Storage
SATA port
  • 4 x SATA Gen 3.0, up to 6Gb/s
    *No.4 SATA port shared with M.2
M.2
  • 1 x M.2 Socket with M key, type 2242/2260/2280(SATA/PCIe x4 mode)

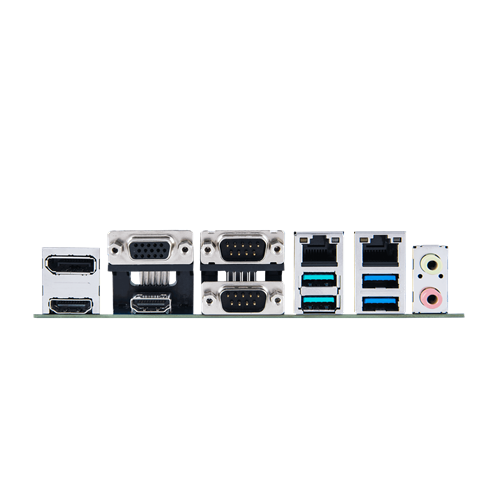

Rear I/O
HDMI
  • 2
Display Port
  • 1
VGA
  • 1
USB3.2 GEN2
  • 2
USB3.2 GEN1
  • 2
Ethernet
  • 2
Serial Port
  • 2 (Line-Out, mic-in)
Audio jack
  • 2
Internal Connector
COM Header
  • 4 x COM Header (RS232)
USB2.0
  • 2x Header Support Additional 4x USB2.0 Connectors,
    1x stick socket
CPU Fan/ Chassis Fan
  • 1 x Header (PWM Mode)/ 1 x Header (PWM Mode)
Watchdog Timer
H/W
  • YES



Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • ATX, 12V DC-IN (*Support by power transfer card “EMA-DCB-A”.)



Operating System
Microsoft Windows
  • Windows® 10 (64bit ) / Win10 IoT Enterprise
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE
Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Relative Humidity
  • 10%~95%, non-coagulation
Dimension
Form Factor
  • Micro-ATX 244X244mm
Certification
Safety
  • CE, FCC
