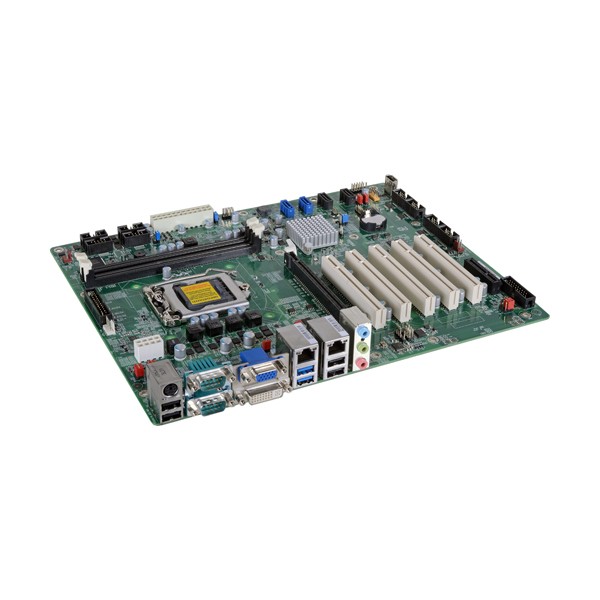

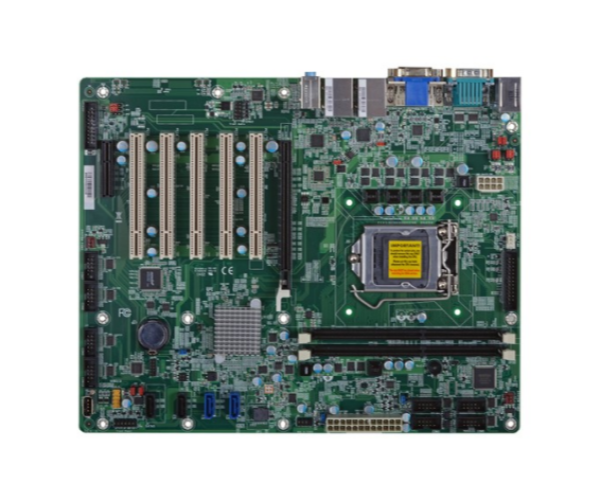

산업용 4세대 마더보드 HD632-H81

4th Gen Intel® Core™
Intel® H81
2 DDR3 DIMM up to 16GB
1 PCIe x16, 1 PCIe x4, 5 PCI slots
Support VGA, DVI-I (DVI-D signal) display
2 LAN, 10 COM, 2 USB 3.0, 7 USB 2.0, 2 SATA 3.0, 2 SATA 2.0
1 Parallel, 8-bit DIO, 24-pin ATX

Overview

Introduction

이 ATX 폼 팩터인 HD632-H81은 Intel® H81 Express 칩셋을 사용하여 22나노미터 프로세스 기술을 기반으로 구축된 차세대 멀티 코어 프로세서인 4세대 Intel Core 프로세서에 의해 구동됩니다.

LGA 1150 소켓이 장착된 4세대 Intel Core 프로세서는 부드러운 플래시 재생과 고품질 재생 기능을 갖춘 풍부한 2D/3D 그래픽을 제공하여 비디오, 그래픽 및 디지털 사인과 같은 인터랙티브 콘텐츠를 표시하는 지능형 시스템에 뛰어난 시각적 환경을 제공합니다. 통합 Intel HD 그래픽 엔진은 6개의 EU(Graphics Execution Unit)를 지원하며 Intel Clear Video 기술을 지원하여 Blu-Ray 및 기타 고화질 비디오를 위한 고급 이미징 기능을 제공합니다.

이 확장 가능한 데스크톱 플랫폼에 사용되는 Intel H81 Express 칩셋은 개선되고 유연한 I/O로 더 빠르고 효율적인 전력을 제공합니다. 또한 이 ATX 플랫폼은 추가 확장 기능을 제공하기 위해 더 많은 PCIe 및 PCI 구성으로 설계되었습니다.

This ATX form factor, HD632-H81, is powered by the 4th generation Intel® Core™ processors which are the next-generation of multi-core processors built on 22-nanometer process technology with the Intel® H81 Express chipset.

These 4th generation Intel® Core™ processors with LGA 1150 socket provide for smooth flash playback and rich 2D/3D graphics with high quality playback enabling a compelling visual experience for intelligent systems that display videos, graphics and interactive content such as digital signs. The integrated Intel® HD Graphics engine supports 6 Graphics Execution Units (EUs), and Intel® Clear Video Technology providing advanced imaging capabilities for Blu-Ray and other high definition video.

The Intel® H81 Express chipset used on this scalable desktop platform delivers faster and more efficient power with improved and flexible I/O. The This ATX platform is also designed with more PCIe and PCI configurations to offer additional expansion capabilities.

Specifications

HD632-H81
Processor	LGA 1150 socket for: – 4th Generation Intel® Core™ processors (22nm process technology)
Chipset	Intel® H81 Express Chipset
Memory	Two 240-pin DDR3 DIMM up to 16GB Dual channel DDR3 1333/1600MHz
Graphics Controller	Intel® HD Graphics
Graphics Display	1 x VGA 1 x DVI-I (DVI-D signal) VGA, DVI-D: resolution up to 1920×1200 @ 60Hz
Expansion Interface	1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2) 5 x PCI
Ethernet Controller	2 x Intel® I210 PCIe (10/100/1000Mbps)
Rear I/O : Ethernet	2 x GbE (RJ45)
Rear I/O : Serial	2 x RS232 (RS232 and/or Power) (DB-9)
Rear I/O : USB	2 x USB 3.0 4 x USB 2.0
Rear I/O : Display	1 x VGA 1 x DVI-D
Rear I/O : Audio	1 x Line-in 1 x Line-out 1 x Mic-in
Rear I/O : PS/2	1 x PS/2 (mini-DIN-6)
Internal I/O : Serial	7 x RS232 (2.54mm pitch) 1 x RS422/485 (2.54mm pitch)

HD632-H81
Internal I/O : USB	2 x USB 2.0 1 x vertical USB 2.0
Internal I/O : Parallel	1 x Parallel
Internal I/O : Audio	1 x Line-out 1 x Mic-in 1 x S/PDIF
Internal I/O : SATA	2 x SATA 3.0 (up to 6Gb/s) 2 x SATA 2.0 (up to 3Gb/s)
Internal I/O : DIO	1 x 8-bit DIO
Watchdog Timer	System Reset, Programmable via Software from 1 to 255 Seconds
TPM	Available Upon Request
Power Connector	24-pin ATX power 8-pin 12V power
Power Consumption	TBD
OS Support	Windows XP Professional x86 & SP3 (32-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit)
Temperature	Operating: 0 to 60°C Storage: -20 to 85°C
Humidity	5 to 90% RH
Dimensions	ATX form factor 305mm (12″) x 244mm (9.6″)
Certification	CE, FCC Class B, RoHS
