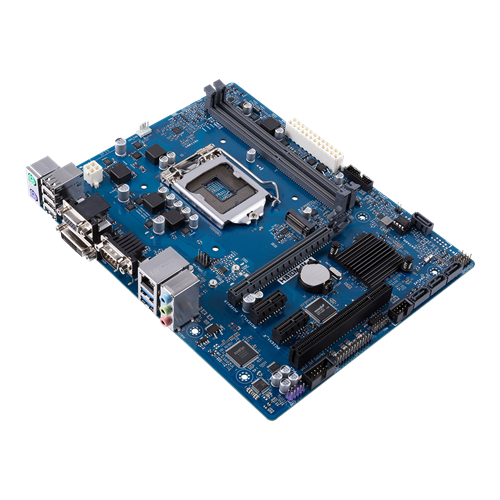

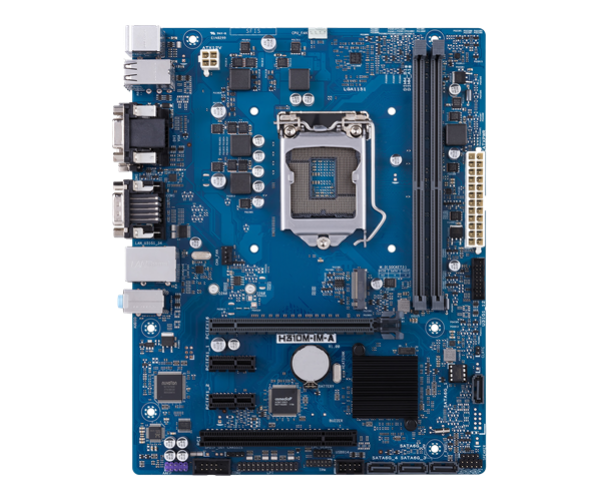

산업용 8/9세대 M-ATX 마더보드 H310M-IM-A

Intel 8/9세대 Core™ i7/i5/i3 LGA 1151 M-ATX 마더보드

산업용 8/9세대 M-ATX 마더보드 H310M-IM-A

  • Supports Intel®9th/8th Gen Core™ processors (LGA1151) with the
    Intel H310 chipset
  • Two U-DIMM slots support up to 32GB DDR4 2400/2133 MHz
    SDRAM
  • Supports dual display configurations with multiple interfaces,
    including DVI-D & D-sub
  • Advanced I/O and connectivity features
  • Seven years of longevity with extended product life cycles
  • Wide temperature range endurance: 0–60°C
Specifications
Processor System
CPU
  • LGA1151 socket for the 9th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors supports 14nm CPU.
MAX. SPEED
  • 4.9GHz eight core
L2 Cache
  • 12MB
CHIPSET
  • Integrated



Memory
Technology
  • DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
    *DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Max.
  • 32GB
Socket
  • 2 x U-DIMM



Display
Controller
  • Intel UHD Graphics 630/610
DVI-D
  • 1, Supports 1920 x 1200 @60 Hz
D-sub
  • 1, Supports 1920 x 1200 @60 Hz
Multi Display
  • DVI-D+D-sub
  • Multi-VGA output support :DVI-D/D-sub ports
  • Supports up to 2 displays simultaneous under OS



Expansion Slot
PCIe
  • 1x PCIE x16
  • 2x PCIE 2.0 x1
  • 1x PCI
M.2
  • 1 x M.2 socket 3 with M key, type 2260/2280 storage devices support both SATA* & PCIe x2 mode



Ethernet
Speed
  • 10/100/1000Mbps
Controller
  • 1 x Realtek RTL8111H Gb Lan
Connector
  • 1 x RJ-45



Audio
Codec
  • Realtek ALC887/ALC 897* -VD2 High Definition Audio CODEC
Connector
  • Line-out, Lin-in, Mic-in
Storage
SATA port
  • 4x SATA Gen 3.0, up to 6Gb/s

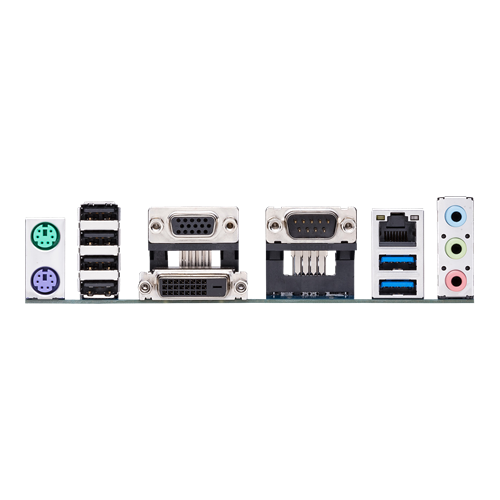

Rear I/O
DVI-D
  • 1
D-sub
  • 1
USB
  • 2x USB3.2 Gen1 Type-A ports, 4xUSB 2.0 Type-A ports
Ethernet
  • 1
Serial Port
  • 1 (RS-232 port)
PS/2
  • 1 x keyboard port, 1 x mouse port



Internal Connector
Serial Port
  • 1 (RS-232 header)
USB3.2 Gen1 Type A header
  • 1, support additional 2 x USB3.2 Gen1 connectors
USB2.0 header
  • 1, support additional 2 x USB2.0 connectors
power connector
  • 1 x 24-pin EATX Power connector,1 x 4-pin EATX 12V Power connector



Watchdog Timer
SW
  • YES



Security
TPM
  • LPC TPM header



Power
Power Type
  • ATX Power



Operating System
Microsoft Windows
  • Windows® 10 (64bit ) / Win10 Iot Enterprise
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C



Dimension
Form Factor
  • Micro-ATX”, 244cm x 193mm



Certification
EMI & Safety
  • CE, FCC
