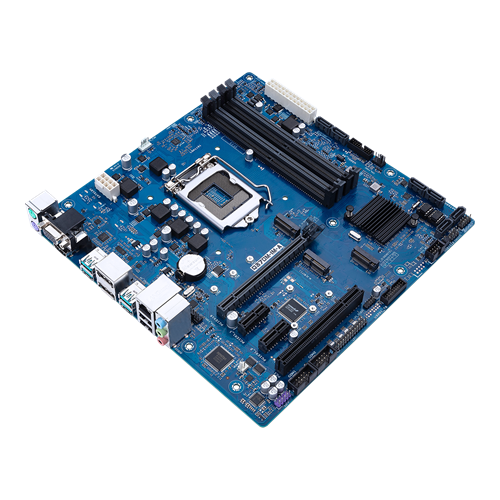

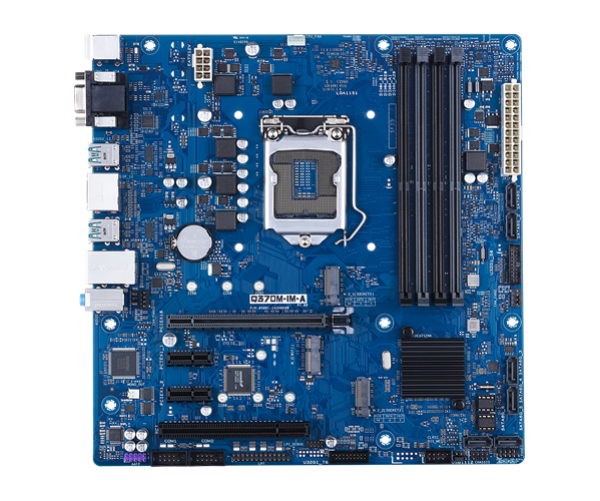

산업용 8/9세대 M-ATX 마더보드 Q370M-IM-A

Intel 8/9세대 Core™ i7/i5/i3 LGA 1151 M-ATX 마더보드

산업용 8/9세대 M-ATX 마더보드 Q370M-IM-A

  • Supports Intel® 9th/8th Gen Core™ processors (LGA1151) with the
    Intel® Q370 chipset
  • Four U-DIMM slots support up to 64GB DDR4 2666/2400/2133
    MHz SDRAM
  • Supports dual display configurations with multiple interfaces,
    including dual DisplayPorts, HDMI & D-sub
  • Advanced I/O and connectivity features
  • Seven years of longevity with extended product life cycles
  • Wide temperature range endurance: 0–60°C
Specifications
Processor System
CPU
  • LGA1151 socket for 9th/8th Generation Intel® Core™ i9/ i7/ i5/ i3/Pentium®/Celeron® Processors
CHIPSET
  •  Intel® Q370 Chipset



Memory
Technology
  •  DDR4 2666/2400/2133MHz
Max.
  • 64GB
Socket
  • 4 x U-DIMM



Display
Controller
  • Intel UHD Graphics 630/610
HDMI
  •  1, Supports HDMI 1.4 up to 4096 x 2160 @ 24Hz / 2560 x 1600 @ 60Hzz
Display Port
  •  2, Supports DP 1.2a up to 4096 x 2304 @ 60 Hz
D-Sub
  •  1, Supports up to 1920 x 1200 @ 60Hz
Multi Display
  • Dual DP +HDMI+D-SUB, DP+HDMI+D-SUB, Dual DP+HDMI, Dual DP+D-SUB,



Expansion Slot
PCIe
  • 1 x PCI Express 3.0/2.0 x16
  • 2 x PCI Express 3.0/2.0 x1
  • 1 x PCI
M.2
  • 2 x M.2 Socket with M Key, type 2242/2260/2280 storage devices with IRST support(1@ SATA* & PCIE mode), SATA mode share with SATA6G_2. Ready for Intel® Optane Memory
  • 1 x M.2 Socket with E Key, type 2230 Wi-Fi devices support



Ethernet
Speed
  • 10/100/1000Mbps
Controller
  • 1 x Intel® I219LM, supports WOL/PXE
Connector
  • 1 x RJ-45



Audio
Codec
  • Realtek® ALC887/ALC 897* , High Definition Audio
Connector
  • Line-in, Line-out, Mic-in



Storage
SATA port
  •  6 x SATA 6.0 Gb/s ports (gray), support Raid 0,1,5,10

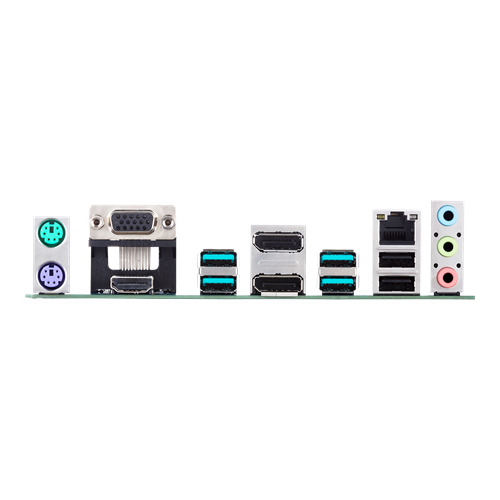

Rear I/O
Display Port
  • 2
HDMI
  • 1
D-SUB
  • 1
Ethernet
  • 1
USB
  • USB 3.2 Gen 2 (TypeA)x 4, USB 2.0 (TypeA) x 2
Audio
  • 3 Audio jacks support 8 channel
PS/2
  •  1 x Keyboard (Purple), 1 x Mouse port (Green)



Internal Connector
Serial Port
  • 2 (2 x RS 232)
USB3.2 Gen1
  •  2, support additional 4 x USB 3.2 Gen 1 connectors
USB2.0
  •  1, support additional 2 x USB2.0 connectors
power connector
  •  1 x 24-pin ATX Power connector, 1 x 8-pin ATX 12V Power connector



Watchdog Timer
H/W
  • NO



Security
TPM
  • TPM 2.0 IC Onboard (NPCT750)



Power
Power Type
  • ATX Power



Operating System
Microsoft Windows
  • Windows® 10 (64bit ) / Win10 IoT Enterprise
Linux
  •  Ubuntu, RedHat Enterprise, Fedora Workstation



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C



Dimension
Form Factor
  •  Micro ATX, 9.6 x 9.6 inches (24.4 x 24.4 cm)



Certification
EMI & Safety
  • CE, FCC
