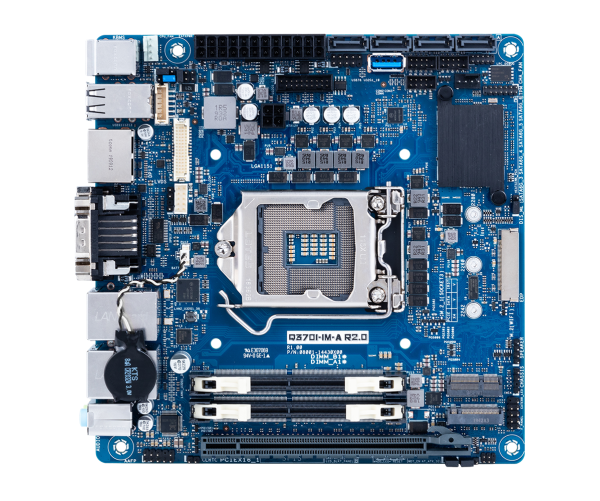

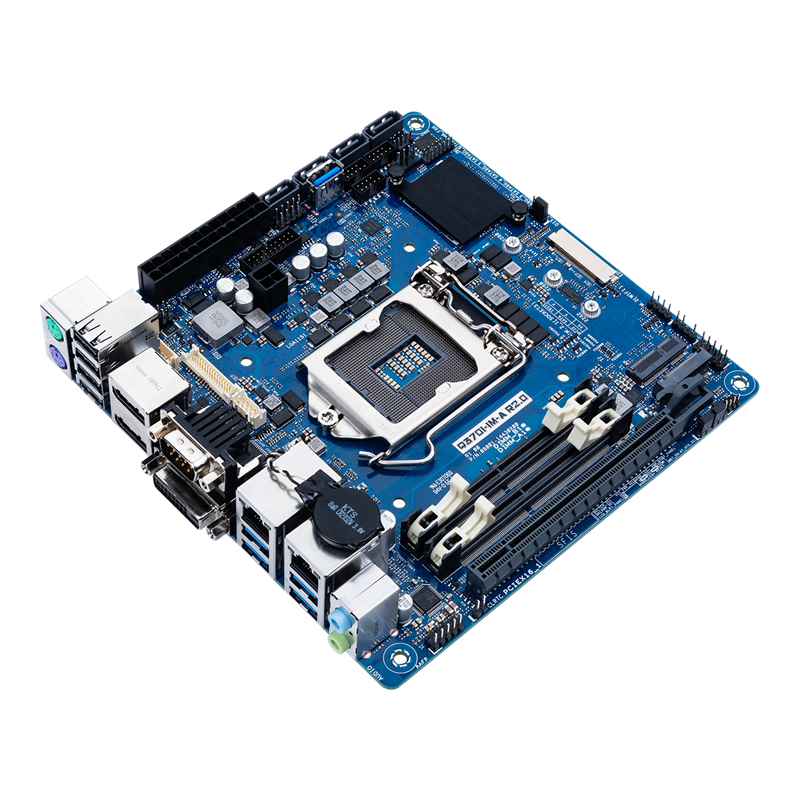

산업용 8/9세대 Mini-ITX마더보드 Q370I-IM-A R2.0

Intel 8/9세대 Core™ i7/i5/i3 LGA 1151 Mini-ITX 마더보드

산업용 8/9세대 Mini-ITX마더보드 Q370I-IM-A R2.0

  • Two 260-pin SO-DIMM up to 64GB DDR4 2666/2400/2133 MHz
    SDRAM.
  • Supports 3 displays configuration by multiple interface: 2*DP/ DVI-
    D /LVDS or eDP
  • 7-year longevity supply
  • Wide temperature Range: 0~60°C
Specifications
Processor System
CPU
  • LGA1151 socket for the 9th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors supports 14nm CPU, Max. 65W TDP
CHIPSET
  • Intel® Q370 chipset



Memory
Technology
  • DDR4 2666/2400/2133 MHz
Max.
  • 64GB
Socket
  • 2 x SO-DIMM



Display
DVI-D
  • 1, Supports up to 1920 X 1200 @ 60 Hz
Display Port
  • 2, Supports DP 1.2a up to 4096 x 2160 @ 60 Hz
LVDS
  • 1, Supports up to 1920 x1200 @ 60Hz
Embedded Display Port
  • 1, 2 lanes supported (co-lay with LVDS), Supports up to 1920 x1200 @ 60Hz
Multi Display
  • DVI-D+DP+LVDS, DP+DP+LVDS, DP+DP+DVI-D, DVI-D+DP+eDP, DP+DP+eDP



Expansion Slot
PCIe
  • 1 x PCIe 3.0/2.0 x16 slot
M.2
  • 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device (support Intel® CNVi,PCIe)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280(PCIe& SATA mode)



Ethernet
Speed
  • 10/100/1000Mbps
Controller
  • 1 x Intel® i219LM, 1 x Intel® i211AT
Connector
  • 2 x RJ-45



Audio
Codec
  • RealtekALC887-VD2 High Definition Audio
Connector
  • Line-Out, Line-In



Storage
SATA port
  • 4 x SATA Gen 3.0, up to 6Gb/s

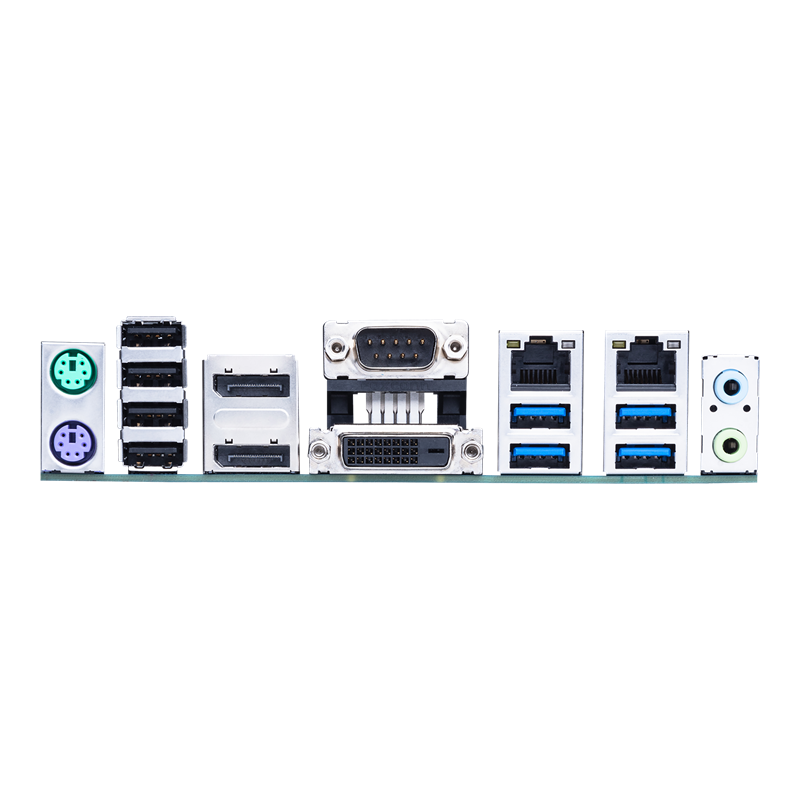

Rear I/O
DVI-D
  • 1
Display Port
  • 2
USB 3.2 Gen1
  • 4
USB 2.0
  • 4
Ethernet
  • 2
Serial Port
  • 1(RS232/422/485)
Audio jack
  • 2
PS/2
  • 1 x Keyboard Port, 1 x Mouse Port



Internal Connector
Serial Port
  • 3 (RS232)
USB3.2 Gen1
  • 1 XHeader Support Additional 2 X USB3.2 Gen1 Connectors , 1 X Stick Socket
USB2.0
  • 1 XHeader Support Additional 2 X USB2.0 Connectors
Power Connector
  • 1 X 4-pin ATX Power Connector, 1 X 24-pin ATX Power Connector



Watchdog Timer
H/W
  • YES



Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • both ATX mode and DC in
Voltage
  • DC in 12V



Operating System
Microsoft Windows
  • Windows® 10 (64bit ) / Win10 IoT Enterprise
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Relative Humidity
  • 0%~85%



Dimension
Form Factor
  • Mini-ITX, 170 x 170 mm



Certification
Safety
  • CE, FCC
