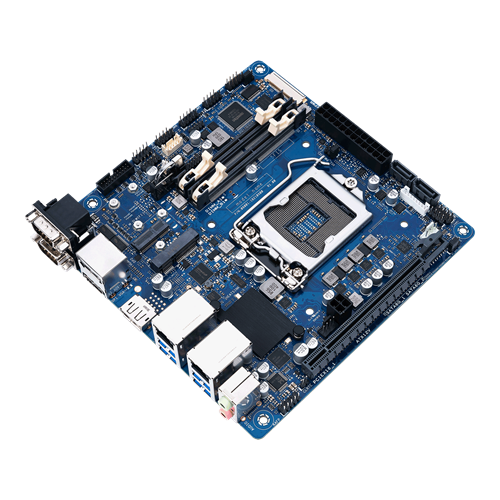

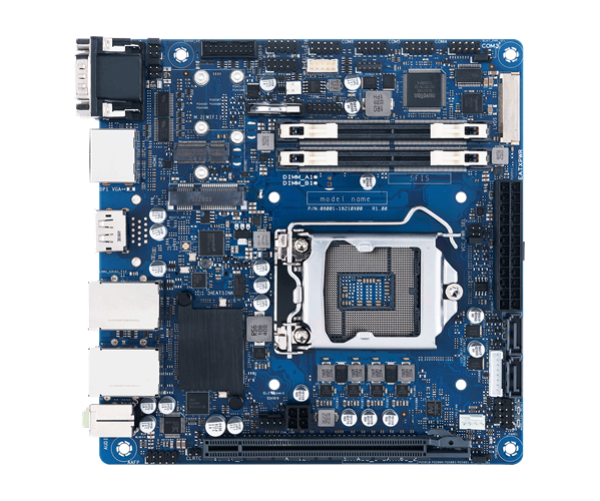

산업용 8/9세대 Mini-ITX 마더보드 H310I-IM-A R3.0

Intel 8/9세대 Core™ i7/i5/i3 LGA 1151 Mini-ITX 마더보드

산업용 8/9세대 Mini-ITX 마더보드 H310I-IM-A R3.0

  • Supports Intel® 8th Gen Core™ processors (LGA1151) with the
    Intel H310 chipset
  • Two 260-pin SO-DIMM slots support up to 32GB DDR4 2400/2133
    MHz SDRAM
  • Supports dual display configurations with multiple interfaces,
    including dual DisplayPort, HDMI and LVDS
  • Advanced I/O and connectivity features
  • Seven years of longevity with extended product life cycles
  • Wide temperature range endurance: 0–60°C
Specifications
Processor System
CPU
  • LGA1151 socket for the 9th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors supports 14nm CPU, Max. 65W TDP
CHIPSET
  • Intel® H310 chipset



Memory
Technology
  •  DDR4 2666/2400/2133 MHz
Max.
  • 32GB
Socket
  • 2 x SO-DIMM



Display
HDMI
  • 1, Supports HDMI 1.4b up to 4096 X 2160 @ 24 Hz
Display Port
  • 2, Supports DP 1.2a up to 4096 x 2160 @ 60 Hz
LVDS
  • 1, Supports 48 bits up to 1.4b 1920 x1200 @ 60Hz



Expansion Slot
PCIe
  • 1 x PCIe 3.0/2.0 x16 slot
Mini PCIe
  • 1 x full/half mini-PCIe with SATA
M.2
  • 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT device
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280(PCIe & SATA mode)



Ethernet
Speed
  • 10/100/1000Mbps
Controller
  • 1 x Intel® I219V, Support WOL/PXE
  • 1 x Intel® I210AT, Support WOL/PXE
Connector
  • 2 x RJ-45



Audio
Codec
  • Realtek ALC897
Connector
  • Line-Out, Line-In



Storage
SATA port
  • 4 x SATA Gen 3.0, up to 6Gb/s
M.2
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280(PCIe & SATA mode)
mSATA
  • 1 x full/half mini-PCIe with SATA

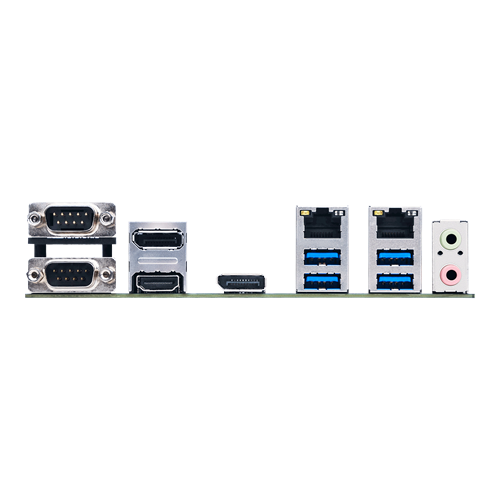

Rear I/O
HDMI
  • 1
Display Port
  • 2
USB3.2 Gen1
  • 4
Ethernet
  • 2(RS232/422/485)
Audio jack
  • 2



Internal Connector
Serial Port
  • 4 (RS232)
USB3.2 Gen1
  • 1 x Header Support Additional 2 x USB3.2 Gen1 Connector
USB2.0
  • 2 x Header Support Additional 4 x USB2.0 Connectors
power connector
  • 1 X 4-pin ATX Power Connector, 1 X 24-pin ATX Power Connecto



Watchdog Timer
H/W
  • YES



Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • both ATX/AT mode



Operating System
Microsoft Windows
  • Windows® 10 (64bit ) / Win10 IoT Enterprise
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Relative Humidity
  • 0%~85%



Dimension
Form Factor
  • Mini-ITX, 170 x 170 mm



Certification
Safety
  • CE, FCC
