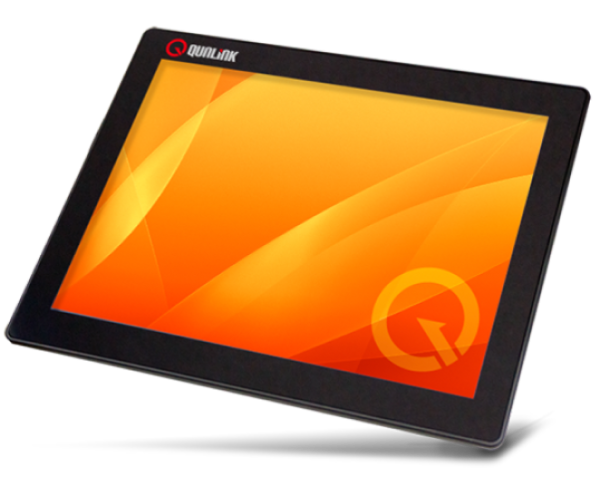

10.4″ Display Module
- 10.4″ G grade LED LCD panel for long life cycle and your tough working environments
- 5 different system modules to swap platform
- Modularized Design for different application needs and minimal system down time during maintenance
- Solid and rugged Display Construction withstands punishments from all environments
- True Flat multi Touch with front side IP65 certification
- Hidden USB to protect USB Key/Dongle
- 4 Different mounting methods designed in for ultimate application flexibility
Specifications
| Dispay Module | |
|---|---|
| I/O | 1x USB 2.0 Hidden for USB Dongle |
| Touch screen | Projected Capacitive Touch |
| LCD | 10.4″ TFT XVGA |
| Resolution | 800*600, 16.2M Colors / Optional 1024*768 |
| Luminance (cd/m2) | 350 |
| Viewing Angle | 80″ |
| Backlight Lifetime | 50,000hrs / LED |
| Mechanical | |
| Construction | Heavy-duty steel chassis (Black), Aluminum Front |
| Backlight Lifetime | 50,000hrs / LED |
| Vibration | 5-17Hz, 0.1″ double amplitude peak to peak, 1.5G acceleration peak to peak |
| Shock | 10G acceleration peak to peak (11ms) |
| Rating | IP 65 compliant front bezel |
| Qualification | Formal certification CE I FCC Class B |
| Mounting | Panel / VESA 100 / Wall / Clamp Type |
| Optional Order | |
| Mounting | Clamp Type Mounting Kit |
Mix and Match Box Modules
| QPA Box Module | QPI i3 Box Module | QPI i5 Box Module | QPI i7 Box Module | QTM Touch Monitor Box Module | |
|---|---|---|---|---|---|
| Processor | Intel Celeron Braswell N3160 Quad Core 6W 1.6GHz | Intel® Core™ 7th Generation U-series i3 7100U 2.4 GHz | Intel® Core™ 7th Generation U-series i5 7300U 2.6 GHz / 3.5 GHz | Intel® Core™ 7th Generation U-series i7 7600U 2.8 GHz / 3.9 GHz | N/A |
| System Memory |
1x 204 Pin 1.5V DDR3-L SO-DIMM, expandable up to 8GB |
2x DDR4-2133 SO-DIMM, expandable up to 32GB | 2x DDR4-2133 SO-DIMM, expandable up to 32GB | 2x DDR4-2133 SO-DIMM, expandable up to 32GB | N/A |
| Storage | 1x 2.5″ SATA HDD or mSATA SSD | 1x 2.5″ SATA HDD or mSATA SSD | 1x 2.5″ SATA HDD or mSATA SSD | 1x 2.5″ SATA HDD or mSATA SSD | N/A |
| I/O | Serial port *3 (RS232/422/485 *1, RS232*2) | Serial port *4 (RS232/422/485 *1, RS232*3) | Serial port *4 (RS232/422/485 *1, RS232*3) | Serial port *4 (RS232/422/485 *1, RS232*3) | 1x USB (For Touch) |
| USB *4 (USB 3.0*2, USB 2.0*3) | USB *6 (USB 3.0*4, USB 2.0*3) | USB *6 (USB 3.0*4, USB 2.0*3) | USB *6 (USB 3.0*4, USB 2.0*3) | 1x DisplayPort 1.2 | |
| Ethernet, PCI-e Gbe LAN *2, RJ-45 | Ethernet, PCI-e Gbe LAN *2, RJ-45 | Ethernet, PCI-e Gbe LAN *2, RJ-45 | Ethernet, PCI-e Gbe LAN *2, RJ-45 | 1x HDMI 1.4a | |
| HDMI 1.4a *1, CRT VGA *1, DB-15 |
HDMI 1.4a *1 DisplayPort 1.2 *1 |
HDMI 1.4a *1 DisplayPort 1.2 *1 |
HDMI 1.4a *1 DisplayPort 1.2 *1 |
1x DVI | |
| Audio, Line out *1, Phone Jack | Line in *1, Line out *1, Phone Jack | Line in *1, Line out *1, Phone Jack | Line in *1, Line out *1, Phone Jack | 1x VGA | |
| Expansion Interface | 1* Mini PCI Express Socket | 1* Mini PCI Express Socket | 1* Mini PCI Express Socket | 1* Mini PCI Express Socket | N/A |
| 1* Mini miniSATA Express Socket | N/A | N/A | N/A | N/A | |
| OS Support | Microsoft Windows 7/8/8.1/10, Linux | Microsoft Win7/Win10, Linux | Microsoft Win7/Win10, Linux | Microsoft Win7/Win10, Linux | N/A |
| Power Requirement | DC Jack, +12V~+24V Wide Range Input | DC Jack, +9V~+24V Wide Range Input | DC Jack, +9V~+24V Wide Range Input | DC Jack, +9V~+24V Wide Range Input | DC Jack, +24V |
| Mechanical | |||||
| Construction | Heavy-duty steel chassis (Black), Aluminum Heatsink | Heavy-duty steel chassis (Black), Aluminum Heatsink | Heavy-duty steel chassis (Black), Aluminum Heatsink | Heavy-duty steel chassis (Black), Aluminum Heatsink | Heavy-duty steel chassis (Black) |
| Operation Temp. | 32°F ~ 122°F (0°C ~ 50°C) with Ambient Air | 32°F ~ 140°F (0°C ~ 60°C) with Ambient Air | 32°F ~ 140°F (0°C ~ 60°C) with Ambient Air | 32°F ~ 140°F (0°C ~ 60°C) with Ambient Air | 32°F ~ 104°F (0°C ~ 40°C) |
| Relative Humidity | -22°F ~ 175°F (-30°C ~ 80°C) | -22°F ~ 175°F (-30°C ~ 80°C) | -22°F ~ 175°F (-30°C ~ 80°C) | -22°F ~ 175°F (-30°C ~ 80°C) | -22°F ~ 175°F (-30°C ~ 80°C) |
| Vibration | 10~90% @40°C, Non-condensing | 10~90% @40°C, Non-condensing | 10~90% @40°C, Non-condensing | 10~90% @40°C, Non-condensing | 10~90% @40°C, Non-condensing |
| Shock | 10G acceleration peak to peak (11ms) | 10G acceleration peak to peak (11ms) | 10G acceleration peak to peak (11ms) | 10G acceleration peak to peak (11ms) | 10G acceleration peak to peak (11ms) |
| Qualification | Formal certification CE I FCC Class B | Formal certification CE I FCC Class B | Formal certification CE I FCC Class B | Formal certification CE I FCC Class B | Formal certification CE I FCC Class B |
| Mounting | Panel / VESA 100 / Wall / Clamp Type | Panel / VESA 100 / Wall / Clamp Type | Panel / VESA 100 / Wall / Clamp Type | Panel / VESA 100 / Wall / Clamp Type | Panel / VESA 100 / Wall / Clamp Type |
| With Display Module | |||||
| Dimension | 294mm*71.5mm*226mm | 294mm*93mm*226mm | 294mm*93mm*226mm | 294mm*93mm*226mm | 294mm*55mm*226mm |
| Packing Dimension | 390mm*160mm*380mm | 390mm*160mm*380mm | 390mm*160mm*380mm | 390mm*160mm*380mm | 390mm*160mm*380mm |
| System Weight(N.W.) | 3.1 KG | 4.5 KG | 4.5 KG | 4.5 KG | 2.8 KG |
| Weight with Packing(G.W.) | 4.8 KG | 6.2 KG | 6.2 KG | 6.2 KG | 4.5 KG |
| Optional Order | |||||
| Memory | DDR3-L 1GB, DDR3-L 2GB, DDRIII-L 4GB | SODIMM DDR4-2133 4GB/ 8GB/ 16GB | SODIMM DDR4-2133 4GB/ 8GB/ 16GB | SODIMM DDR4-2133 4GB/ 8GB/ 16GB | N/A |
| Storage | 2.5″ SATA HDD 500GB~1TB, SSD 16GB~256GB | 2.5″ SATA HDD 500GB~1TB, SSD 16GB~256GB | 2.5″ SATA HDD 500GB~1TB, SSD 16GB~256GB | 2.5″ SATA HDD 500GB~1TB, SSD 16GB~256GB | N/A |
| OS | Microsoft Windows 7/8/8.1/10, Linux | Microsoft Win7/Win10, Linux | Microsoft Win7/Win10, Linux | Microsoft Win7/Win10, Linux | N/A |
| Wifi LAN | RTL8188CUS-BC8-WB | RTL8188CUS-BC8-WB | RTL8188CUS-BC8-WB | RTL8188CUS-BC8-WB | N/A |
| Power | AC to PWR Terminal Connector | AC to PWR Terminal Connector | AC to PWR Terminal Connector | AC to PWR Terminal Connector | AC to PWR Terminal Connector |
