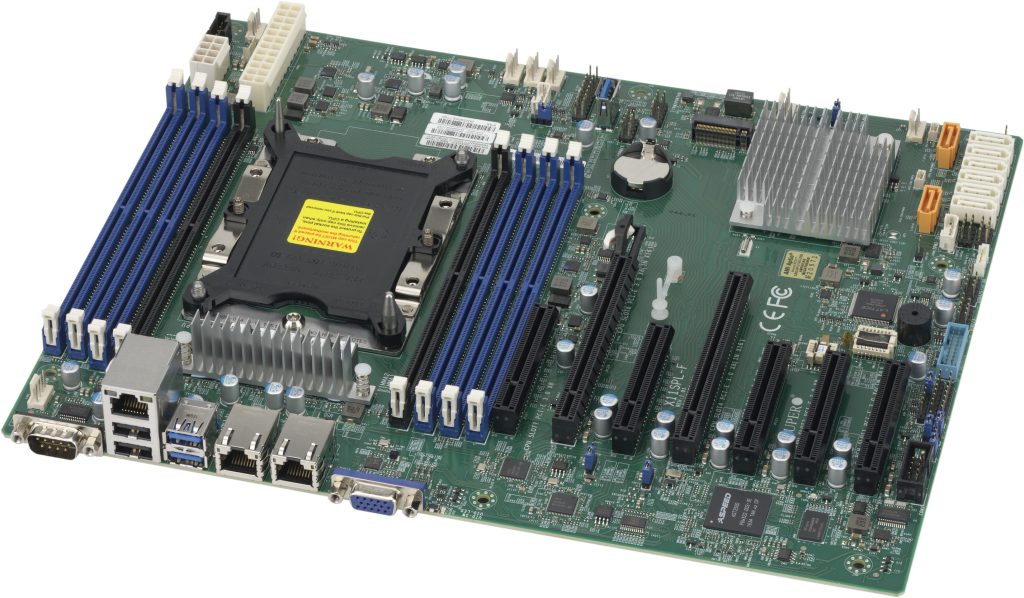

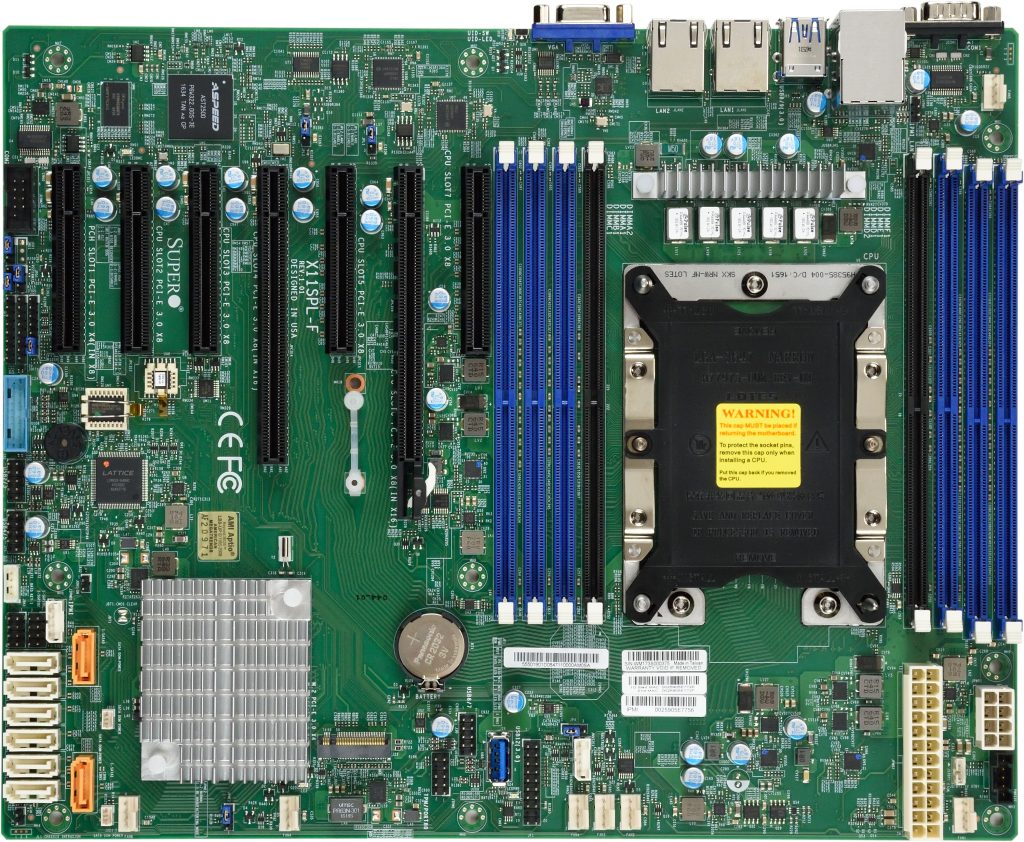

서버 마더보드 X11SPL-F

Single Socket (2nd Gen Intel® Xeon® Scalable) 마더보드 X11SPL-F

서버 마더보드 X11SPL-F

  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon®
    Scalable Processors, Single Socket LGA-3647 (Socket P) supported,
    CPU TDP supports Up to 165W TDP
  • Intel® C621 Chipset
  • Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC
    LRDIMM, DDR4-2933MHz, in 8 DIMM slots;
    Up to 1TB Intel Optane DC Persistent Memory in memory mode
    (Cascade Lake Only)
  • Expansion slots:
    2 PCIe 3.0 x8 (in x16),
    4 PCIe 3.0 x8,
    1 PCIe 3.0 x4 (in x8)
  • M.2 NGFF connector
    M.2 Interface: PCIe 3.0 x4 and SATA
    Form Factor: 2280, 22110
    Key: M-Key
  • 2 GbE LAN ports
  • 8 SATA3 (6Gbps) ports
  • I/O: 1 VGA, 2 COM, TPM header
  • 2 SuperDOM with built-in power
  • 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)
Specifications
Product SKUs
  • MBD-X11SPL-F



Physical Stats
Form Factor
  • ATX
Dimension
  • 12″ x 9.6″ (30.48cm x 24.38cm)



Processor
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Core
  • Up to 28 cores
Note
  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP



System Memory
Memory Capacity



  • 8 DIMM slots
  • Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz
  • Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 32GB, 64GB, 128GB
  • RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors



On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE LAN with Intel® I210



Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 3 USB 3 port(s) (1 Type A; 2 via header)
  • 8 USB 2.0 port(s) (2 rear; 6 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header



Expansion Slots
PCI-E
  • 2 PCIe 3.0 x8 (in x16 slot),
  • 4 PCIe 3.0 x8,
  • 1 PCIe 3.0 x4 (in x8 slot)
M.2



  • M.2 Interface: PCIe 3.0 x4; SATA
  • Form Factor: 2280, 22110
  • Key: M-Key



System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or later



Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, IPMI2.0, Watchdog
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management



PC Health Monitoring
Voltage
  • VBAT, Supports system management utility, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C – 50°C (32°F – 122°F)
Non-Operating Temperature Range
  • -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range
  • 8% – 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% – 95% (non-condensing)
