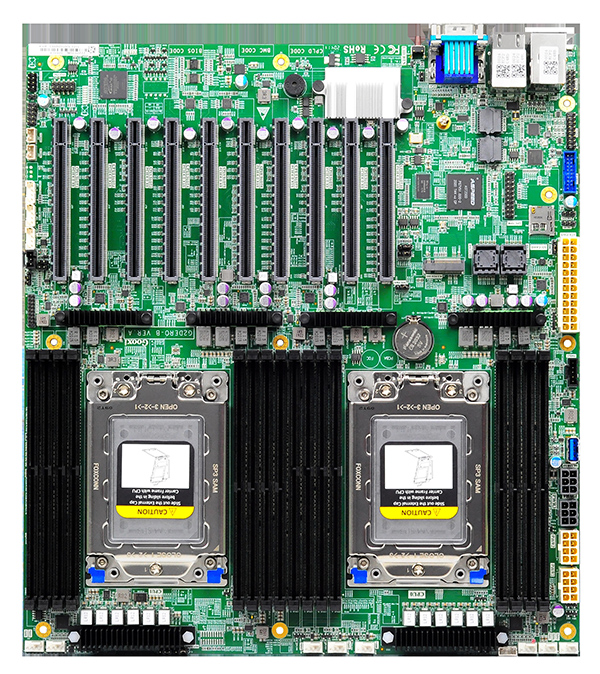

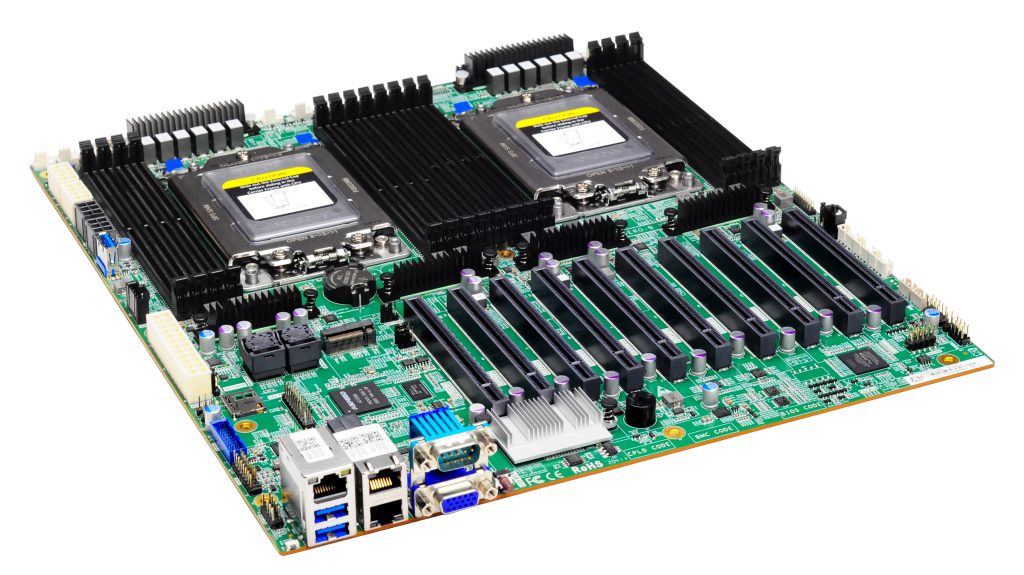

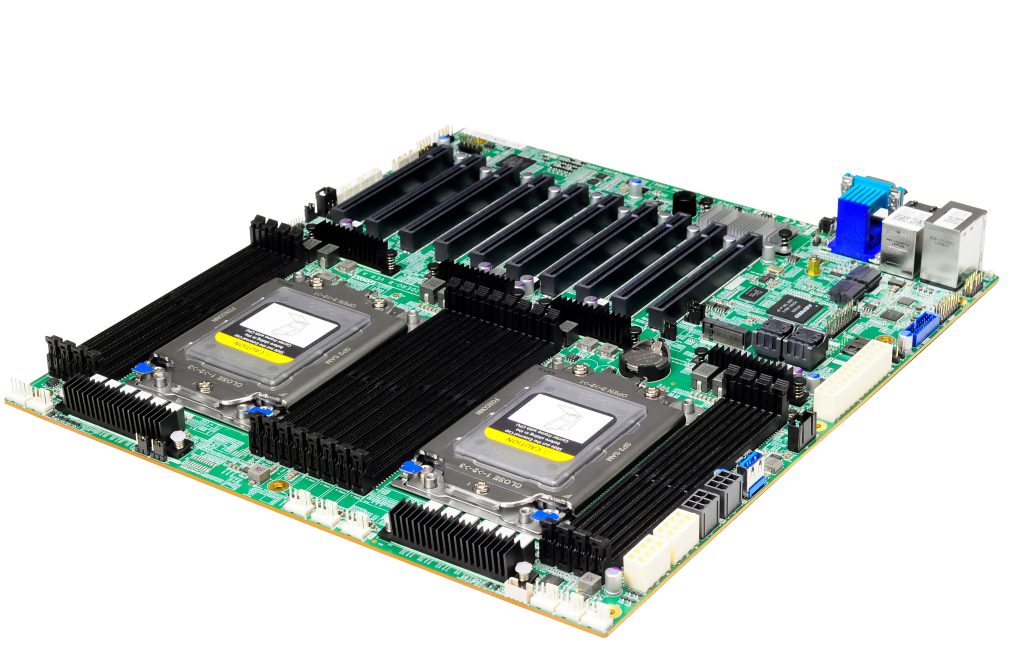

서버 마더보드 G2DERO-B

G2DERO-B Dual Socket (AMD EPYC) 서버 마더보드 G2DERO-B

서버 마더보드 G2DERO-B

  • Supports AMD high-performance processor (Rome series, Milanseries, Naples series)
  • Suppors 7100, 7200, 5100, 5200 series processor
  • Supports 16* DDR4 memory slot, 8* channel, memory frequency up to 2933MHz
  • Supports 10* PCIe4.0 high-speed expansion slot
  • Supports 8PCS P4/T4 Graphics card or 4PCS high-performance GPU card
Specifications
Specification
  • G2DERO-B



Processor
 Processor
  • Supports 2* AMD EPYC 7002 series (Rome) processorCompatible with AMD EPYC 7002 series (Milan), AMD EPYC 7001 series (Naples), Hygon7100, 7200, 5100/5200 (Specification reduced by half) series
Memory
  • DDR4 ECC RDIMM, LRDIMM, 3DS DIMM, NVDIMM-N memory, memory frequency up to 2933MHz, single CPU supports 8* DDR4 channel, each channel supports 1* DIMM; 2 CPUs support 16* DDR4 slots, supports single memory up to 256GB, max. 4TB
Storage   Controller
  • On board 2* MiniSAS SFF-8643 connector, supports 1* M.2 SSD (PCIe 4.0×4）

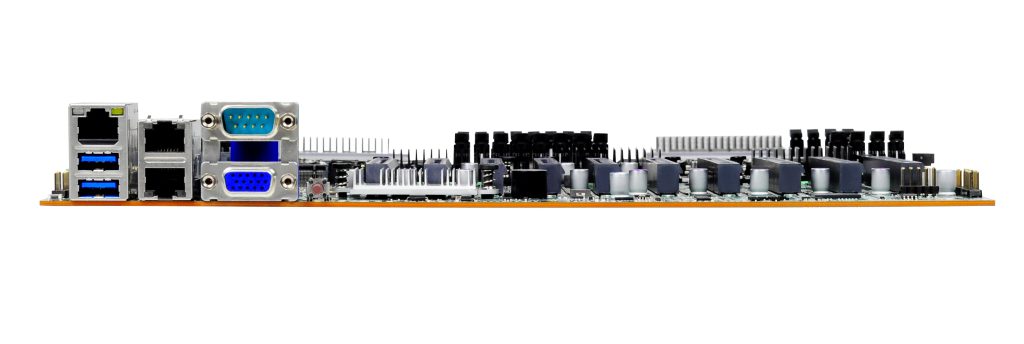

 IO
  • 1* RJ45 net port, supports link and speed indicator, 2* 1GBASE-T RJ451* VGA interface, 1* VGA pin, 1* serial port, rear 2* USB3.0On board 1 USB3.0, on board 1* USB3.0 19Pin and 1* USB2.0 9Pin

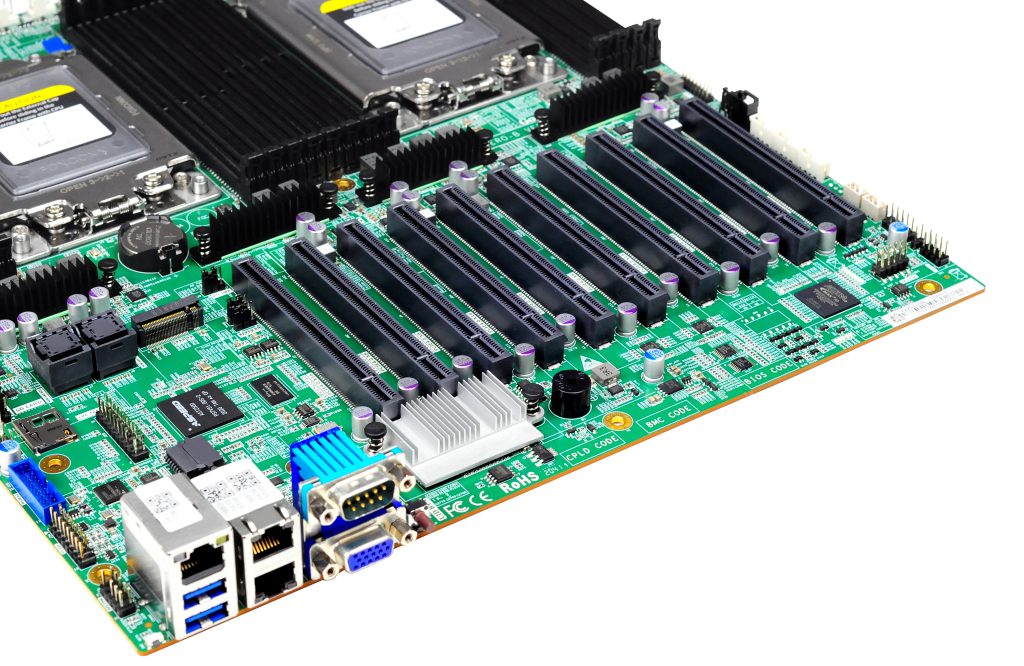

PCIe Expansion
  • Supports 6* PCIe 4.0 x8（in PCIe 4.0 x16 slot) and 4* PCIe 4.0×16 (2, 6, 7, 10 slot), PCIe 3 slot designed to x8 or no-signal, PCIe 4 slot designed tox8 or x16
BMC
  • ASPEED AST2500
 Security
  • TPM
Management
  • On board iBMC management module, supports IPMI, SOL, KVM Over IP, virtualization
 Operation   System
  • Microsoft Windows Server, Linux
Environment
 Working Environment
  • 10℃ ~ 35℃
Working Humidity
  • 35% ～ 80%
Storage
  • Temperature: -40℃～70℃; Humidity: 20%～90% (including packge)
Environment
 Working Environment
  • 10℃ ~ 35℃
Working Humidity
  • 35% ～ 80%
Storage
  • Temperature: -40℃～70℃; Humidity: 20%～90% (including packge)
Certification
Certification CCC
RoHS Accord with the demand
