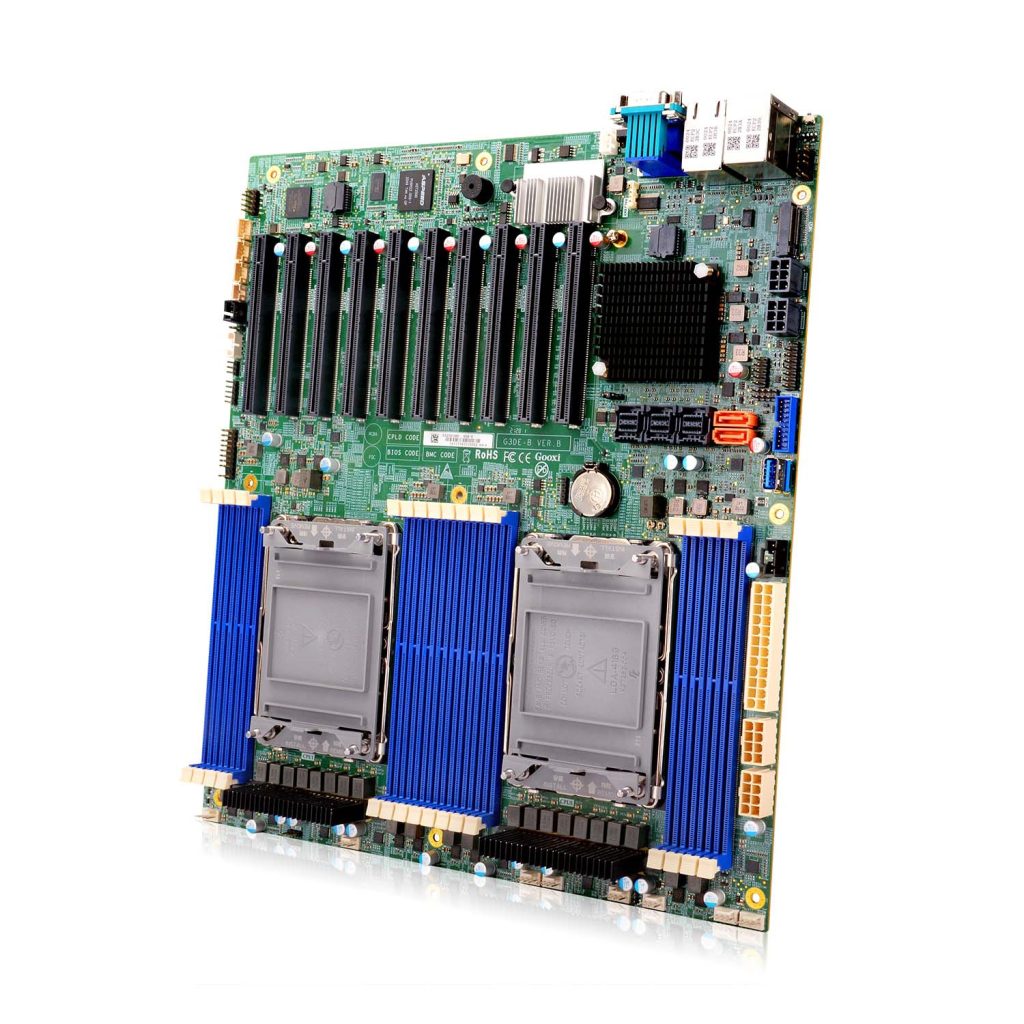

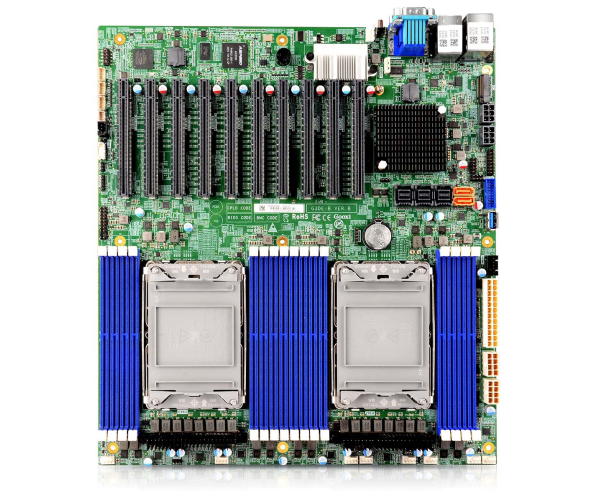

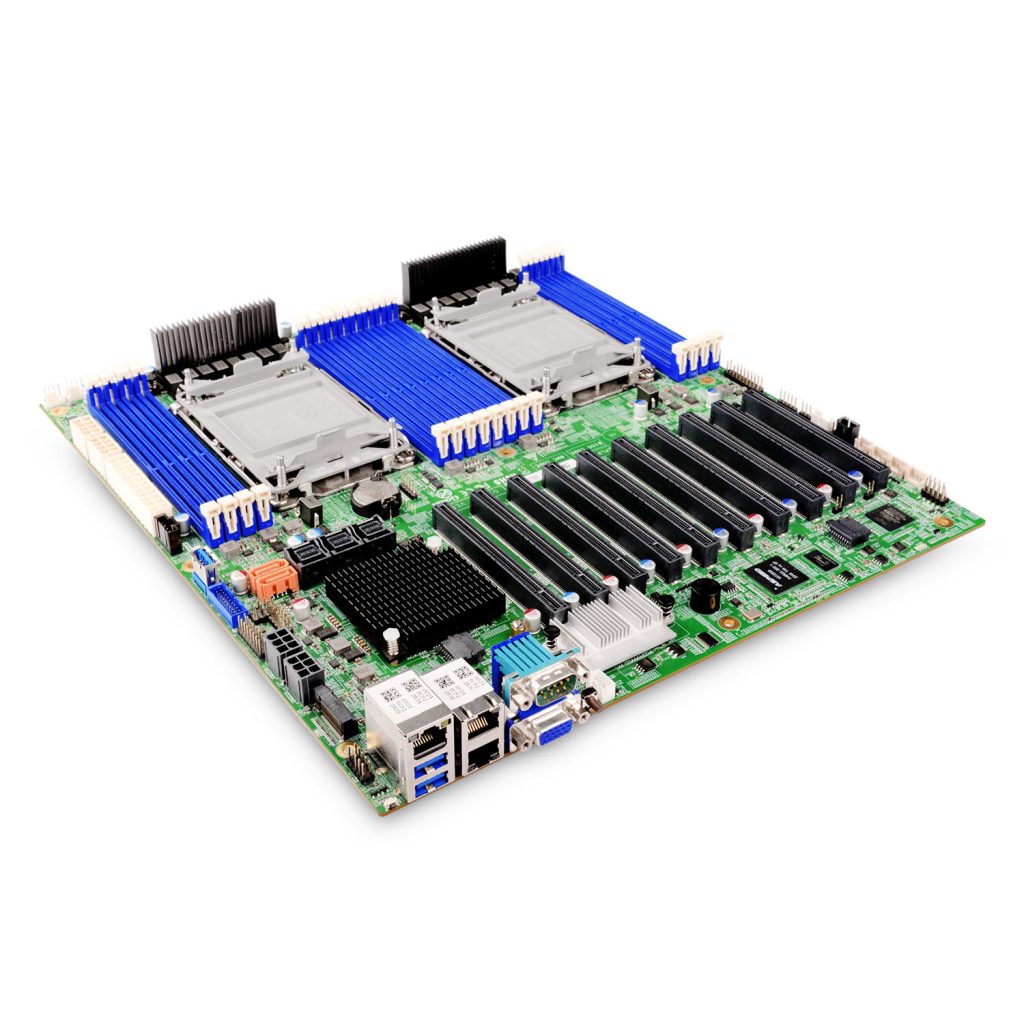

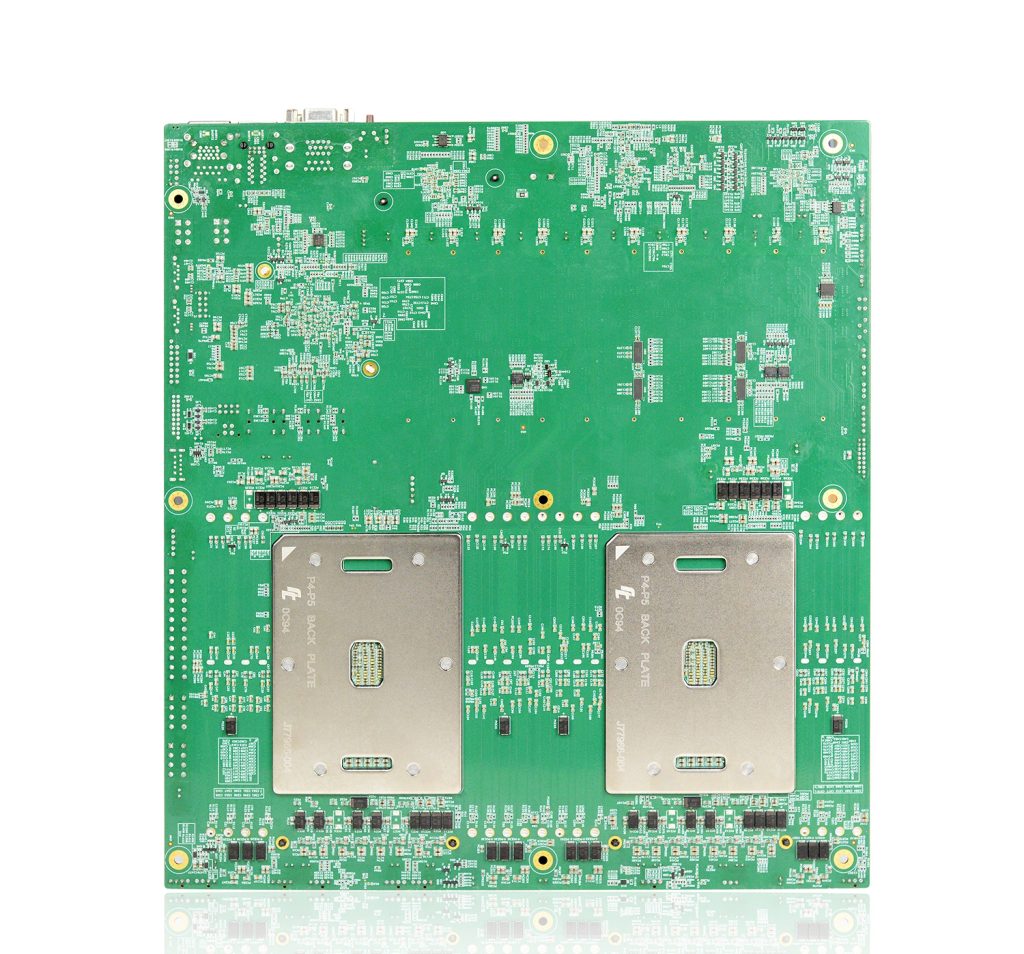

서버 마더보드 G3DE-B

Dual Socket (3rd Gen Intel® Xeon® Scalable) 마더보드 G3DE-B

서버 마더보드 G3DE-B

  • High performance: supports single/dual socket Intel® Xeon®
    Scalable ICE Lake series processors.
  • Massive capacity: memory supports 16*DDR4
    2400/2666/2933/3200 MHz.
  • Strong expansion: 6* PCIex8 and 4* PCIex 16.
  • Availability: single board hardware adopts carrier grade devices and
    processing process flow
Specifications
Motherboard
Model
  • G3DE-B
M/B type
  • E-ATX standard motherboard, PCB Size:12″(L)x 13″(W)(304.8 mm x 330.2 mm)
Main processor
  • 2* 3rd Gen Intel® Xeon® Scalable ICE Lake processors, LGA4189 socket, TDP 270W
Memory
  • DDR4 ECC RDIMM/LRDIMM server memory, memory frequency supports 2133/2400/2666/2933/3200MHz.Each CPU  supports 8 Channels, 2* DIMMs per Channel, total 16* DDR4 sockets.
Storage controller Expansion
  • Onboard 3* MiniSAS SFF-8643  ports, 2* 7pin SATA 3.0 slots (SATA DOM can be supported), 1* M.2 (PCIe x 4) portExternal HBA: support external (non-RAID), 12GBps SAS HBA
Power supply
  •  500W, 800W, 1200W, 1600W, 2200W hot-swap redundant power supply, which can support 240V and 336V DCHV, -48VDCHV

External-port

PCIe expansion
  • Onboard: VGA (AST2500), 2 USB3.0, 1 management LAN port, 1 COM port, 2 RJ45 ports. PCIe expansion slots: up to 10 PCIe expansion slots [6* PCIex8 (in PCIe x16 slot) and 4* PCIex16 (2, 6, 7, 10slot), or 4 PCIe x8 (in PCIe x16 slot) and 5 PCIe x16 (2, 4, 6, 7, 10 slot), of which 2, 6, and 7  are PCIe4.0, and the rest are PCIe3.0]
Network
  • 2* RJ45 LAN Ports (1Gigabit) + 1 RJ45 IPMI LAN Port (1Gigabit)
Security
  • Supports TPM module
Management
  • Onboard iBMC management module, support IPMI, SOL, KVM Over IP,virtual media and other management features
OS
  • Microsoft  Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise  Server, CentOS, Ubuntu
Start mode
  • HDD (Internal), optical drive, USB flash disk, PX
Virtualization
  • Citrix Xen Server, Vmware ESXi, Linux KVM, Windows Hyper-V
IPMI
  • IPMI 2.0 (ASPEED AST2500)



Ambient temperature
Operating temperature
  • 0º C – 35º C (indoor); Extended operating temperature: 5º C – 40º C (specific configuration); Transportation and storage temperature: – 40º C – 70º C
 Operating humidity
  • 30% – 80% (non condensing); Storage humidity: 5% – 95% (non condensing)
