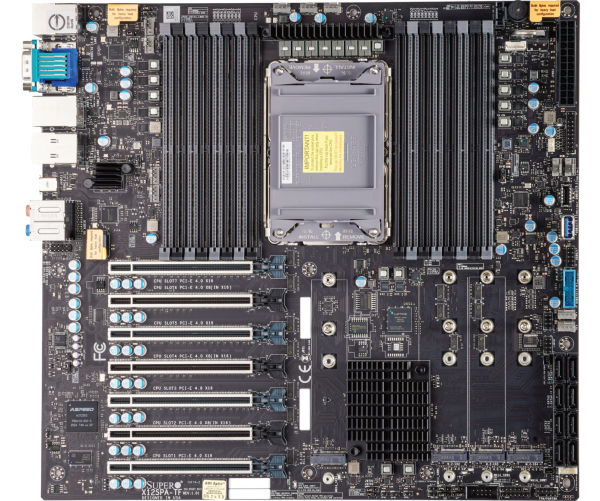

서버 마더보드 X12SPA-TF

Single Socket (3rd Gen Intel® Xeon® Scalable) 마더보드 X12SPA-TF

서버 마더보드 X12SPA-TF

  • 3rd Gen Intel® Xeon® Scalable processors, Intel® Xeon® W-3300 Processor
    Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel® C621A
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Marvell AQC113
  • Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
    Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC
    LRDIMM, DDR4-3200MHz
    Up to 4TB Intel® Optane™ Persistent Memory, DDR4-3200MHz, in
    16 DIMM slots
  • 4 PCIe 4.0 x16,
    3 PCIe 4.0 x8 (in x16 slot)
    M.2 Interface: 4 PCIe 4.0 x4
    M.2 Form Factor: 2260/2280/22110
    M.2 Key: M-Key
    M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.
  • Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 1 VGA port
    VGA connector is dedicated for IPMI.
Specifications
Product SKUs
  • MBD-X12SPA-TF



Physical Stats
Form Factor
  • E-ATX
Dimension
  • 13″ x 12″ (33.02cm x 30.48cm)



Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors, Intel® Xeon® W-3300 Processor
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
  • Up to 40 cores



System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type
  • ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V



On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Audio
  • 1x ALC 888S HD Audio port(s)ALC 888S HD Audio
Graphics
  • 1 ASPEED AST2500 BMC port(s)
    VGA connector is dedicated for IPMI.
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
  • Single LAN with Marvell AQC113



Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10GBase-T ports
USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
  • 1 USB 3.2 Gen2x2 port(s) (1 rear type C)
  • 2 USB 3.2 Gen2 port(s) (1 type A; 1 type C)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 1 SATA DOM power connector (Disk on Module) port
TPM
  • 1 TPM Header



Expansion Slots
PCI-E
  • 4 PCIe 4.0 x16,
  • 3 PCIe 4.0 x8 (in x16 slot)
  • PCIex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)
M.2



  • M.2 Interface: 4 PCIe 4.0 x4
  • Form Factor: 2260/2280/22110
  • Key: M-Key
  • M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.



System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 3.0 / 4.0
  • SMBIOS 2.7
  • PCI FW 3.0
  • RTC (Real Time Clock) Wakeup



Management
Software
  • SuperDoctor® 5, SUM, SPM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism



PC Health Monitoring
Voltage
  • VBAT, Memory, HT, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 10 -fan status
LED
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • 10x 4-pin fan headers (up to 10 fans)
  • PWM fan speed control
  • Fan speed control
  • Dual Cooling Zone
  • Status monitoring for speed control
  • Overheat LED indication



Operating Environment
Operating Temperature Range 0°C – 50°C (32°F – 122°F)
Non-Operating Temperature Range -20°C – 60°C (-4°F – 140°F)
